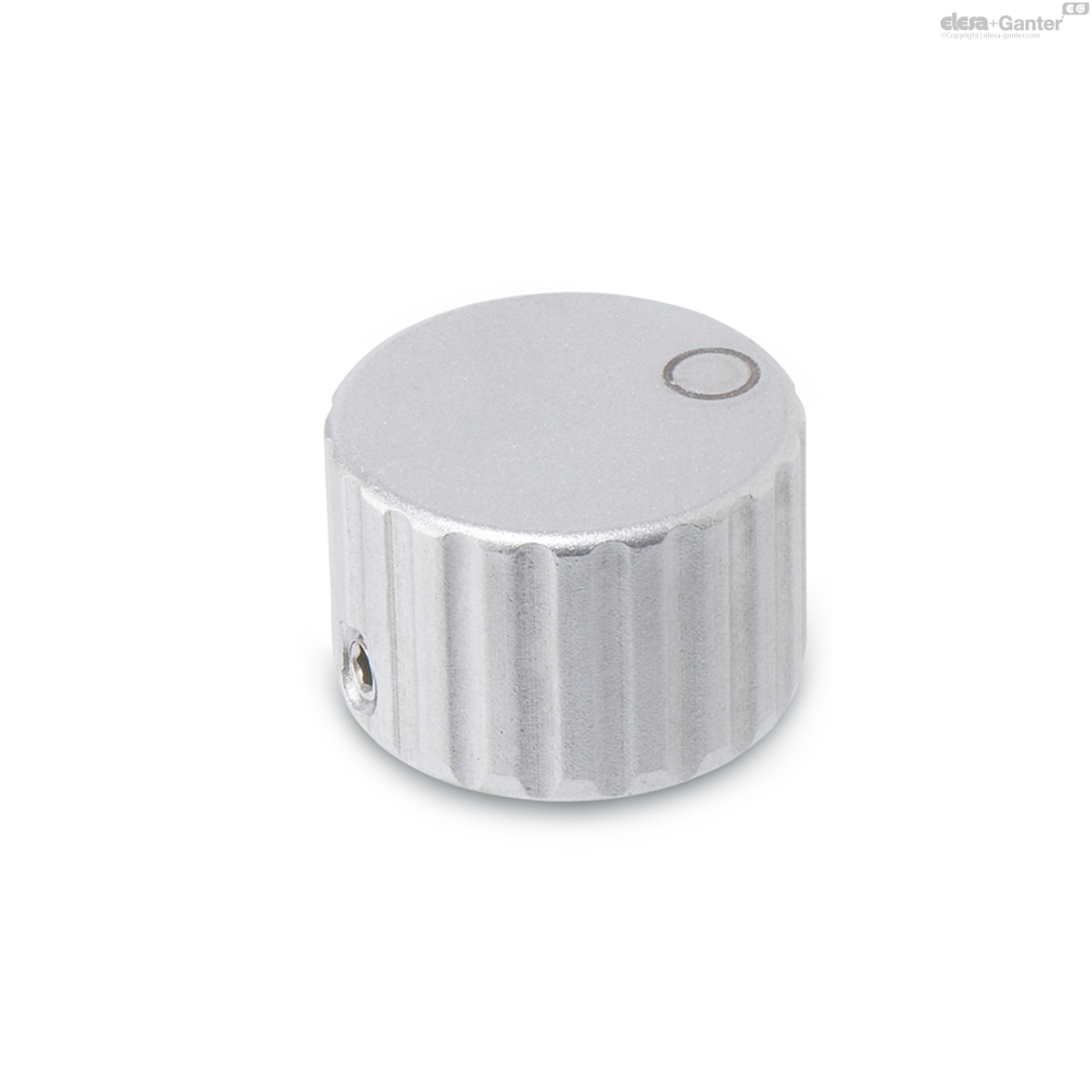

GN 436

Stainless Steel-Control knobs

Enquire Now

Description

Specification

Stainless Steel AISI 304

matt shot-blasted MT

Indicator point (Type M)

engraved with laser precision

Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

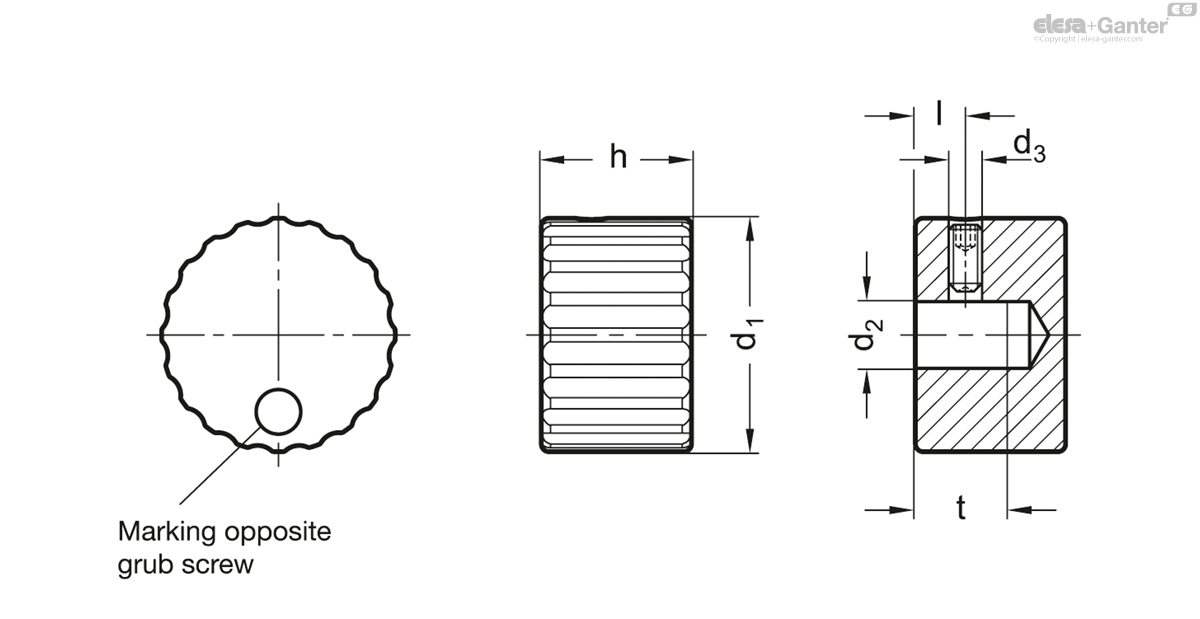

	d₁	d₂ H8	d₃	h	l	t min.
Code								Actions
GN 436-24-B5-M-MT	24	B 5	M 4	16	4	10	53
GN 436-24-B5-N-MT	24	B 5	M 4	16	4	10	53
GN 436-24-B6-M-MT	24	B 6	M 4	16	4	10	52
GN 436-24-B6-N-MT	24	B 6	M 4	16	4	10	52
GN 436-28-B6-M-MT	28	B 6	M 4	18	4	11	80
GN 436-28-B6-N-MT	28	B 6	M 4	18	4	11	80
GN 436-28-B8-M-MT	28	B 8	M 4	18	4	11	78
GN 436-28-B8-N-MT	28	B 8	M 4	18	4	11	78
