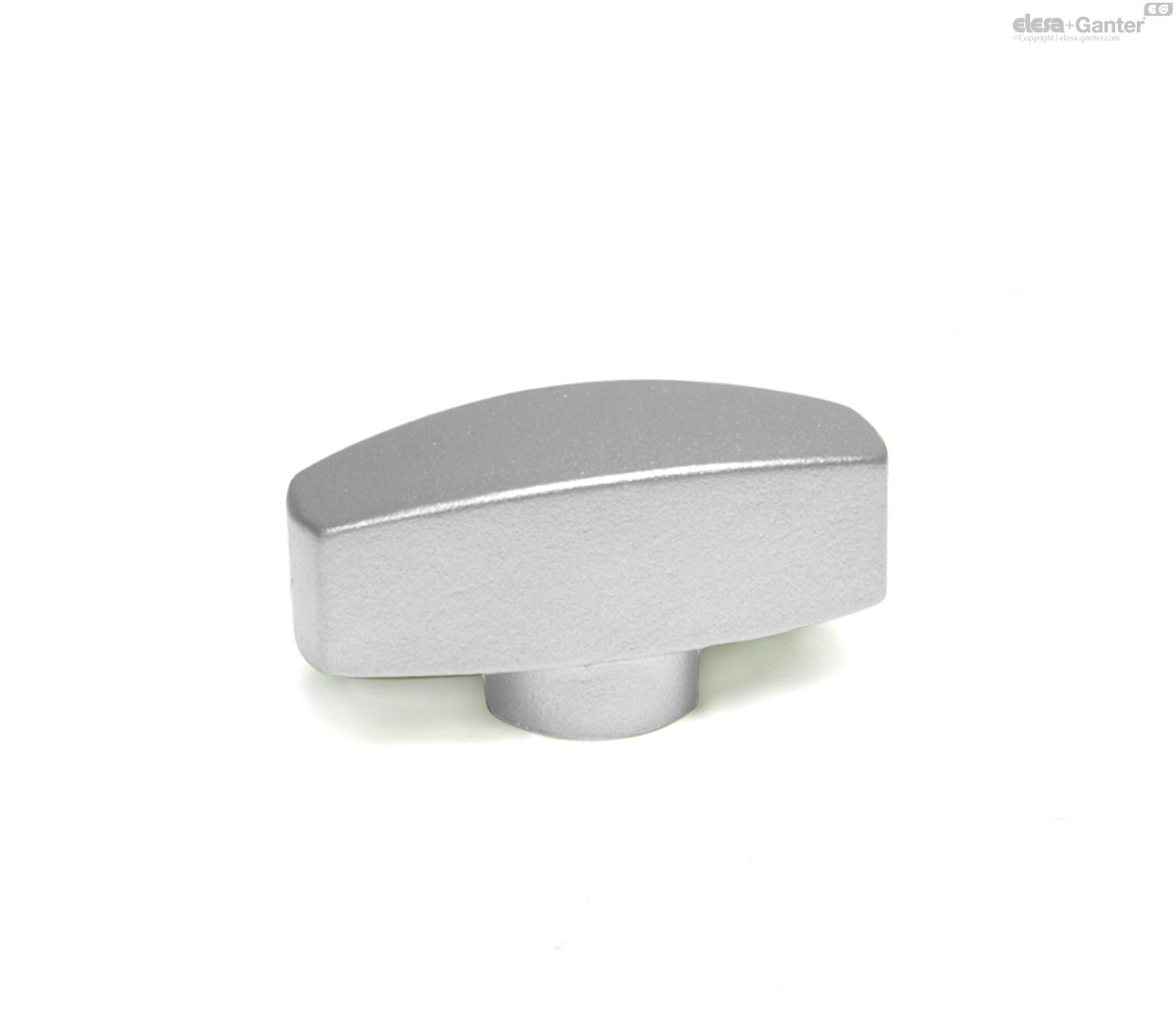

GN 434

Stainless Steel-Wing nuts

Enquire Now

Description

Specification

Stainless Steel-Precision casting

Technical information

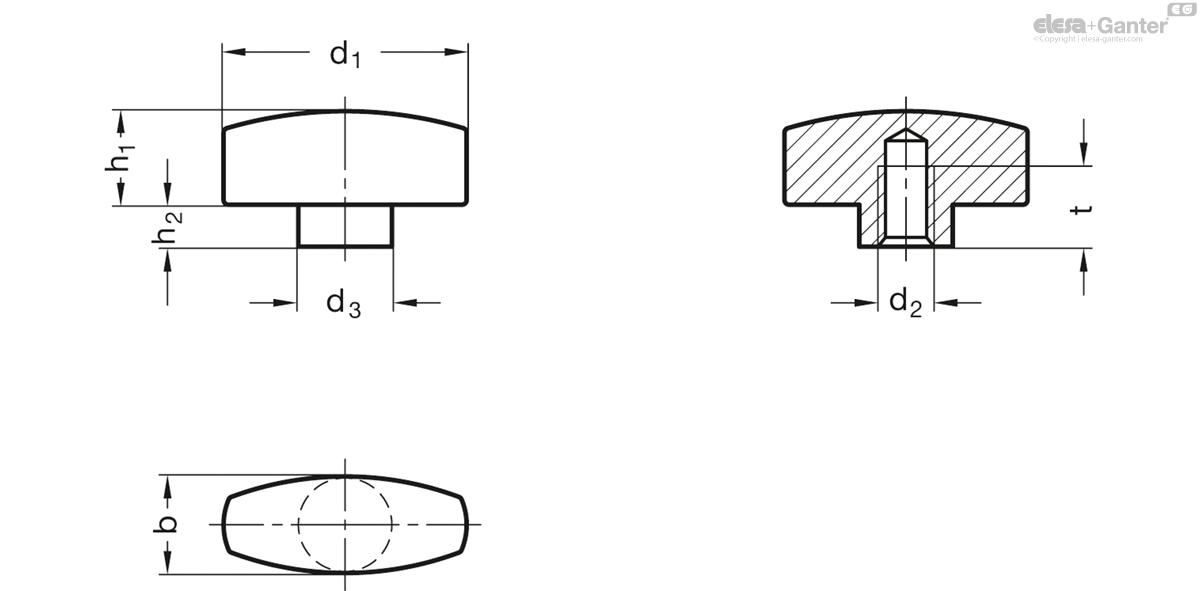

	d₁	d₂	d₃	b	h₁	h₂	t min.
Code									Actions
GN 434-NI-20-M4-MT	20	M 4	8	9	8	3.5	7	6
GN 434-NI-26-M4-MT	26	M 4	10	11	10	4.5	7	19
GN 434-NI-26-M5-MT	26	M 5	10	11	10	4.5	8	19
GN 434-NI-26-M6-MT	26	M 6	10	11	10	4.5	8	21
GN 434-NI-34-M6-MT	34	M 6	12	13	12	5	10	34
GN 434-NI-34-M8-MT	34	M 8	12	13	12	5	9	35
