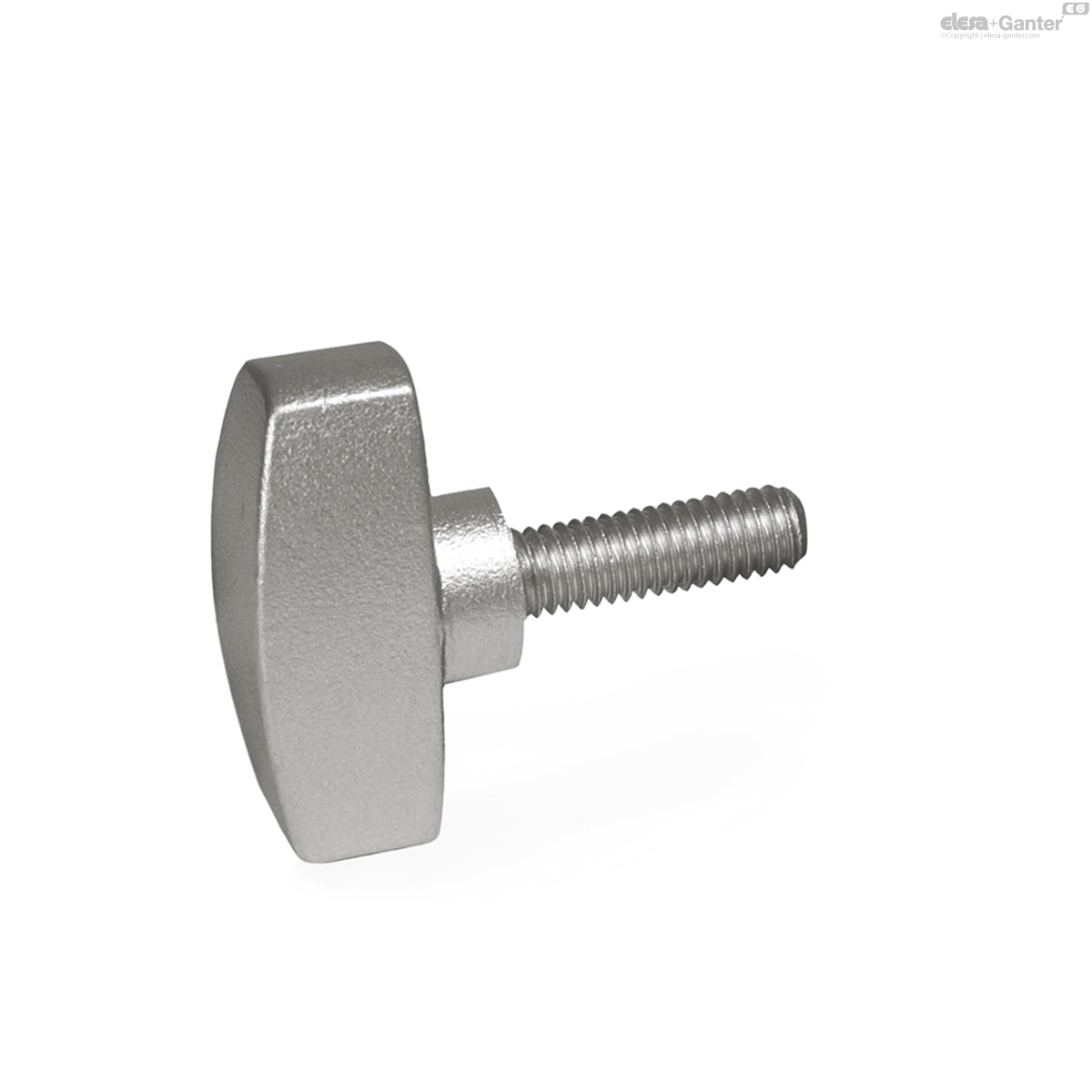

Wing screws GN 433 clamp and fasten parts easily without tools. The ergonomic shape and the projecting collar make operation easier.

The version in stainless steel A4 can be used in especially aggressive environments.

Technical information

Stainless Steel Characteristics

GN 433-NI

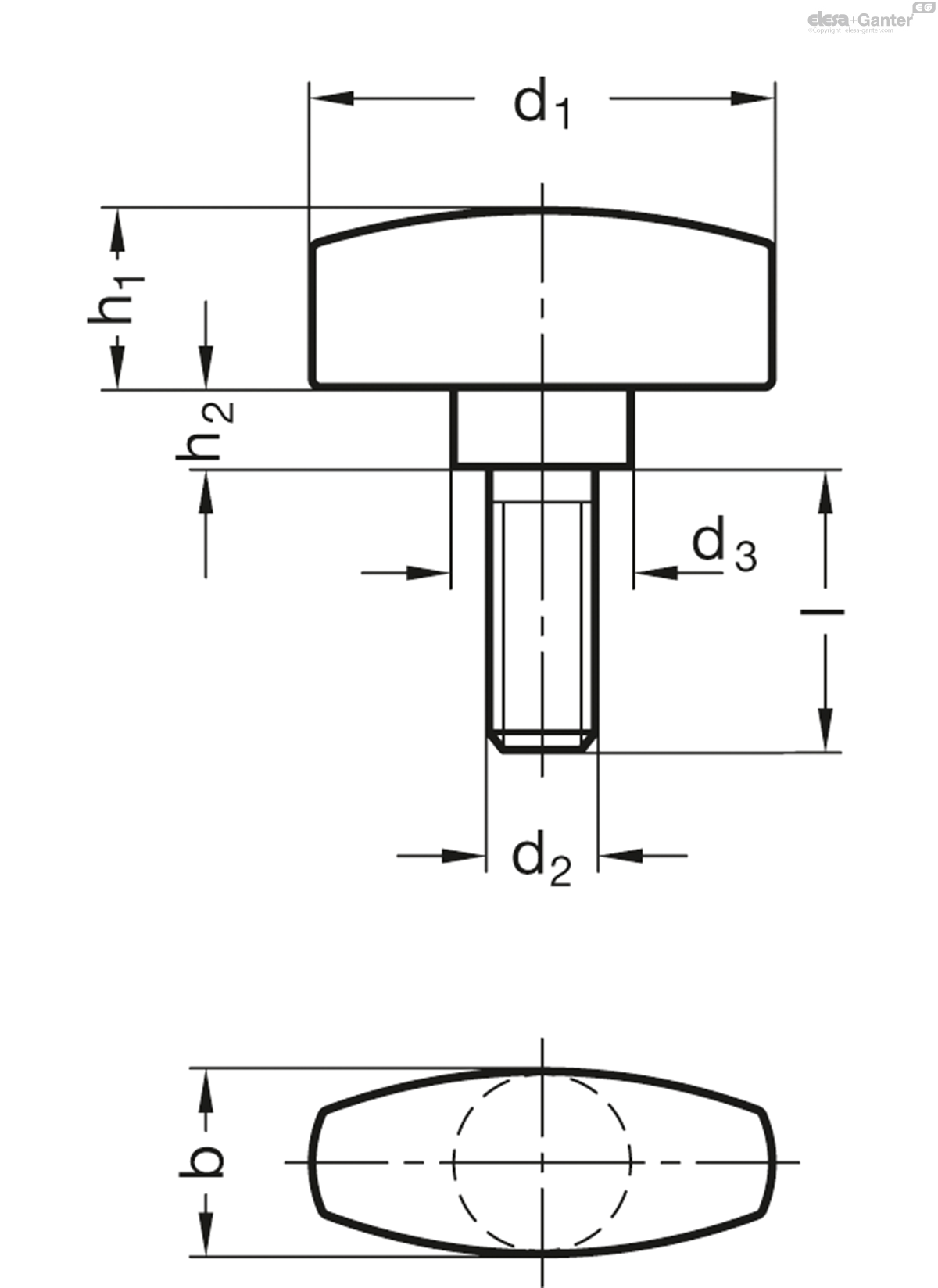

	d₁	d₂	l	b	d₃	h₁	h₂
Code									Actions
GN 433-NI-20-M4-6-MT	20	M 4	6	9	8	8	3.5	11
GN 433-NI-20-M4-10-MT	20	M 4	10	9	8	8	3.5	11
GN 433-NI-26-M4-12-MT	26	M 4	12	11	10	10	4.5	22
GN 433-NI-26-M4-16-MT	26	M 4	16	11	10	10	4.5	22
GN 433-NI-26-M5-10-MT	26	M 5	10	11	10	10	4.5	25
GN 433-NI-26-M5-12-MT	26	M 5	12	11	10	10	4.5	22
GN 433-NI-26-M5-16-MT	26	M 5	16	11	10	10	4.5	23
GN 433-NI-26-M6-12-MT	26	M 6	12	11	10	10	4.5	24
GN 433-NI-26-M6-16-MT	26	M 6	16	11	10	10	4.5	24
GN 433-NI-26-M6-20-MT	26	M 6	20	11	10	10	4.5	24
GN 433-NI-26-M6-25-MT	26	M 6	25	11	10	10	4.5	25
GN 433-NI-34-M6-16-MT	34	M 6	16	13	12	12	5	40
GN 433-NI-34-M6-20-MT	34	M 6	20	13	12	12	5	41
GN 433-NI-34-M6-25-MT	34	M 6	25	13	12	12	5	42
GN 433-NI-34-M6-30-MT	34	M 6	30	13	12	12	5	44
GN 433-NI-34-M8-16-MT	34	M 8	16	13	12	12	5	42
GN 433-NI-34-M8-20-MT	34	M 8	20	13	12	12	5	43
GN 433-NI-34-M8-25-MT	34	M 8	25	13	12	12	5	45
GN 433-NI-34-M8-30-MT	34	M 8	30	13	12	12	5	48
