GN 43-rectangular shape

Leveling Feet

Stainless Steel, with Fixing Lug, Rectangular Shape

Enquire Now

GN-43-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN-43-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN-43-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN-43-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

GN-43-W

Leveling Feet

With adjustable sleeve, covered thread and wrench flat at the bottom

GN-43-X

Leveling Feet

External hex with internal thread

Description

Specification

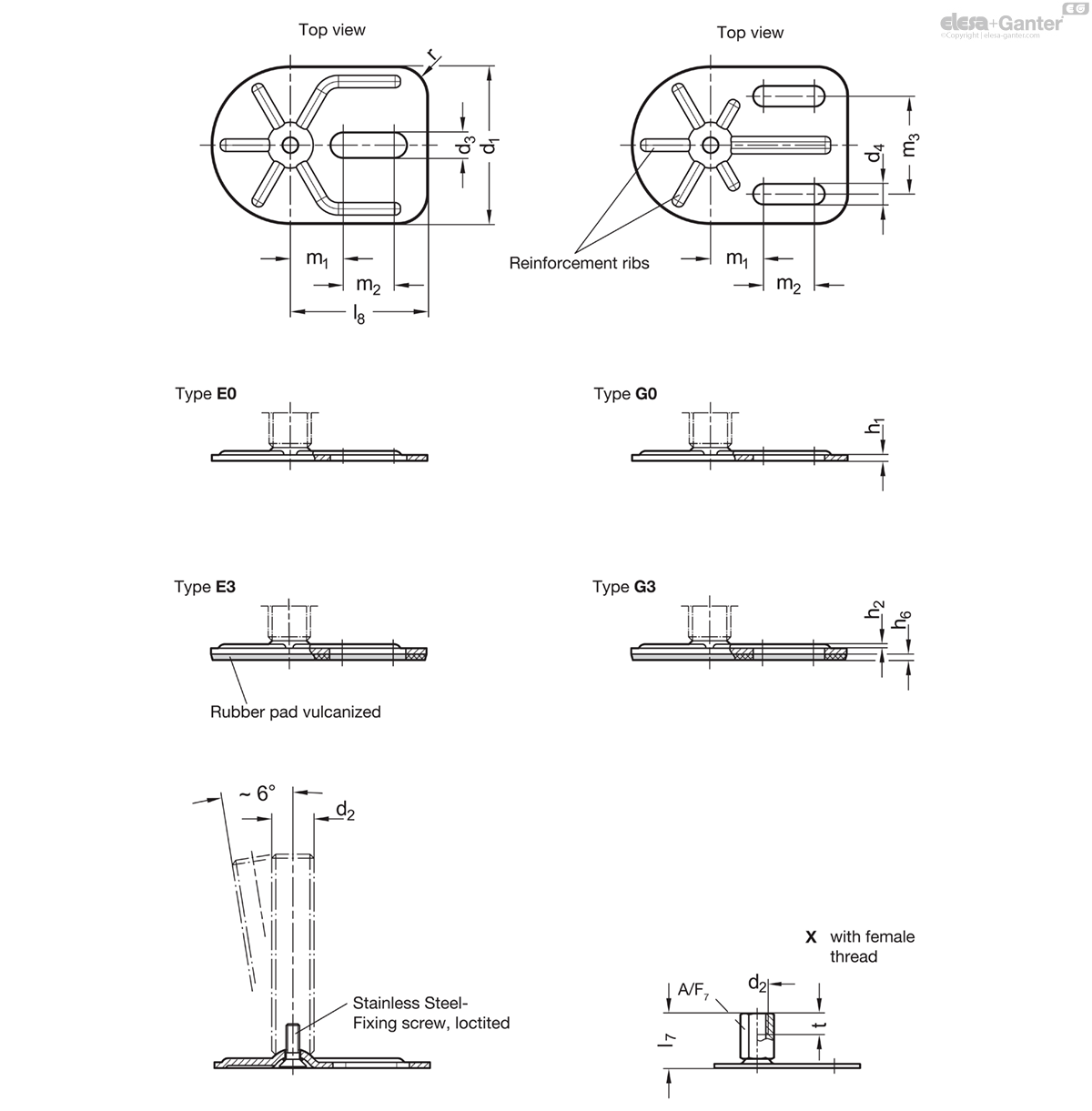

Types (Base)

Type E0: Without rubber pad, with one slotted hole

Type E3: With rubber pad, vulcanized, black, with one slotted hole

Type G0: Without rubber pad, with 2 slotted holes

Type G3: With rubber pad, vulcanized, black, with 2 slotted holes

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

Version U: Without nut, hex socket at the top, wrench flat at the bottom

Version UK: With nut, hex socket at the top, wrench flat at the bottom

Version V : Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread, wrench flat at the bottom

Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load in kN	-	-	-	-
GN 41 / GN 44	GN 43 / GN 45	GN 43	-	Versions of threaded stem	-	-	-	-
-	Drope shape	Rectangular shape	-	S / SK	T / TK and U / UK	V / VK	W	X
40	-	-	M 8	8	-	-	-	8
40	-	-	M 10	12	-	-	-	12
40	-	-	M 12	12	-	-	-	12
40	-	-	M 16	-	12	-	-	12
50	50	-	M 8	8	-	-	-	8
50	50	-	M 10	14	-	-	-	14
50	50	-	M 12	14	-	-	-	14
50	50	-	M 16	-	14	-	-	14
60	60	-	M 8	8	-	-	-	8
60	60	-	M 10	14	-	-	-	14
60	60	-	M 12	16	-	-	-	16
60	60	-	M 16	-	16	16	16	16
80	80	80	M 8	8	-	-	-	8
80	80	80	M 10	14	-	-	-	14
80	80	80	M 12	20	-	-	-	20
80	80	80	M 16	-	20	20	20	20
80	80	80	M 20	-	20	20	20	20
80	80	80	M 24	-	22	22	22	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16	W: Covered thread and wrench flat at the bottom at d₂ M 16	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

GN-43-X

	d₁	d₂	l₇	l₈	r	d₃	d₄	h₁	h₂	h₆	m₁	m₂	m₃	A/F ₇	t	Static load in kN
Code																		Actions
GN 43-80-M8-26-E0-X	80	M 8	26	70	15	13	-	3	1.3	-	27	26	-	14	8	8	221
GN 43-80-M8-26-E3-X	80	M 8	26	70	15	13	-	3	1.3	3	27	26	-	14	8	8	225
GN 43-80-M8-26-G0-X	80	M 8	26	70	15	-	10.5	3	1.3	-	27	26	50	14	8	8	215
GN 43-80-M8-26-G3-X	80	M 8	26	70	15	-	10.5	3	1.3	3	27	26	50	14	8	8	219
GN 43-80-M10-29-E0-X	80	M 10	29	70	15	13	-	3	1.3	-	27	26	-	14	10	14	221
GN 43-80-M10-29-E3-X	80	M 10	29	70	15	13	-	3	1.3	3	27	26	-	14	10	14	224
GN 43-80-M10-29-G0-X	80	M 10	29	70	15	-	10.5	3	1.3	-	27	26	50	14	10	14	215
GN 43-80-M10-29-G3-X	80	M 10	29	70	15	-	10.5	3	1.3	3	27	26	50	14	10	14	219
GN 43-80-M12-32-E0-X	80	M 12	32	70	15	13	-	3	1.3	-	27	26	-	17	12	20	233
GN 43-80-M12-32-E3-X	80	M 12	32	70	15	13	-	3	1.3	3	27	26	-	17	12	20	243
GN 43-80-M12-32-G0-X	80	M 12	32	70	15	-	10.5	3	1.3	-	27	26	50	17	12	20	227
GN 43-80-M12-32-G3-X	80	M 12	32	70	15	-	10.5	3	1.3	3	27	26	50	17	12	20	234
GN 43-80-M16-38-E0-X	80	M 16	38	70	15	13	-	3	1.3	-	27	26	-	22	16	20	249
GN 43-80-M16-38-E3-X	80	M 16	38	70	15	13	-	3	1.3	3	27	26	-	22	16	20	278
GN 43-80-M16-38-G0-X	80	M 16	38	70	15	-	10.5	3	1.3	-	27	26	50	22	16	20	243
GN 43-80-M16-38-G3-X	80	M 16	38	70	15	-	10.5	3	1.3	3	27	26	50	22	16	20	270
GN 43-80-M20-45-E0-X	80	M 20	45	70	15	13	-	3	1.3	-	27	26	-	27	20	20	314
GN 43-80-M20-45-E3-X	80	M 20	45	70	15	13	-	3	1.3	3	27	26	-	27	20	20	340
GN 43-80-M20-45-G0-X	80	M 20	45	70	15	-	10.5	3	1.3	-	27	26	50	27	20	20	308
GN 43-80-M20-45-G3-X	80	M 20	45	70	15	-	10.5	3	1.3	3	27	26	50	27	20	20	329
