Leveling Feet

Stainless Steel, with Fixing Lug, Drop Shape

Enquire Now

GN 43-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 43-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN 43-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 43-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

GN 43-W

Leveling Feet

With adjustable sleeve, covered thread and wrench flat at the bottom

GN 43-X

Leveling Feet

External hex with internal thread

Description

Specification

Types (Base)

Type D0: Without rubber pad

Type D1: With rubber pad, clipped on, black

Type D3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

Version U: Without nut, hex socket at the top, wrench flat at the bottom

Version UK: With nut, hex socket at the top, wrench flat at the bottom

Version V : Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread, wrench flat at the bottom

Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad, vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load in kN	-	-	-	-
GN 41 / GN 44	GN 43 / GN 45	GN 43	-	Versions of threaded stem	-	-	-	-
-	Drope shape	Rectangular shape	-	S / SK	T / TK and U / UK	V / VK	W	X
40	-	-	M 8	8	-	-	-	8
40	-	-	M 10	12	-	-	-	12
40	-	-	M 12	12	-	-	-	12
40	-	-	M 16	-	12	-	-	12
50	50	-	M 8	8	-	-	-	8
50	50	-	M 10	14	-	-	-	14
50	50	-	M 12	14	-	-	-	14
50	50	-	M 16	-	14	-	-	14
60	60	-	M 8	8	-	-	-	8
60	60	-	M 10	14	-	-	-	14
60	60	-	M 12	16	-	-	-	16
60	60	-	M 16	-	16	16	16	16
80	80	80	M 8	8	-	-	-	8
80	80	80	M 10	14	-	-	-	14
80	80	80	M 12	20	-	-	-	20
80	80	80	M 16	-	20	20	20	20
80	80	80	M 20	-	20	20	20	20
80	80	80	M 24	-	22	22	22	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	W: Covered thread and wrench flat at the bottom at d₂ M 16	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

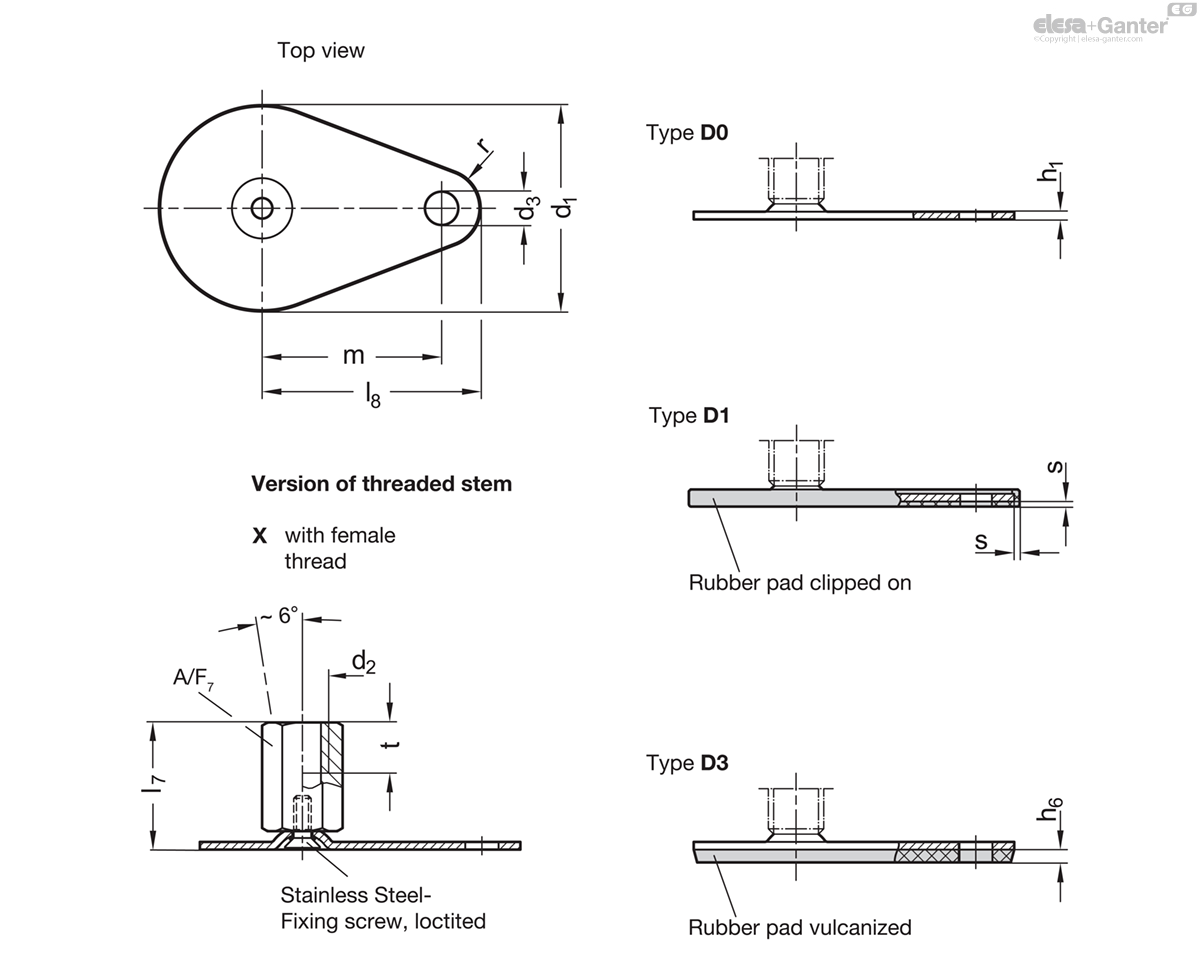

GN 43-X

	d₁	d₂	l₇	d₃	h₁	h₆	l₈	m	r	s	A/F ₇	t	Static load in kN
Code															Actions
GN 43-50-M8-25-D0-X	50	M 8	25	13	2.5	-	60	45	15	-	14	8	8	85
GN 43-50-M8-25-D1-X	50	M 8	25	13	2.5	-	60	45	15	2	14	8	8	95
GN 43-50-M8-25-D3-X	50	M 8	25	13	2.5	4	60	45	15	-	14	8	8	94
GN 43-50-M10-28-D0-X	50	M 10	28	13	2.5	-	60	45	15	-	14	10	14	90
GN 43-50-M10-28-D1-X	50	M 10	28	13	2.5	-	60	45	15	2	14	10	14	100
GN 43-50-M10-28-D3-X	50	M 10	28	13	2.5	4	60	45	15	-	14	10	14	8
GN 43-50-M12-32-D0-X	50	M 12	32	13	2.5	-	60	45	15	-	17	12	14	117
GN 43-50-M12-32-D1-X	50	M 12	32	13	2.5	-	60	45	15	2	17	12	14	110
GN 43-50-M12-32-D3-X	50	M 12	32	13	2.5	4	60	45	15	-	17	12	14	120
GN 43-50-M16-37-D0-X	50	M 16	37	13	2.5	-	60	45	15	-	22	16	14	120
GN 43-50-M16-37-D1-X	50	M 16	37	13	2.5	-	60	45	15	2	22	16	14	129
GN 43-50-M16-37-D3-X	50	M 16	37	13	2.5	4	60	45	15	-	22	16	14	160
GN 43-60-M8-25-D0-X	60	M 8	25	13	2.5	-	65	50	15	-	14	8	8	99
GN 43-60-M8-25-D1-X	60	M 8	25	13	2.5	-	65	50	15	2	14	8	8	110
GN 43-60-M8-25-D3-X	60	M 8	25	13	2.5	4.5	65	50	15	-	14	8	8	120
GN 43-60-M10-28-D0-X	60	M 10	28	13	2.5	-	65	50	15	-	14	10	14	100
GN 43-60-M10-28-D1-X	60	M 10	28	13	2.5	-	65	50	15	2	14	10	14	110
GN 43-60-M10-28-D3-X	60	M 10	28	13	2.5	4.5	65	50	15	-	14	10	14	125
GN 43-60-M12-32-D0-X	60	M 12	32	13	2.5	-	65	50	15	-	17	12	16	135
GN 43-60-M12-32-D1-X	60	M 12	32	13	2.5	-	65	50	15	2	17	12	16	145
GN 43-60-M12-32-D3-X	60	M 12	32	13	2.5	4.5	65	50	15	-	17	12	16	140
GN 43-60-M16-37-D0-X	60	M 16	37	13	2.5	-	65	50	15	-	22	16	16	500
GN 43-60-M16-37-D1-X	60	M 16	37	13	2.5	-	65	50	15	2	22	16	16	511
GN 43-60-M16-37-D3-X	60	M 16	37	13	2.5	4.5	65	50	15	-	22	16	16	170
GN 43-80-M8-26-D0-X	80	M 8	26	13	3	-	85	70	15	-	14	8	8	203
GN 43-80-M8-26-D1-X	80	M 8	26	13	3	-	85	70	15	2	14	8	8	220
GN 43-80-M8-26-D3-X	80	M 8	26	13	3	5	85	70	15	-	14	8	8	243
GN 43-80-M10-29-D0-X	80	M 10	29	13	3	-	85	70	15	-	14	10	14	202
GN 43-80-M10-29-D1-X	80	M 10	29	13	3	-	85	70	15	2	14	10	14	219
GN 43-80-M10-29-D3-X	80	M 10	29	13	3	5	85	70	15	-	14	10	14	242
GN 43-80-M12-32-D0-X	80	M 12	32	13	3	-	85	70	15	-	17	12	20	218
GN 43-80-M12-32-D1-X	80	M 12	32	13	3	-	85	70	15	2	17	12	20	235
GN 43-80-M12-32-D3-X	80	M 12	32	13	3	5	85	70	15	-	17	12	20	258
GN 43-80-M16-38-D0-X	80	M 16	38	13	3	-	85	70	15	-	22	16	20	232
GN 43-80-M16-38-D1-X	80	M 16	38	13	3	-	85	70	15	2	22	16	20	249
GN 43-80-M16-38-D3-X	80	M 16	38	13	3	5	85	70	15	-	22	16	20	273
GN 43-80-M20-45-D0-X	80	M 20	45	13	3	-	85	70	15	-	27	20	20	296
GN 43-80-M20-45-D1-X	80	M 20	45	13	3	-	85	70	15	2	27	20	20	313
GN 43-80-M20-45-D3-X	80	M 20	45	13	3	5	85	70	15	-	27	20	20	335
