GN 43-rectangular shape

Leveling Feet
Stainless Steel, with Fixing Lug, Rectangular Shape
__logo__INOX__ __logo__RoHS__
Enquire Now
product image
GN-43-S/SK
Leveling Feet
With / without nut, external hex at the bottom
product image
GN-43-T/TK
Leveling Feet
With / without nut, wrench flat at the bottom
product image
GN-43-U/UK
Leveling Feet
With / without nut, hex socket at the top and wrench flat at the bottom
product image

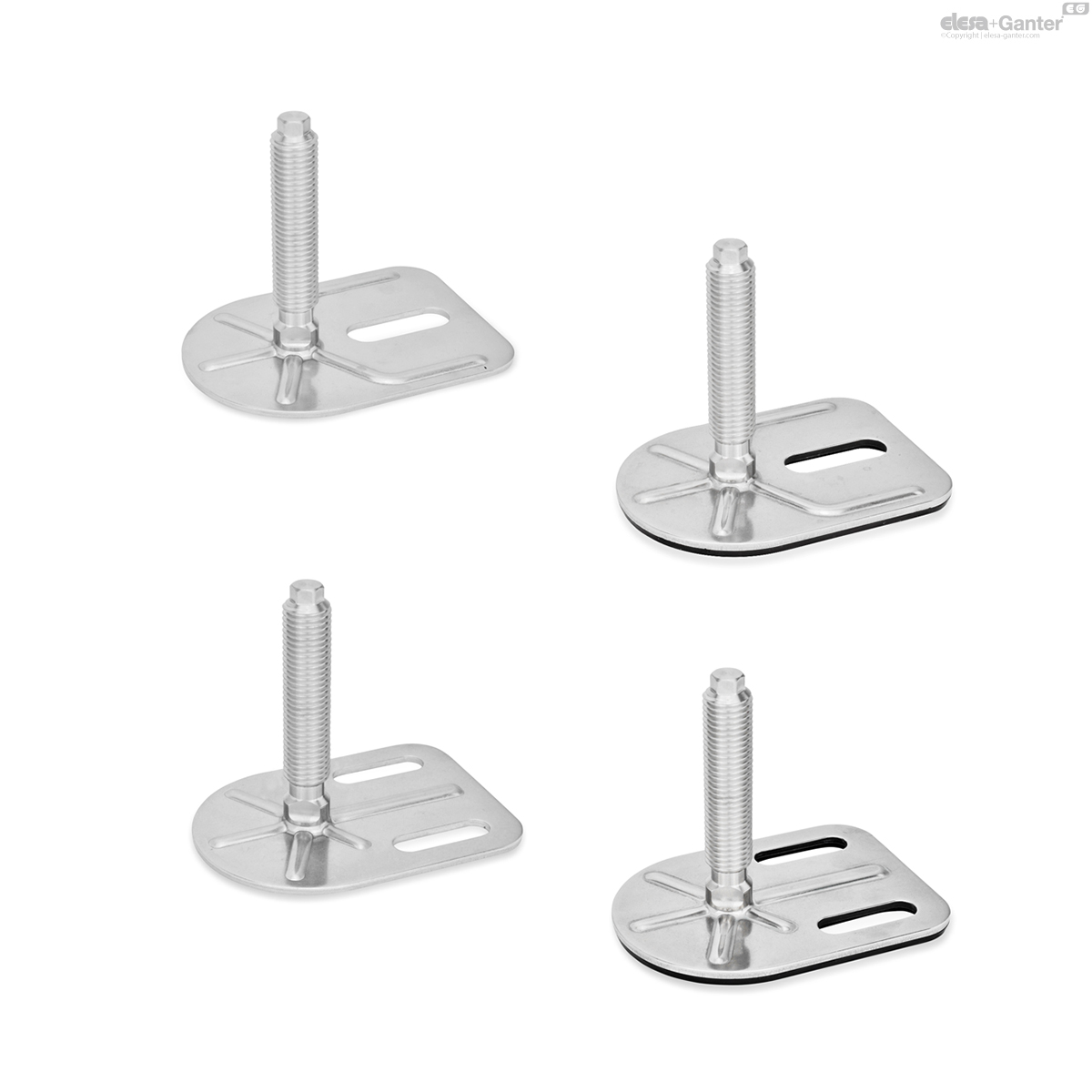

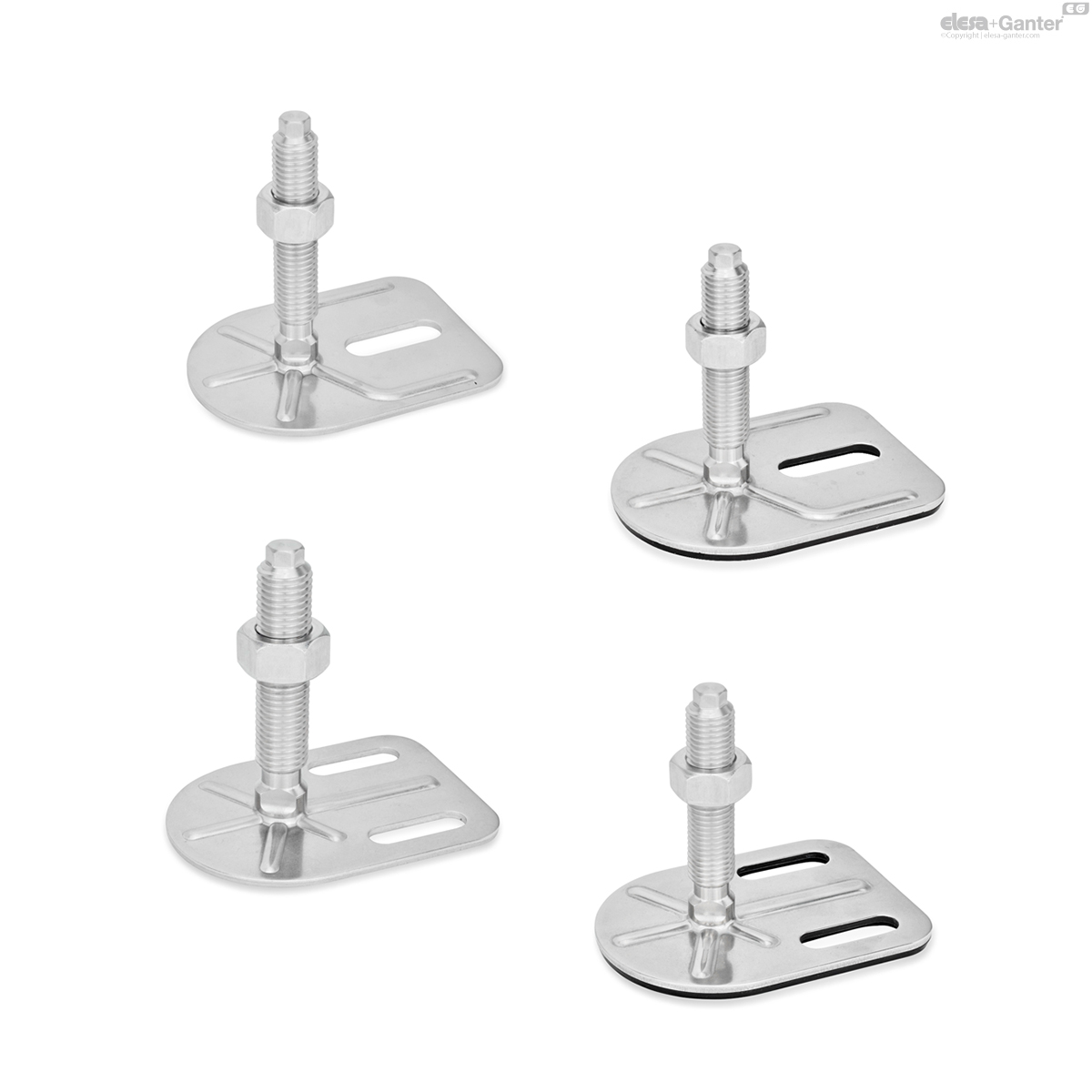

GN-43-V/VK
Leveling Feet
With / without nut, external hex at the top and wrench flat at the bottom
product image
GN-43-W
Leveling Feet
With adjustable sleeve, covered thread and wrench flat at the bottom
product image
GN-43-X
Leveling Feet
External hex with internal thread
  • product-image
  • product-image
  • product-image

Description

Specification

Types (Base)

  • Type E0: Without rubber pad, with one slotted hole
  • Type E3: With rubber pad, vulcanized, black, with one slotted hole
  • Type G0: Without rubber pad, with 2 slotted holes
  • Type G3: With rubber pad, vulcanized, black, with 2 slotted holes

Version (Screw)

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom
  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom
  • Version U: Without nut, hex socket at the top, wrench flat at the bottom
  • Version UK: With nut, hex socket at the top, wrench flat at the bottom
  • Version V : Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom
  • Version W: With adjustable sleeve, covered thread, wrench flat at the bottom
  • Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, vulcanized

  • Black, NBR (Perbunan®)
  • 70 ± 5 Shore A
Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information
  • Plastic Characteristics
  • Stainless Steel Characteristics
Load Rating of Leveling Feet
d1--d2Static load in kN----
GN 41 / GN 44GN 43 / GN 45GN 43-Versions of threaded stem----
-Drope shapeRectangular shape-S / SKT / TK and U / UKV / VKWX
40--M 88---8
40--M 1012---12
40--M 1212---12
40--M 16-12--12
5050-M 88---8
5050-M 1014---14
5050-M 1214---14
5050-M 16-14--14
6060-M 88---8
6060-M 1014---14
6060-M 1216---16
6060-M 16-16161616
808080M 88---8
808080M 1014---14
808080M 1220---20
808080M 16-20202020
808080M 20-20202020
808080M 24-222222-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2.

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem
Versions of threaded stem
____logo__42_NA-22435-0______logo__43_NA-22441-0______logo__42_NA-22431-0__
S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24
____logo__43_NA-22437-0______logo__43_NA-22439-0______logo__42_NA-22433-0__
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16W: Covered thread and wrench flat at the bottom at d2 M 16X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20

GN-43-V/VK

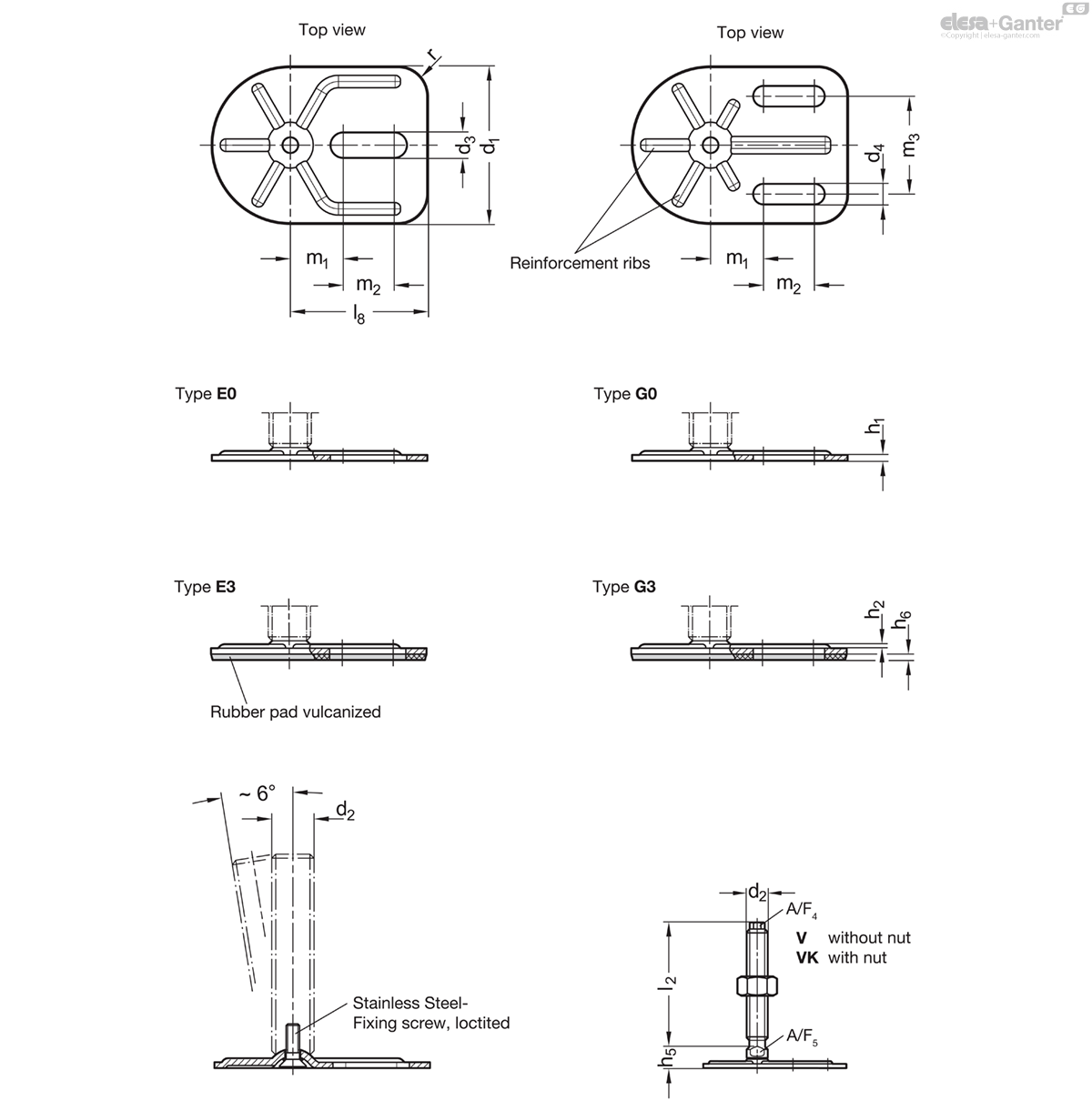

Color d1 d2 l2 l8 r d3 d4 h1 h2 h5 h6 m1 m2 m3 A/F 4 A/F 5 Static load
in kN		 __logo__weight__
Code Actions
GN 43-80-M16-75-E0-V V 80 M 16 75 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 276 cart-icon
GN 43-80-M16-75-E0-VK VK 80 M 16 75 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 305 cart-icon
GN 43-80-M16-75-E3-V V 80 M 16 75 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 306 cart-icon
GN 43-80-M16-75-E3-VK VK 80 M 16 75 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 335 cart-icon
GN 43-80-M16-75-G0-V V 80 M 16 75 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 270 cart-icon
GN 43-80-M16-75-G0-VK VK 80 M 16 75 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 300 cart-icon
GN 43-80-M16-75-G3-V V 80 M 16 75 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 297 cart-icon
GN 43-80-M16-75-G3-VK VK 80 M 16 75 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 327 cart-icon
GN 43-80-M16-100-E0-V V 80 M 16 100 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 310 cart-icon
GN 43-80-M16-100-E0-VK VK 80 M 16 100 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 344 cart-icon
GN 43-80-M16-100-E3-V V 80 M 16 100 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 340 cart-icon
GN 43-80-M16-100-E3-VK VK 80 M 16 100 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 374 cart-icon
GN 43-80-M16-100-G0-V V 80 M 16 100 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 304 cart-icon
GN 43-80-M16-100-G0-VK VK 80 M 16 100 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 338 cart-icon
GN 43-80-M16-100-G3-V V 80 M 16 100 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 331 cart-icon
GN 43-80-M16-100-G3-VK VK 80 M 16 100 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 365 cart-icon
GN 43-80-M16-125-E0-V V 80 M 16 125 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 342 cart-icon
GN 43-80-M16-125-E0-VK VK 80 M 16 125 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 376 cart-icon
GN 43-80-M16-125-E3-V V 80 M 16 125 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 372 cart-icon
GN 43-80-M16-125-E3-VK VK 80 M 16 125 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 406 cart-icon
GN 43-80-M16-125-G0-V V 80 M 16 125 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 336 cart-icon
GN 43-80-M16-125-G0-VK VK 80 M 16 125 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 370 cart-icon
GN 43-80-M16-125-G3-V V 80 M 16 125 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 363 cart-icon
GN 43-80-M16-125-G3-VK VK 80 M 16 125 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 397 cart-icon
GN 43-80-M16-150-E0-V V 80 M 16 150 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 375 cart-icon
GN 43-80-M16-150-E0-VK VK 80 M 16 150 70 15 13 - 3 1.3 15 - 27 26 - 10 12 20 409 cart-icon
GN 43-80-M16-150-E3-V V 80 M 16 150 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 405 cart-icon
GN 43-80-M16-150-E3-VK VK 80 M 16 150 70 15 13 - 3 1.3 15 3 27 26 - 10 12 20 439 cart-icon
GN 43-80-M16-150-G0-V V 80 M 16 150 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 369 cart-icon
GN 43-80-M16-150-G0-VK VK 80 M 16 150 70 15 - 10.5 3 1.3 15 - 27 26 50 10 12 20 403 cart-icon
GN 43-80-M16-150-G3-V V 80 M 16 150 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 396 cart-icon
GN 43-80-M16-150-G3-VK VK 80 M 16 150 70 15 - 10.5 3 1.3 15 3 27 26 50 10 12 20 430 cart-icon
