GN 43

Leveling Feet
Stainless Steel, with Fixing Lug, Drop Shape
__logo__INOX__ __logo__RoHS__
Enquire Now
product image
GN 43-S/SK
Leveling Feet
With / without nut, external hex at the bottom
product image
GN 43-T/TK
Leveling Feet
With / without nut, wrench flat at the bottom
product image
GN 43-U/UK
Leveling Feet
With / without nut, hex socket at the top and wrench flat at the bottom
product image
GN 43-V/VK
Leveling Feet
With / without nut, external hex at the top and wrench flat at the bottom
product image
GN 43-W
Leveling Feet
With adjustable sleeve, covered thread and wrench flat at the bottom
product image
GN 43-X
Leveling Feet
External hex with internal thread
  • product-image
  • product-image
  • product-image

Description

Specification

Types (Base)

  • Type D0: Without rubber pad
  • Type D1: With rubber pad, clipped on, black
  • Type D3: With rubber pad, vulcanized, black

Version (Screw)

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom
  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom
  • Version U: Without nut, hex socket at the top, wrench flat at the bottom
  • Version UK: With nut, hex socket at the top, wrench flat at the bottom
  • Version V : Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom
  • Version W: With adjustable sleeve, covered thread, wrench flat at the bottom
  • Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, clipped on

  • Black, TPE (Santoprene®)
  • ≈ 80 Shore A

Rubber pad, vulcanized

  • Black, NBR (Perbunan®)
  • 70 ± 5 Shore A
Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information
  • Plastic Characteristics
  • Stainless Steel Characteristics
Load Rating of Leveling Feet
d1--d2Static load in kN----
GN 41 / GN 44GN 43 / GN 45GN 43-Versions of threaded stem----
-Drope shapeRectangular shape-S / SKT / TK and U / UKV / VKWX
40--M 88---8
40--M 1012---12
40--M 1212---12
40--M 16-12--12
5050-M 88---8
5050-M 1014---14
5050-M 1214---14
5050-M 16-14--14
6060-M 88---8
6060-M 1014---14
6060-M 1216---16
6060-M 16-16161616
808080M 88---8
808080M 1014---14
808080M 1220---20
808080M 16-20202020
808080M 20-20202020
808080M 24-222222-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2.

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem
Versions of threaded stem
____logo__42_NA-22411-0______logo__43_NA-22417-0______logo__42_NA-22425-0__

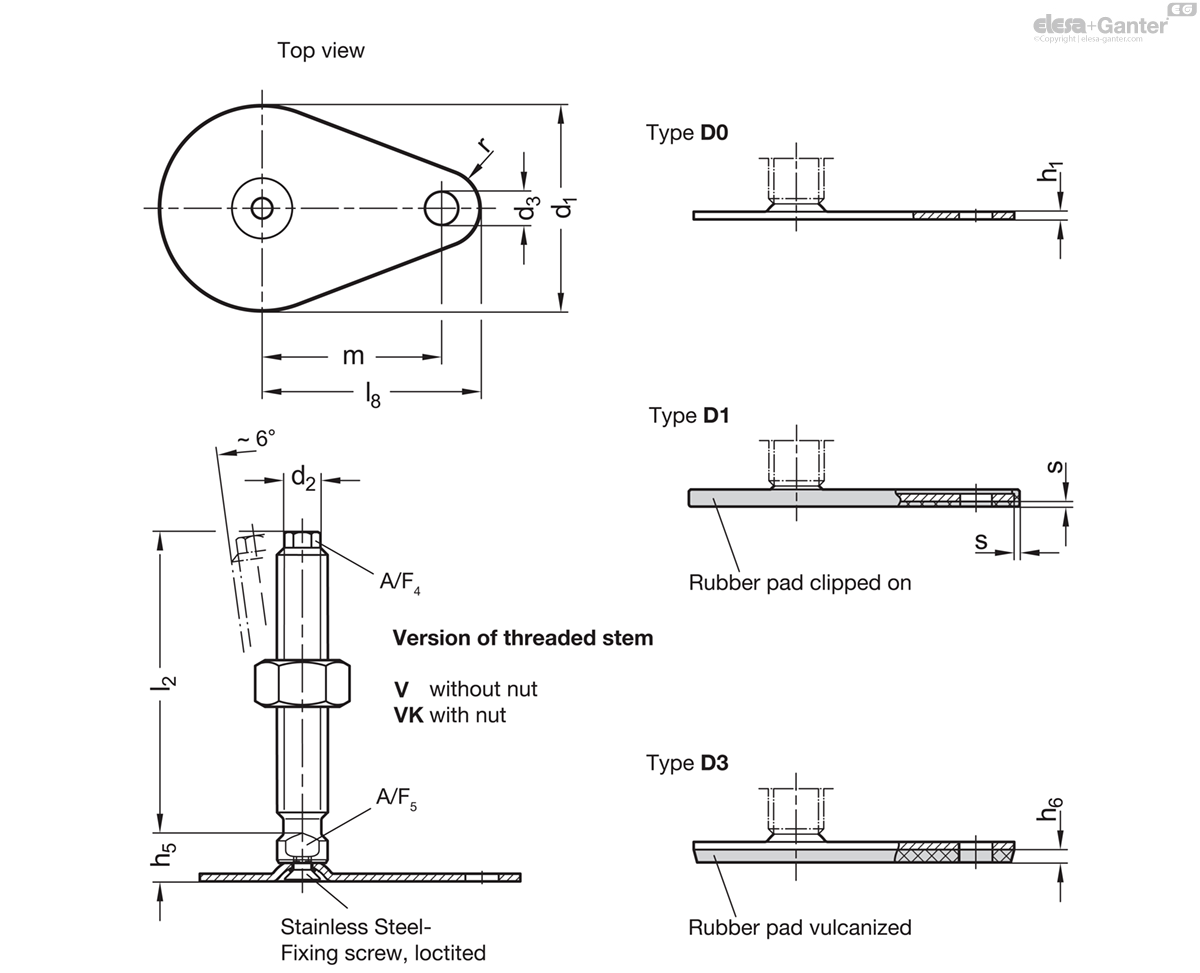

S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24
____logo__43_NA-22419-0______logo__43_NA-22415-1______logo__42_NA-22409-0__

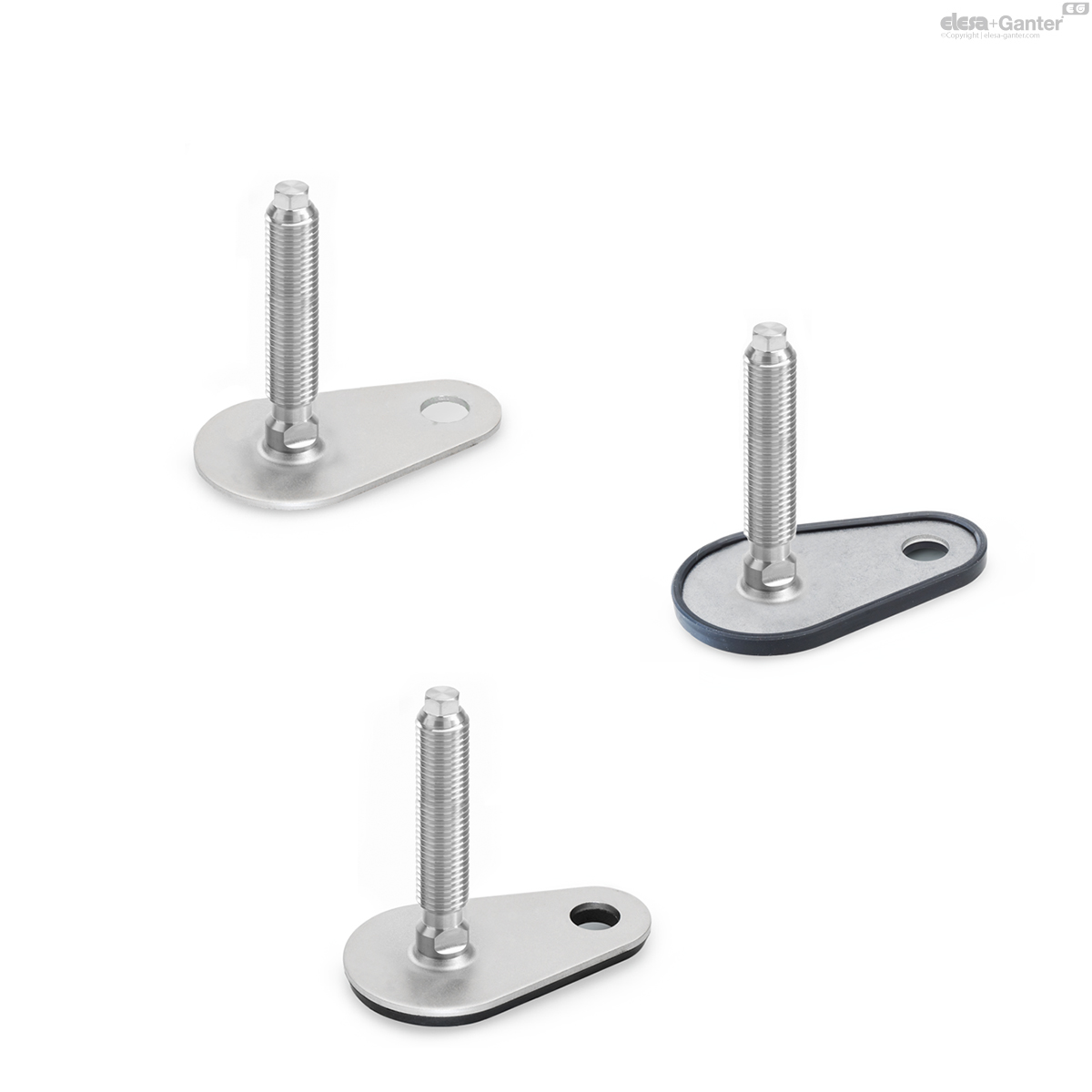

V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24W: Covered thread and wrench flat at the bottom at d2 M 16X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20

GN 43-V/VK

Color d1 d2 l2 d3 h1 h5 h6 l8 m r s A/F 4 A/F 5 Static load
in kN		 __logo__weight__
Code Actions
GN 43-60-M16-75-D0-V V 60 M 16 75 13 2.5 14 - 65 50 15 - 10 12 16 177 cart-icon
GN 43-60-M16-75-D0-VK VK 60 M 16 75 13 2.5 14 - 65 50 15 - 10 12 16 205 cart-icon
GN 43-60-M16-75-D1-V V 60 M 16 75 13 2.5 14 - 65 50 15 2 10 12 16 188 cart-icon
GN 43-60-M16-75-D1-VK VK 60 M 16 75 13 2.5 14 - 65 50 15 2 10 12 16 216 cart-icon
GN 43-60-M16-75-D3-V V 60 M 16 75 13 2.5 14 4.5 65 50 15 - 10 12 16 197 cart-icon
GN 43-60-M16-75-D3-VK VK 60 M 16 75 13 2.5 14 4.5 65 50 15 - 10 12 16 225 cart-icon
GN 43-60-M16-100-D0-V V 60 M 16 100 13 2.5 14 - 65 50 15 - 10 12 16 211 cart-icon
GN 43-60-M16-100-D0-VK VK 60 M 16 100 13 2.5 14 - 65 50 15 - 10 12 16 245 cart-icon
GN 43-60-M16-100-D1-V V 60 M 16 100 13 2.5 14 - 65 50 15 2 10 12 16 221 cart-icon
GN 43-60-M16-100-D1-VK VK 60 M 16 100 13 2.5 14 - 65 50 15 2 10 12 16 255 cart-icon
GN 43-60-M16-100-D3-V V 60 M 16 100 13 2.5 14 4.5 65 50 15 - 10 12 16 231 cart-icon
GN 43-60-M16-100-D3-VK VK 60 M 16 100 13 2.5 14 4.5 65 50 15 - 10 12 16 265 cart-icon
GN 43-60-M16-125-D0-V V 60 M 16 125 13 2.5 14 - 65 50 15 - 10 12 16 243 cart-icon
GN 43-60-M16-125-D0-VK VK 60 M 16 125 13 2.5 14 - 65 50 15 - 10 12 16 277 cart-icon
GN 43-60-M16-125-D1-V V 60 M 16 125 13 2.5 14 - 65 50 15 2 10 12 16 253 cart-icon
GN 43-60-M16-125-D1-VK VK 60 M 16 125 13 2.5 14 - 65 50 15 2 10 12 16 287 cart-icon
GN 43-60-M16-125-D3-V V 60 M 16 125 13 2.5 14 4.5 65 50 15 - 10 12 16 263 cart-icon
GN 43-60-M16-125-D3-VK VK 60 M 16 125 13 2.5 14 4.5 65 50 15 - 10 12 16 297 cart-icon
GN 43-60-M16-150-D0-V V 60 M 16 150 13 2.5 14 - 65 50 15 - 10 12 16 276 cart-icon
GN 43-60-M16-150-D0-VK VK 60 M 16 150 13 2.5 14 - 65 50 15 - 10 12 16 310 cart-icon
GN 43-60-M16-150-D1-V V 60 M 16 150 13 2.5 14 - 65 50 15 2 10 12 16 286 cart-icon
GN 43-60-M16-150-D1-VK VK 60 M 16 150 13 2.5 14 - 65 50 15 2 10 12 16 320 cart-icon
GN 43-60-M16-150-D3-V V 60 M 16 150 13 2.5 14 4.5 65 50 15 - 10 12 16 296 cart-icon
GN 43-60-M16-150-D3-VK VK 60 M 16 150 13 2.5 14 4.5 65 50 15 - 10 12 16 330 cart-icon
GN 43-80-M16-75-D0-V V 80 M 16 75 13 3 15 - 85 70 15 - 10 12 20 259 cart-icon
GN 43-80-M16-75-D0-VK VK 80 M 16 75 13 3 15 - 85 70 15 - 10 12 20 288 cart-icon
GN 43-80-M16-75-D1-V V 80 M 16 75 13 3 15 - 85 70 15 2 10 12 20 276 cart-icon
GN 43-80-M16-75-D1-VK VK 80 M 16 75 13 3 15 - 85 70 15 2 10 12 20 305 cart-icon
GN 43-80-M16-75-D3-V V 80 M 16 75 13 3 15 5 85 70 15 - 10 12 20 300 cart-icon
GN 43-80-M16-75-D3-VK VK 80 M 16 75 13 3 15 5 85 70 15 - 10 12 20 329 cart-icon
GN 43-80-M16-100-D0-V V 80 M 16 100 13 3 15 - 85 70 15 - 10 12 20 293 cart-icon
GN 43-80-M16-100-D0-VK VK 80 M 16 100 13 3 15 - 85 70 15 - 10 12 20 327 cart-icon
GN 43-80-M16-100-D1-V V 80 M 16 100 13 3 15 - 85 70 15 2 10 12 20 310 cart-icon
GN 43-80-M16-100-D1-VK VK 80 M 16 100 13 3 15 - 85 70 15 2 10 12 20 344 cart-icon
GN 43-80-M16-100-D3-V V 80 M 16 100 13 3 15 5 85 70 15 - 10 12 20 334 cart-icon
GN 43-80-M16-100-D3-VK VK 80 M 16 100 13 3 15 5 85 70 15 - 10 12 20 368 cart-icon
GN 43-80-M16-125-D0-V V 80 M 16 125 13 3 15 - 85 70 15 - 10 12 20 325 cart-icon
GN 43-80-M16-125-D0-VK VK 80 M 16 125 13 3 15 - 85 70 15 - 10 12 20 359 cart-icon
GN 43-80-M16-125-D1-V V 80 M 16 125 13 3 15 - 85 70 15 2 10 12 20 342 cart-icon
GN 43-80-M16-125-D1-VK VK 80 M 16 125 13 3 15 - 85 70 15 2 10 12 20 376 cart-icon
GN 43-80-M16-125-D3-V V 80 M 16 125 13 3 15 5 85 70 15 - 10 12 20 366 cart-icon
GN 43-80-M16-125-D3-VK VK 80 M 16 125 13 3 15 5 85 70 15 - 10 12 20 400 cart-icon
GN 43-80-M16-150-D0-V V 80 M 16 150 13 3 15 - 85 70 15 - 10 12 20 358 cart-icon
GN 43-80-M16-150-D0-VK VK 80 M 16 150 13 3 15 - 85 70 15 - 10 12 20 392 cart-icon
GN 43-80-M16-150-D1-V V 80 M 16 150 13 3 15 - 85 70 15 2 10 12 20 375 cart-icon
GN 43-80-M16-150-D1-VK VK 80 M 16 150 13 3 15 - 85 70 15 2 10 12 20 409 cart-icon
GN 43-80-M16-150-D3-V V 80 M 16 150 13 3 15 5 85 70 15 - 10 12 20 399 cart-icon
GN 43-80-M16-150-D3-VK VK 80 M 16 150 13 3 15 5 85 70 15 - 10 12 20 433 cart-icon
GN 43-80-M20-100-D0-V V 80 M 20 100 13 3 15 - 85 70 15 - 13 16 20 374 cart-icon
GN 43-80-M20-100-D0-VK VK 80 M 20 100 13 3 15 - 85 70 15 - 13 16 20 427 cart-icon
GN 43-80-M20-100-D1-V V 80 M 20 100 13 3 15 - 85 70 15 2 13 16 20 391 cart-icon
GN 43-80-M20-100-D1-VK VK 80 M 20 100 13 3 15 - 85 70 15 2 13 16 20 444 cart-icon
GN 43-80-M20-100-D3-V V 80 M 20 100 13 3 15 5 85 70 15 - 13 16 20 413 cart-icon
GN 43-80-M20-100-D3-VK VK 80 M 20 100 13 3 15 5 85 70 15 - 13 16 20 466 cart-icon
GN 43-80-M20-125-D0-V V 80 M 20 125 13 3 15 - 85 70 15 - 13 16 20 425 cart-icon
GN 43-80-M20-125-D0-VK VK 80 M 20 125 13 3 15 - 85 70 15 - 13 16 20 478 cart-icon
GN 43-80-M20-125-D1-V V 80 M 20 125 13 3 15 - 85 70 15 2 13 16 20 442 cart-icon
GN 43-80-M20-125-D1-VK VK 80 M 20 125 13 3 15 - 85 70 15 2 13 16 20 495 cart-icon
GN 43-80-M20-125-D3-V V 80 M 20 125 13 3 15 5 85 70 15 - 13 16 20 464 cart-icon
GN 43-80-M20-125-D3-VK VK 80 M 20 125 13 3 15 5 85 70 15 - 13 16 20 517 cart-icon
GN 43-80-M20-150-D0-V V 80 M 20 150 13 3 15 - 85 70 15 - 13 16 20 477 cart-icon
GN 43-80-M20-150-D0-VK VK 80 M 20 150 13 3 15 - 85 70 15 - 13 16 20 530 cart-icon
GN 43-80-M20-150-D1-V V 80 M 20 150 13 3 15 - 85 70 15 2 13 16 20 494 cart-icon
GN 43-80-M20-150-D1-VK VK 80 M 20 150 13 3 15 - 85 70 15 2 13 16 20 547 cart-icon
GN 43-80-M20-150-D3-V V 80 M 20 150 13 3 15 5 85 70 15 - 13 16 20 516 cart-icon
GN 43-80-M20-150-D3-VK VK 80 M 20 150 13 3 15 5 85 70 15 - 13 16 20 569 cart-icon
GN 43-80-M20-200-D0-V V 80 M 20 200 13 3 15 - 85 70 15 - 13 16 20 582 cart-icon
GN 43-80-M20-200-D0-VK VK 80 M 20 200 13 3 15 - 85 70 15 - 13 16 20 635 cart-icon
GN 43-80-M20-200-D1-V V 80 M 20 200 13 3 15 - 85 70 15 2 13 16 20 599 cart-icon
GN 43-80-M20-200-D1-VK VK 80 M 20 200 13 3 15 - 85 70 15 2 13 16 20 652 cart-icon
GN 43-80-M20-200-D3-V V 80 M 20 200 13 3 15 5 85 70 15 - 13 16 20 621 cart-icon
GN 43-80-M20-200-D3-VK VK 80 M 20 200 13 3 15 5 85 70 15 - 13 16 20 674 cart-icon
GN 43-80-M24-100-D0-V V 80 M 24 100 13 3 18 - 85 70 15 - 17 20 22 477 cart-icon
GN 43-80-M24-100-D0-VK VK 80 M 24 100 13 3 18 - 85 70 15 - 17 20 22 577 cart-icon
GN 43-80-M24-100-D1-V V 80 M 24 100 13 3 18 - 85 70 15 2 17 20 22 494 cart-icon
GN 43-80-M24-100-D1-VK VK 80 M 24 100 13 3 18 - 85 70 15 2 17 20 22 594 cart-icon
GN 43-80-M24-100-D3-V V 80 M 24 100 13 3 18 5 85 70 15 - 17 20 22 514 cart-icon
GN 43-80-M24-100-D3-VK VK 80 M 24 100 13 3 18 5 85 70 15 - 17 20 22 614 cart-icon
GN 43-80-M24-150-D0-V V 80 M 24 150 13 3 18 - 85 70 15 - 17 20 22 625 cart-icon
GN 43-80-M24-150-D0-VK VK 80 M 24 150 13 3 18 - 85 70 15 - 17 20 22 725 cart-icon
GN 43-80-M24-150-D1-V V 80 M 24 150 13 3 18 - 85 70 15 2 17 20 22 642 cart-icon
GN 43-80-M24-150-D1-VK VK 80 M 24 150 13 3 18 - 85 70 15 2 17 20 22 742 cart-icon
GN 43-80-M24-150-D3-V V 80 M 24 150 13 3 18 5 85 70 15 - 17 20 22 662 cart-icon
GN 43-80-M24-150-D3-VK VK 80 M 24 150 13 3 18 5 85 70 15 - 17 20 22 762 cart-icon
GN 43-80-M24-200-D0-V V 80 M 24 200 13 3 18 - 85 70 15 - 17 20 22 771 cart-icon
GN 43-80-M24-200-D0-VK VK 80 M 24 200 13 3 18 - 85 70 15 - 17 20 22 871 cart-icon
GN 43-80-M24-200-D1-V V 80 M 24 200 13 3 18 - 85 70 15 2 17 20 22 788 cart-icon
GN 43-80-M24-200-D1-VK VK 80 M 24 200 13 3 18 - 85 70 15 2 17 20 22 888 cart-icon
GN 43-80-M24-200-D3-V V 80 M 24 200 13 3 18 5 85 70 15 - 17 20 22 808 cart-icon
GN 43-80-M24-200-D3-VK VK 80 M 24 200 13 3 18 5 85 70 15 - 17 20 22 908 cart-icon
