GN 43

Leveling Feet

Stainless Steel, with Fixing Lug, Drop Shape

Enquire Now

GN 43-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 43-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN 43-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 43-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

GN 43-W

Leveling Feet

With adjustable sleeve, covered thread and wrench flat at the bottom

GN 43-X

Leveling Feet

External hex with internal thread

Description

Specification

Types (Base)

Type D0: Without rubber pad

Type D1: With rubber pad, clipped on, black

Type D3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

Version U: Without nut, hex socket at the top, wrench flat at the bottom

Version UK: With nut, hex socket at the top, wrench flat at the bottom

Version V : Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread, wrench flat at the bottom

Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad, vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load in kN	-	-	-	-
GN 41 / GN 44	GN 43 / GN 45	GN 43	-	Versions of threaded stem	-	-	-	-
-	Drope shape	Rectangular shape	-	S / SK	T / TK and U / UK	V / VK	W	X
40	-	-	M 8	8	-	-	-	8
40	-	-	M 10	12	-	-	-	12
40	-	-	M 12	12	-	-	-	12
40	-	-	M 16	-	12	-	-	12
50	50	-	M 8	8	-	-	-	8
50	50	-	M 10	14	-	-	-	14
50	50	-	M 12	14	-	-	-	14
50	50	-	M 16	-	14	-	-	14
60	60	-	M 8	8	-	-	-	8
60	60	-	M 10	14	-	-	-	14
60	60	-	M 12	16	-	-	-	16
60	60	-	M 16	-	16	16	16	16
80	80	80	M 8	8	-	-	-	8
80	80	80	M 10	14	-	-	-	14
80	80	80	M 12	20	-	-	-	20
80	80	80	M 16	-	20	20	20	20
80	80	80	M 20	-	20	20	20	20
80	80	80	M 24	-	22	22	22	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	W: Covered thread and wrench flat at the bottom at d₂ M 16	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

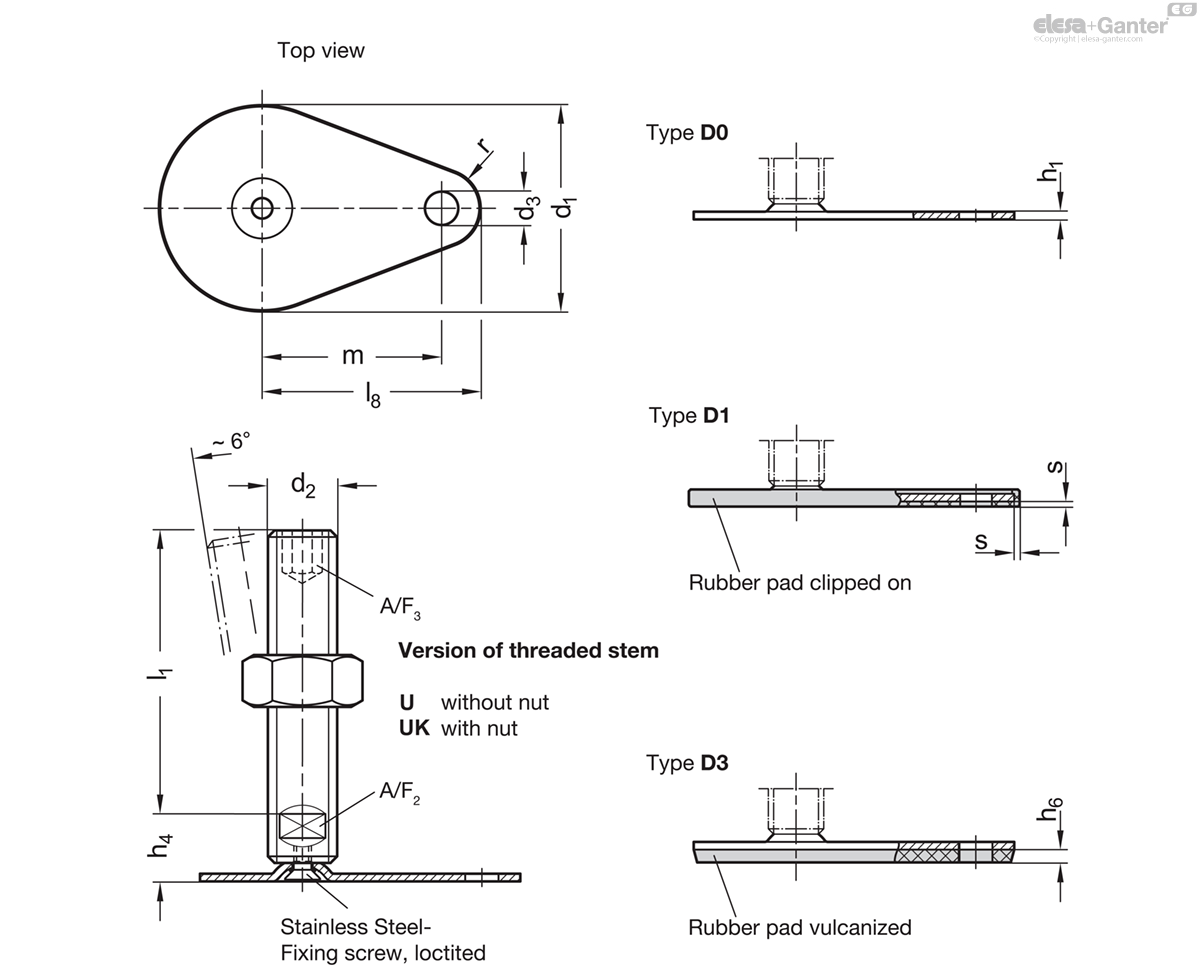

GN 43-U/UK

	Color	d₁	d₂	l₁	d₃	h₁	h₄	h₆	l₈	m	r	s	A/F ₂	A/F ₃	Static load in kN
Code																	Actions
GN 43-50-M16-75-D0-U	Type U	50	M 16	75	13	2.5	17	-	60	45	15	-	12	8	14	200
GN 43-50-M16-75-D0-UK	Type UK	50	M 16	75	13	2.5	17	-	60	45	15	-	12	8	14	190
GN 43-50-M16-75-D1-U	Type U	50	M 16	75	13	2.5	17	-	60	45	15	2	12	8	14	209
GN 43-50-M16-75-D1-UK	Type UK	50	M 16	75	13	2.5	17	-	60	45	15	2	12	8	14	209
GN 43-50-M16-75-D3-U	Type U	50	M 16	75	13	2.5	17	4	60	45	15	-	12	8	14	200
GN 43-50-M16-75-D3-UK	Type UK	50	M 16	75	13	2.5	17	4	60	45	15	-	12	8	14	190
GN 43-50-M16-100-D0-U	Type U	50	M 16	100	13	2.5	17	-	60	45	15	-	12	8	14	230
GN 43-50-M16-100-D0-UK	Type UK	50	M 16	100	13	2.5	17	-	60	45	15	-	12	8	14	230
GN 43-50-M16-100-D1-U	Type U	50	M 16	100	13	2.5	17	-	60	45	15	2	12	8	14	100
GN 43-50-M16-100-D1-UK	Type UK	50	M 16	100	13	2.5	17	-	60	45	15	2	12	8	14	100
GN 43-50-M16-100-D3-U	Type U	50	M 16	100	13	2.5	17	4	60	45	15	-	12	8	14	240
GN 43-50-M16-100-D3-UK	Type UK	50	M 16	100	13	2.5	17	4	60	45	15	-	12	8	14	240
GN 43-50-M16-125-D0-U	Type U	50	M 16	125	13	2.5	17	-	60	45	15	-	12	8	14	260
GN 43-50-M16-125-D0-UK	Type UK	50	M 16	125	13	2.5	17	-	60	45	15	-	12	8	14	260
GN 43-50-M16-125-D1-U	Type U	50	M 16	125	13	2.5	17	-	60	45	15	2	12	8	14	270
GN 43-50-M16-125-D1-UK	Type UK	50	M 16	125	13	2.5	17	-	60	45	15	2	12	8	14	270
GN 43-50-M16-125-D3-U	Type U	50	M 16	125	13	2.5	17	4	60	45	15	-	12	8	14	270
GN 43-50-M16-125-D3-UK	Type UK	50	M 16	125	13	2.5	17	4	60	45	15	-	12	8	14	270
GN 43-50-M16-150-D0-U	Type U	50	M 16	150	13	2.5	17	-	60	45	15	-	12	8	14	295
GN 43-50-M16-150-D0-UK	Type UK	50	M 16	150	13	2.5	17	-	60	45	15	-	12	8	14	295
GN 43-50-M16-150-D1-U	Type U	50	M 16	150	13	2.5	17	-	60	45	15	2	12	8	14	269
GN 43-50-M16-150-D1-UK	Type UK	50	M 16	150	13	2.5	17	-	60	45	15	2	12	8	14	304
GN 43-50-M16-150-D3-U	Type U	50	M 16	150	13	2.5	17	4	60	45	15	-	12	8	14	300
GN 43-50-M16-150-D3-UK	Type UK	50	M 16	150	13	2.5	17	4	60	45	15	-	12	8	14	300
GN 43-50-M16-200-D0-U	Type U	50	M 16	200	13	2.5	17	-	60	45	15	-	12	8	14	361
GN 43-50-M16-200-D0-UK	Type UK	50	M 16	200	13	2.5	17	-	60	45	15	-	12	8	14	361
GN 43-50-M16-200-D1-U	Type U	50	M 16	200	13	2.5	17	-	60	45	15	2	12	8	14	250
GN 43-50-M16-200-D1-UK	Type UK	50	M 16	200	13	2.5	17	-	60	45	15	2	12	8	14	250
GN 43-50-M16-200-D3-U	Type U	50	M 16	200	13	2.5	17	4	60	45	15	-	12	8	14	374
GN 43-50-M16-200-D3-UK	Type UK	50	M 16	200	13	2.5	17	4	60	45	15	-	12	8	14	374
GN 43-50-M16-250-D0-U	Type U	50	M 16	250	13	2.5	17	-	60	45	15	-	12	8	14	691
GN 43-50-M16-250-D0-UK	Type UK	50	M 16	250	13	2.5	17	-	60	45	15	-	12	8	14	691
GN 43-50-M16-250-D1-U	Type U	50	M 16	250	13	2.5	17	-	60	45	15	2	12	8	14	580
GN 43-50-M16-250-D1-UK	Type UK	50	M 16	250	13	2.5	17	-	60	45	15	2	12	8	14	580
GN 43-50-M16-250-D3-U	Type U	50	M 16	250	13	2.5	17	4	60	45	15	-	12	8	14	704
GN 43-50-M16-250-D3-UK	Type UK	50	M 16	250	13	2.5	17	4	60	45	15	-	12	8	14	704
GN 43-60-M16-75-D0-U	Type U	60	M 16	75	13	2.5	17	-	65	50	15	-	12	8	16	181
GN 43-60-M16-75-D0-UK	Type UK	60	M 16	75	13	2.5	17	-	65	50	15	-	12	8	16	209
GN 43-60-M16-75-D1-U	Type U	60	M 16	75	13	2.5	17	-	65	50	15	2	12	8	16	192
GN 43-60-M16-75-D1-UK	Type UK	60	M 16	75	13	2.5	17	-	65	50	15	2	12	8	16	221
GN 43-60-M16-75-D3-U	Type U	60	M 16	75	13	2.5	17	4.5	65	50	15	-	12	8	16	201
GN 43-60-M16-75-D3-UK	Type UK	60	M 16	75	13	2.5	17	4.5	65	50	15	-	12	8	16	229
GN 43-60-M16-100-D0-U	Type U	60	M 16	100	13	2.5	17	-	65	50	15	-	12	8	16	220
GN 43-60-M16-100-D0-UK	Type UK	60	M 16	100	13	2.5	17	-	65	50	15	-	12	8	16	220
GN 43-60-M16-100-D1-U	Type U	60	M 16	100	13	2.5	17	-	65	50	15	2	12	8	16	260
GN 43-60-M16-100-D1-UK	Type UK	60	M 16	100	13	2.5	17	-	65	50	15	2	12	8	16	260
GN 43-60-M16-100-D3-U	Type U	60	M 16	100	13	2.5	17	4.5	65	50	15	-	12	8	16	270
GN 43-60-M16-100-D3-UK	Type UK	60	M 16	100	13	2.5	17	4.5	65	50	15	-	12	8	16	270
GN 43-60-M16-125-D0-U	Type U	60	M 16	125	13	2.5	17	-	65	50	15	-	12	8	16	280
GN 43-60-M16-125-D0-UK	Type UK	60	M 16	125	13	2.5	17	-	65	50	15	-	12	8	16	280
GN 43-60-M16-125-D1-U	Type U	60	M 16	125	13	2.5	17	-	65	50	15	2	12	8	16	256
GN 43-60-M16-125-D1-UK	Type UK	60	M 16	125	13	2.5	17	-	65	50	15	2	12	8	16	291
GN 43-60-M16-125-D3-U	Type U	60	M 16	125	13	2.5	17	4.5	65	50	15	-	12	8	16	301
GN 43-60-M16-125-D3-UK	Type UK	60	M 16	125	13	2.5	17	4.5	65	50	15	-	12	8	16	301
GN 43-60-M16-150-D0-U	Type U	60	M 16	150	13	2.5	17	-	65	50	15	-	12	8	16	300
GN 43-60-M16-150-D0-UK	Type UK	60	M 16	150	13	2.5	17	-	65	50	15	-	12	8	16	300
GN 43-60-M16-150-D1-U	Type U	60	M 16	150	13	2.5	17	-	65	50	15	2	12	8	16	320
GN 43-60-M16-150-D1-UK	Type UK	60	M 16	150	13	2.5	17	-	65	50	15	2	12	8	16	320
GN 43-60-M16-150-D3-U	Type U	60	M 16	150	13	2.5	17	4.5	65	50	15	-	12	8	16	320
GN 43-60-M16-150-D3-UK	Type UK	60	M 16	150	13	2.5	17	4.5	65	50	15	-	12	8	16	320
GN 43-60-M16-200-D0-U	Type U	60	M 16	200	13	2.5	17	-	65	50	15	-	12	8	16	379
GN 43-60-M16-200-D0-UK	Type UK	60	M 16	200	13	2.5	17	-	65	50	15	-	12	8	16	379
GN 43-60-M16-200-D1-U	Type U	60	M 16	200	13	2.5	17	-	65	50	15	2	12	8	16	420
GN 43-60-M16-200-D1-UK	Type UK	60	M 16	200	13	2.5	17	-	65	50	15	2	12	8	16	420
GN 43-60-M16-200-D3-U	Type U	60	M 16	200	13	2.5	17	4.5	65	50	15	-	12	8	16	399
GN 43-60-M16-200-D3-UK	Type UK	60	M 16	200	13	2.5	17	4.5	65	50	15	-	12	8	16	399
GN 43-60-M16-250-D0-U	Type U	60	M 16	250	13	2.5	17	-	65	50	15	-	12	8	16	708
GN 43-60-M16-250-D0-UK	Type UK	60	M 16	250	13	2.5	17	-	65	50	15	-	12	8	16	708
GN 43-60-M16-250-D1-U	Type U	60	M 16	250	13	2.5	17	-	65	50	15	2	12	8	16	750
GN 43-60-M16-250-D1-UK	Type UK	60	M 16	250	13	2.5	17	-	65	50	15	2	12	8	16	750
GN 43-60-M16-250-D3-U	Type U	60	M 16	250	13	2.5	17	4.5	65	50	15	-	12	8	16	729
GN 43-60-M16-250-D3-UK	Type UK	60	M 16	250	13	2.5	17	4.5	65	50	15	-	12	8	16	729
GN 43-80-M16-75-D0-U	Type U	80	M 16	75	13	3	18	-	85	70	15	-	12	8	20	263
GN 43-80-M16-75-D0-UK	Type UK	80	M 16	75	13	3	18	-	85	70	15	-	12	8	20	292
GN 43-80-M16-75-D1-U	Type U	80	M 16	75	13	3	18	-	85	70	15	2	12	8	20	280
GN 43-80-M16-75-D1-UK	Type UK	80	M 16	75	13	3	18	-	85	70	15	2	12	8	20	309
GN 43-80-M16-75-D3-U	Type U	80	M 16	75	13	3	18	5	85	70	15	-	12	8	20	304
GN 43-80-M16-75-D3-UK	Type UK	80	M 16	75	13	3	18	5	85	70	15	-	12	8	20	333
GN 43-80-M16-100-D0-U	Type U	80	M 16	100	13	3	18	-	85	70	15	-	12	8	20	295
GN 43-80-M16-100-D0-UK	Type UK	80	M 16	100	13	3	18	-	85	70	15	-	12	8	20	329
GN 43-80-M16-100-D1-U	Type U	80	M 16	100	13	3	18	-	85	70	15	2	12	8	20	312
GN 43-80-M16-100-D1-UK	Type UK	80	M 16	100	13	3	18	-	85	70	15	2	12	8	20	346
GN 43-80-M16-100-D3-U	Type U	80	M 16	100	13	3	18	5	85	70	15	-	12	8	20	336
GN 43-80-M16-100-D3-UK	Type UK	80	M 16	100	13	3	18	5	85	70	15	-	12	8	20	370
GN 43-80-M16-125-D0-U	Type U	80	M 16	125	13	3	18	-	85	70	15	-	12	8	20	328
GN 43-80-M16-125-D0-UK	Type UK	80	M 16	125	13	3	18	-	85	70	15	-	12	8	20	362
GN 43-80-M16-125-D1-U	Type U	80	M 16	125	13	3	18	-	85	70	15	2	12	8	20	345
GN 43-80-M16-125-D1-UK	Type UK	80	M 16	125	13	3	18	-	85	70	15	2	12	8	20	379
GN 43-80-M16-125-D3-U	Type U	80	M 16	125	13	3	18	5	85	70	15	-	12	8	20	369
GN 43-80-M16-125-D3-UK	Type UK	80	M 16	125	13	3	18	5	85	70	15	-	12	8	20	403
GN 43-80-M16-150-D0-U	Type U	80	M 16	150	13	3	18	-	85	70	15	-	12	8	20	360
GN 43-80-M16-150-D0-UK	Type UK	80	M 16	150	13	3	18	-	85	70	15	-	12	8	20	394
GN 43-80-M16-150-D1-U	Type U	80	M 16	150	13	3	18	-	85	70	15	2	12	8	20	377
GN 43-80-M16-150-D1-UK	Type UK	80	M 16	150	13	3	18	-	85	70	15	2	12	8	20	411
GN 43-80-M16-150-D3-U	Type U	80	M 16	150	13	3	18	5	85	70	15	-	12	8	20	401
GN 43-80-M16-150-D3-UK	Type UK	80	M 16	150	13	3	18	5	85	70	15	-	12	8	20	435
GN 43-80-M16-200-D0-U	Type U	80	M 16	200	13	3	18	-	85	70	15	-	12	8	20	426
GN 43-80-M16-200-D0-UK	Type UK	80	M 16	200	13	3	18	-	85	70	15	-	12	8	20	460
GN 43-80-M16-200-D1-U	Type U	80	M 16	200	13	3	18	-	85	70	15	2	12	8	20	443
GN 43-80-M16-200-D1-UK	Type UK	80	M 16	200	13	3	18	-	85	70	15	2	12	8	20	477
GN 43-80-M16-200-D3-U	Type U	80	M 16	200	13	3	18	5	85	70	15	-	12	8	20	467
GN 43-80-M16-200-D3-UK	Type UK	80	M 16	200	13	3	18	5	85	70	15	-	12	8	20	501
GN 43-80-M16-250-D0-U	Type U	80	M 16	250	13	3	18	-	85	70	15	-	12	8	20	491
GN 43-80-M16-250-D0-UK	Type UK	80	M 16	250	13	3	18	-	85	70	15	-	12	8	20	520
GN 43-80-M16-250-D1-U	Type U	80	M 16	250	13	3	18	-	85	70	15	2	12	8	20	508
GN 43-80-M16-250-D1-UK	Type UK	80	M 16	250	13	3	18	-	85	70	15	2	12	8	20	537
GN 43-80-M16-250-D3-U	Type U	80	M 16	250	13	3	18	5	85	70	15	-	12	8	20	532
GN 43-80-M16-250-D3-UK	Type UK	80	M 16	250	13	3	18	5	85	70	15	-	12	8	20	561
GN 43-80-M20-75-D0-U	Type U	80	M 20	75	13	3	18	-	85	70	15	-	15	10	20	376
GN 43-80-M20-75-D0-UK	Type UK	80	M 20	75	13	3	18	-	85	70	15	-	15	10	20	376
GN 43-80-M20-75-D1-U	Type U	80	M 20	75	13	3	18	-	85	70	15	2	15	10	20	341
GN 43-80-M20-75-D1-UK	Type UK	80	M 20	75	13	3	18	-	85	70	15	2	15	10	20	394
GN 43-80-M20-75-D3-U	Type U	80	M 20	75	13	3	18	5	85	70	15	-	15	10	20	363
GN 43-80-M20-75-D3-UK	Type UK	80	M 20	75	13	3	18	5	85	70	15	-	15	10	20	416
GN 43-80-M20-100-D0-U	Type U	80	M 20	100	13	3	18	-	85	70	15	-	15	10	20	562
GN 43-80-M20-100-D0-UK	Type UK	80	M 20	100	13	3	18	-	85	70	15	-	15	10	20	615
GN 43-80-M20-100-D1-U	Type U	80	M 20	100	13	3	18	-	85	70	15	2	15	10	20	579
GN 43-80-M20-100-D1-UK	Type UK	80	M 20	100	13	3	18	-	85	70	15	2	15	10	20	632
GN 43-80-M20-100-D3-U	Type U	80	M 20	100	13	3	18	5	85	70	15	-	15	10	20	601
GN 43-80-M20-100-D3-UK	Type UK	80	M 20	100	13	3	18	5	85	70	15	-	15	10	20	654
GN 43-80-M20-125-D0-U	Type U	80	M 20	125	13	3	18	-	85	70	15	-	15	10	20	425
GN 43-80-M20-125-D0-UK	Type UK	80	M 20	125	13	3	18	-	85	70	15	-	15	10	20	478
GN 43-80-M20-125-D1-U	Type U	80	M 20	125	13	3	18	-	85	70	15	2	15	10	20	442
GN 43-80-M20-125-D1-UK	Type UK	80	M 20	125	13	3	18	-	85	70	15	2	15	10	20	495
GN 43-80-M20-125-D3-U	Type U	80	M 20	125	13	3	18	5	85	70	15	-	15	10	20	464
GN 43-80-M20-125-D3-UK	Type UK	80	M 20	125	13	3	18	5	85	70	15	-	15	10	20	517
GN 43-80-M20-150-D0-U	Type U	80	M 20	150	13	3	18	-	85	70	15	-	15	10	20	483
GN 43-80-M20-150-D0-UK	Type UK	80	M 20	150	13	3	18	-	85	70	15	-	15	10	20	550
GN 43-80-M20-150-D1-U	Type U	80	M 20	150	13	3	18	-	85	70	15	2	15	10	20	500
GN 43-80-M20-150-D1-UK	Type UK	80	M 20	150	13	3	18	-	85	70	15	2	15	10	20	553
GN 43-80-M20-150-D3-U	Type U	80	M 20	150	13	3	18	5	85	70	15	-	15	10	20	522
GN 43-80-M20-150-D3-UK	Type UK	80	M 20	150	13	3	18	5	85	70	15	-	15	10	20	575
GN 43-80-M20-200-D0-U	Type U	80	M 20	200	13	3	18	-	85	70	15	-	15	10	20	578
GN 43-80-M20-200-D0-UK	Type UK	80	M 20	200	13	3	18	-	85	70	15	-	15	10	20	631
GN 43-80-M20-200-D1-U	Type U	80	M 20	200	13	3	18	-	85	70	15	2	15	10	20	595
GN 43-80-M20-200-D1-UK	Type UK	80	M 20	200	13	3	18	-	85	70	15	2	15	10	20	648
GN 43-80-M20-200-D3-U	Type U	80	M 20	200	13	3	18	5	85	70	15	-	15	10	20	617
GN 43-80-M20-200-D3-UK	Type UK	80	M 20	200	13	3	18	5	85	70	15	-	15	10	20	660
GN 43-80-M20-250-D0-U	Type U	80	M 20	250	13	3	18	-	85	70	15	-	15	10	20	679
GN 43-80-M20-250-D0-UK	Type UK	80	M 20	250	13	3	18	-	85	70	15	-	15	10	20	734
GN 43-80-M20-250-D1-U	Type U	80	M 20	250	13	3	18	-	85	70	15	2	15	10	20	696
GN 43-80-M20-250-D1-UK	Type UK	80	M 20	250	13	3	18	-	85	70	15	2	15	10	20	751
GN 43-80-M20-250-D3-U	Type U	80	M 20	250	13	3	18	5	85	70	15	-	15	10	20	718
GN 43-80-M20-250-D3-UK	Type UK	80	M 20	250	13	3	18	5	85	70	15	-	15	10	20	773
GN 43-80-M24-100-D0-U	Type U	80	M 24	100	13	3	21	-	85	70	15	-	19	12	22	554
GN 43-80-M24-100-D0-UK	Type UK	80	M 24	100	13	3	21	-	85	70	15	-	19	12	22	654
GN 43-80-M24-100-D1-U	Type U	80	M 24	100	13	3	21	-	85	70	15	2	19	12	22	571
GN 43-80-M24-100-D1-UK	Type UK	80	M 24	100	13	3	21	-	85	70	15	2	19	12	22	671
GN 43-80-M24-100-D3-U	Type U	80	M 24	100	13	3	21	5	85	70	15	-	19	12	22	591
GN 43-80-M24-100-D3-UK	Type UK	80	M 24	100	13	3	21	5	85	70	15	-	19	12	22	691
GN 43-80-M24-125-D0-U	Type U	80	M 24	125	13	3	21	-	85	70	15	-	19	12	22	546
GN 43-80-M24-125-D0-UK	Type UK	80	M 24	125	13	3	21	-	85	70	15	-	19	12	22	646
GN 43-80-M24-125-D1-U	Type U	80	M 24	125	13	3	21	-	85	70	15	2	19	12	22	563
GN 43-80-M24-125-D1-UK	Type UK	80	M 24	125	13	3	21	-	85	70	15	2	19	12	22	663
GN 43-80-M24-125-D3-U	Type U	80	M 24	125	13	3	21	5	85	70	15	-	19	12	22	583
GN 43-80-M24-125-D3-UK	Type UK	80	M 24	125	13	3	21	5	85	70	15	-	19	12	22	683
GN 43-80-M24-150-D0-U	Type U	80	M 24	150	13	3	21	-	85	70	15	-	19	12	22	627
GN 43-80-M24-150-D0-UK	Type UK	80	M 24	150	13	3	21	-	85	70	15	-	19	12	22	727
GN 43-80-M24-150-D1-U	Type U	80	M 24	150	13	3	21	-	85	70	15	2	19	12	22	644
GN 43-80-M24-150-D1-UK	Type UK	80	M 24	150	13	3	21	-	85	70	15	2	19	12	22	744
GN 43-80-M24-150-D3-U	Type U	80	M 24	150	13	3	21	5	85	70	15	-	19	12	22	664
GN 43-80-M24-150-D3-UK	Type UK	80	M 24	150	13	3	21	5	85	70	15	-	19	12	22	764
GN 43-80-M24-200-D0-U	Type U	80	M 24	200	13	3	21	-	85	70	15	-	19	12	22	763
GN 43-80-M24-200-D0-UK	Type UK	80	M 24	200	13	3	21	-	85	70	15	-	19	12	22	863
GN 43-80-M24-200-D1-U	Type U	80	M 24	200	13	3	21	-	85	70	15	2	19	12	22	780
GN 43-80-M24-200-D1-UK	Type UK	80	M 24	200	13	3	21	-	85	70	15	2	19	12	22	880
GN 43-80-M24-200-D3-U	Type U	80	M 24	200	13	3	21	5	85	70	15	-	19	12	22	800
GN 43-80-M24-200-D3-UK	Type UK	80	M 24	200	13	3	21	5	85	70	15	-	19	12	22	920
GN 43-80-M24-300-D0-U	Type U	80	M 24	300	13	3	21	-	85	70	15	-	19	12	22	1572
GN 43-80-M24-300-D0-UK	Type UK	80	M 24	300	13	3	21	-	85	70	15	-	19	12	22	1672
GN 43-80-M24-300-D1-U	Type U	80	M 24	300	13	3	21	-	85	70	15	2	19	12	22	1589
GN 43-80-M24-300-D1-UK	Type UK	80	M 24	300	13	3	21	-	85	70	15	2	19	12	22	1689
GN 43-80-M24-300-D3-U	Type U	80	M 24	300	13	3	21	5	85	70	15	-	19	12	22	1609
GN 43-80-M24-300-D3-UK	Type UK	80	M 24	300	13	3	21	5	85	70	15	-	19	12	22	1729

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
