GN 43-rectangular shape
Leveling FeetDescription

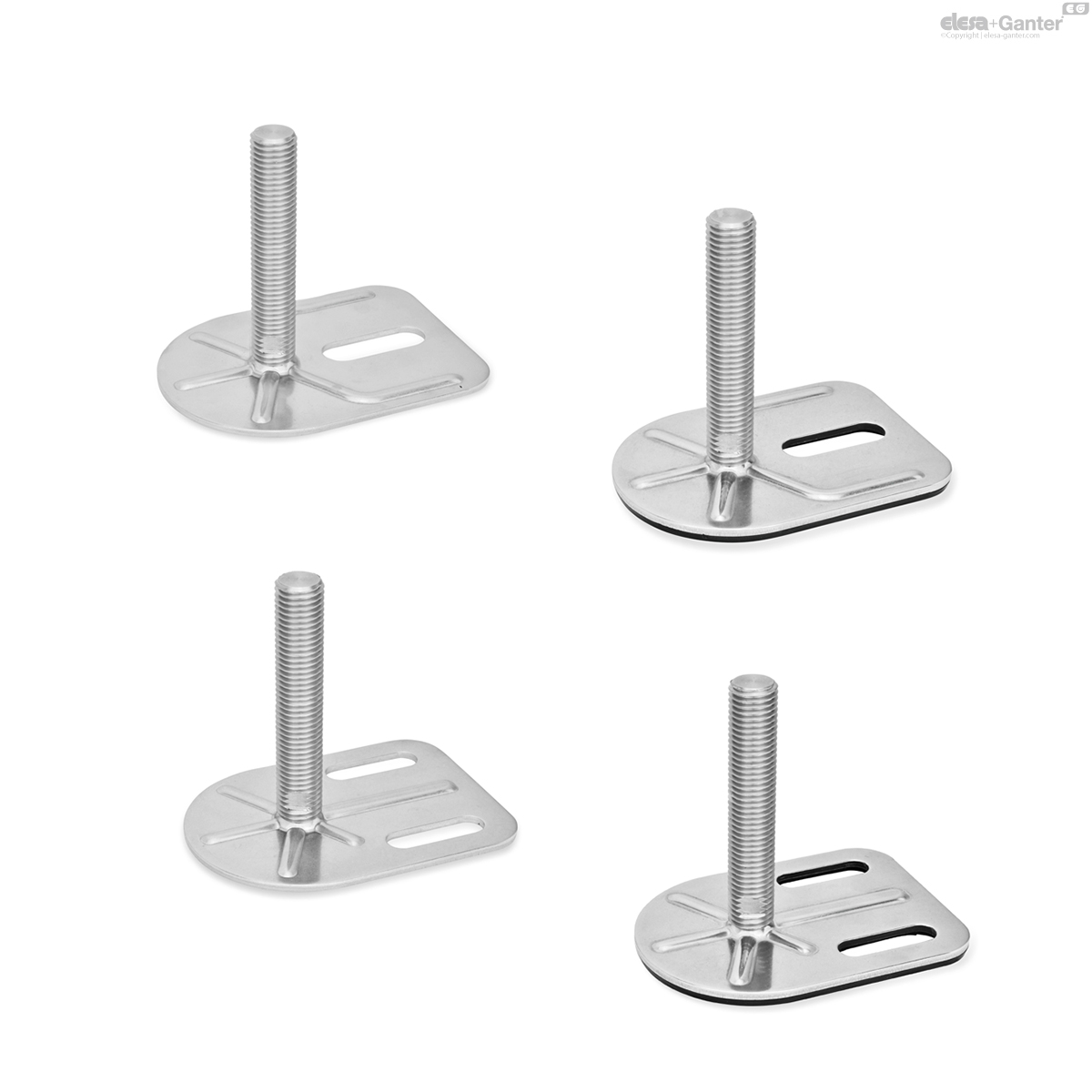

Types (Base)
- Type E0: Without rubber pad, with one slotted hole
- Type E3: With rubber pad, vulcanized, black, with one slotted hole
- Type G0: Without rubber pad, with 2 slotted holes
- Type G3: With rubber pad, vulcanized, black, with 2 slotted holes
Version (Screw)
- Version S: Without nut, external hex at the bottom
- Version SK: With nut, external hex at the bottom
- Version T: Without nut, wrench flat at the bottom
- Version TK: With nut, wrench flat at the bottom
- Version U: Without nut, hex socket at the top, wrench flat at the bottom
- Version UK: With nut, hex socket at the top, wrench flat at the bottom
- Version V : Without nut, external hex at the top and wrench flat at the bottom
- Version VK: With nut, external hex at the top and wrench flat at the bottom
- Version W: With adjustable sleeve, covered thread, wrench flat at the bottom
- Version X: External hex with internal thread
Base plate, plain ground
Stainless steel AISI 304
Threaded stem
Stainless steel AISI 303
Hex nut ISO 4032
Stainless steel
Rubber pad, vulcanized
- Black, NBR (Perbunan®)
- 70 ± 5 Shore A
Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feat to be used in every situation.
The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.
The leveling feet are supplied fully assembled and are not removable.
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
d1 | - | - | d2 | Static load in kN | - | - | - | - |
GN 41 / GN 44 | GN 43 / GN 45 | GN 43 | - | Versions of threaded stem | - | - | - | - |
- | Drope shape | Rectangular shape | - | S / SK | T / TK and U / UK | V / VK | W | X |
40 | - | - | M 8 | 8 | - | - | - | 8 |
40 | - | - | M 10 | 12 | - | - | - | 12 |
40 | - | - | M 12 | 12 | - | - | - | 12 |
40 | - | - | M 16 | - | 12 | - | - | 12 |
50 | 50 | - | M 8 | 8 | - | - | - | 8 |
50 | 50 | - | M 10 | 14 | - | - | - | 14 |
50 | 50 | - | M 12 | 14 | - | - | - | 14 |
50 | 50 | - | M 16 | - | 14 | - | - | 14 |
60 | 60 | - | M 8 | 8 | - | - | - | 8 |
60 | 60 | - | M 10 | 14 | - | - | - | 14 |
60 | 60 | - | M 12 | 16 | - | - | - | 16 |
60 | 60 | - | M 16 | - | 16 | 16 | 16 | 16 |
80 | 80 | 80 | M 8 | 8 | - | - | - | 8 |
80 | 80 | 80 | M 10 | 14 | - | - | - | 14 |
80 | 80 | 80 | M 12 | 20 | - | - | - | 20 |
80 | 80 | 80 | M 16 | - | 20 | 20 | 20 | 20 |
80 | 80 | 80 | M 20 | - | 20 | 20 | 20 | 20 |
80 | 80 | 80 | M 24 | - | 22 | 22 | 22 | - |
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.
Versions of threaded stem | ||
S / SK: External hex at the bottom at d2 M 8, M 10, M 12 | T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24 | U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24 |
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16 | W: Covered thread and wrench flat at the bottom at d2 M 16 | X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20 |
