GN 43

Leveling Feet

Stainless Steel, with Fixing Lug, Drop Shape

Enquire Now

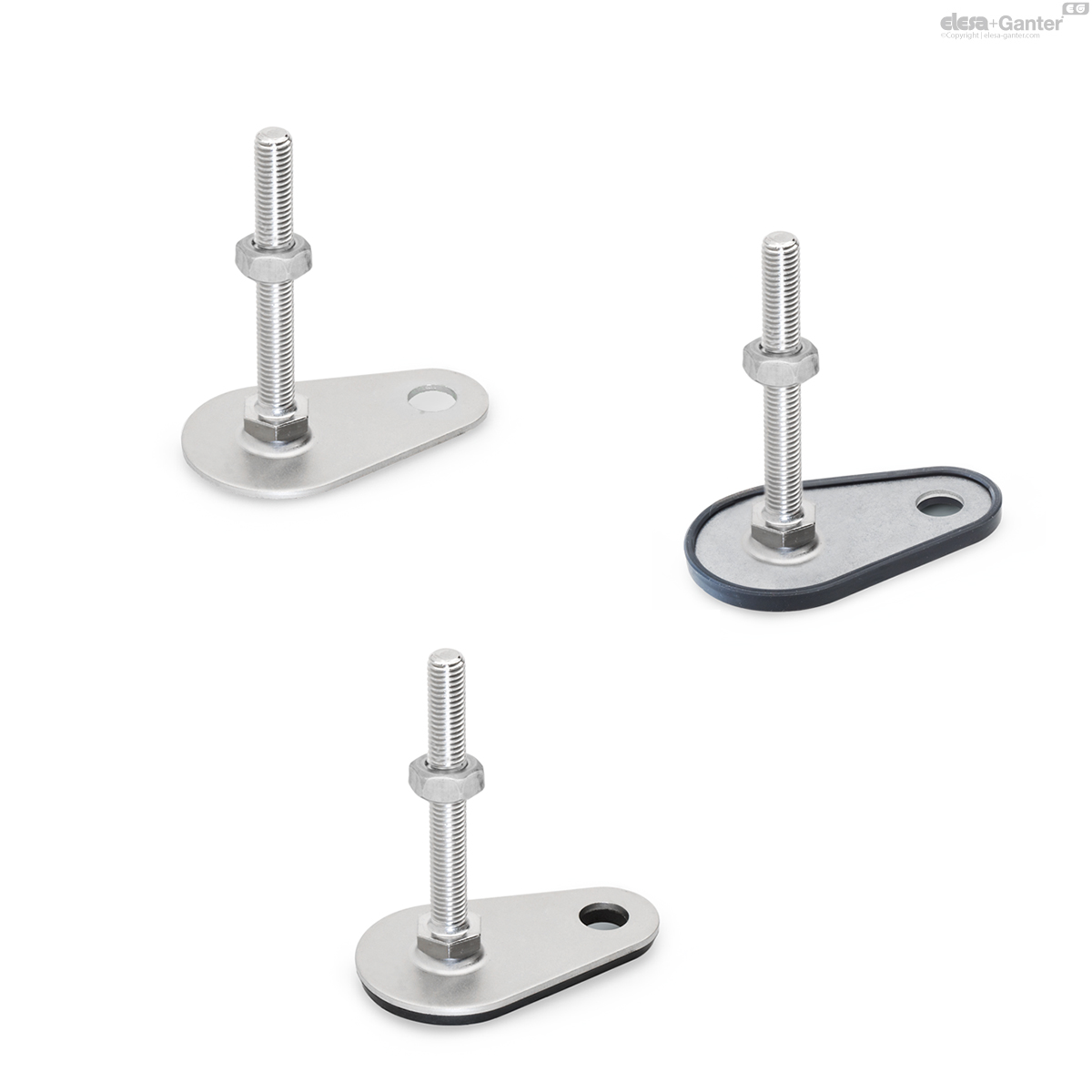

GN 43-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 43-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN 43-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 43-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

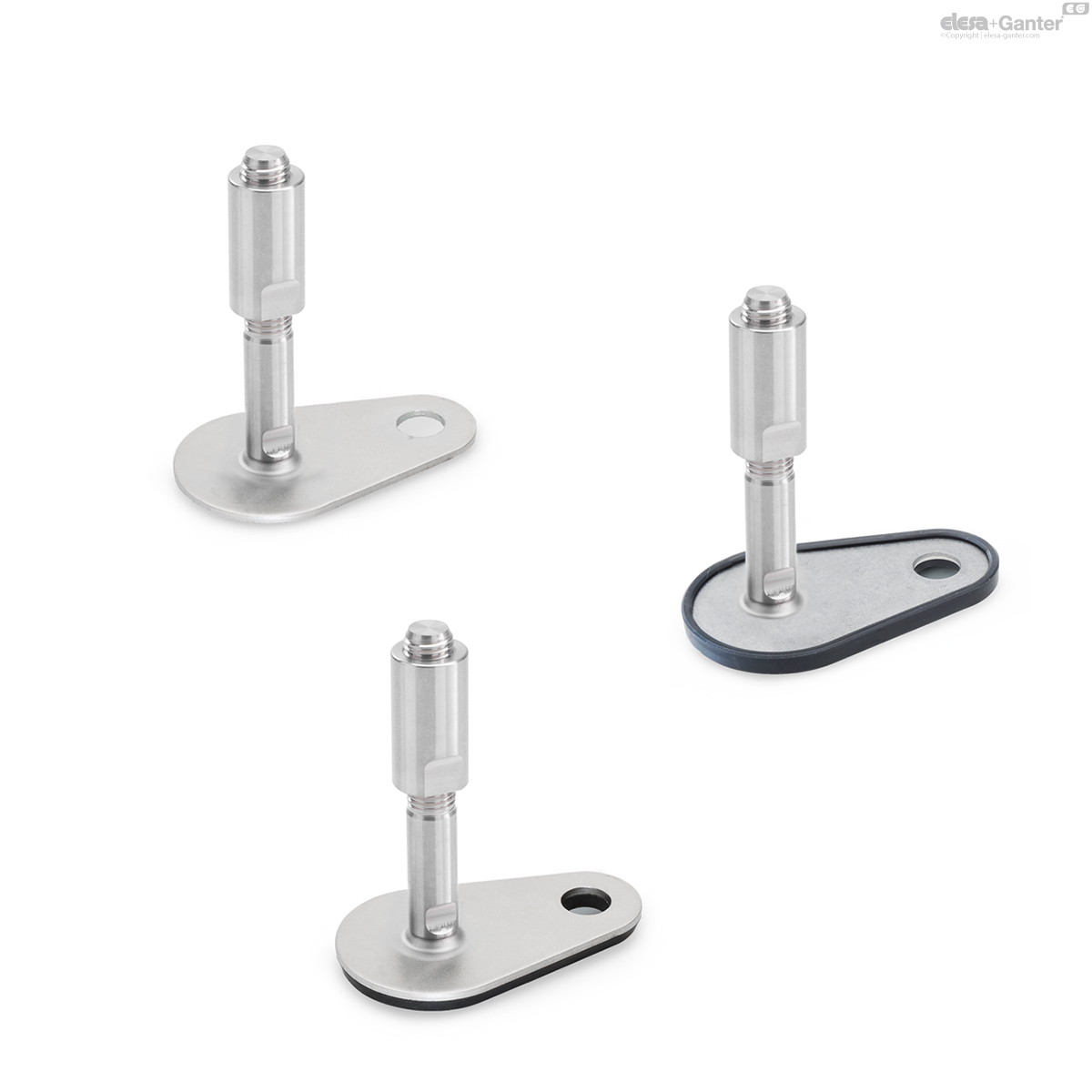

GN 43-W

Leveling Feet

With adjustable sleeve, covered thread and wrench flat at the bottom

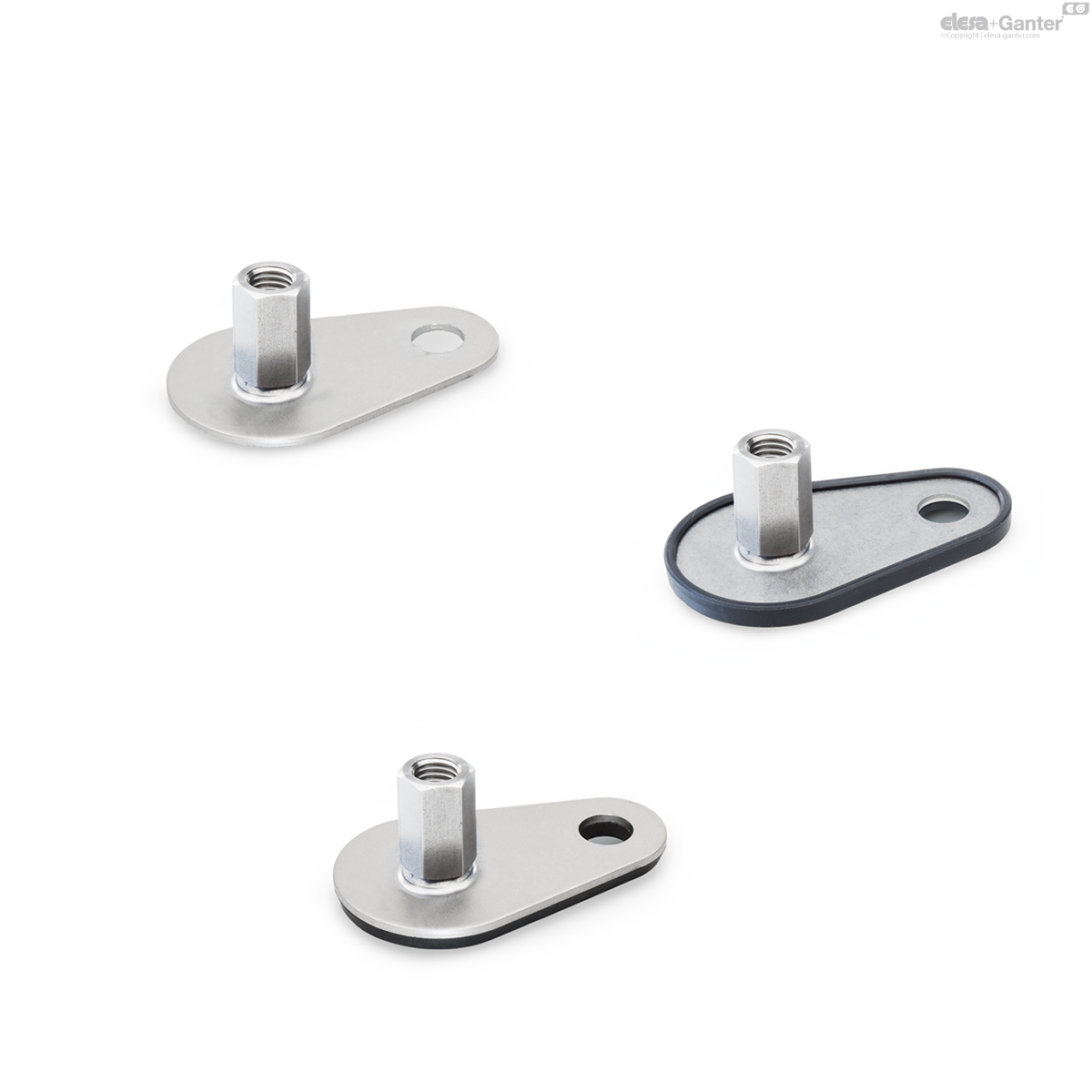

GN 43-X

Leveling Feet

External hex with internal thread

Description

Specification

Types (Base)

Type D0: Without rubber pad

Type D1: With rubber pad, clipped on, black

Type D3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

Version U: Without nut, hex socket at the top, wrench flat at the bottom

Version UK: With nut, hex socket at the top, wrench flat at the bottom

Version V : Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread, wrench flat at the bottom

Version X: External hex with internal thread

Base plate, plain ground

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad, clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad, vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feat to be used in every situation.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load in kN	-	-	-	-
GN 41 / GN 44	GN 43 / GN 45	GN 43	-	Versions of threaded stem	-	-	-	-
-	Drope shape	Rectangular shape	-	S / SK	T / TK and U / UK	V / VK	W	X
40	-	-	M 8	8	-	-	-	8
40	-	-	M 10	12	-	-	-	12
40	-	-	M 12	12	-	-	-	12
40	-	-	M 16	-	12	-	-	12
50	50	-	M 8	8	-	-	-	8
50	50	-	M 10	14	-	-	-	14
50	50	-	M 12	14	-	-	-	14
50	50	-	M 16	-	14	-	-	14
60	60	-	M 8	8	-	-	-	8
60	60	-	M 10	14	-	-	-	14
60	60	-	M 12	16	-	-	-	16
60	60	-	M 16	-	16	16	16	16
80	80	80	M 8	8	-	-	-	8
80	80	80	M 10	14	-	-	-	14
80	80	80	M 12	20	-	-	-	20
80	80	80	M 16	-	20	20	20	20
80	80	80	M 20	-	20	20	20	20
80	80	80	M 24	-	22	22	22	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	W: Covered thread and wrench flat at the bottom at d₂ M 16	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

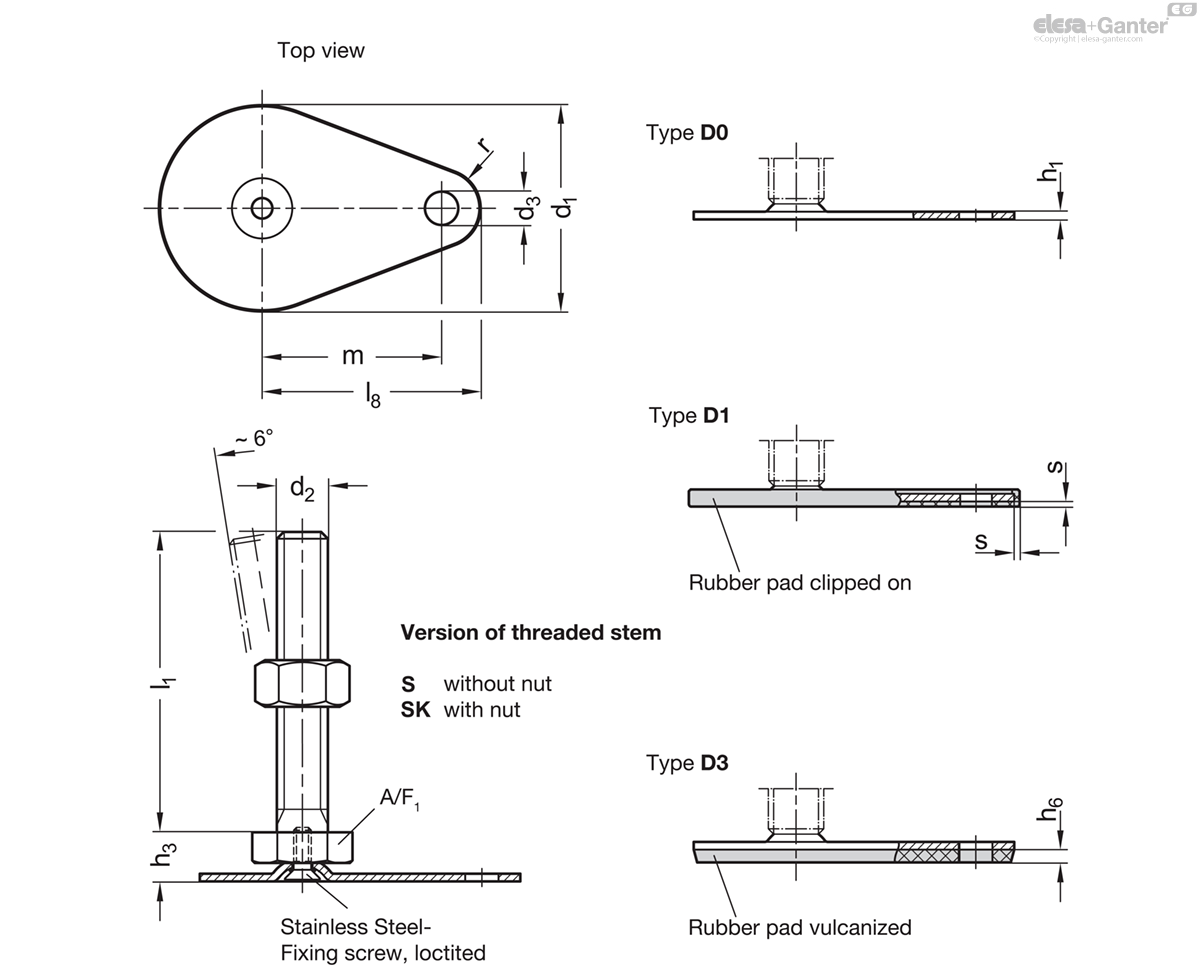

GN 43-S/SK

	Color	d₁	d₂	l₁	d₃	h₁	h₃	h₆	l₈	m	r	s	A/F ₁	Static load in kN
Code																Actions
GN 43-50-M8-40-D0-S	Type S	50	M 8	40	13	2.5	11	-	60	45	15	-	17	8	90
GN 43-50-M8-40-D0-SK	SK	50	M 8	40	13	2.5	11	-	60	45	15	-	17	8	90
GN 43-50-M8-40-D1-S	Type S	50	M 8	40	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-40-D1-SK	SK	50	M 8	40	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-40-D3-S	Type S	50	M 8	40	13	2.5	11	4	60	45	15	-	17	8	83
GN 43-50-M8-40-D3-SK	SK	50	M 8	40	13	2.5	11	4	60	45	15	-	17	8	83
GN 43-50-M8-50-D0-S	Type S	50	M 8	50	13	2.5	11	-	60	45	15	-	17	8	92
GN 43-50-M8-50-D0-SK	SK	50	M 8	50	13	2.5	11	-	60	45	15	-	17	8	99
GN 43-50-M8-50-D1-S	Type S	50	M 8	50	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-50-D1-SK	SK	50	M 8	50	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-50-D3-S	Type S	50	M 8	50	13	2.5	11	4	60	45	15	-	17	8	103
GN 43-50-M8-50-D3-SK	SK	50	M 8	50	13	2.5	11	4	60	45	15	-	17	8	103
GN 43-50-M8-63-D0-S	Type S	50	M 8	63	13	2.5	11	-	60	45	15	-	17	8	90
GN 43-50-M8-63-D0-SK	SK	50	M 8	63	13	2.5	11	-	60	45	15	-	17	8	90
GN 43-50-M8-63-D1-S	Type S	50	M 8	63	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-63-D1-SK	SK	50	M 8	63	13	2.5	11	-	60	45	15	2	17	8	100
GN 43-50-M8-63-D3-S	Type S	50	M 8	63	13	2.5	11	4	60	45	15	-	17	8	120
GN 43-50-M8-63-D3-SK	SK	50	M 8	63	13	2.5	11	4	60	45	15	-	17	8	120
GN 43-50-M10-50-D0-S	Type S	50	M 10	50	13	2.5	11	-	60	45	15	-	17	14	100
GN 43-50-M10-50-D0-SK	SK	50	M 10	50	13	2.5	11	-	60	45	15	-	17	14	100
GN 43-50-M10-50-D1-S	Type S	50	M 10	50	13	2.5	11	-	60	45	15	2	17	14	100
GN 43-50-M10-50-D1-SK	SK	50	M 10	50	13	2.5	11	-	60	45	15	2	17	14	100
GN 43-50-M10-50-D3-S	Type S	50	M 10	50	13	2.5	11	4	60	45	15	-	17	14	120
GN 43-50-M10-50-D3-SK	SK	50	M 10	50	13	2.5	11	4	60	45	15	-	17	14	120
GN 43-50-M10-60-D0-S	Type S	50	M 10	60	13	2.5	11	-	60	45	15	-	17	14	97
GN 43-50-M10-60-D0-SK	SK	50	M 10	60	13	2.5	11	-	60	45	15	-	17	14	110
GN 43-50-M10-60-D1-S	Type S	50	M 10	60	13	2.5	11	-	60	45	15	2	17	14	120
GN 43-50-M10-60-D1-SK	SK	50	M 10	60	13	2.5	11	-	60	45	15	2	17	14	120
GN 43-50-M10-60-D3-S	Type S	50	M 10	60	13	2.5	11	4	60	45	15	-	17	14	130
GN 43-50-M10-60-D3-SK	SK	50	M 10	60	13	2.5	11	4	60	45	15	-	17	14	130
GN 43-50-M10-80-D0-S	Type S	50	M 10	80	13	2.5	11	-	60	45	15	-	17	14	120
GN 43-50-M10-80-D0-SK	SK	50	M 10	80	13	2.5	11	-	60	45	15	-	17	14	120
GN 43-50-M10-80-D1-S	Type S	50	M 10	80	13	2.5	11	-	60	45	15	2	17	14	128
GN 43-50-M10-80-D1-SK	SK	50	M 10	80	13	2.5	11	-	60	45	15	2	17	14	128
GN 43-50-M10-80-D3-S	Type S	50	M 10	80	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M10-80-D3-SK	SK	50	M 10	80	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M10-100-D0-S	Type S	50	M 10	100	13	2.5	11	-	60	45	15	-	17	14	110
GN 43-50-M10-100-D0-SK	SK	50	M 10	100	13	2.5	11	-	60	45	15	-	17	14	140
GN 43-50-M10-100-D1-S	Type S	50	M 10	100	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M10-100-D1-SK	SK	50	M 10	100	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M10-100-D3-S	Type S	50	M 10	100	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M10-100-D3-SK	SK	50	M 10	100	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M12-60-D0-S	Type S	50	M 12	60	13	2.5	11	-	60	45	15	-	17	14	120
GN 43-50-M12-60-D0-SK	SK	50	M 12	60	13	2.5	11	-	60	45	15	-	17	14	130
GN 43-50-M12-60-D1-S	Type S	50	M 12	60	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M12-60-D1-SK	SK	50	M 12	60	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M12-60-D3-S	Type S	50	M 12	60	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M12-60-D3-SK	SK	50	M 12	60	13	2.5	11	4	60	45	15	-	17	14	140
GN 43-50-M12-80-D0-S	Type S	50	M 12	80	13	2.5	11	-	60	45	15	-	17	14	143
GN 43-50-M12-80-D0-SK	SK	50	M 12	80	13	2.5	11	-	60	45	15	-	17	14	143
GN 43-50-M12-80-D1-S	Type S	50	M 12	80	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M12-80-D1-SK	SK	50	M 12	80	13	2.5	11	-	60	45	15	2	17	14	140
GN 43-50-M12-80-D3-S	Type S	50	M 12	80	13	2.5	11	4	60	45	15	-	17	14	160
GN 43-50-M12-80-D3-SK	SK	50	M 12	80	13	2.5	11	4	60	45	15	-	17	14	160
GN 43-50-M12-100-D0-S	Type S	50	M 12	100	13	2.5	11	-	60	45	15	-	17	14	160
GN 43-50-M12-100-D0-SK	SK	50	M 12	100	13	2.5	11	-	60	45	15	-	17	14	160
GN 43-50-M12-100-D1-S	Type S	50	M 12	100	13	2.5	11	-	60	45	15	2	17	14	166
GN 43-50-M12-100-D1-SK	SK	50	M 12	100	13	2.5	11	-	60	45	15	2	17	14	166
GN 43-50-M12-100-D3-S	Type S	50	M 12	100	13	2.5	11	4	60	45	15	-	17	14	150
GN 43-50-M12-100-D3-SK	SK	50	M 12	100	13	2.5	11	4	60	45	15	-	17	14	150
GN 43-50-M12-125-D0-S	Type S	50	M 12	125	13	2.5	11	-	60	45	15	-	17	14	180
GN 43-50-M12-125-D0-SK	SK	50	M 12	125	13	2.5	11	-	60	45	15	-	17	14	180
GN 43-50-M12-125-D1-S	Type S	50	M 12	125	13	2.5	11	-	60	45	15	2	17	14	200
GN 43-50-M12-125-D1-SK	SK	50	M 12	125	13	2.5	11	-	60	45	15	2	17	14	200
GN 43-50-M12-125-D3-S	Type S	50	M 12	125	13	2.5	11	4	60	45	15	-	17	14	190
GN 43-50-M12-125-D3-SK	SK	50	M 12	125	13	2.5	11	4	60	45	15	-	17	14	190
GN 43-60-M8-40-D0-S	Type S	60	M 8	40	13	2.5	11	-	65	50	15	-	17	8	102
GN 43-60-M8-40-D0-SK	SK	60	M 8	40	13	2.5	11	-	65	50	15	-	17	8	102
GN 43-60-M8-40-D1-S	Type S	60	M 8	40	13	2.5	11	-	65	50	15	2	17	8	109
GN 43-60-M8-40-D1-SK	SK	60	M 8	40	13	2.5	11	-	65	50	15	2	17	8	113
GN 43-60-M8-40-D3-S	Type S	60	M 8	40	13	2.5	11	4.5	65	50	15	-	17	8	120
GN 43-60-M8-40-D3-SK	SK	60	M 8	40	13	2.5	11	4.5	65	50	15	-	17	8	120
GN 43-60-M8-50-D0-S	Type S	60	M 8	50	13	2.5	11	-	65	50	15	-	17	8	100
GN 43-60-M8-50-D0-SK	SK	60	M 8	50	13	2.5	11	-	65	50	15	-	17	8	100
GN 43-60-M8-50-D1-S	Type S	60	M 8	50	13	2.5	11	-	65	50	15	2	17	8	120
GN 43-60-M8-50-D1-SK	SK	60	M 8	50	13	2.5	11	-	65	50	15	2	17	8	120
GN 43-60-M8-50-D3-S	Type S	60	M 8	50	13	2.5	11	4.5	65	50	15	-	17	8	130
GN 43-60-M8-50-D3-SK	SK	60	M 8	50	13	2.5	11	4.5	65	50	15	-	17	8	130
GN 43-60-M8-63-D0-S	Type S	60	M 8	63	13	2.5	11	-	65	50	15	-	17	8	109
GN 43-60-M8-63-D0-SK	SK	60	M 8	63	13	2.5	11	-	65	50	15	-	17	8	109
GN 43-60-M8-63-D1-S	Type S	60	M 8	63	13	2.5	11	-	65	50	15	2	17	8	116
GN 43-60-M8-63-D1-SK	SK	60	M 8	63	13	2.5	11	-	65	50	15	2	17	8	120
GN 43-60-M8-63-D3-S	Type S	60	M 8	63	13	2.5	11	4.5	65	50	15	-	17	8	148
GN 43-60-M8-63-D3-SK	SK	60	M 8	63	13	2.5	11	4.5	65	50	15	-	17	8	148
GN 43-60-M10-50-D0-S	Type S	60	M 10	50	13	2.5	11	-	65	50	15	-	17	14	120
GN 43-60-M10-50-D0-SK	SK	60	M 10	50	13	2.5	11	-	65	50	15	-	17	14	120
GN 43-60-M10-50-D1-S	Type S	60	M 10	50	13	2.5	11	-	65	50	15	2	17	14	110
GN 43-60-M10-50-D1-SK	SK	60	M 10	50	13	2.5	11	-	65	50	15	2	17	14	130
GN 43-60-M10-50-D3-S	Type S	60	M 10	50	13	2.5	11	4.5	65	50	15	-	17	14	140
GN 43-60-M10-50-D3-SK	SK	60	M 10	50	13	2.5	11	4.5	65	50	15	-	17	14	140
GN 43-60-M10-60-D0-S	Type S	60	M 10	60	13	2.5	11	-	65	50	15	-	17	14	130
GN 43-60-M10-60-D0-SK	SK	60	M 10	60	13	2.5	11	-	65	50	15	-	17	14	130
GN 43-60-M10-60-D1-S	Type S	60	M 10	60	13	2.5	11	-	65	50	15	2	17	14	140
GN 43-60-M10-60-D1-SK	SK	60	M 10	60	13	2.5	11	-	65	50	15	2	17	14	140
GN 43-60-M10-60-D3-S	Type S	60	M 10	60	13	2.5	11	4.5	65	50	15	-	17	14	165
GN 43-60-M10-60-D3-SK	SK	60	M 10	60	13	2.5	11	4.5	65	50	15	-	17	14	165
GN 43-60-M10-80-D0-S	Type S	60	M 10	80	13	2.5	11	-	65	50	15	-	17	14	140
GN 43-60-M10-80-D0-SK	SK	60	M 10	80	13	2.5	11	-	65	50	15	-	17	14	140
GN 43-60-M10-80-D1-S	Type S	60	M 10	80	13	2.5	11	-	65	50	15	2	17	14	150
GN 43-60-M10-80-D1-SK	SK	60	M 10	80	13	2.5	11	-	65	50	15	2	17	14	150
GN 43-60-M10-80-D3-S	Type S	60	M 10	80	13	2.5	11	4.5	65	50	15	-	17	14	170
GN 43-60-M10-80-D3-SK	SK	60	M 10	80	13	2.5	11	4.5	65	50	15	-	17	14	170
GN 43-60-M10-100-D0-S	Type S	60	M 10	100	13	2.5	11	-	65	50	15	-	17	14	140
GN 43-60-M10-100-D0-SK	SK	60	M 10	100	13	2.5	11	-	65	50	15	-	17	14	140
GN 43-60-M10-100-D1-S	Type S	60	M 10	100	13	2.5	11	-	65	50	15	2	17	14	160
GN 43-60-M10-100-D1-SK	SK	60	M 10	100	13	2.5	11	-	65	50	15	2	17	14	160
GN 43-60-M10-100-D3-S	Type S	60	M 10	100	13	2.5	11	4.5	65	50	15	-	17	14	180
GN 43-60-M10-100-D3-SK	SK	60	M 10	100	13	2.5	11	4.5	65	50	15	-	17	14	180
GN 43-60-M12-60-D0-S	Type S	60	M 12	60	13	2.5	11	-	65	50	15	-	17	16	140
GN 43-60-M12-60-D0-SK	SK	60	M 12	60	13	2.5	11	-	65	50	15	-	17	16	161
GN 43-60-M12-60-D1-S	Type S	60	M 12	60	13	2.5	11	-	65	50	15	2	17	16	159
GN 43-60-M12-60-D1-SK	SK	60	M 12	60	13	2.5	11	-	65	50	15	2	17	16	171
GN 43-60-M12-60-D3-S	Type S	60	M 12	60	13	2.5	11	4.5	65	50	15	-	17	16	182
GN 43-60-M12-60-D3-SK	SK	60	M 12	60	13	2.5	11	4.5	65	50	15	-	17	16	182
GN 43-60-M12-80-D0-S	Type S	60	M 12	80	13	2.5	11	-	65	50	15	-	17	16	160
GN 43-60-M12-80-D0-SK	SK	60	M 12	80	13	2.5	11	-	65	50	15	-	17	16	160
GN 43-60-M12-80-D1-S	Type S	60	M 12	80	13	2.5	11	-	65	50	15	2	17	16	180
GN 43-60-M12-80-D1-SK	SK	60	M 12	80	13	2.5	11	-	65	50	15	2	17	16	180
GN 43-60-M12-80-D3-S	Type S	60	M 12	80	13	2.5	11	4.5	65	50	15	-	17	16	180
GN 43-60-M12-80-D3-SK	SK	60	M 12	80	13	2.5	11	4.5	65	50	15	-	17	16	180
GN 43-60-M12-100-D0-S	Type S	60	M 12	100	13	2.5	11	-	65	50	15	-	17	16	180
GN 43-60-M12-100-D0-SK	SK	60	M 12	100	13	2.5	11	-	65	50	15	-	17	16	180
GN 43-60-M12-100-D1-S	Type S	60	M 12	100	13	2.5	11	-	65	50	15	2	17	16	190
GN 43-60-M12-100-D1-SK	SK	60	M 12	100	13	2.5	11	-	65	50	15	2	17	16	190
GN 43-60-M12-100-D3-S	Type S	60	M 12	100	13	2.5	11	4.5	65	50	15	-	17	16	200
GN 43-60-M12-100-D3-SK	SK	60	M 12	100	13	2.5	11	4.5	65	50	15	-	17	16	200
GN 43-60-M12-125-D0-S	Type S	60	M 12	125	13	2.5	11	-	65	50	15	-	17	16	200
GN 43-60-M12-125-D0-SK	SK	60	M 12	125	13	2.5	11	-	65	50	15	-	17	16	190
GN 43-60-M12-125-D1-S	Type S	60	M 12	125	13	2.5	11	-	65	50	15	2	17	16	210
GN 43-60-M12-125-D1-SK	SK	60	M 12	125	13	2.5	11	-	65	50	15	2	17	16	210
GN 43-60-M12-125-D3-S	Type S	60	M 12	125	13	2.5	11	4.5	65	50	15	-	17	16	200
GN 43-60-M12-125-D3-SK	SK	60	M 12	125	13	2.5	11	4.5	65	50	15	-	17	16	200
GN 43-80-M8-40-D0-S	Type S	80	M 8	40	13	3	12	-	85	70	15	-	17	8	181
GN 43-80-M8-40-D0-SK	SK	80	M 8	40	13	3	12	-	85	70	15	-	17	8	185
GN 43-80-M8-40-D1-S	Type S	80	M 8	40	13	3	12	-	85	70	15	2	17	8	198
GN 43-80-M8-40-D1-SK	SK	80	M 8	40	13	3	12	-	85	70	15	2	17	8	202
GN 43-80-M8-40-D3-S	Type S	80	M 8	40	13	3	12	5	85	70	15	-	17	8	221
GN 43-80-M8-40-D3-SK	SK	80	M 8	40	13	3	12	5	85	70	15	-	17	8	225
GN 43-80-M8-50-D0-S	Type S	80	M 8	50	13	3	12	-	85	70	15	-	17	8	185
GN 43-80-M8-50-D0-SK	SK	80	M 8	50	13	3	12	-	85	70	15	-	17	8	189
GN 43-80-M8-50-D1-S	Type S	80	M 8	50	13	3	12	-	85	70	15	2	17	8	202
GN 43-80-M8-50-D1-SK	SK	80	M 8	50	13	3	12	-	85	70	15	2	17	8	205
GN 43-80-M8-50-D3-S	Type S	80	M 8	50	13	3	12	5	85	70	15	-	17	8	225
GN 43-80-M8-50-D3-SK	SK	80	M 8	50	13	3	12	5	85	70	15	-	17	8	229
GN 43-80-M8-63-D0-S	Type S	80	M 8	63	13	3	12	-	85	70	15	-	17	8	189
GN 43-80-M8-63-D0-SK	SK	80	M 8	63	13	3	12	-	85	70	15	-	17	8	193
GN 43-80-M8-63-D1-S	Type S	80	M 8	63	13	3	12	-	85	70	15	2	17	8	206
GN 43-80-M8-63-D1-SK	SK	80	M 8	63	13	3	12	-	85	70	15	2	17	8	209
GN 43-80-M8-63-D3-S	Type S	80	M 8	63	13	3	12	5	85	70	15	-	17	8	229
GN 43-80-M8-63-D3-SK	SK	80	M 8	63	13	3	12	5	85	70	15	-	17	8	233
GN 43-80-M10-50-D0-S	Type S	80	M 10	50	13	3	12	-	85	70	15	-	17	14	214
GN 43-80-M10-50-D0-SK	SK	80	M 10	50	13	3	12	-	85	70	15	-	17	14	223
GN 43-80-M10-50-D1-S	Type S	80	M 10	50	13	3	12	-	85	70	15	2	17	14	231
GN 43-80-M10-50-D1-SK	SK	80	M 10	50	13	3	12	-	85	70	15	2	17	14	240
GN 43-80-M10-50-D3-S	Type S	80	M 10	50	13	3	12	5	85	70	15	-	17	14	254
GN 43-80-M10-50-D3-SK	SK	80	M 10	50	13	3	12	5	85	70	15	-	17	14	263
GN 43-80-M10-60-D0-S	Type S	80	M 10	60	13	3	12	-	85	70	15	-	17	14	218
GN 43-80-M10-60-D0-SK	SK	80	M 10	60	13	3	12	-	85	70	15	-	17	14	227
GN 43-80-M10-60-D1-S	Type S	80	M 10	60	13	3	12	-	85	70	15	2	17	14	235
GN 43-80-M10-60-D1-SK	SK	80	M 10	60	13	3	12	-	85	70	15	2	17	14	244
GN 43-80-M10-60-D3-S	Type S	80	M 10	60	13	3	12	5	85	70	15	-	17	14	258
GN 43-80-M10-60-D3-SK	SK	80	M 10	60	13	3	12	5	85	70	15	-	17	14	267
GN 43-80-M10-80-D0-S	Type S	80	M 10	80	13	3	12	-	85	70	15	-	17	14	228
GN 43-80-M10-80-D0-SK	SK	80	M 10	80	13	3	12	-	85	70	15	-	17	14	237
GN 43-80-M10-80-D1-S	Type S	80	M 10	80	13	3	12	-	85	70	15	2	17	14	245
GN 43-80-M10-80-D1-SK	SK	80	M 10	80	13	3	12	-	85	70	15	2	17	14	254
GN 43-80-M10-80-D3-S	Type S	80	M 10	80	13	3	12	5	85	70	15	-	17	14	268
GN 43-80-M10-80-D3-SK	SK	80	M 10	80	13	3	12	5	85	70	15	-	17	14	277
GN 43-80-M10-100-D0-S	Type S	80	M 10	100	13	3	12	-	85	70	15	-	17	14	239
GN 43-80-M10-100-D0-SK	SK	80	M 10	100	13	3	12	-	85	70	15	-	17	14	248
GN 43-80-M10-100-D1-S	Type S	80	M 10	100	13	3	12	-	85	70	15	2	17	14	256
GN 43-80-M10-100-D1-SK	SK	80	M 10	100	13	3	12	-	85	70	15	2	17	14	265
GN 43-80-M10-100-D3-S	Type S	80	M 10	100	13	3	12	5	85	70	15	-	17	14	279
GN 43-80-M10-100-D3-SK	SK	80	M 10	100	13	3	12	5	85	70	15	-	17	14	288
GN 43-80-M12-60-D0-S	Type S	80	M 12	60	13	3	12	-	85	70	15	-	17	20	232
GN 43-80-M12-60-D0-SK	SK	80	M 12	60	13	3	12	-	85	70	15	-	17	20	244
GN 43-80-M12-60-D1-S	Type S	80	M 12	60	13	3	12	-	85	70	15	2	17	20	249
GN 43-80-M12-60-D1-SK	SK	80	M 12	60	13	3	12	-	85	70	15	2	17	20	261
GN 43-80-M12-60-D3-S	Type S	80	M 12	60	13	3	12	5	85	70	15	-	17	20	272
GN 43-80-M12-60-D3-SK	SK	80	M 12	60	13	3	12	5	85	70	15	-	17	20	284
GN 43-80-M12-80-D0-S	Type S	80	M 12	80	13	3	12	-	85	70	15	-	17	20	246
GN 43-80-M12-80-D0-SK	SK	80	M 12	80	13	3	12	-	85	70	15	-	17	20	258
GN 43-80-M12-80-D1-S	Type S	80	M 12	80	13	3	12	-	85	70	15	2	17	20	263
GN 43-80-M12-80-D1-SK	SK	80	M 12	80	13	3	12	-	85	70	15	2	17	20	275
GN 43-80-M12-80-D3-S	Type S	80	M 12	80	13	3	12	5	85	70	15	-	17	20	286
GN 43-80-M12-80-D3-SK	SK	80	M 12	80	13	3	12	5	85	70	15	-	17	20	298
GN 43-80-M12-100-D0-S	Type S	80	M 12	100	13	3	12	-	85	70	15	-	17	20	261
GN 43-80-M12-100-D0-SK	SK	80	M 12	100	13	3	12	-	85	70	15	-	17	20	273
GN 43-80-M12-100-D1-S	Type S	80	M 12	100	13	3	12	-	85	70	15	2	17	20	278
GN 43-80-M12-100-D1-SK	SK	80	M 12	100	13	3	12	-	85	70	15	2	17	20	290
GN 43-80-M12-100-D3-S	Type S	80	M 12	100	13	3	12	5	85	70	15	-	17	20	301
GN 43-80-M12-100-D3-SK	SK	80	M 12	100	13	3	12	5	85	70	15	-	17	20	300
GN 43-80-M12-125-D0-S	Type S	80	M 12	125	13	3	12	-	85	70	15	-	17	20	278
GN 43-80-M12-125-D0-SK	SK	80	M 12	125	13	3	12	-	85	70	15	-	17	20	280
GN 43-80-M12-125-D1-S	Type S	80	M 12	125	13	3	12	-	85	70	15	2	17	20	295
GN 43-80-M12-125-D1-SK	SK	80	M 12	125	13	3	12	-	85	70	15	2	17	20	307
GN 43-80-M12-125-D3-S	Type S	80	M 12	125	13	3	12	5	85	70	15	-	17	20	318
GN 43-80-M12-125-D3-SK	SK	80	M 12	125	13	3	12	5	85	70	15	-	17	20	330

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
