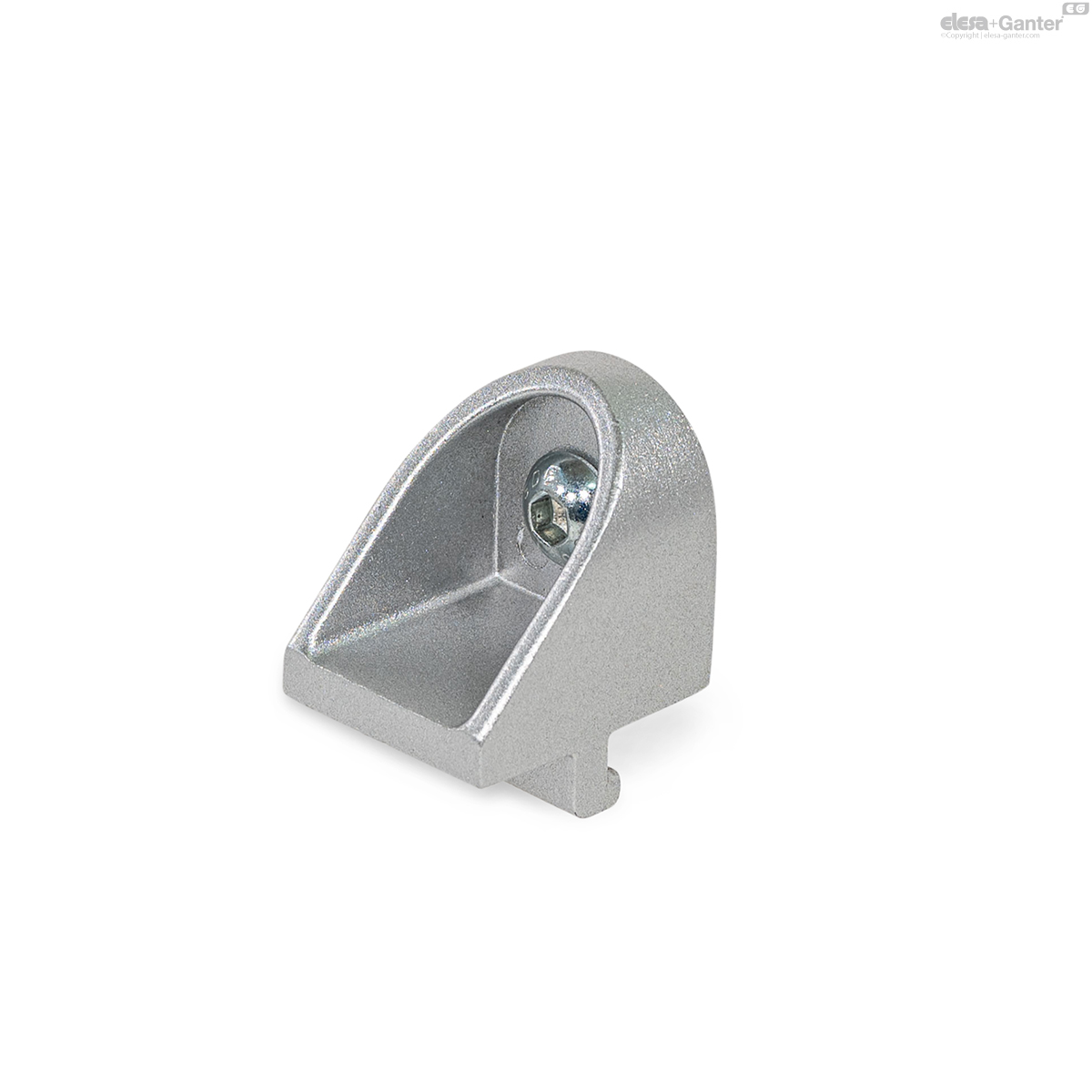

GN 42i
Rotating Angle Brackets
Zinc Die Casting, for Aluminum Profiles (i-Modular System)
Description
Specification
Type
- Type C: With fastening set
Housing
Zinc Die Casting
Painted, white aluminum ZW
Fastening set
Screw and T-nut
Steel, zinc plated, blue passivated SZ
Information
Rotating angle brackets GN 42i connect two crossed profiles at an any angle. Machining of the profile is not necessary.
Loosening the screw simultaneously adjusts the angle and position along the grooves.
GN 42i

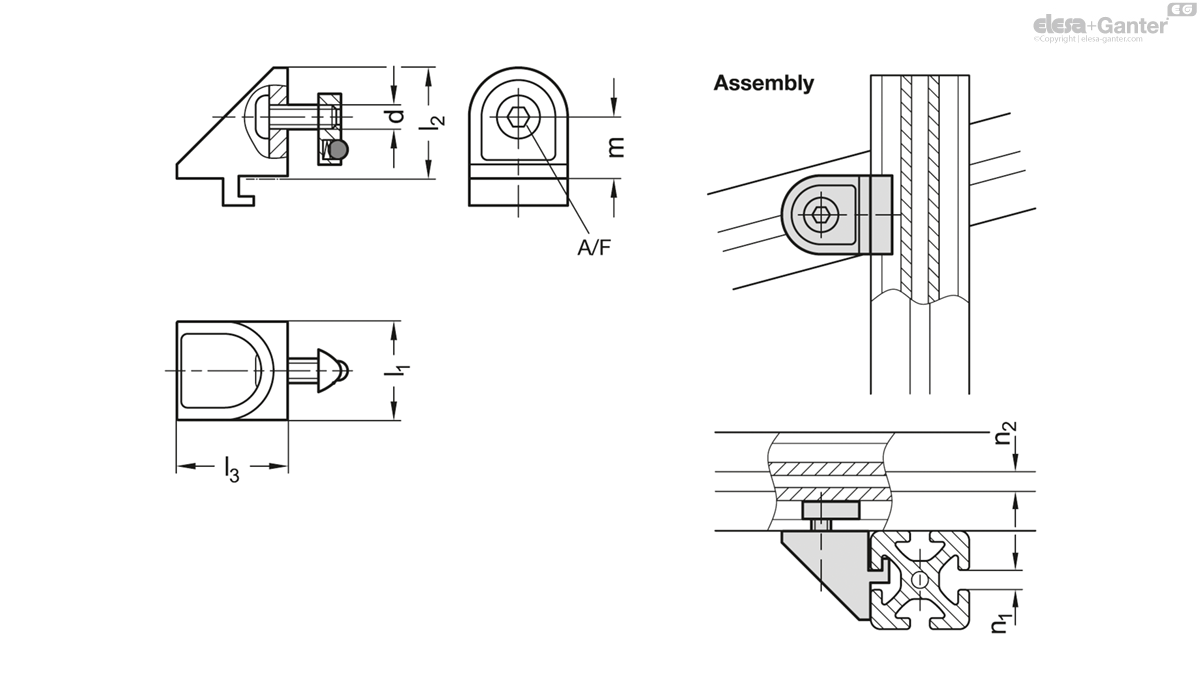

| l1 | n1 | n2 | d | l2 | l3 | m | A/F |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 42i-2466-C-ZWSZ | 24 | 6 | 6 | M 6 | 27 | 27 | 15 | 4 | 66 |
|
| GN 42i-3288-C-ZWSZ | 32 | 8 | 8 | M 8 | 36 | 36 | 20 | 5 | 130 |
|
