GN 427

Cabinet 'U' handles

Aluminium

Enquire Now

Description

Specification

Aluminium

plastic coated

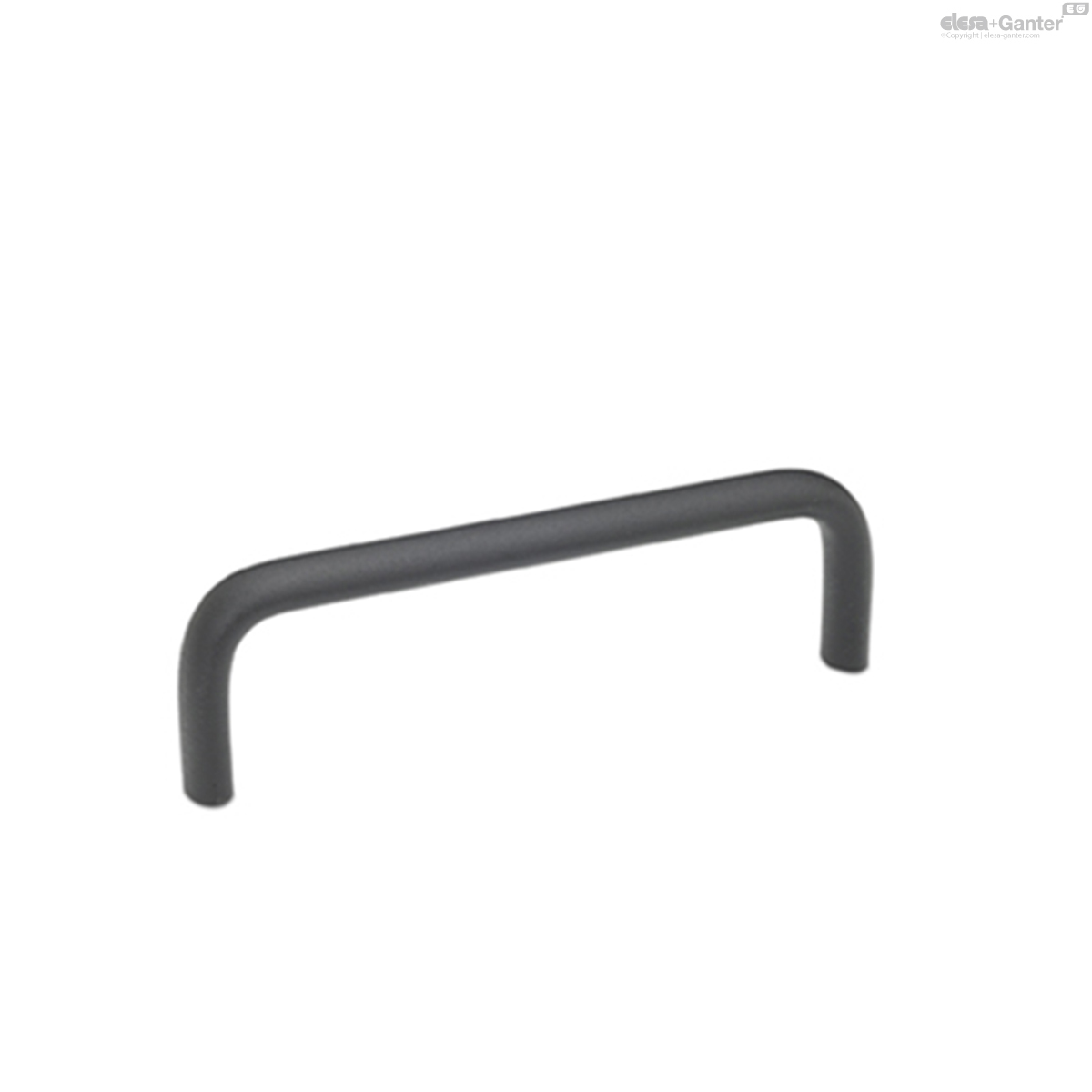

black, RAL 9005, textured finish SW

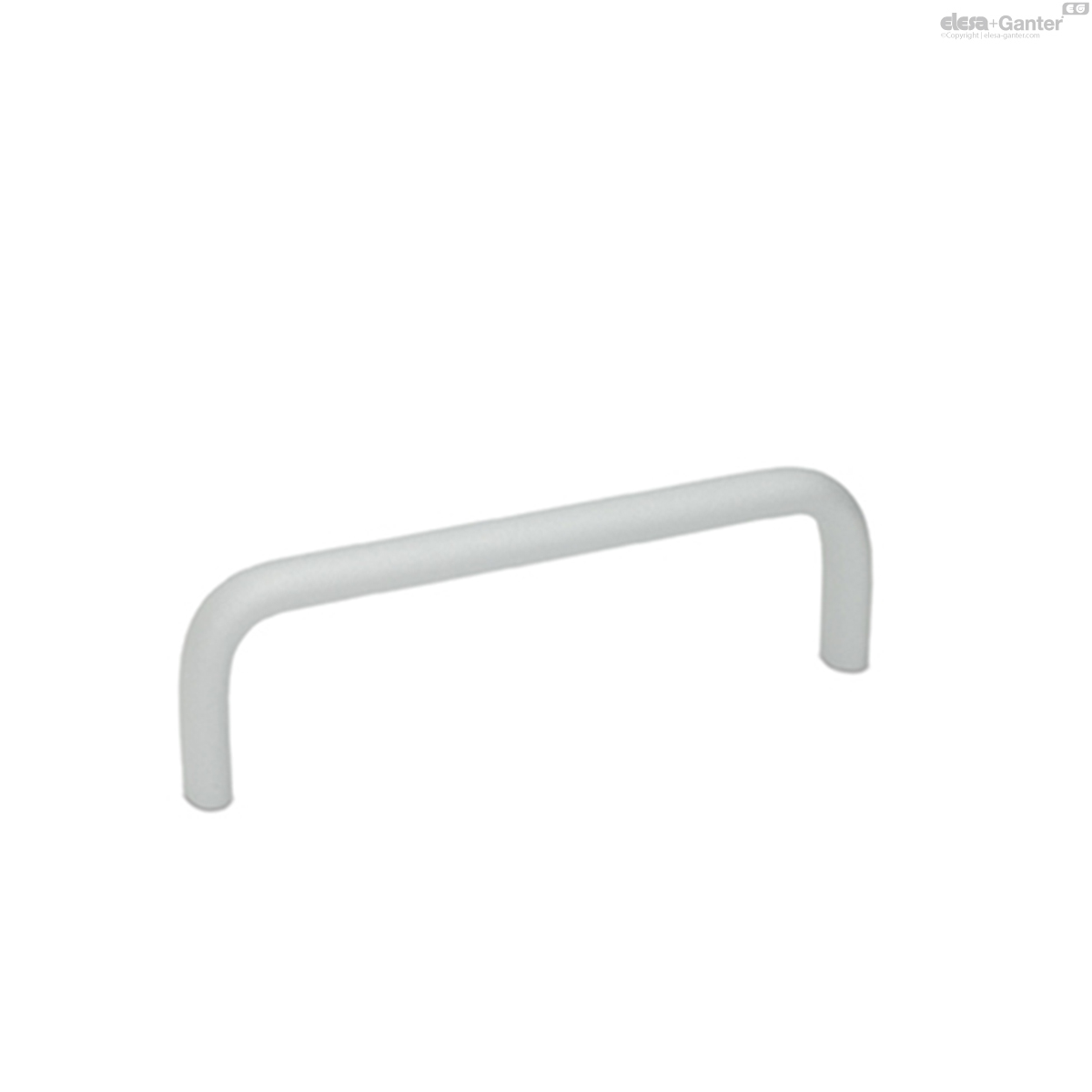

silver, RAL 9006, textured finish SR

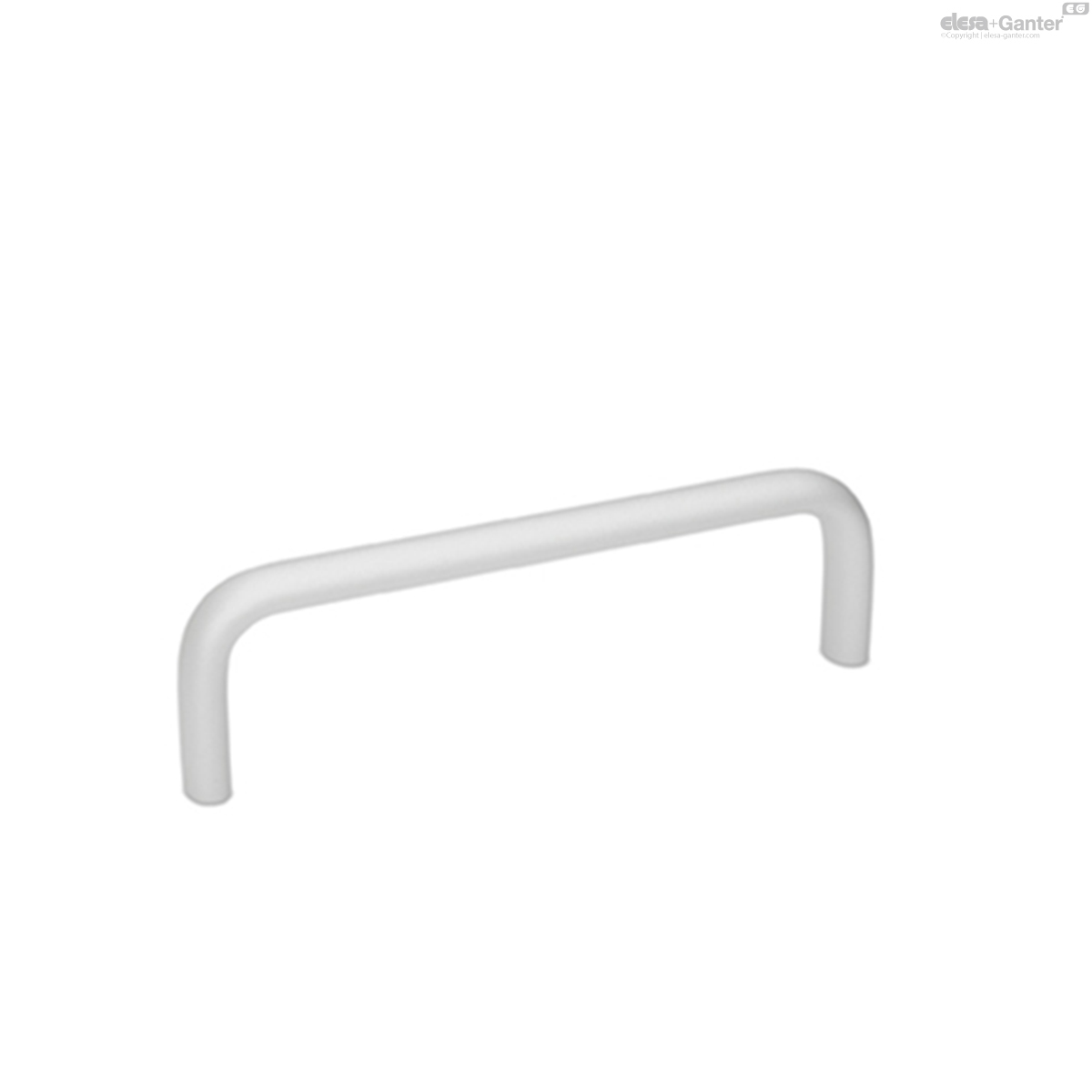

anodized, natural colour EL

Information

Cabinet 'U' handles GN 427 are produced from profiled aluminum extrusions.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

Technical information

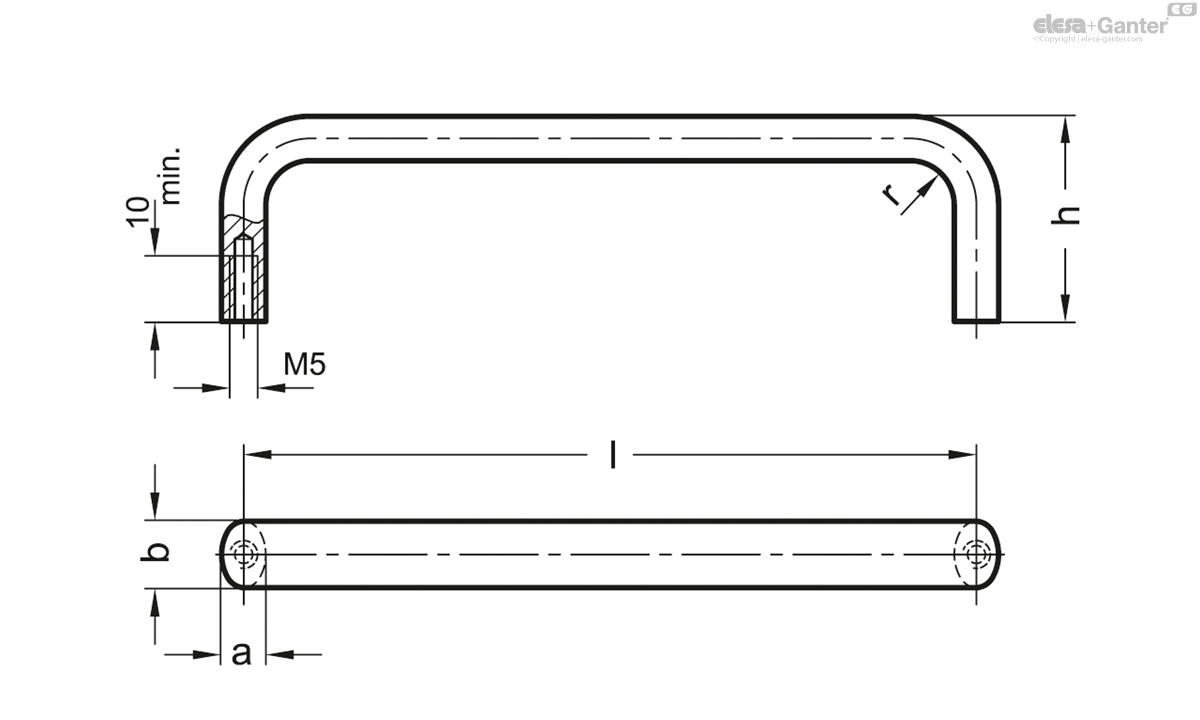

	Color	b	l ±0.25	a	h	r
Code								Actions
GN 427-12-55-EL	EL - Anodized, natural color	12	55**	8	40	8	23
GN 427-12-55-SR	SR - RAL 9006	12	55**	8	40	8	23
GN 427-12-55-SW	SW - RAL 9004	12	55**	8	40	8	23
GN 427-12-88-EL	EL - Anodized, natural color	12	88**	8	40	8	28
GN 427-12-88-SR	SR - RAL 9006	12	88**	8	40	8	28
GN 427-12-88-SW	SW - RAL 9004	12	88**	8	40	8	28
GN 427-12-100-EL	EL - Anodized, natural color	12	100	8	40	8	30
GN 427-12-100-SR	SR - RAL 9006	12	100	8	40	8	30
GN 427-12-100-SW	SW - RAL 9004	12	100	8	40	8	30
GN 427-12-120-EL	EL - Anodized, natural color	12	120**	8	40	8	35
GN 427-12-120-SR	SR - RAL 9006	12	120**	8	40	8	35
GN 427-12-120-SW	SW - RAL 9004	12	120**	8	40	8	35
GN 427-12-180-EL	EL - Anodized, natural color	12	180**	8	40	8	51
GN 427-12-180-SR	SR - RAL 9006	12	180**	8	40	8	51
GN 427-12-180-SW	SW - RAL 9004	12	180**	8	40	8	51
GN 427-12-200-EL	EL - Anodized, natural color	12	200	8	40	8	50
GN 427-12-200-SR	SR - RAL 9006	12	200	8	40	8	50
GN 427-12-200-SW	SW - RAL 9004	12	200	8	40	8	50
GN 427-12-235-EL	EL - Anodized, natural color	12	235**	8	40	8	60
GN 427-12-235-SR	SR - RAL 9006	12	235**	8	40	8	60
GN 427-12-235-SW	SW - RAL 9004	12	235**	8	40	8	60
