GN 426.4

Cabinet U-Handles

Aluminum, Angled, Mounting from the Operator’s Side

Enquire Now

Description

Specification

Information

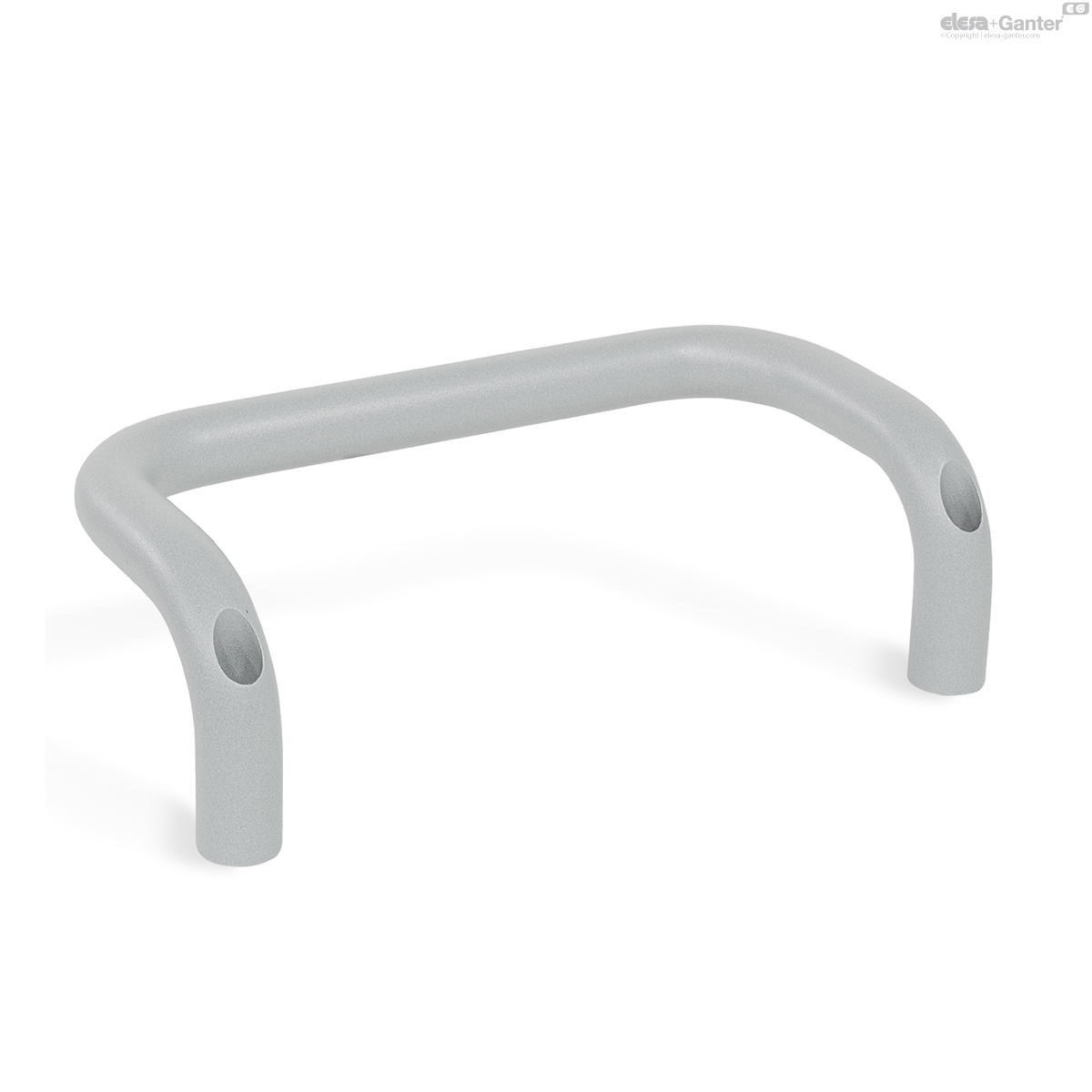

Cabinet U-handles GN 426.4 are manufactured from a bent aluminum profile.

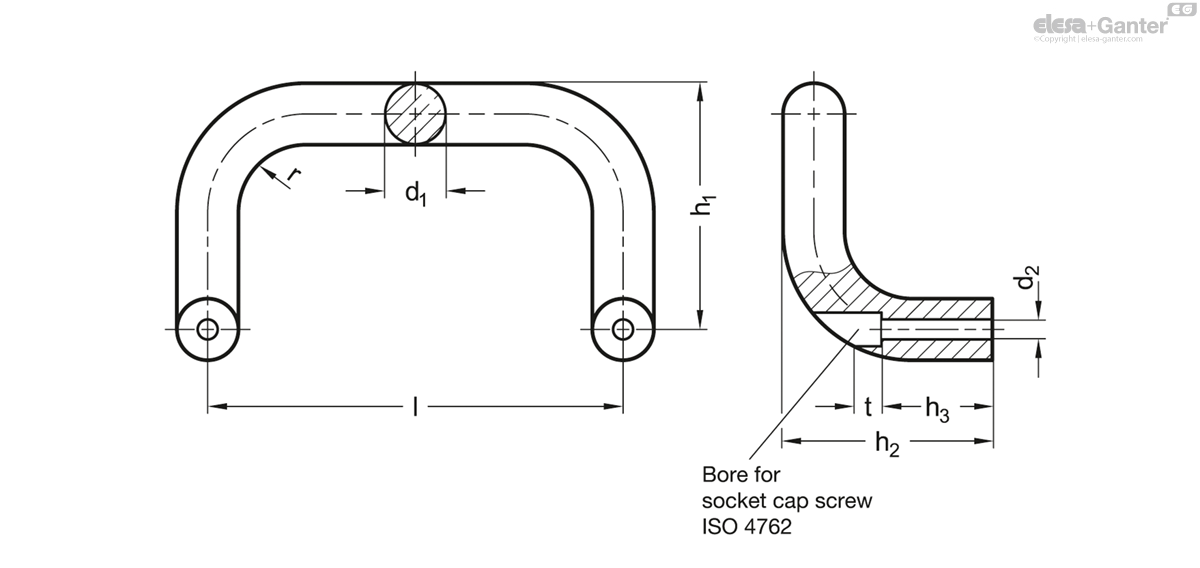

Technical information

	Color	d₁	Length l	d₂	h₁ ≈	h₂ ≈	h₃	r	t ≈
Code											Actions
GN 426.4-AL-20-200-BL	BL - Plain finish	20	200	6.5	105	68	36	22	9	368
GN 426.4-AL-20-200-SR	SR - RAL 9006	20	200	6.5	105	68	36	22	9	368
GN 426.4-AL-20-200-SW	SW - RAL 9005	20	200	6.5	105	68	36	22	9	368
GN 426.4-AL-20-300-BL	BL - Plain finish	20	300	6.5	105	68	36	22	9	467
GN 426.4-AL-20-300-SR	SR - RAL 9006	20	300	6.5	105	68	36	22	9	467
GN 426.4-AL-20-300-SW	SW - RAL 9005	20	300	6.5	105	68	36	22	9	467
GN 426.4-AL-28-250-BL	BL - Plain finish	28	250	9	125	78	34	32	11	834
GN 426.4-AL-28-250-SR	SR - RAL 9006	28	250	9	125	78	34	32	11	834
GN 426.4-AL-28-250-SW	SW - RAL 9005	28	250	9	125	78	34	32	11	834
GN 426.4-AL-28-350-BL	BL - Plain finish	28	350	9	125	78	34	32	11	1030
GN 426.4-AL-28-350-SR	SR - RAL 9006	28	350	9	125	78	34	32	11	1030
GN 426.4-AL-28-350-SW	SW - RAL 9005	28	350	9	125	78	34	32	11	1030
GN 426.4-AL-28-500-BL	BL - Plain finish	28	500	9	125	78	34	32	11	1280
GN 426.4-AL-28-500-SR	SR - RAL 9006	28	500	9	125	78	34	32	11	1280
GN 426.4-AL-28-500-SW	SW - RAL 9005	28	500	9	125	78	34	32	11	1280
