GN 426.1

Cabinet U-Handles

Aluminum

Enquire Now

Description

Specification

Information

Cabinet U-handles GN 426.1 are manufactured from a bent aluminum profile.

Accessory

Technical information

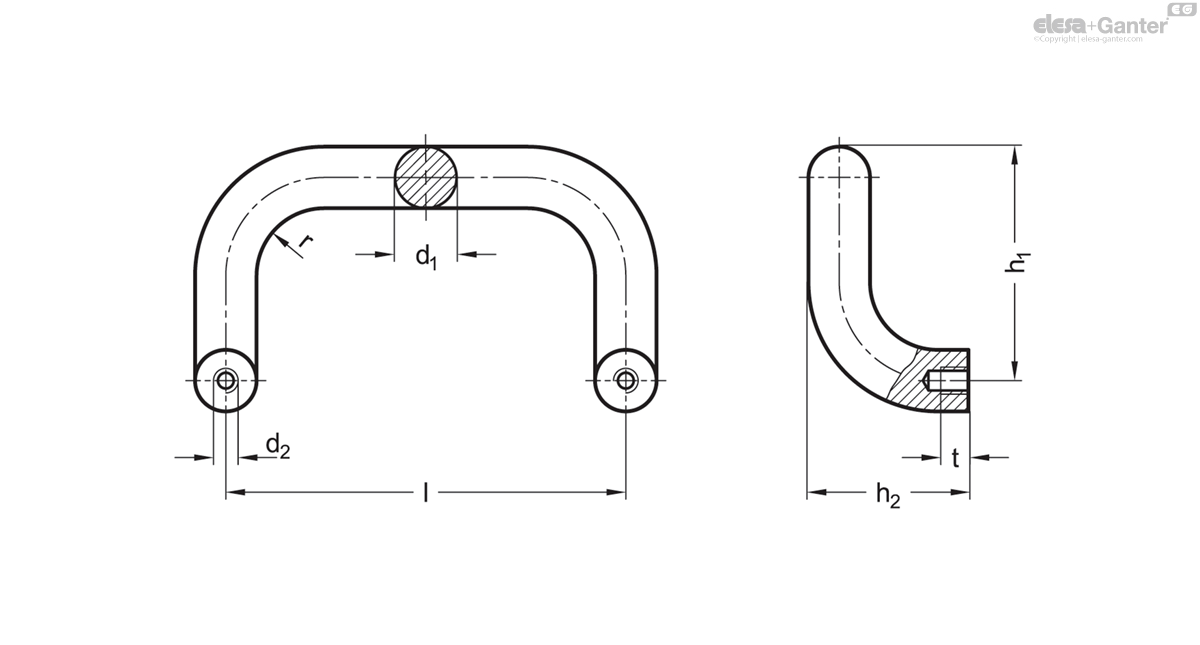

	Color	d₁	Length l	d₂	h₁	h₂	r	t min.
Code										Actions

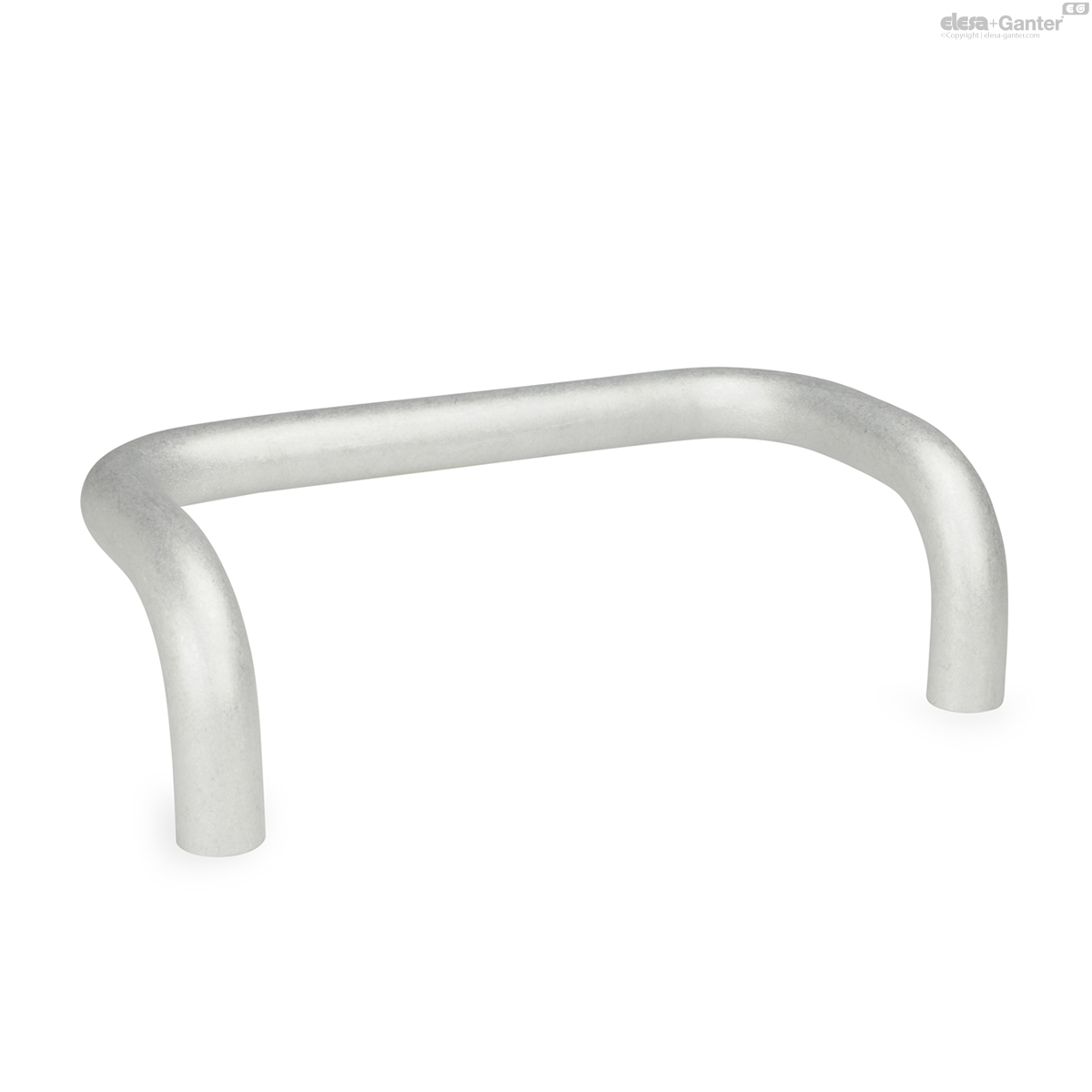

GN 426.1-AL-20-200-BL	BL - Plain finish	20	200	M 8	105	68	22	15	372

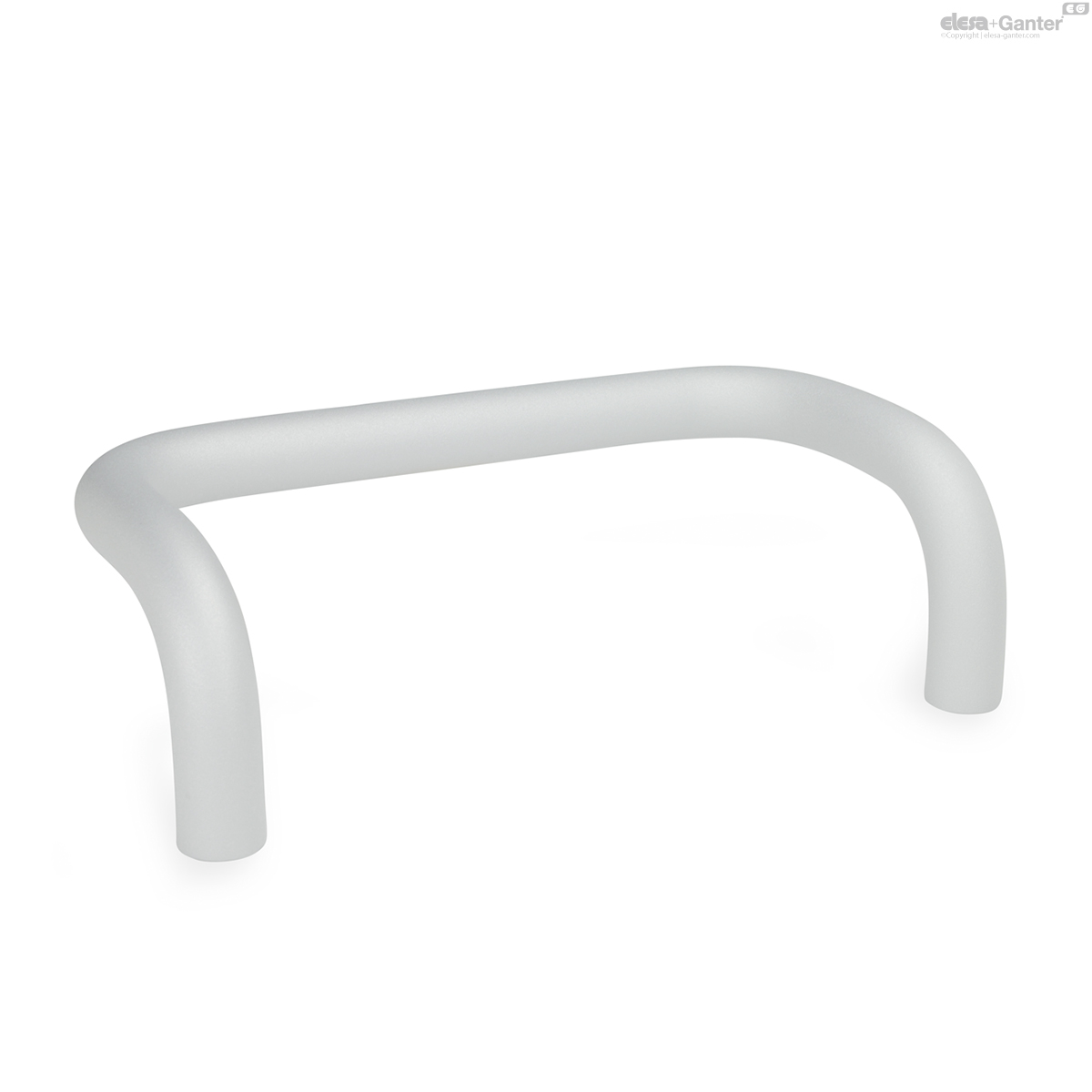

GN 426.1-AL-20-200-SR	SR - RAL 9006	20	200	M 8	105	68	22	15	372

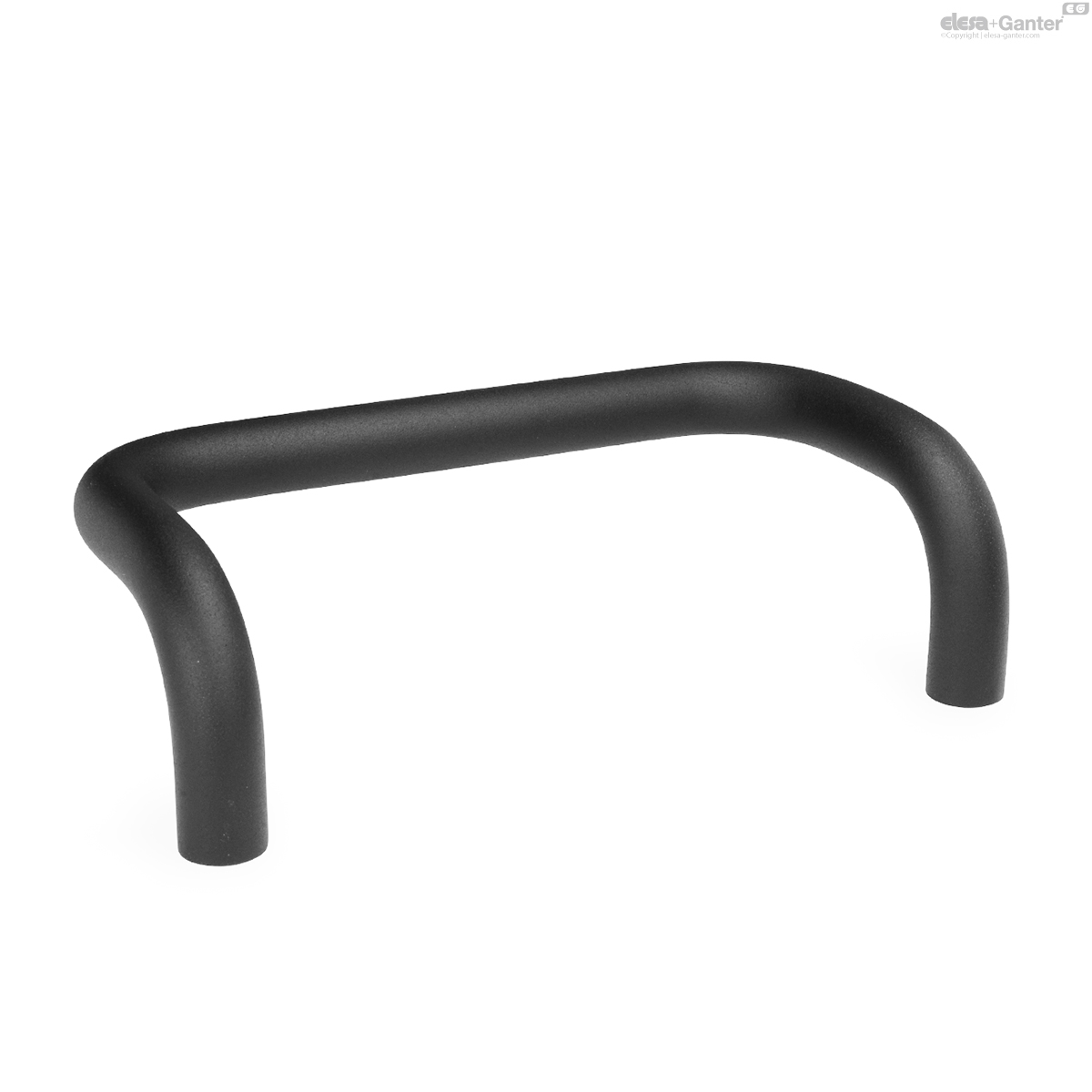

GN 426.1-AL-20-200-SW	SW - RAL 9005	20	200	M 8	105	68	22	15	372
GN 426.1-AL-20-300-BL	BL - Plain finish	20	300	M 8	105	68	22	15	450
GN 426.1-AL-20-300-SR	SR - RAL 9006	20	300	M 8	105	68	22	15	450
GN 426.1-AL-20-300-SW	SW - RAL 9005	20	300	M 8	105	68	22	15	450
GN 426.1-AL-28-250-BL	BL - Plain finish	28	250	M 10	125	78	32	15	465
GN 426.1-AL-28-250-SR	SR - RAL 9006	28	250	M 10	125	78	32	15	465
GN 426.1-AL-28-250-SW	SW - RAL 9005	28	250	M 10	125	78	32	15	465
GN 426.1-AL-28-350-BL	BL - Plain finish	28	350	M 10	125	78	32	15	517
GN 426.1-AL-28-350-SR	SR - RAL 9006	28	350	M 10	125	78	32	15	517
GN 426.1-AL-28-350-SW	SW - RAL 9005	28	350	M 10	125	78	32	15	517
GN 426.1-AL-28-500-BL	BL - Plain finish	28	500	M 10	125	78	32	15	620
GN 426.1-AL-28-500-SR	SR - RAL 9006	28	500	M 10	125	78	32	15	620
GN 426.1-AL-28-500-SW	SW - RAL 9005	28	500	M 10	125	78	32	15	620
