Description

Specification

Types

Type A: Thread for fixing from the back

Type B: Through-hole for fixing from the operators side

Type C: Fixed from the operators side by means of welding

Identification no.

No. 1: Handle 90° foldaway

No. 2: Handle 90° foldaway, with retaining spring

No. 3: Handle 180° foldaway

No. 4: Handle 180° foldaway, with retaining spring

Attachment part

Stainless Steel precision casting

AISI CF-8 NI

matte shot-blasted GS

plastic coated (only type A and B)

black, RAL 9005, textured finish SW

Handle

Stainless Steel

AISI 304

matte shot-blasted

Retaining springs

spring steel

AISI 301

Information

GN 425.9 Stainless Steel-Folding handles are used where the handle must only protrude a short distance in the resting position.

Folding handles numbers 1 and 2 are suitable for side “access,” as these have a 90° limit stop. If used from above, numbers 3 and 4 with a handle which can fold freely through 180° are a better version.

The retaining springs of numbers 2 and 4 keep the handle in any position. This keeps the handle in a position which can be easily accessed and prevents noise as a result of vibration in the resting position.

The handle and the retaining springs are secured by mounting the attachment across the entire surface. All components are supplied unassembled.

Technical information

Stainless Steel characteristics

GN 425.9

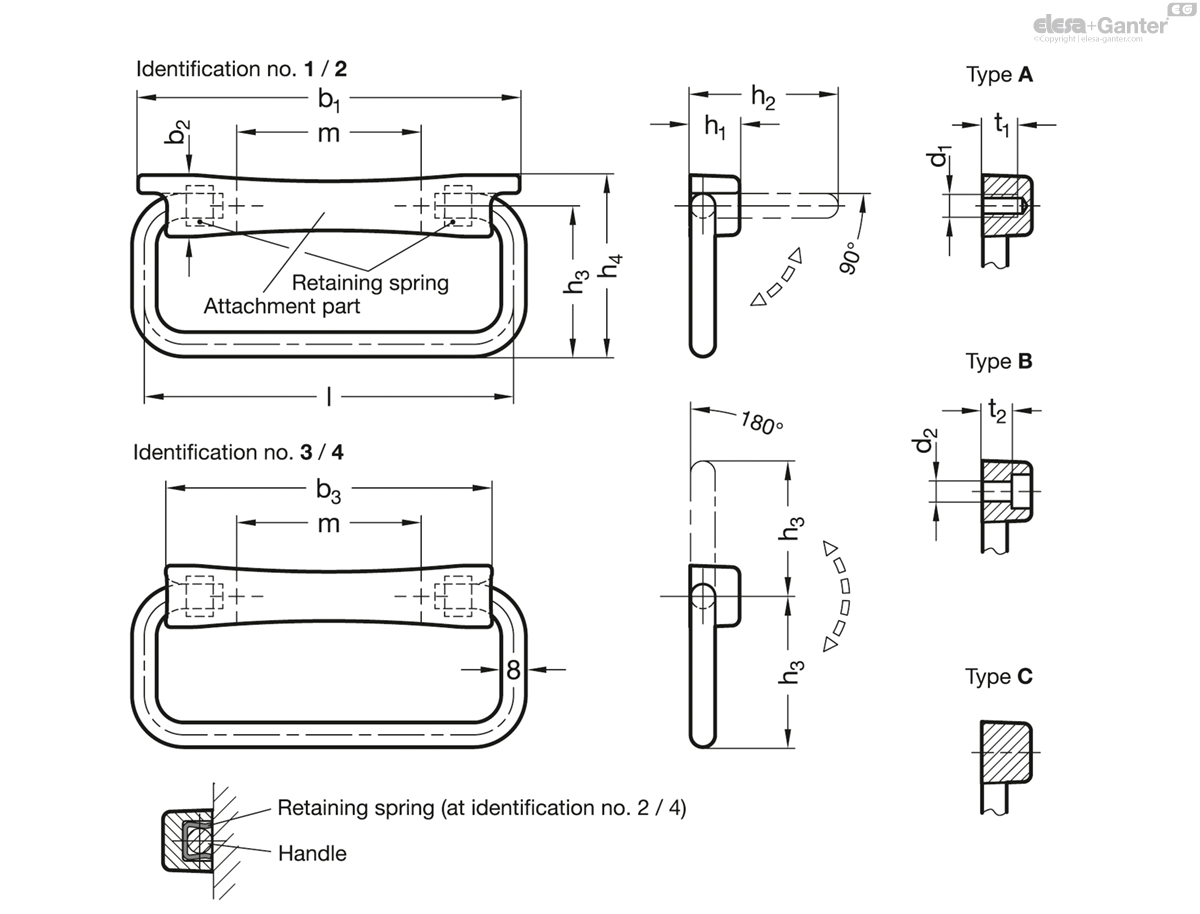

	l	b₁	b₂	b₃	d₁	d₂	h₁	h₂ ≈	h₃	h₄	m	t₁	t₂
Code															Actions
GN 425.9-120-NI-A-1-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	267
GN 425.9-120-NI-A-1-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	267
GN 425.9-120-NI-A-2-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	267
GN 425.9-120-NI-A-2-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	268
GN 425.9-120-NI-A-3-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	259
GN 425.9-120-NI-A-3-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	260
GN 425.9-120-NI-A-4-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	261
GN 425.9-120-NI-A-4-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	262
GN 425.9-120-NI-B-1-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	256
GN 425.9-120-NI-B-1-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	256
GN 425.9-120-NI-B-2-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	259
GN 425.9-120-NI-B-2-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	257
GN 425.9-120-NI-B-3-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	246
GN 425.9-120-NI-B-3-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	248
GN 425.9-120-NI-B-4-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	246
GN 425.9-120-NI-B-4-SW	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	248
GN 425.9-120-NI-C-1-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	270
GN 425.9-120-NI-C-2-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	269
GN 425.9-120-NI-C-3-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	264
GN 425.9-120-NI-C-4-GS	120	124	20	106	M 6	6.4	16	53	49	59	60	10	9.6	259
