GN 425.8

Folding handles with recessed tray

Enquire Now

GN 425.8

Folding handles with recessed tray

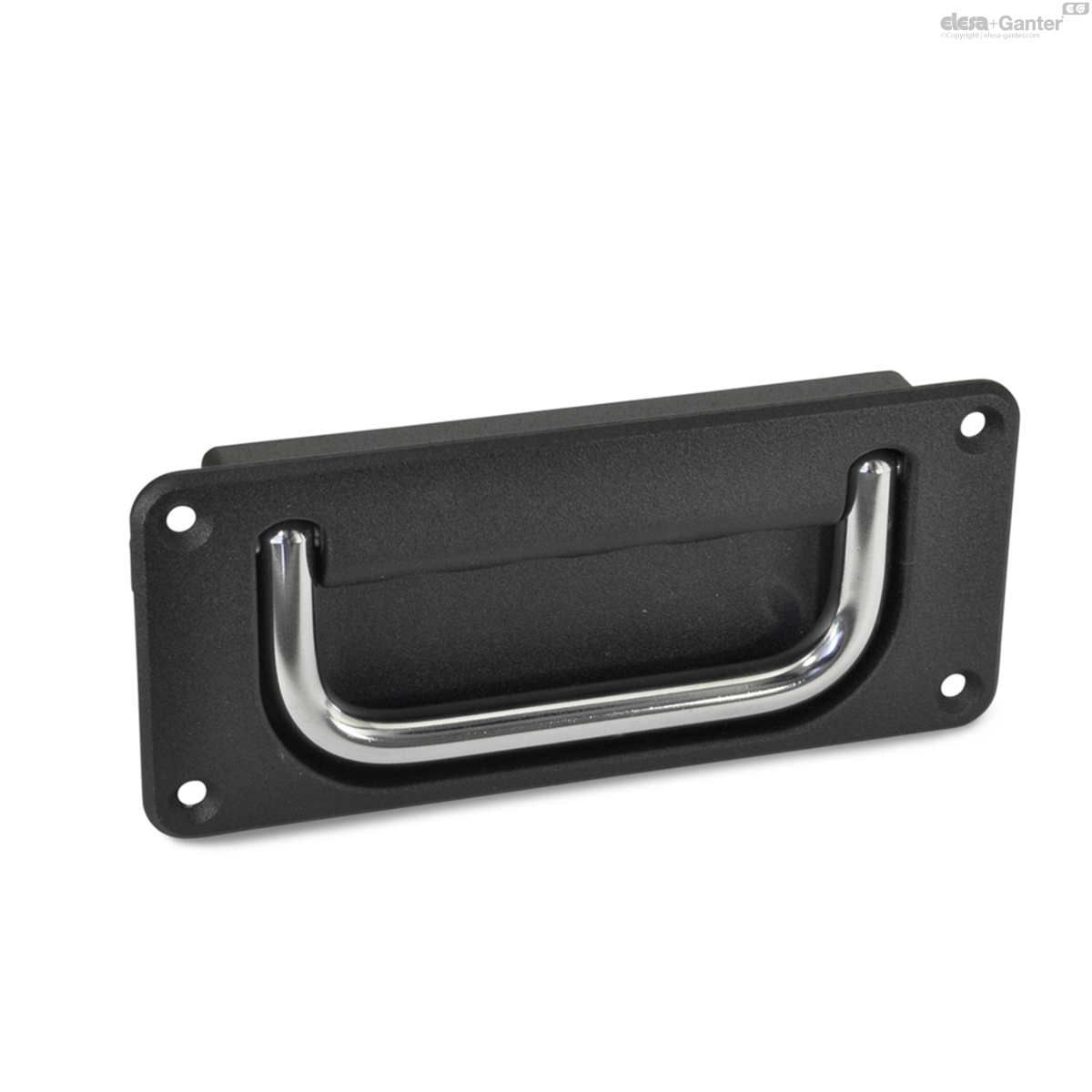

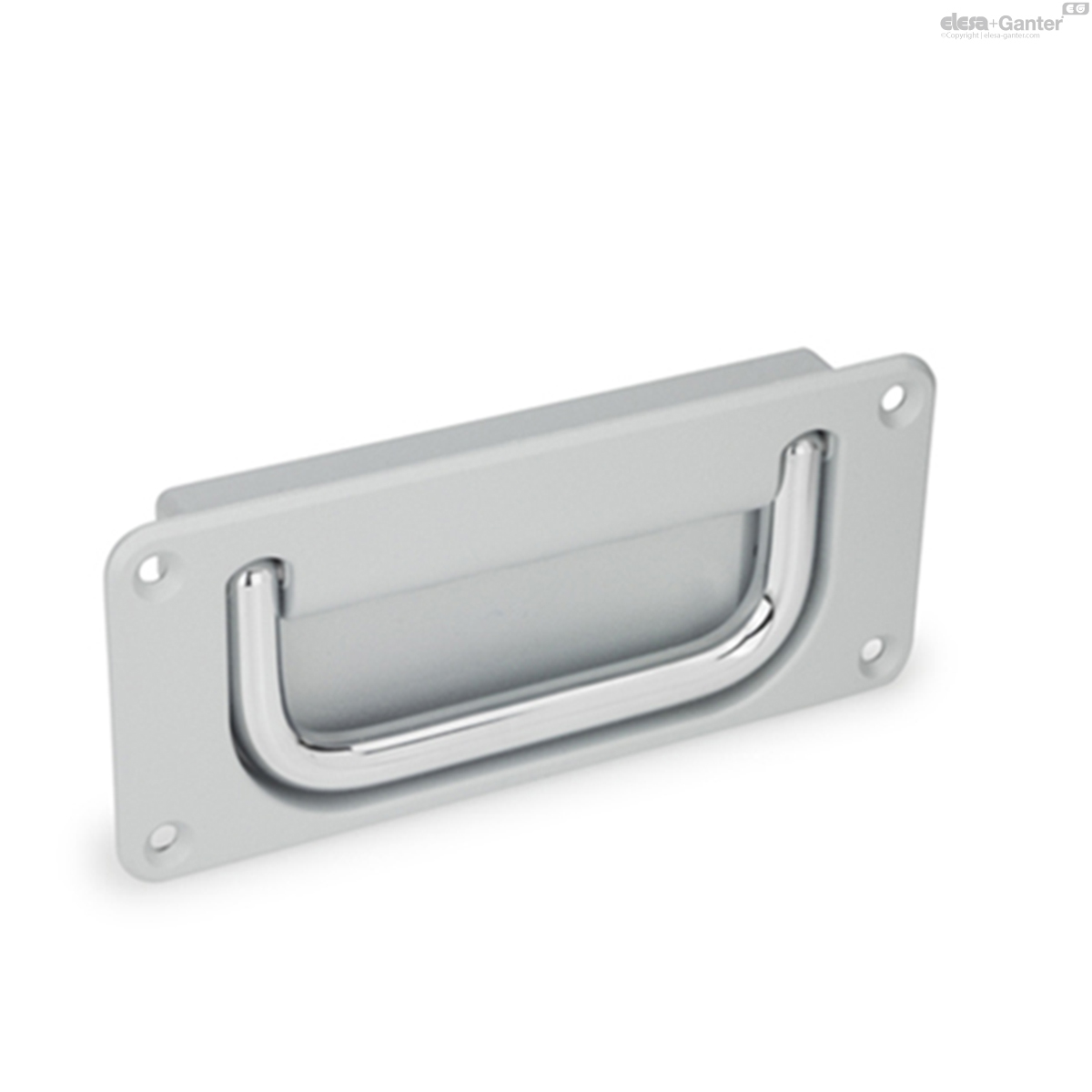

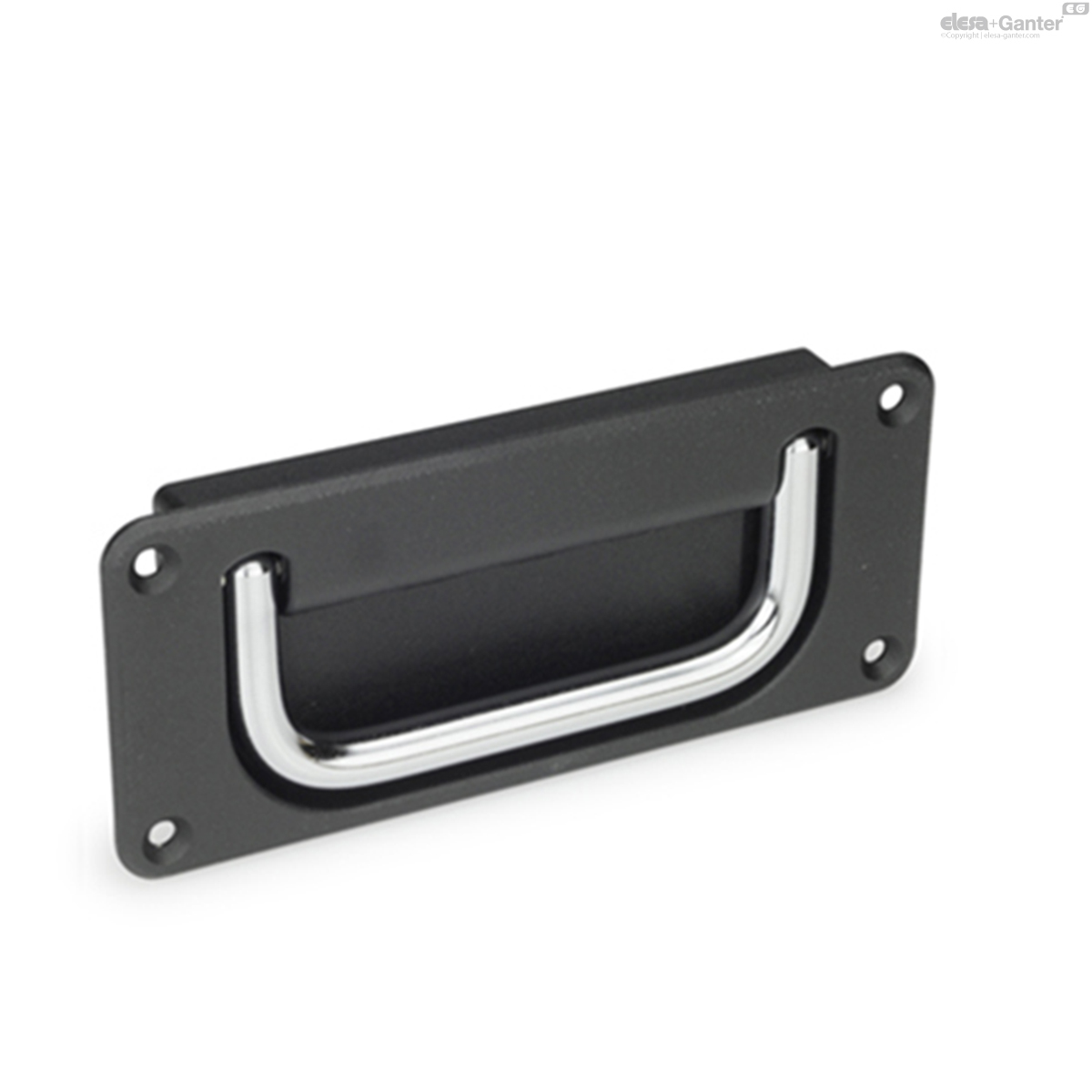

Folding handles with recessed tray, Steel

GN 425.8-NI

Folding handles with recessed tray

Folding handles with recessed tray, Stainless Steel

Description

Specification

Types

Type A: with handle locking in the folded up or folded down position

Type B: with spring return of the handle in the folded down position

Tray

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Folding handle

Version in Steel

chrome plated CR

Version in Stainless Steel AISI 303

matt shot-blasted NI

Information

The folding handles with recessed tray GN 425.8 are used if the handle is to protrude by a maximum of 3 mm when folded down.

In type A, the folding handle is held in both end positions by spring-loaded thrust pieces.

In type B, the folding handle always spring-returns to the starting position after being released, preventing it from protruding with potentially interfering effect.

Technical information

Stainless Steel characteristics
Load rating information

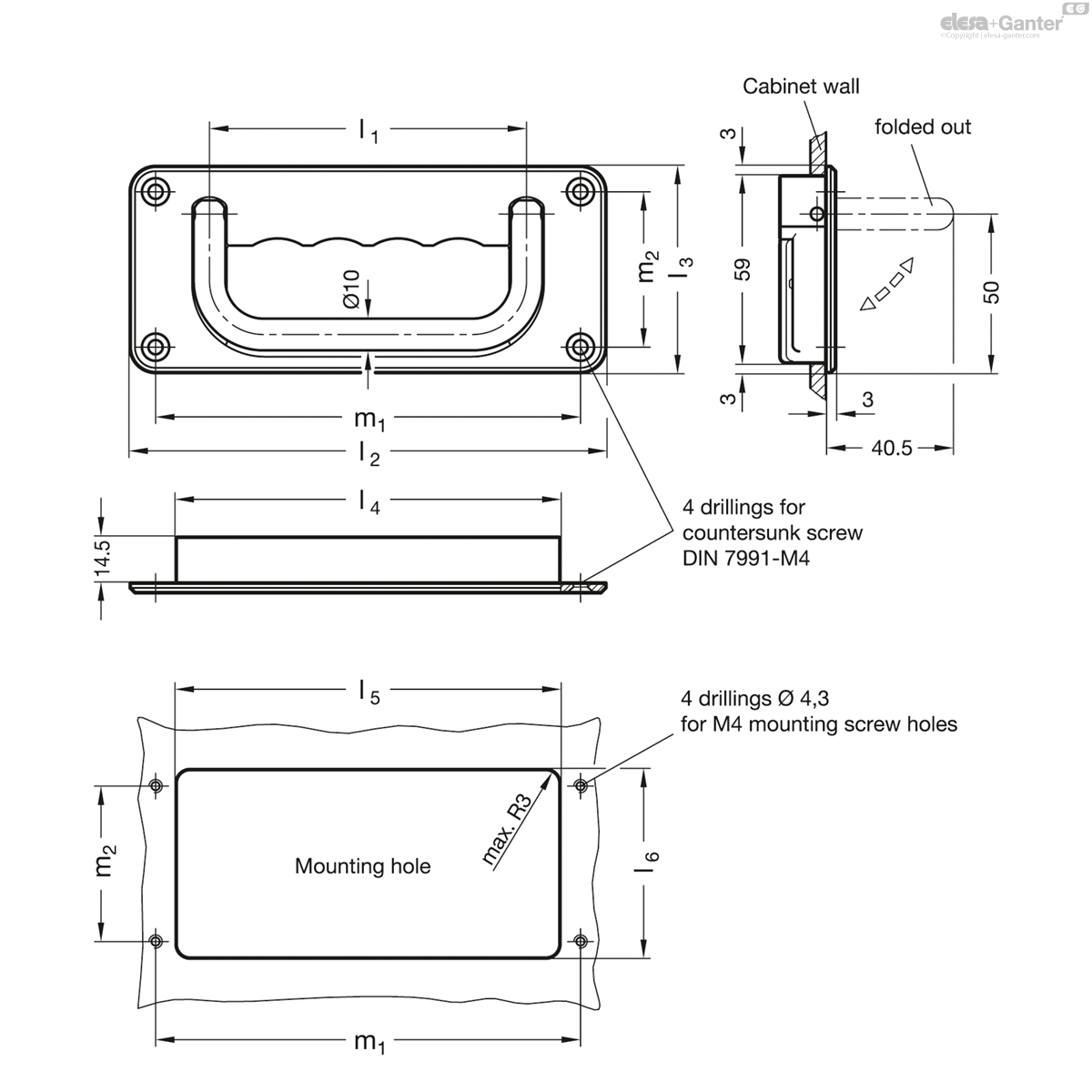

GN 425.8

	Color	l₁	l₂	l₃	l₄	l₅	l₆	m₁	m₂
Code											Actions
GN 425.8-100-CR-SR-A	SR - RAL 9006	100	150	65	121	122	60	134	49	338
GN 425.8-100-CR-SR-B	SR - RAL 9006	100	150	65	121	122	60	134	49	341
GN 425.8-100-CR-SW-A	SW - RAL 9004	100	150	65	121	122	60	134	49	332
GN 425.8-100-CR-SW-B	SW - RAL 9004	100	150	65	121	122	60	134	49	334
GN 425.8-120-CR-SR-A	SR - RAL 9006	120	170	65	141	142	60	154	49	360
GN 425.8-120-CR-SR-B	SR - RAL 9006	120	170	65	141	142	60	154	49	379
GN 425.8-120-CR-SW-A	SW - RAL 9004	120	170	65	141	142	60	154	49	370
GN 425.8-120-CR-SW-B	SW - RAL 9004	120	170	65	141	142	60	154	49	360
