GN 425.5
Folding Handles
Steel / Stainless Steel, in Both End Positions Retained
GN 425.5-CR
Folding Handles
Steel, chrome plated

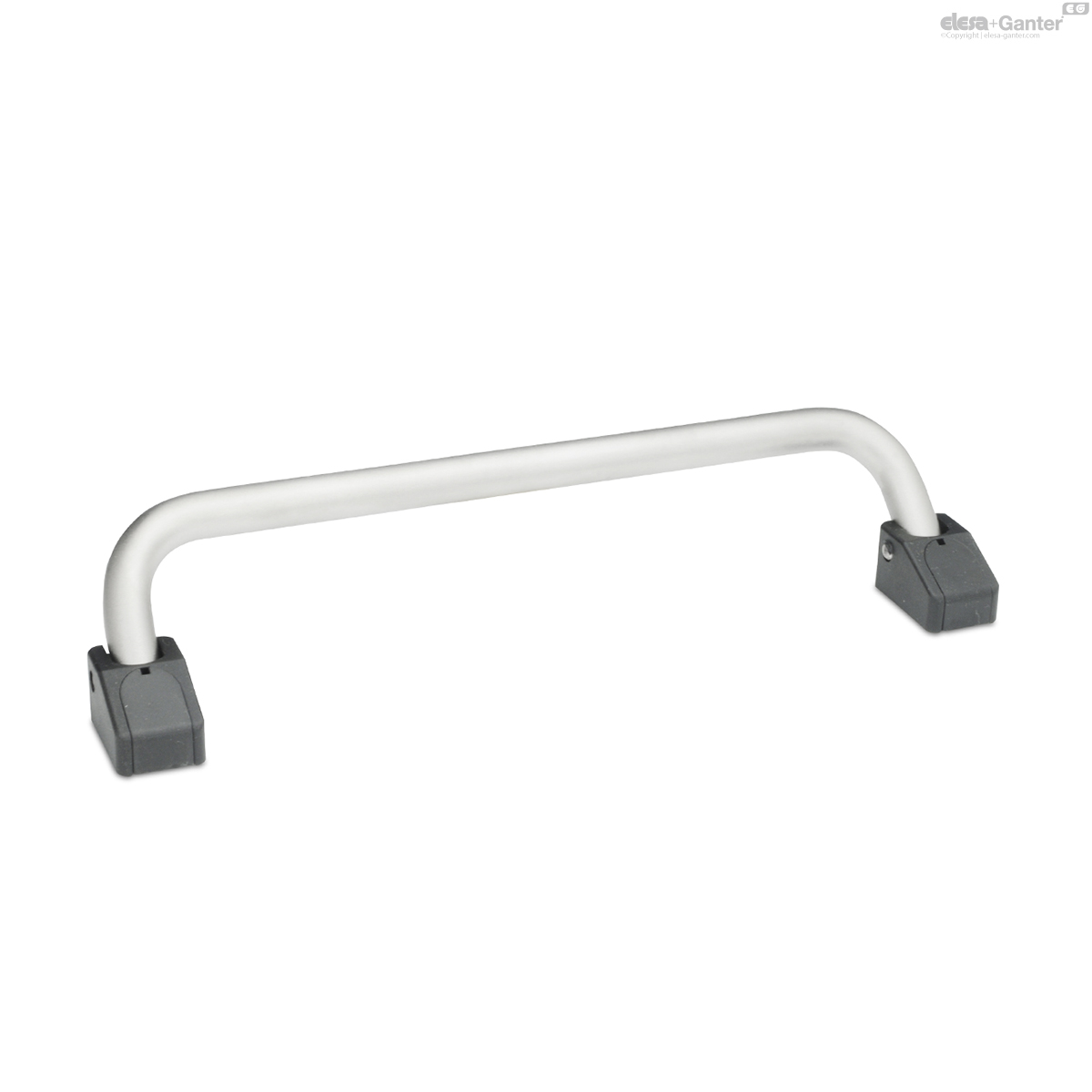

GN 425.5-NI
Folding Handles
Stainless steel AISI 303
Description
Specification
Handle
- Steel, chrome plated CR
- Stainless steel AISI 303 NI
- Matte, shot-blasted
Attachment part
Plastic, Polyamide (PA)
- Operating temperature up to 100 °C
- Black, matte finish
Cover
Plastic, Polyamide (PA)
- Operating temperature up to 100 °C
- Black-gray, matte finish
Information
Folding handles GN 425.5 are used in places where the handle must not protrude or protrude only a short distance.
The handle is locked in place in the resting position by means of a springloaded (disk springs) thrust bolt.
The static load capacity value given in the table is an approximate value which, if exceeded, may result in permanent deformation or fracture of the plastic attachment part. The folding handle GN 425.2 may be used as an alternative.
Technical information
- Load Rating InformationÂ
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 425.5-CR
| Length l | h1 | h2 | h3 | F1 Static load in N folded out |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 425.5-100-CR | 100 | 34 | 44.5 | 55 | 500 | 106 |
|
| GN 425.5-120-CR | 120 | 34 | 44.5 | 55 | 500 | 118 |
|
| GN 425.5-180-CR | 180 | 34 | 44.5 | 55 | 500 | 163 |
|
