Cabinet U-Handles

Steel / Stainless Steel / Aluminum

Enquire Now

Description

Specification

Version in Steel

Handle

Steel

Powder coated

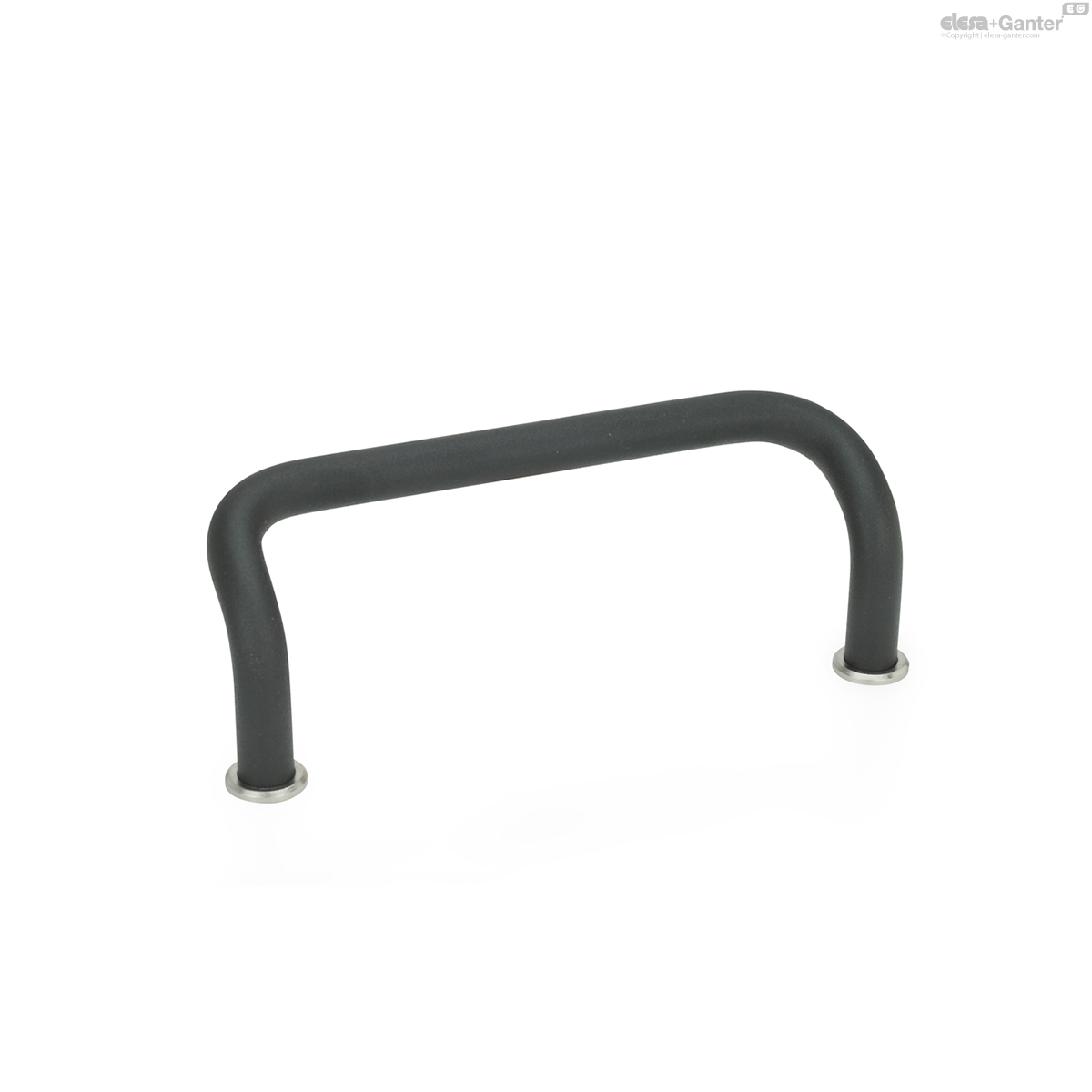

Black, RAL 9005, textured finish SW

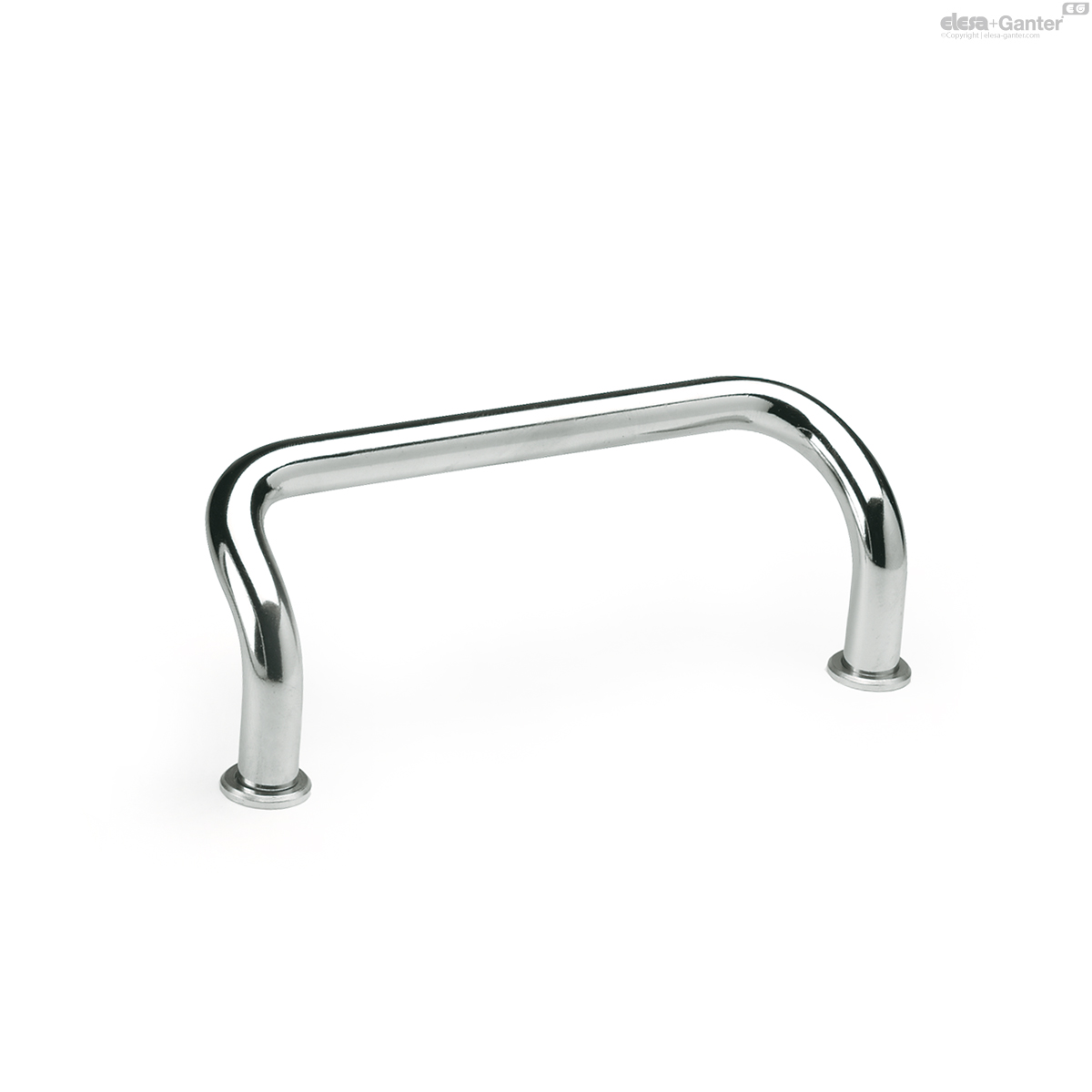

Chrome plated CR

Blackened BT

Location disks

Zinc die casting, nickel plated

Version in Stainless steel

Stainless steel NI

AISI 303 for d₁ = 8, 10

AISI 304 for d₁ = 12

Matte shot-blasted finish GS

Electropolished EP

Location disks for d₁ = 8, 10

Stainless steel AISI 303

Stainless steel AISI 316L A4

Matte shot-blasted finish GS

Location disks

Stainless steel AISI 316L

Version in Aluminum

Aluminum AL

Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Red, RAL 3000, textured finish RS

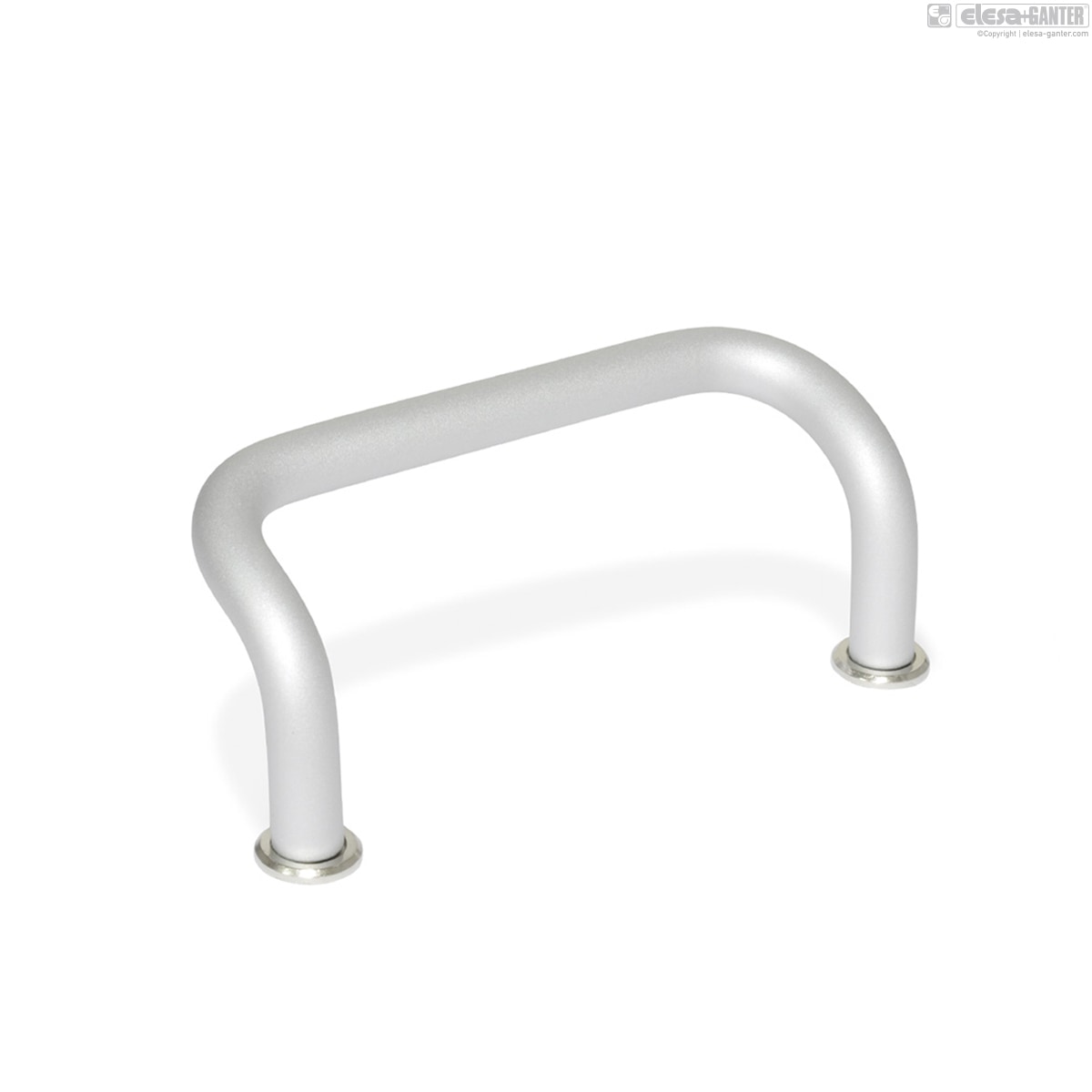

Anodized, natural color EL

Location disks for d₁ = 8, 10

Zinc die casting, nickel plated

Information

Cabinet U-handles GN 425.1 are manufactured from a bent stainless steel, steel or aluminum profile. Cabinet U-handles with Ø d₁ = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.

The stainless steel version is preferred over the chrome-plated version for outdoor applications.

Accessory

GN 181 Fastening Sets (Mounting from the Operator‘s Side)

Technical information

Load Rating Information
Stainless Steel Characteristics

GN 425.1-ST

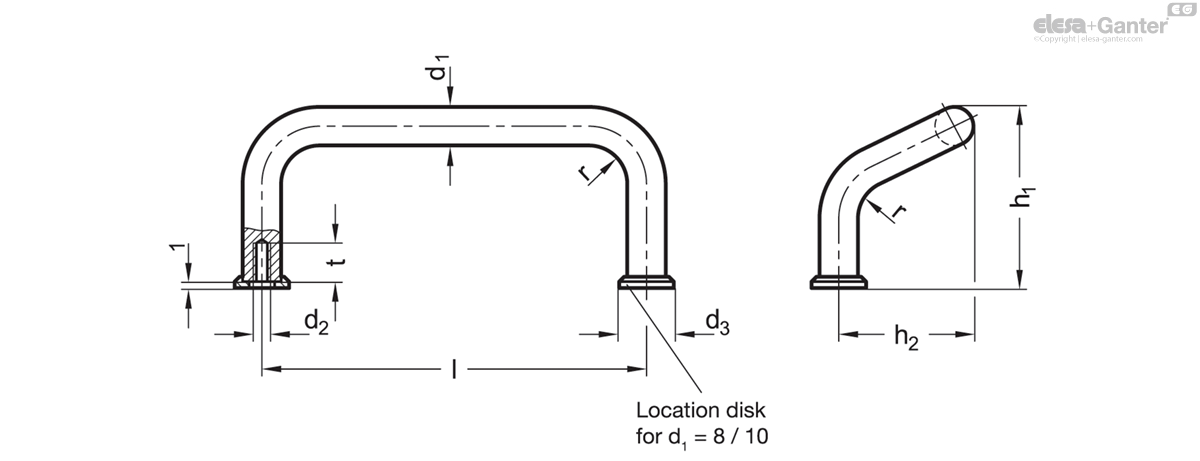

	Color	d₁	Length l	d₂	d₃	h₁	h₂	r	t min.
