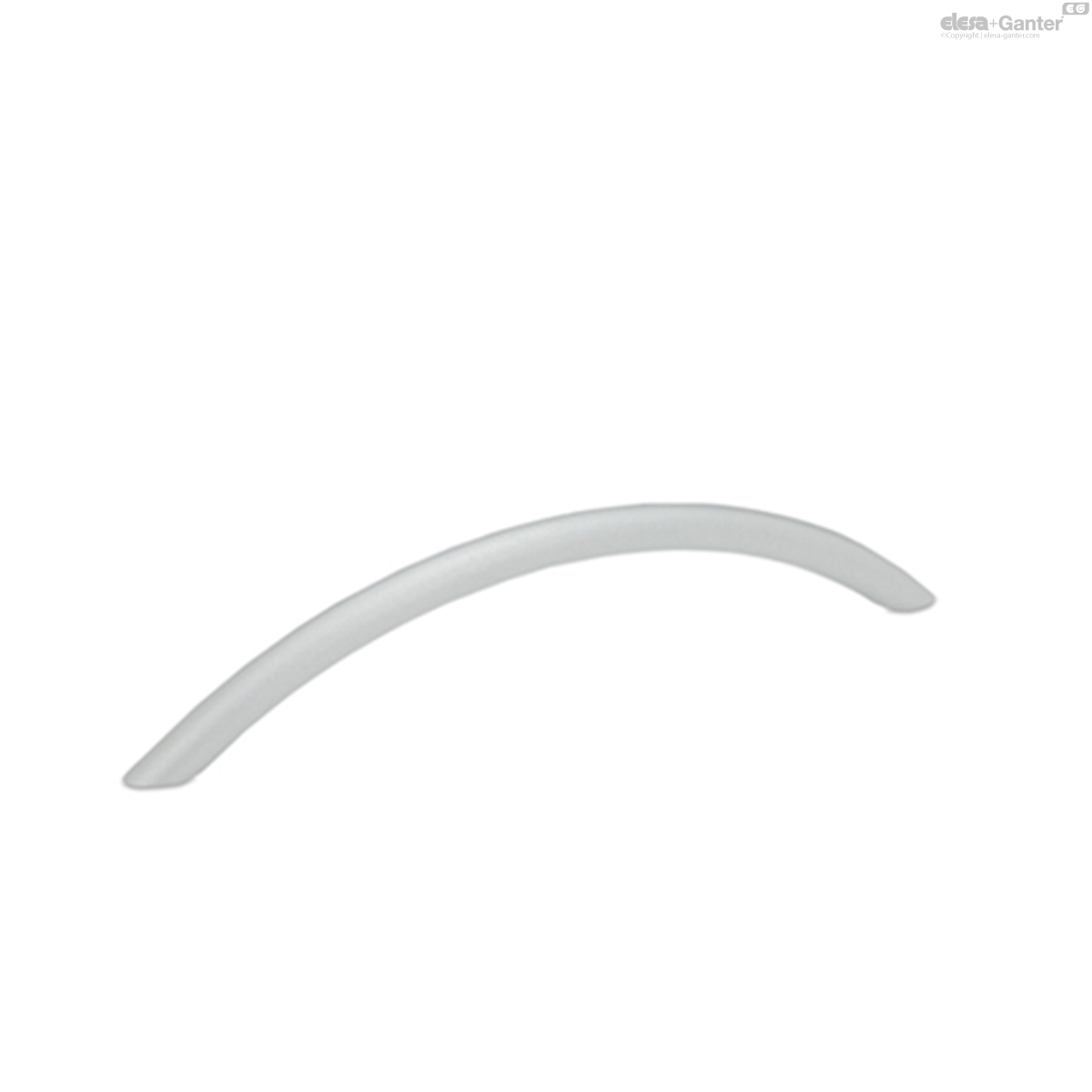

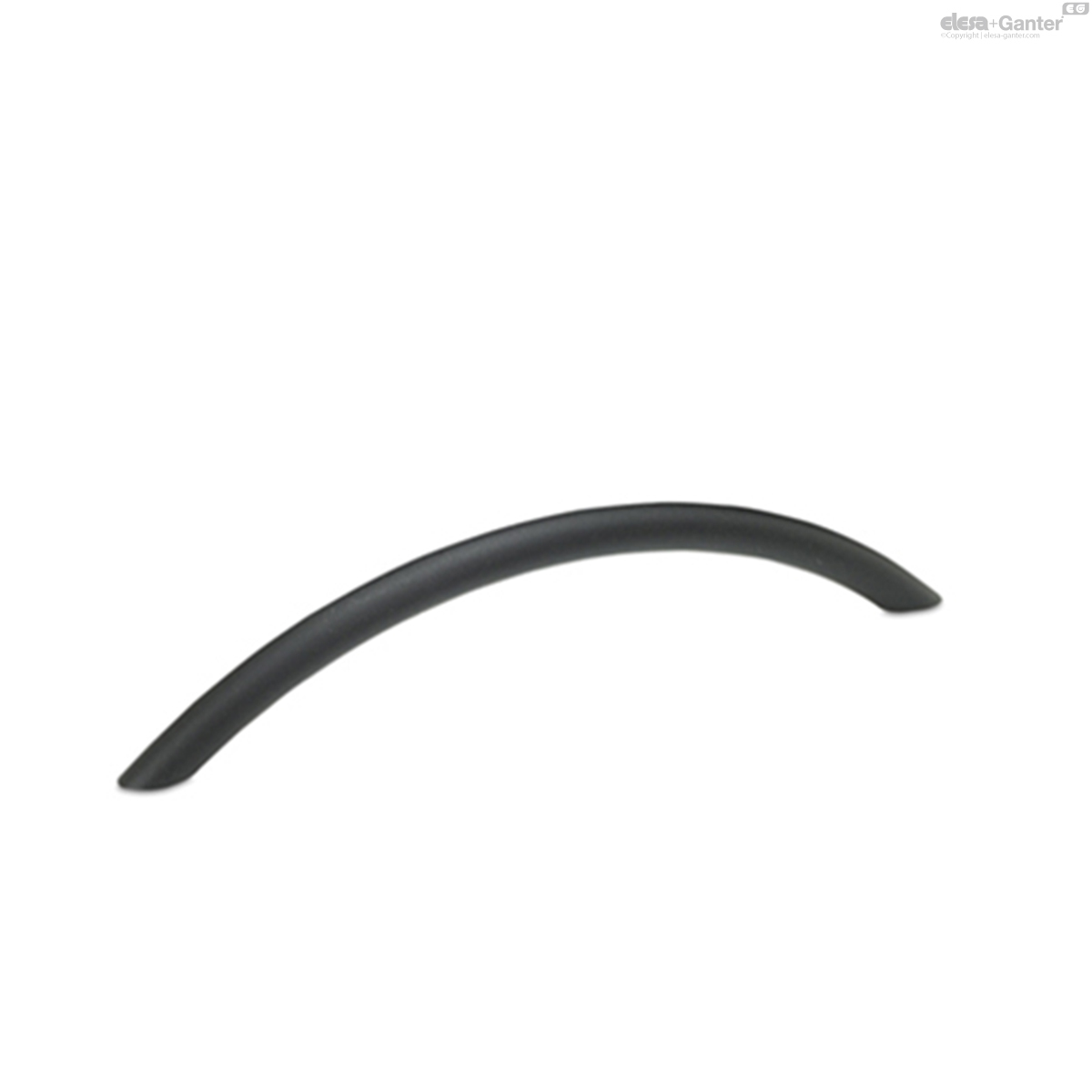

GN 424.1

Arch handles

Steel

GN 424.1

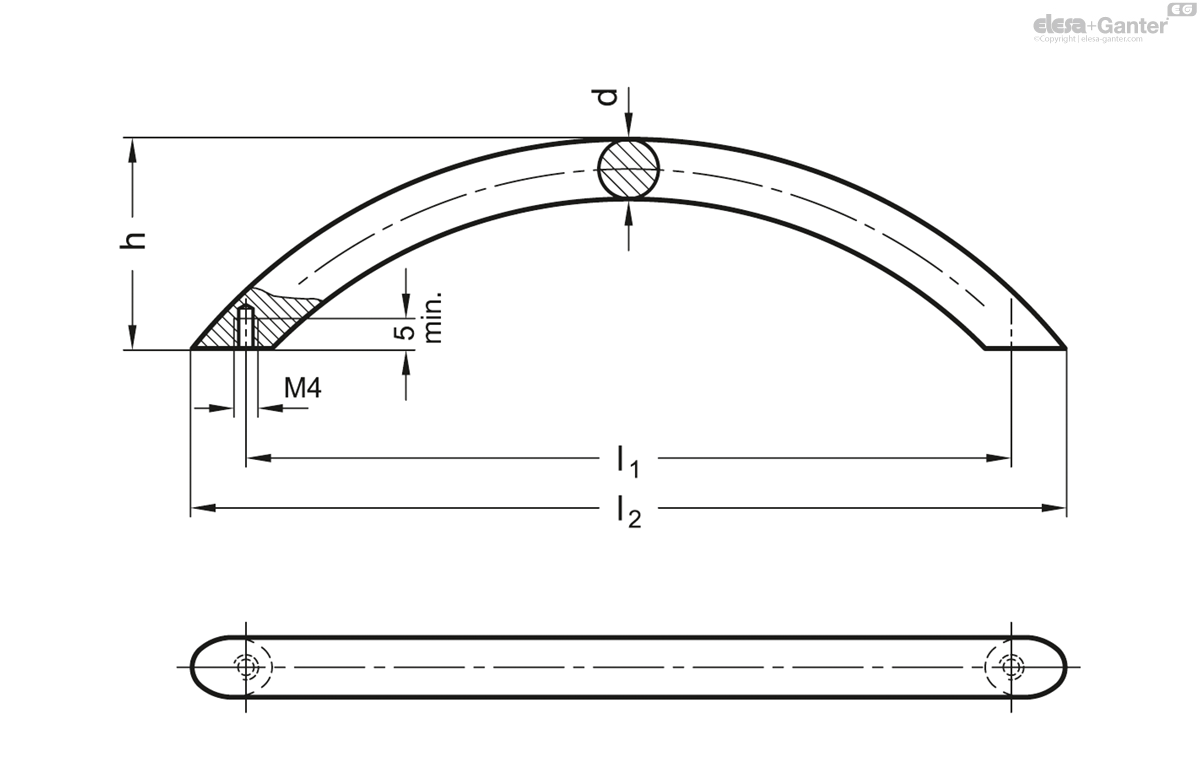

	Color	d	l1	l2 ≈	h ≈
Code	All SR - RAL 9006 SW - RAL 9004	All 10	All 128 ±0.25 160 ±0.25 192 ±0.35 64 ±0.25 96 ±0.25	All 75 111 146 181 219	All 35	All 60 70 86 110 130	Actions
GN 424.1-10-64-SR	SR - RAL 9006	10	64 ±0.25	75	35	60
GN 424.1-10-64-SW	SW - RAL 9004	10	64 ±0.25	75	35	60
GN 424.1-10-96-SR	SR - RAL 9006	10	96 ±0.25	111	35	70
GN 424.1-10-96-SW	SW - RAL 9004	10	96 ±0.25	111	35	70
GN 424.1-10-128-SR	SR - RAL 9006	10	128 ±0.25	146	35	86
GN 424.1-10-128-SW	SW - RAL 9004	10	128 ±0.25	146	35	86
GN 424.1-10-160-SR	SR - RAL 9006	10	160 ±0.25	181	35	110
GN 424.1-10-160-SW	SW - RAL 9004	10	160 ±0.25	181	35	110
GN 424.1-10-192-SR	SR - RAL 9006	10	192 ±0.35	219	35	130
GN 424.1-10-192-SW	SW - RAL 9004	10	192 ±0.35	219	35	130

•
