GN 423
U-Handles
Handle Bar Aluminum / Handle Shanks Plastic, for 19“ Rack and Enclosure Layout
GN 423-A
U-Handles
Mounting from the back (Self-tapping screws)
GN 423-B
U-Handles
Mounting from the operator‘s side
Description
Specification
Types
- Type A: Mounting from the back (Self-tapping screws)
- Type B: Mounting from the operator‘s side
Handle bar
Aluminum

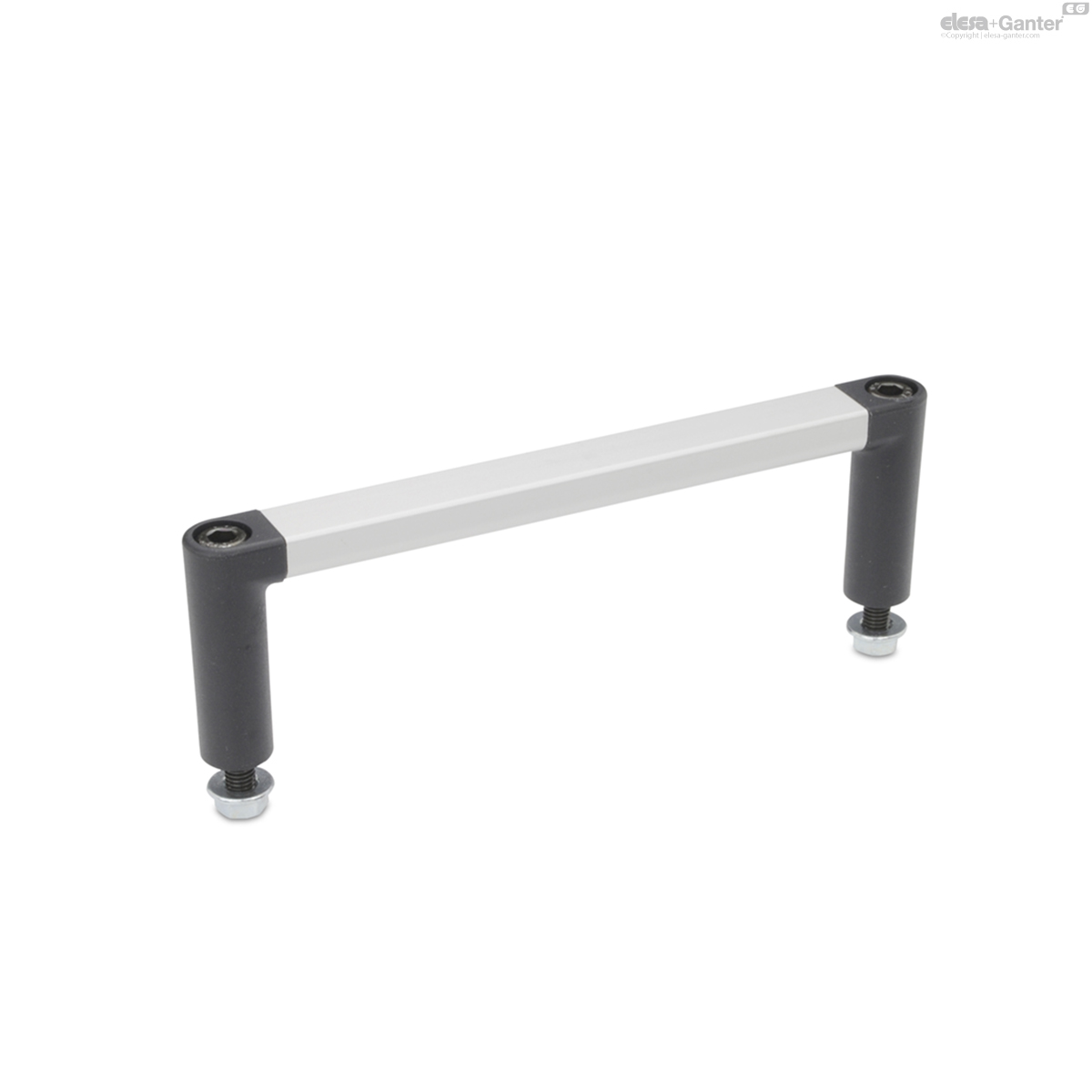

- Anodized, natural color ELS
- Handle shanks black, matte finish

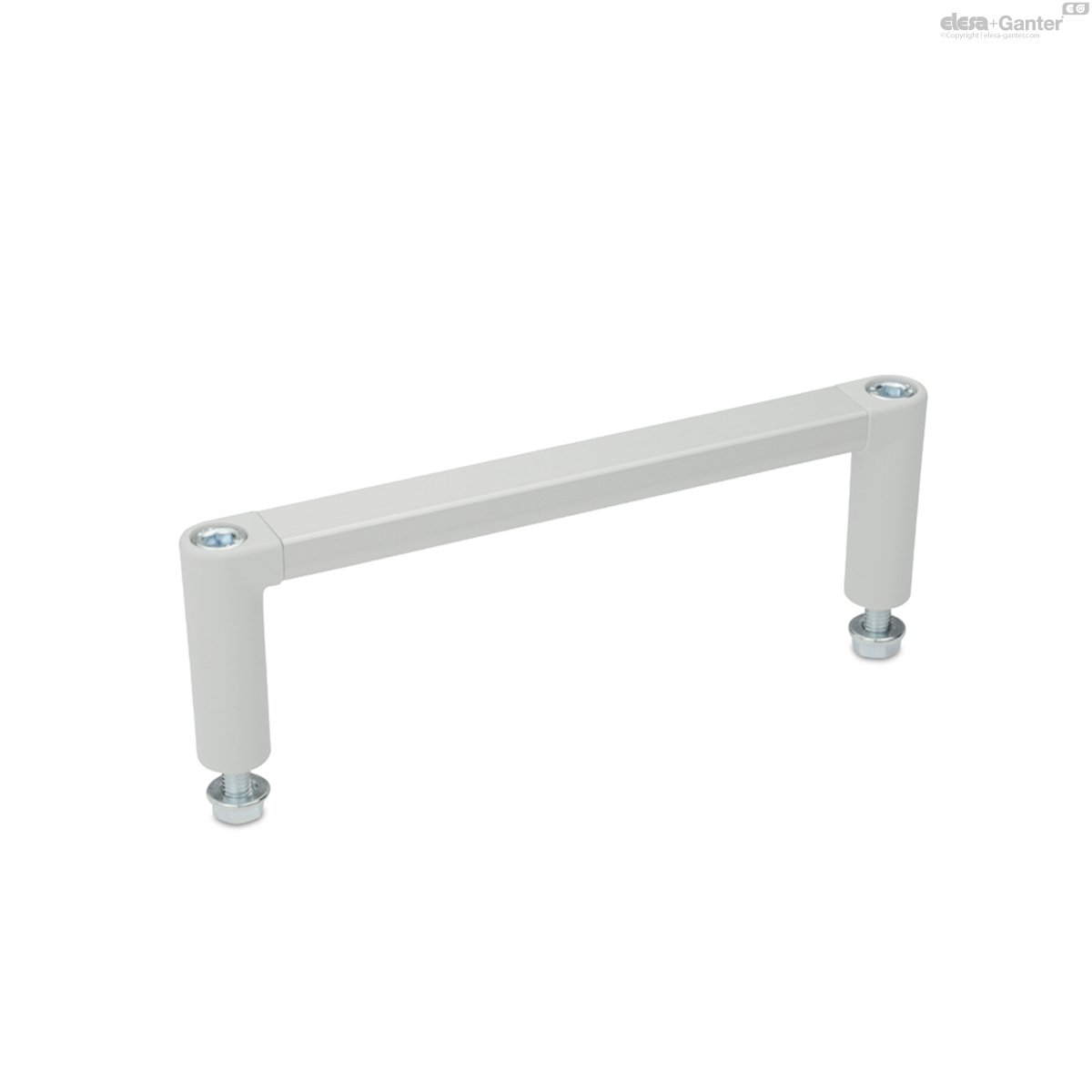

- Anodized, natural color ELG
- Handle shanks light gray, matte finish

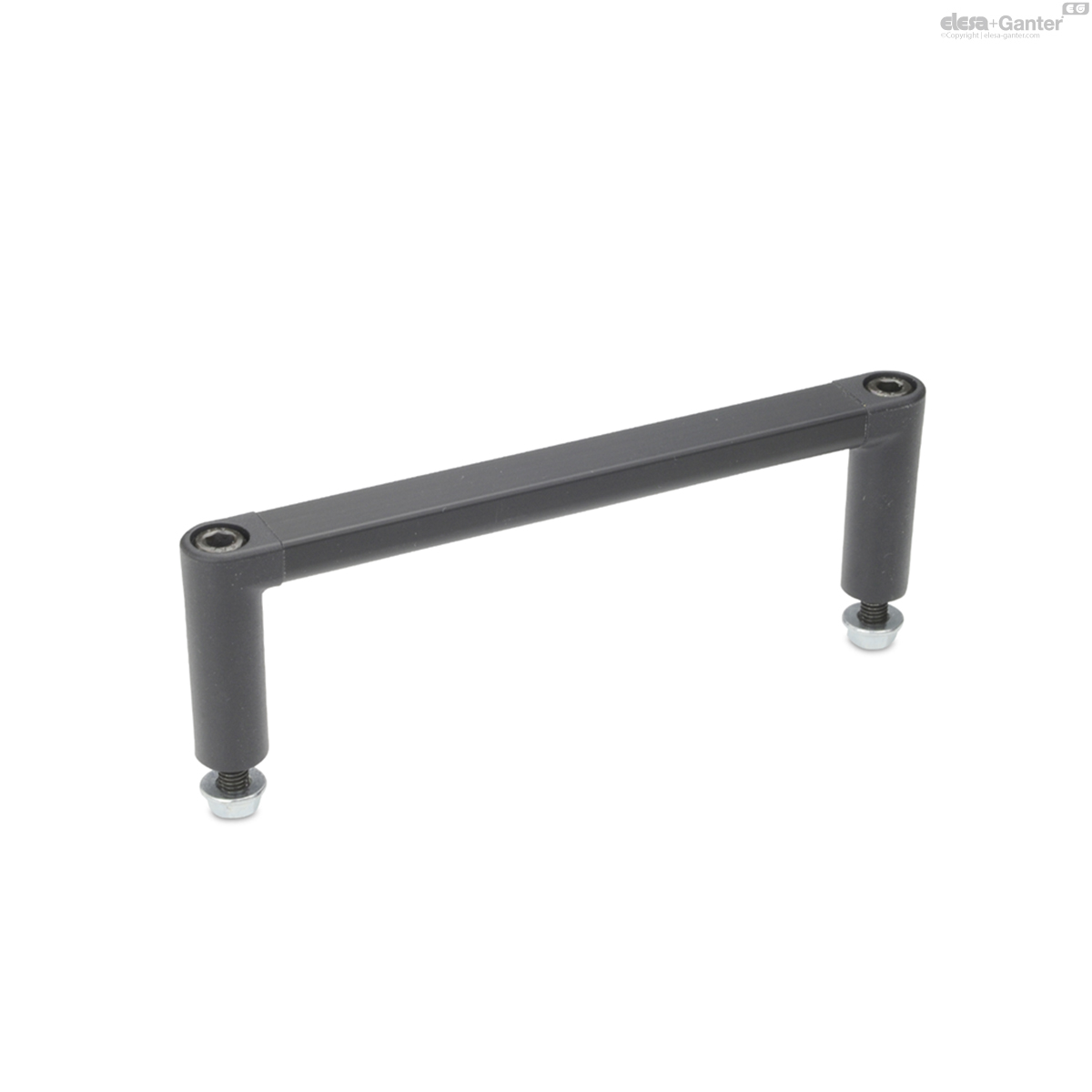

- Anodized, Black ESS
- Handle shanks black, matte finish
Handle shanks
Plastic, Polyamide (PA)
- Glass fiber reinforced
- Operating temperature up to 130 °C
Self-tapping screw for type A
ISO 7049
Steel zinc plated ST4,8-19
Fastening set for type B
- Socket cap screws ISO 4762-M5-45
- Steel zinc plated, black finish
- Flange nuts DIN 1661-M5
- Steel zinc plated, blue passivated
Information
The dimensisons of the U-handles GN 423 have been designed to match a 19' rack and enclosure layout.
The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.
Handle bar and handle shanks are interconnected via a plug-type connection, with the effect that special lengths are easily realised.
Thanks to the fixing screws included in the set, the U-Handles are easily and economically mounted.
Technical information
- Load Rating InformationÂ
- Plastic CharacteristicsÂ
GN 423-B
| Color | b1 | l1 | b2 | d1 | d3 | h1 | h2 | l2 | l5 max. | l6 | s | HE |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 423-12-55-B-ELG | ELG | 12 | 55 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 67.5 | 5 | 10.5 | 9 | 2 | 38 |
|
| GN 423-12-55-B-ELS | ELS | 12 | 55 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 67.5 | 5 | 10.5 | 9 | 2 | 38 |
|
| GN 423-12-55-B-ESS | ESS | 12 | 55 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 67.5 | 5 | 10.5 | 9 | 2 | 38 |
|
| GN 423-12-88-B-ELG | ELG | 12 | 88 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 100.5 | 5 | 10.5 | 9 | 3 | 43 |
|
| GN 423-12-88-B-ELS | ELS | 12 | 88 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 100.5 | 5 | 10.5 | 9 | 3 | 43 |
|
| GN 423-12-88-B-ESS | ESS | 12 | 88 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 100.5 | 5 | 10.5 | 9 | 3 | 43 |
|
| GN 423-12-100-B-ELG | ELG | 12 | 100 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 112.5 | 5 | 10.5 | 9 | 3 | 46 |
|
| GN 423-12-100-B-ELS | ELS | 12 | 100 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 112.5 | 5 | 10.5 | 9 | 3 | 46 |
|
| GN 423-12-100-B-ESS | ESS | 12 | 100 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 112.5 | 5 | 10.5 | 9 | 3 | 46 |
|
| GN 423-12-120-B-ELG | ELG | 12 | 120 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 132.5 | 5 | 10.5 | 9 | 4 | 48 |
|
| GN 423-12-120-B-ELS | ELS | 12 | 120 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 132.5 | 5 | 10.5 | 9 | 4 | 48 |
|
| GN 423-12-120-B-ESS | ESS | 12 | 120 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 132.5 | 5 | 10.5 | 9 | 4 | 48 |
|
| GN 423-12-180-B-ELG | ELG | 12 | 180 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 192.5 | 5 | 10.5 | 9 | 5 | 59 |
|
| GN 423-12-180-B-ELS | ELS | 12 | 180 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 192.5 | 5 | 10.5 | 9 | 5 | 59 |
|
| GN 423-12-180-B-ESS | ESS | 12 | 180 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 192.5 | 5 | 10.5 | 9 | 5 | 59 |
|
| GN 423-12-235-B-ELG | ELG | 12 | 235 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 247.5 | 5 | 10.5 | 9 | 6 | 68 |
|
| GN 423-12-235-B-ELS | ELS | 12 | 235 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 247.5 | 5 | 10.5 | 9 | 6 | 68 |
|
| GN 423-12-235-B-ESS | ESS | 12 | 235 | 12.5 | M 5 | 12.5 | 40 | 34.5 | 247.5 | 5 | 10.5 | 9 | 6 | 68 |
|
