GN 423

U-Handles

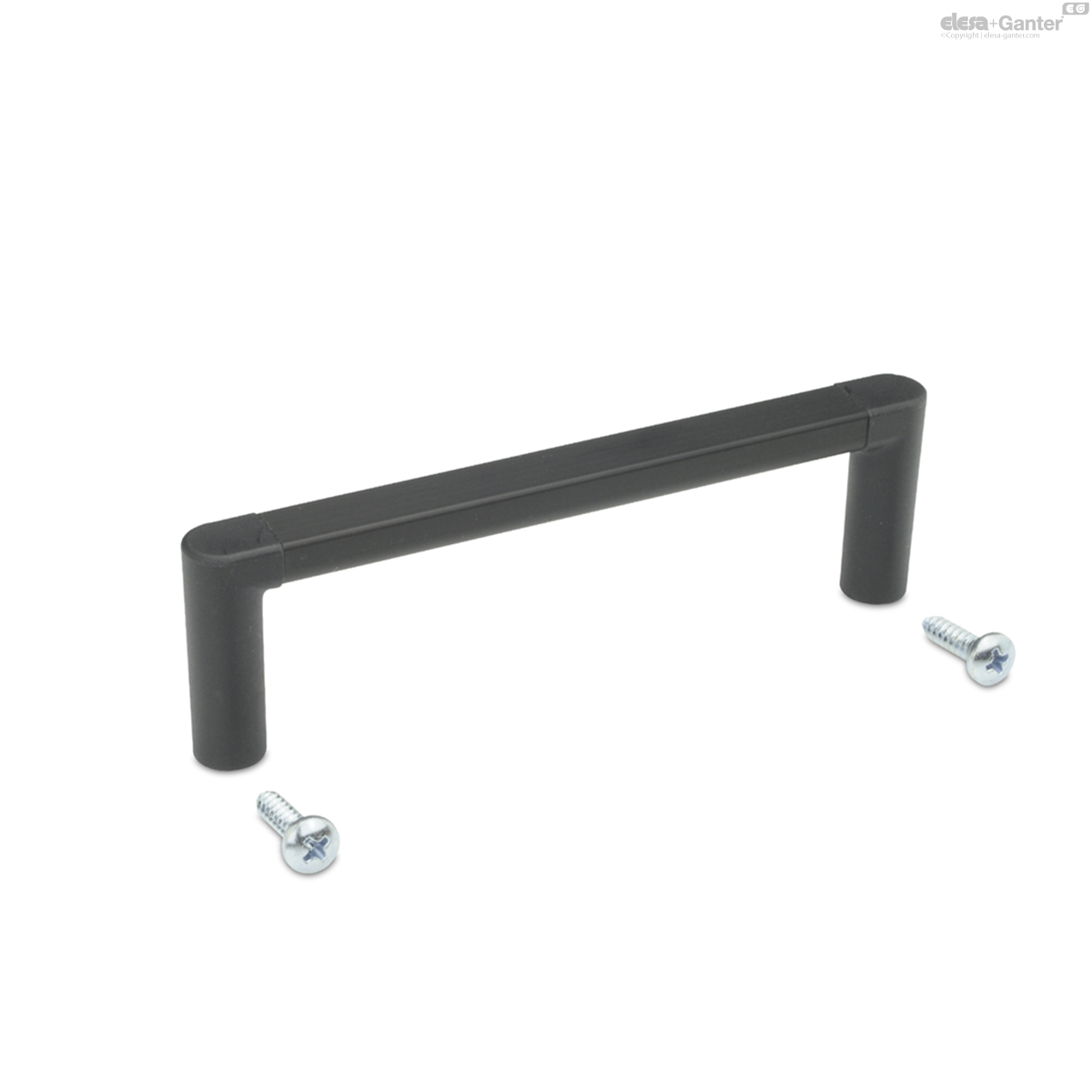

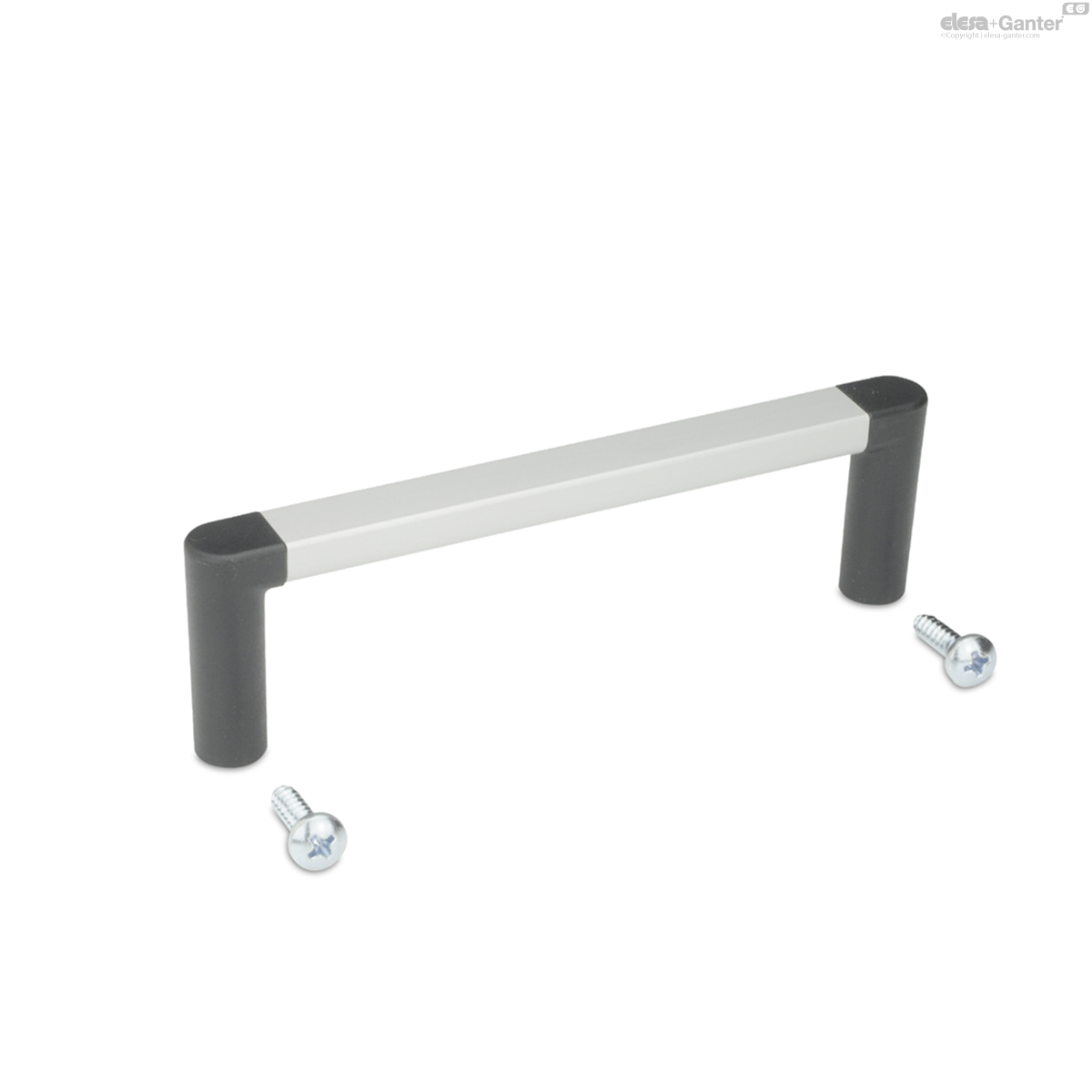

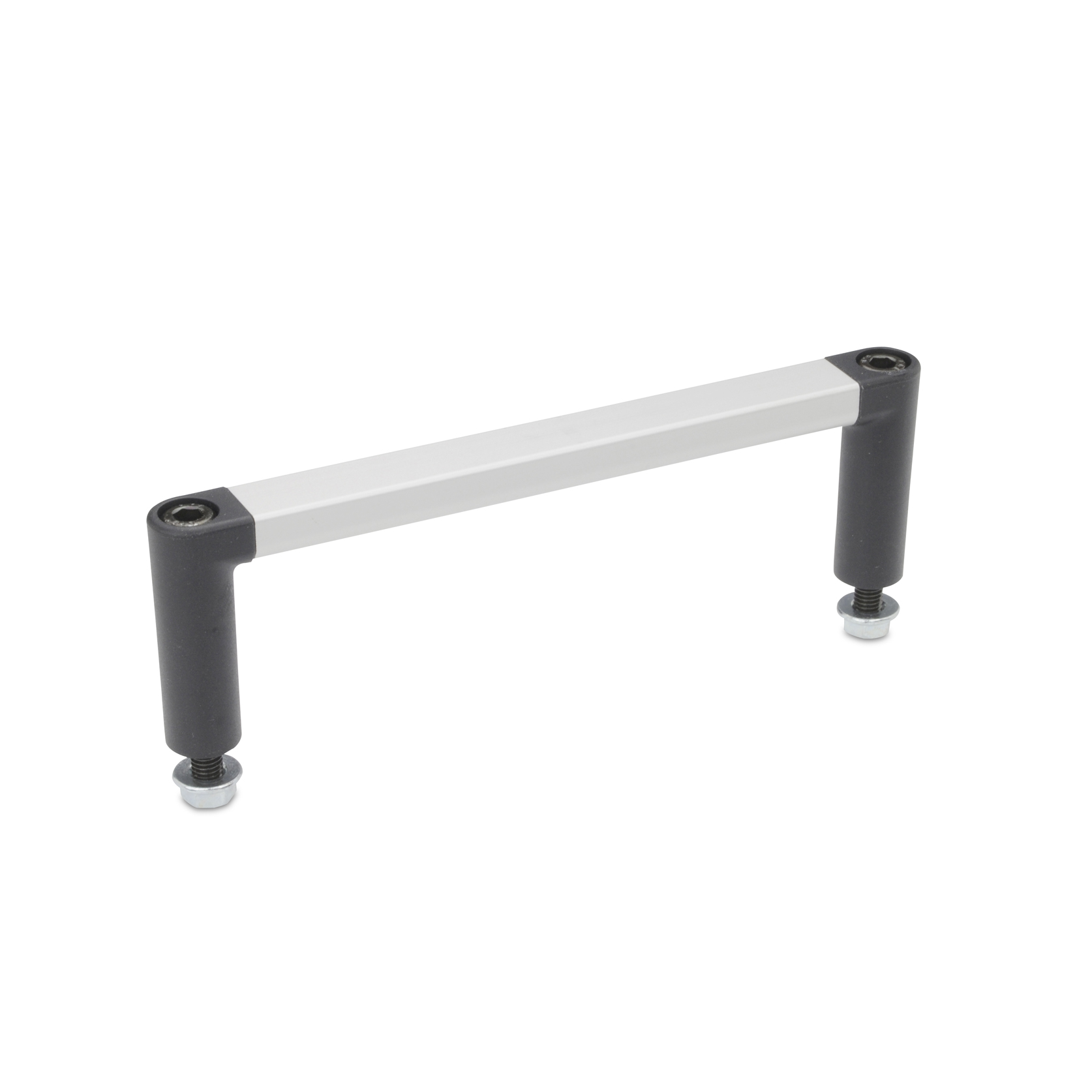

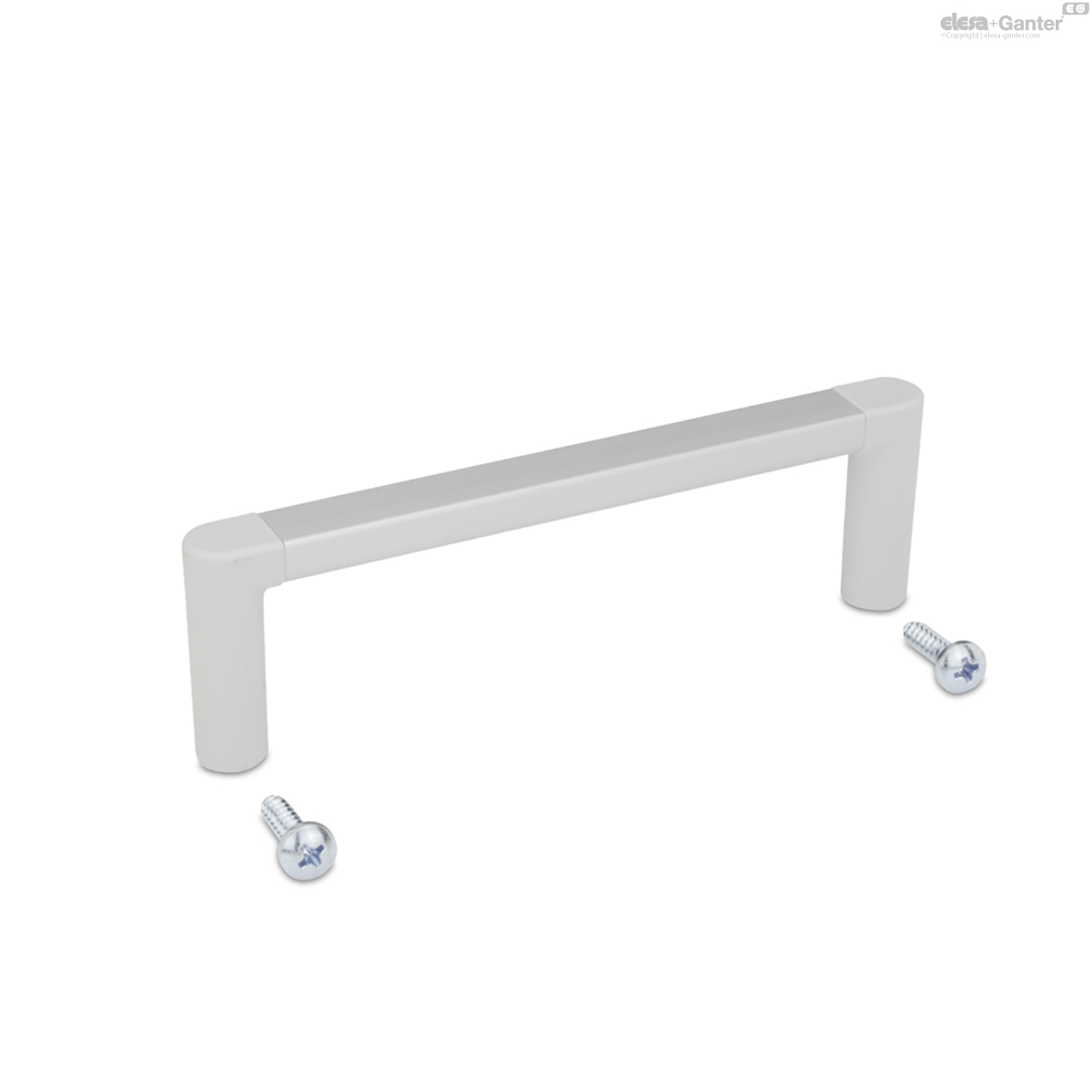

Handle Bar Aluminum / Handle Shanks Plastic, for 19“ Rack and Enclosure Layout

Enquire Now

Description

Specification

Aluminum

Plastic, Polyamide (PA)

ISO 7049

Steel zinc plated ST4,8-19

Information

The dimensisons of the U-handles GN 423 have been designed to match a 19' rack and enclosure layout.

The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.

Handle bar and handle shanks are interconnected via a plug-type connection, with the effect that special lengths are easily realised.

Thanks to the fixing screws included in the set, the U-Handles are easily and economically mounted.

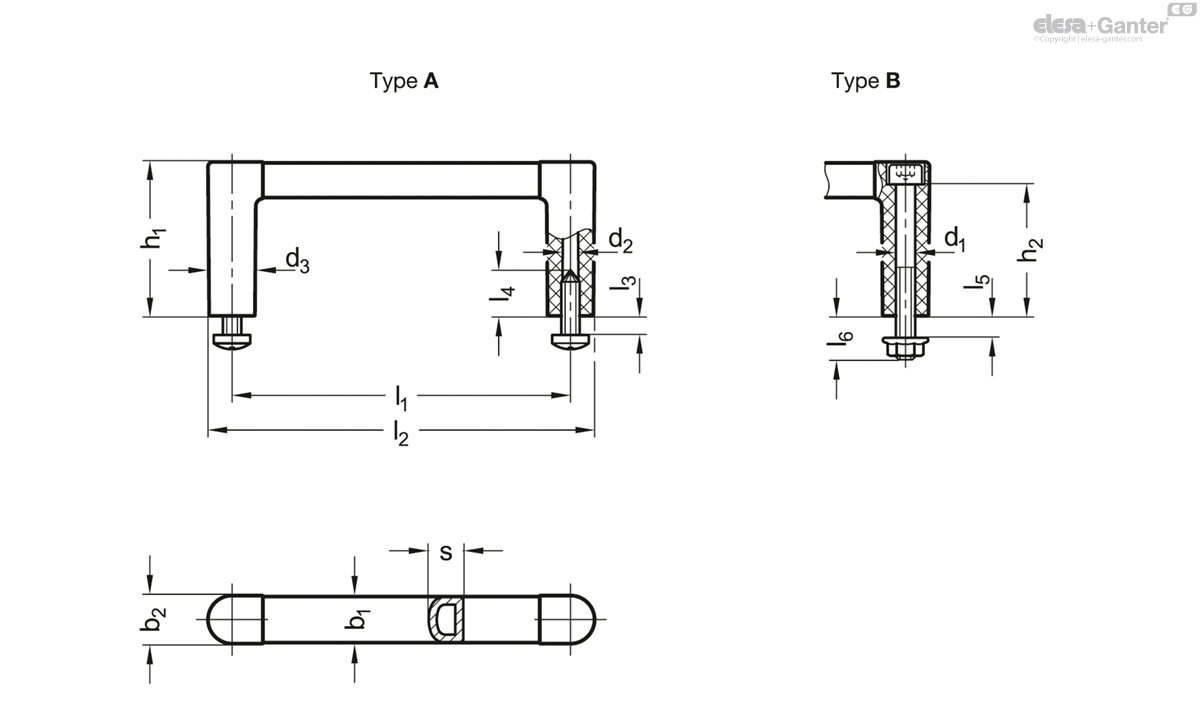

Technical information

	Color	b₁	l₁	b₂	d₂	d₃	h₁	l₂	l₃ max.	l₄ min.	s	HE
Code														Actions
GN 423-12-55-A-ELG	ELG	12	55	12.5	4.3	12.5	40	67.5	5	14	9	2	27
GN 423-12-55-A-ELS	ELS	12	55	12.5	4.3	12.5	40	67.5	5	14	9	2	27
GN 423-12-55-A-ESS	ESS	12	55	12.5	4.3	12.5	40	67.5	5	14	9	2	27
GN 423-12-88-A-ELG	ELG	12	88	12.5	4.3	12.5	40	100.5	5	14	9	3	31
GN 423-12-88-A-ELS	ELS	12	88	12.5	4.3	12.5	40	100.5	5	14	9	3	31
GN 423-12-88-A-ESS	ESS	12	88	12.5	4.3	12.5	40	100.5	5	14	9	3	31
GN 423-12-100-A-ELG	ELG	12	100	12.5	4.3	12.5	40	112.5	5	14	9	3	34
GN 423-12-100-A-ELS	ELS	12	100	12.5	4.3	12.5	40	112.5	5	14	9	3	34
GN 423-12-100-A-ESS	ESS	12	100	12.5	4.3	12.5	40	112.5	5	14	9	3	34
GN 423-12-120-A-ELG	ELG	12	120	12.5	4.3	12.5	40	132.5	5	14	9	4	37
GN 423-12-120-A-ELS	ELS	12	120	12.5	4.3	12.5	40	132.5	5	14	9	4	37
GN 423-12-120-A-ESS	ESS	12	120	12.5	4.3	12.5	40	132.5	5	14	9	4	37
GN 423-12-180-A-ELG	ELG	12	180	12.5	4.3	12.5	40	192.5	5	14	9	5	50
GN 423-12-180-A-ELS	ELS	12	180	12.5	4.3	12.5	40	192.5	5	14	9	5	50
GN 423-12-180-A-ESS	ESS	12	180	12.5	4.3	12.5	40	192.5	5	14	9	5	50
GN 423-12-235-A-ELG	ELG	12	235	12.5	4.3	12.5	40	247.5	5	14	9	6	59
GN 423-12-235-A-ELS	ELS	12	235	12.5	4.3	12.5	40	247.5	5	14	9	6	59
GN 423-12-235-A-ESS	ESS	12	235	12.5	4.3	12.5	40	247.5	5	14	9	6	59
