GN 422.1

Cabinet U-Handles

Aluminum

Enquire Now

Description

Specification

Aluminum die casting AL

Powder coated

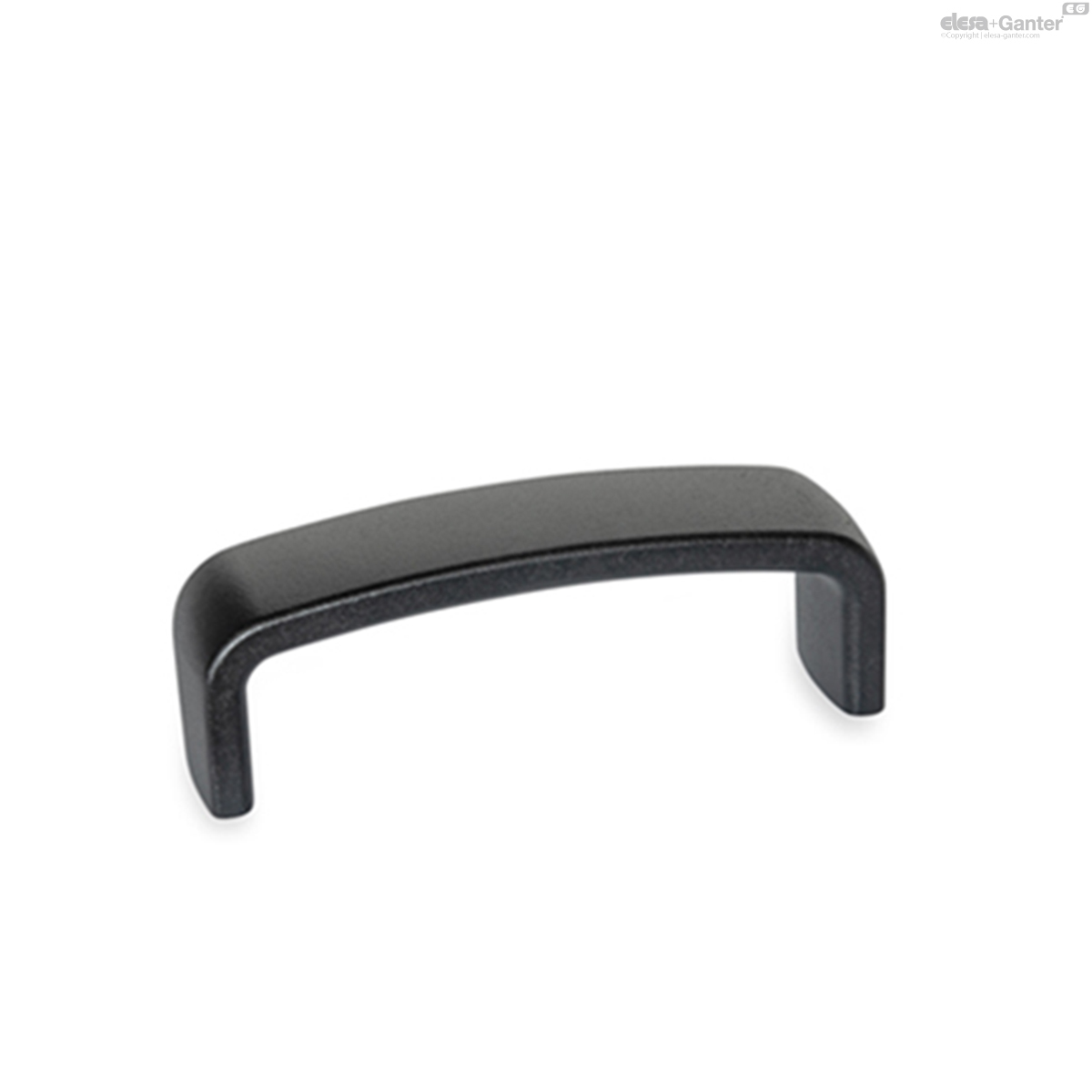

Black, RAL 9005, textured finish SW

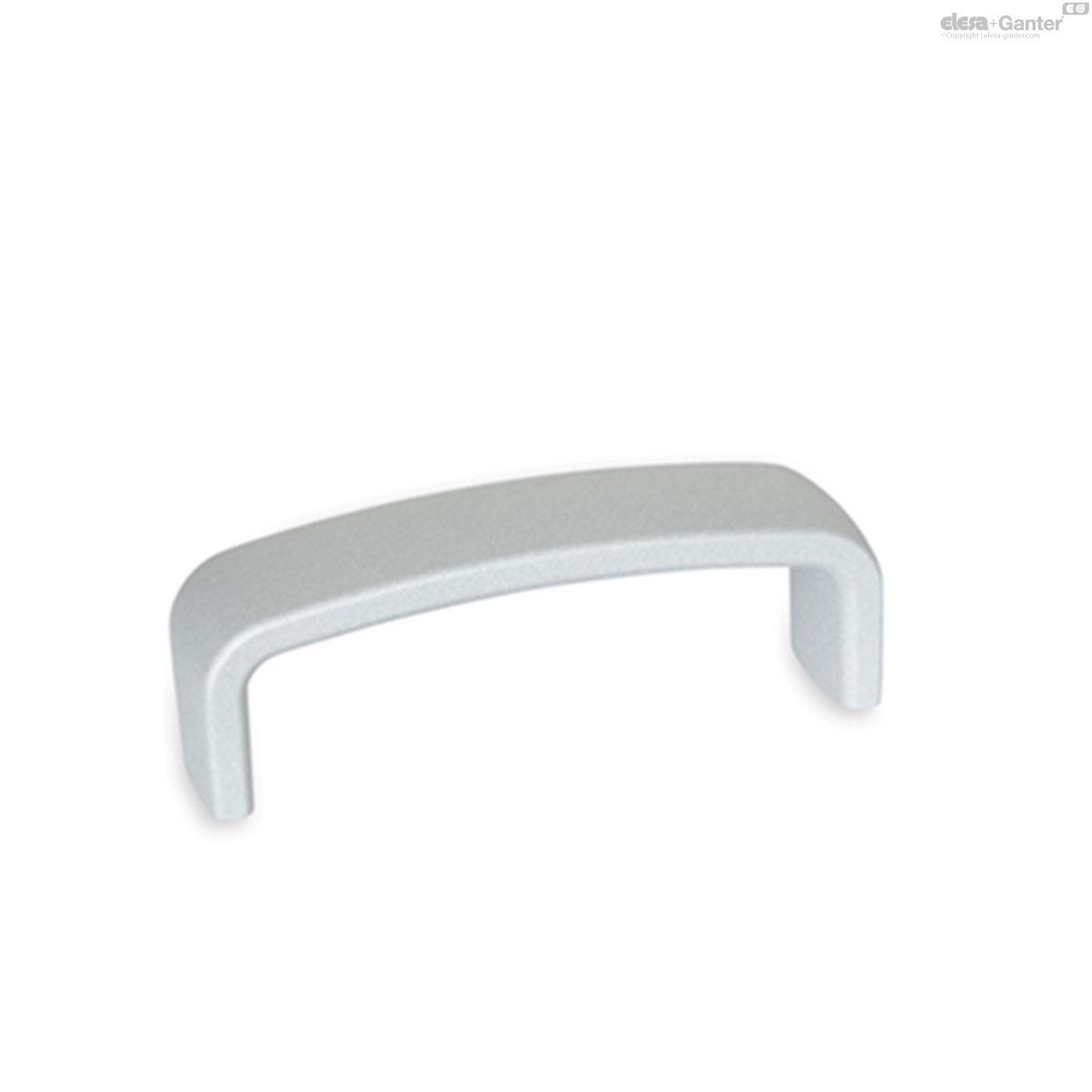

Silver, RAL 9006, textured finish SR

Information

Cabinet U-handles GN 422.1 of die casting aluminum fit perfectly into a wide range of environments thanks to their timeless design.

They are also designed as a complementary grip for U-handles GN 422 with power switching function.

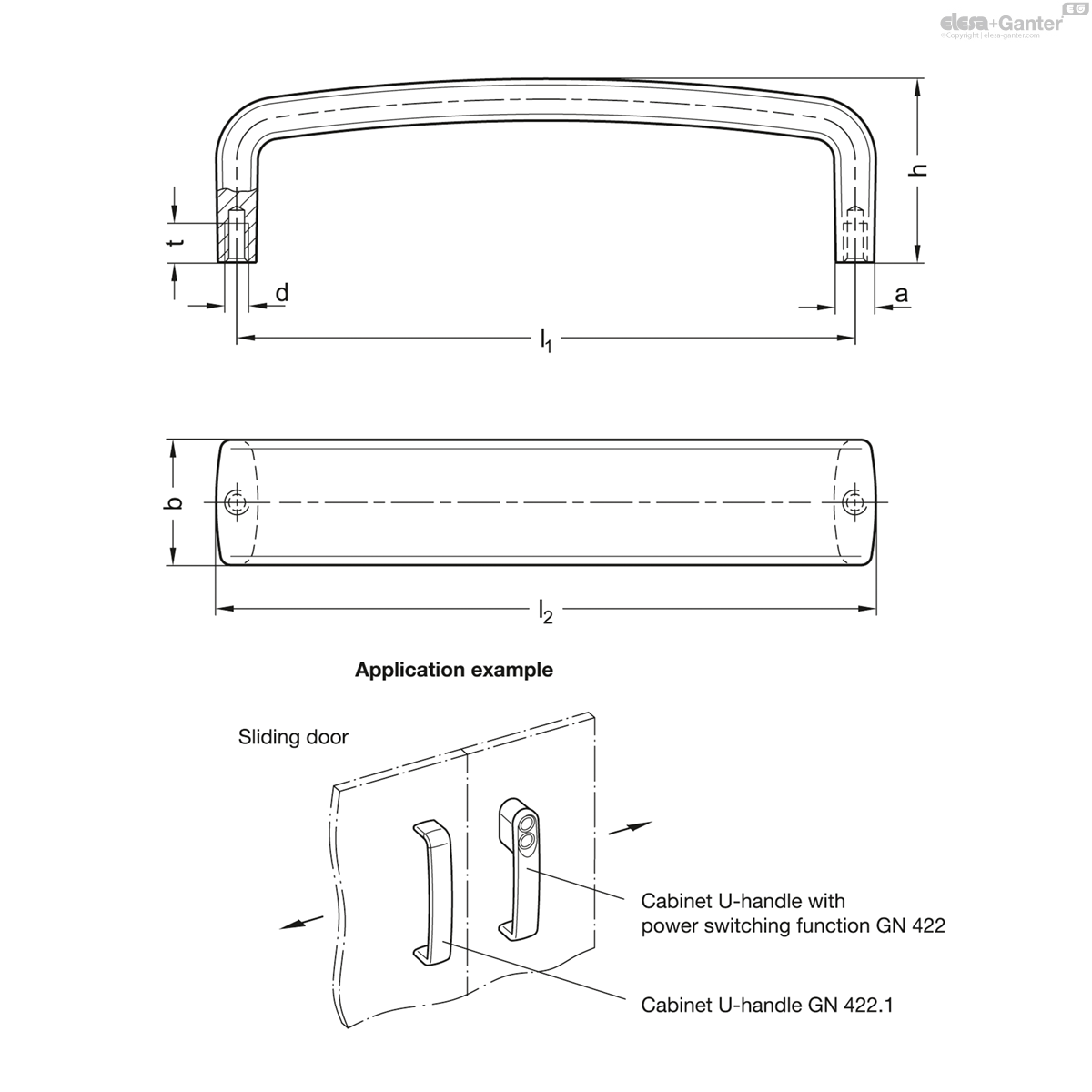

	Color	l₁ ±0.2	a	b	d	h	l₂	t
Code										Actions
GN 422.1-AL-117-SR	SR - RAL 9006	117	11	33	M 6	44	128	12	130
GN 422.1-AL-117-SW	SW - RAL 9005	117	11	33	M 6	44	128	12	130
GN 422.1-AL-148-SR	SR - RAL 9006	148	11	33	M 6	44	159	12	150
GN 422.1-AL-148-SW	SW - RAL 9005	148	11	33	M 6	44	159	12	150
GN 422.1-AL-172-SR	SR - RAL 9006	172	11	33	M 6	44	183	12	170
GN 422.1-AL-172-SW	SW - RAL 9005	172	11	33	M 6	44	183	12	170
