GN 42-rectangular shape

Leveling Feet

Steel, with Fixing Lug, Rectangular Shape

Enquire Now

GN-42-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN-42-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN-42-X

Leveling Feet

External hex with internal thread

Description

Specification

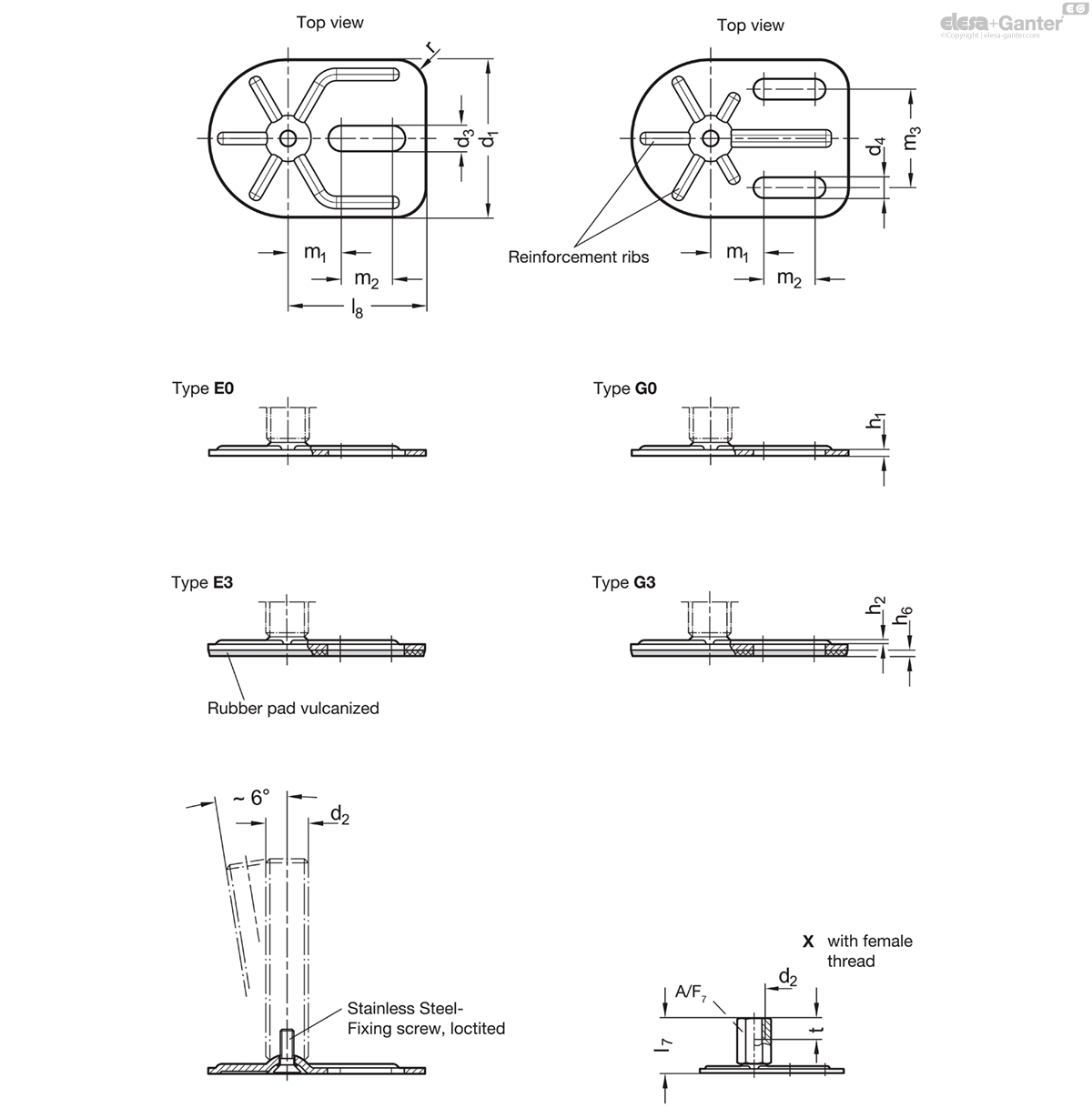

Type (Base)

Type E0: Without rubber pad, with one slotted hole

Type E3: With rubber pad, vulcanized, black, with one slotted hole

Type G0: Without rubber pad, with 2 slotted holes

Type G3: With rubber pad, vulcanized, black, with 2 slotted holes

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel

Zinc plated, blue passivated

Threaded stem

Steel

Zinc plated, blue passivated

Hex nut ISO 4032

Steel

Zinc plated, blue passivated

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70±5 Shore A

Information

Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Elastomer Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

GN-42-X

	d₁	d₂	l₇	d₃	d₄	h₁	h₂	h₆	l₈	m₁	m₂	m₃	r	A/F ₇	t	Static load Fs in kN
Code																		Actions
GN 42-80-M8-26-E0-X	80	M 8	26	13	-	3	1.3	-	70	27	26	-	15	14	8	8	223
GN 42-80-M8-26-E3-X	80	M 8	26	13	-	3	1.3	3	70	27	26	-	15	14	8	8	230
GN 42-80-M8-26-G0-X	80	M 8	26	-	10.5	3	1.3	-	70	27	26	50	15	14	8	8	217
GN 42-80-M8-26-G3-X	80	M 8	26	-	10.5	3	1.3	3	70	27	26	50	15	14	8	8	223
GN 42-80-M10-29-E0-X	80	M 10	29	13	-	3	1.3	-	70	27	26	-	15	14	10	10	221
GN 42-80-M10-29-E3-X	80	M 10	29	13	-	3	1.3	3	70	27	26	-	15	14	10	10	228
GN 42-80-M10-29-G0-X	80	M 10	29	-	10.5	3	1.3	-	70	27	26	50	15	14	10	10	215
GN 42-80-M10-29-G3-X	80	M 10	29	-	10.5	3	1.3	3	70	27	26	50	15	14	10	10	221
GN 42-80-M12-32-E0-X	80	M 12	32	13	-	3	1.3	-	70	27	26	-	15	17	12	12	237
GN 42-80-M12-32-E3-X	80	M 12	32	13	-	3	1.3	3	70	27	26	-	15	17	12	12	244
GN 42-80-M12-32-G0-X	80	M 12	32	-	10.5	3	1.3	-	70	27	26	50	15	17	12	12	231
GN 42-80-M12-32-G3-X	80	M 12	32	-	10.5	3	1.3	3	70	27	26	50	15	17	12	12	237
GN 42-80-M16-38-E0-X	80	M 16	38	13	-	3	1.3	-	70	27	26	-	15	22	16	12	253
GN 42-80-M16-38-E3-X	80	M 16	38	13	-	3	1.3	3	70	27	26	-	15	22	16	12	281
GN 42-80-M16-38-G0-X	80	M 16	38	-	10.5	3	1.3	-	70	27	26	50	15	22	16	12	247
GN 42-80-M16-38-G3-X	80	M 16	38	-	10.5	3	1.3	3	70	27	26	50	15	22	16	12	273
GN 42-80-M20-45-E0-X	80	M 20	45	13	-	3	1.3	-	70	27	26	-	15	27	20	16	317
GN 42-80-M20-45-E3-X	80	M 20	45	13	-	3	1.3	3	70	27	26	-	15	27	20	16	342
GN 42-80-M20-45-G0-X	80	M 20	45	-	10.5	3	1.3	-	70	27	26	50	15	27	20	16	308
GN 42-80-M20-45-G3-X	80	M 20	45	-	10.5	3	1.3	3	70	27	26	50	15	27	20	16	335
