Leveling Feet

Steel, with Fixing Lug, Drop Shape

Enquire Now

GN 42-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 42-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 42-X

Leveling Feet

External hex with internal thread

Description

Specification

Type (Base)

Type A0: Without rubber pad

Type A1: With rubber pad, clipped on, black

Type A3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel

Zinc plated, blue passivated

Threaded stem

Steel

Zinc plated, blue passivated

Hex nut ISO 4032

Steel

Zinc plated, blue passivated

Rubber pad

Clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70±5 Shore A

Information

Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Elastomer Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

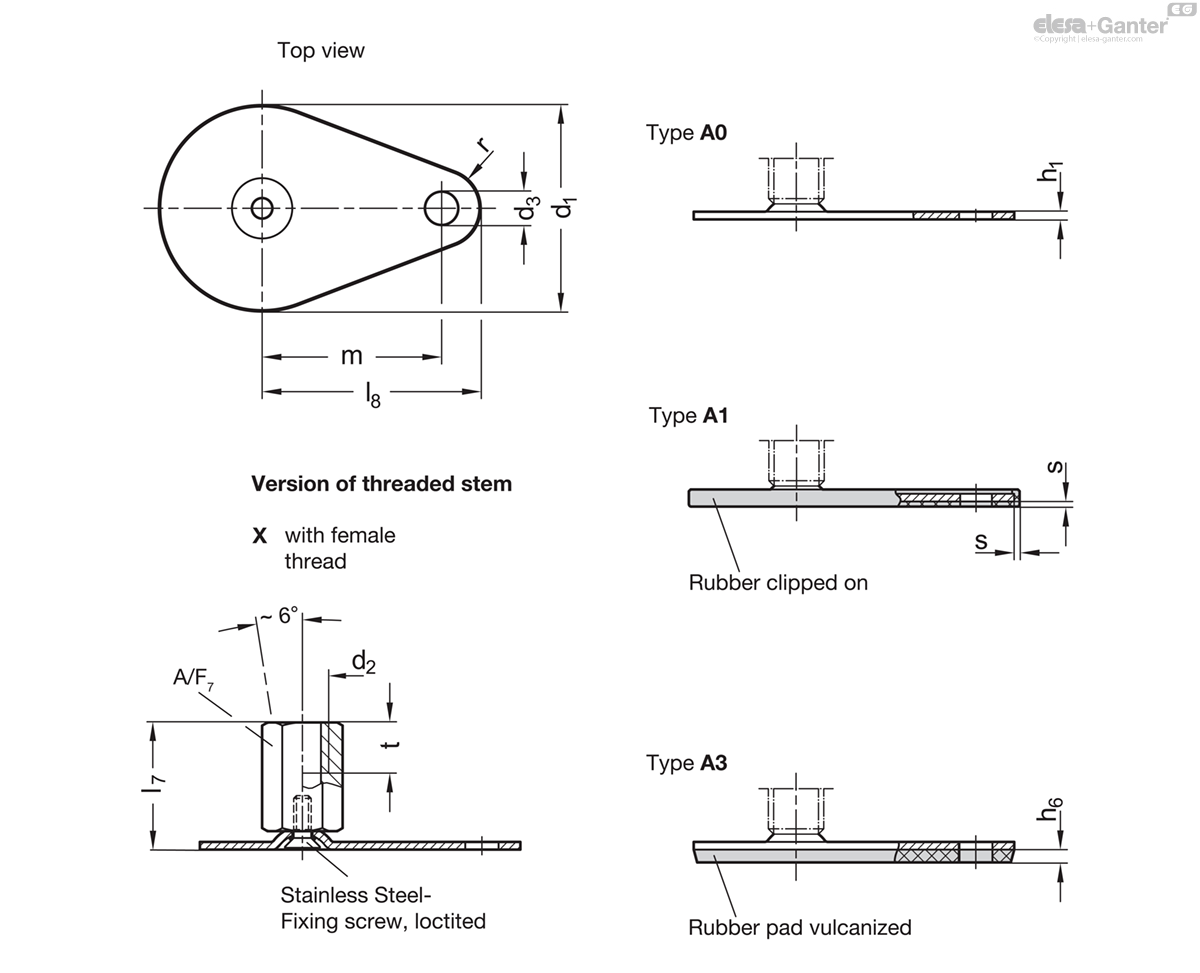

GN 42-X

	d₁	d₂	l₇	d₃	h₁	h₆	l₈	m	r	s	A/F ₇	t	Static load Fs in kN
Code															Actions
GN 42-50-M8-25-A0-X	50	M 8	25	13	2.5	-	60	45	15	-	14	8	8	104
GN 42-50-M8-25-A1-X	50	M 8	25	13	2.5	-	60	45	15	2	14	8	8	113
GN 42-50-M8-25-A3-X	50	M 8	25	13	2.5	4	60	45	15	-	14	8	8	115
GN 42-50-M10-28-A0-X	50	M 10	28	13	2.5	-	60	45	15	-	14	10	8	102
GN 42-50-M10-28-A1-X	50	M 10	28	13	2.5	-	60	45	15	2	14	10	8	111
GN 42-50-M10-28-A3-X	50	M 10	28	13	2.5	4	60	45	15	-	14	10	8	113
GN 42-50-M12-32-A0-X	50	M 12	32	13	2.5	-	60	45	15	-	17	12	8	98
GN 42-50-M12-32-A1-X	50	M 12	32	13	2.5	-	60	45	15	2	17	12	8	107
GN 42-50-M12-32-A3-X	50	M 12	32	13	2.5	4	60	45	15	-	17	12	8	109
GN 42-50-M16-37-A0-X	50	M 16	37	13	2.5	-	60	45	15	-	22	16	8	134
GN 42-50-M16-37-A1-X	50	M 16	37	13	2.5	-	60	45	15	2	22	16	8	143
GN 42-50-M16-37-A3-X	50	M 16	37	13	2.5	4	60	45	15	-	22	16	8	166
GN 42-60-M8-25-A0-X	60	M 8	25	13	2.5	-	65	50	15	-	14	8	8	102
GN 42-60-M8-25-A1-X	60	M 8	25	13	2.5	-	65	50	15	2	14	8	8	113
GN 42-60-M8-25-A3-X	60	M 8	25	13	2.5	4.5	65	50	15	-	14	8	8	122
GN 42-60-M10-28-A0-X	60	M 10	28	13	2.5	-	65	50	15	-	14	10	10	120
GN 42-60-M10-28-A1-X	60	M 10	28	13	2.5	-	65	50	15	2	14	10	10	131
GN 42-60-M10-28-A3-X	60	M 10	28	13	2.5	4.5	65	50	15	-	14	10	10	140
GN 42-60-M12-32-A0-X	60	M 12	32	13	2.5	-	65	50	15	-	17	12	10	136
GN 42-60-M12-32-A1-X	60	M 12	32	13	2.5	-	65	50	15	2	17	12	10	147
GN 42-60-M12-32-A3-X	60	M 12	32	13	2.5	4.5	65	50	15	-	17	12	10	156
GN 42-60-M16-37-A0-X	60	M 16	37	13	2.5	-	65	50	15	-	22	16	10	152
GN 42-60-M16-37-A1-X	60	M 16	37	13	2.5	-	65	50	15	2	22	16	10	163
GN 42-60-M16-37-A3-X	60	M 16	37	13	2.5	4.5	65	50	15	-	22	16	10	191
GN 42-80-M8-26-A0-X	80	M 8	26	13	3	-	85	70	15	-	14	8	8	205
GN 42-80-M8-26-A1-X	80	M 8	26	13	3	-	85	70	15	2	14	8	8	222
GN 42-80-M8-26-A3-X	80	M 8	26	13	3	5	85	70	15	-	14	8	8	243
GN 42-80-M10-29-A0-X	80	M 10	29	13	3	-	85	70	15	-	14	10	10	203
GN 42-80-M10-29-A1-X	80	M 10	29	13	3	-	85	70	15	2	14	10	10	220
GN 42-80-M10-29-A3-X	80	M 10	29	13	3	5	85	70	15	-	14	10	10	241
GN 42-80-M12-32-A0-X	80	M 12	32	13	3	-	85	70	15	-	17	12	12	219
GN 42-80-M12-32-A1-X	80	M 12	32	13	3	-	85	70	15	2	17	12	12	236
GN 42-80-M12-32-A3-X	80	M 12	32	13	3	5	85	70	15	-	17	12	12	257
GN 42-80-M16-38-A0-X	80	M 16	38	13	3	-	85	70	15	-	22	16	12	236
GN 42-80-M16-38-A1-X	80	M 16	38	13	3	-	85	70	15	2	22	16	12	253
GN 42-80-M16-38-A3-X	80	M 16	38	13	3	5	85	70	15	-	22	16	12	291
GN 42-80-M20-45-A0-X	80	M 20	45	13	3	-	85	70	15	-	27	20	16	297
GN 42-80-M20-45-A1-X	80	M 20	45	13	3	-	85	70	15	2	27	20	16	314
GN 42-80-M20-45-A3-X	80	M 20	45	13	3	5	85	70	15	-	27	20	16	353
