GN 42

Leveling Feet

Steel, with Fixing Lug, Drop Shape

Enquire Now

GN 42-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 42-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 42-X

Leveling Feet

External hex with internal thread

Description

Specification

Type (Base)

Type A0: Without rubber pad

Type A1: With rubber pad, clipped on, black

Type A3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

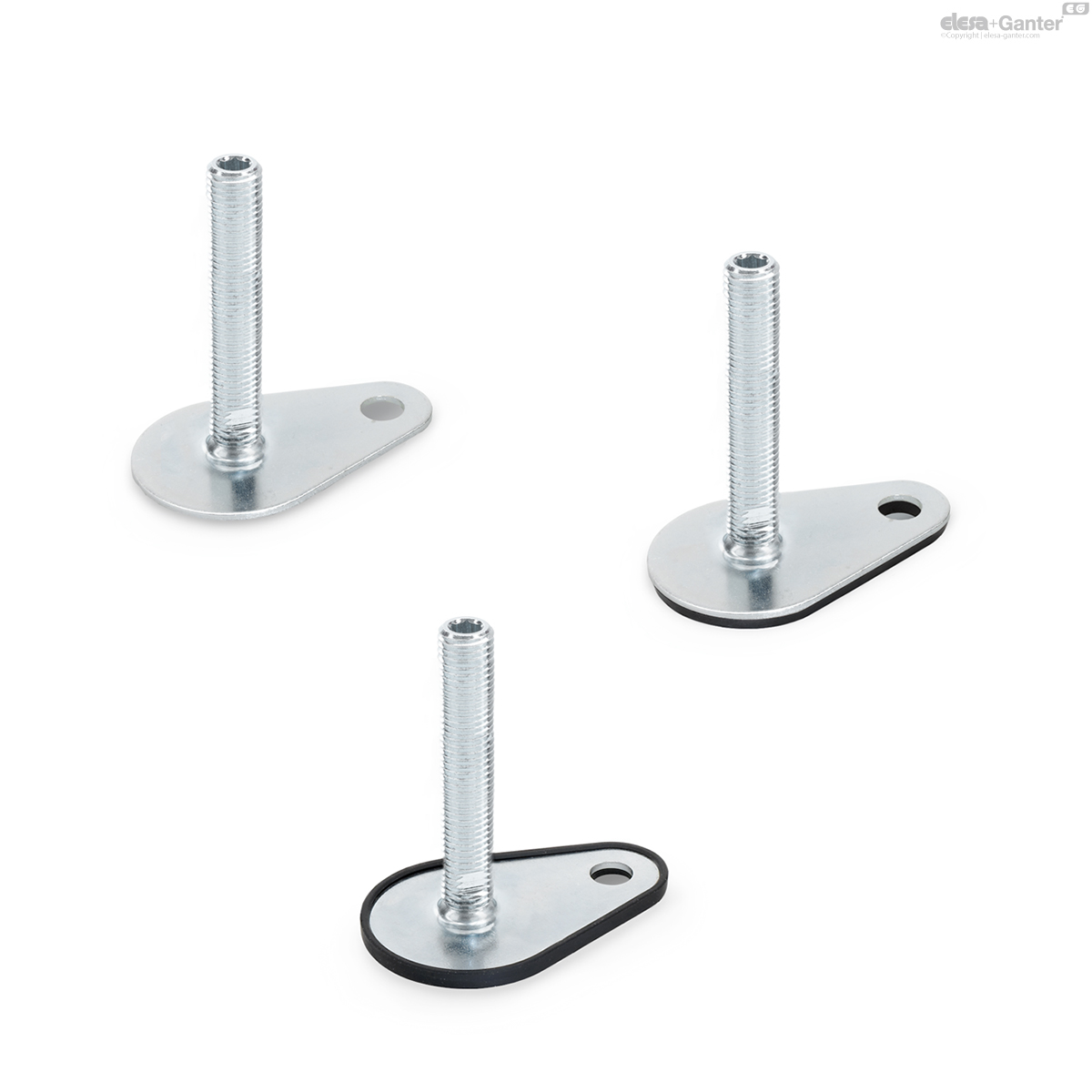

Version U: Without nut, hex socket at the top and wrench flat at the bottom

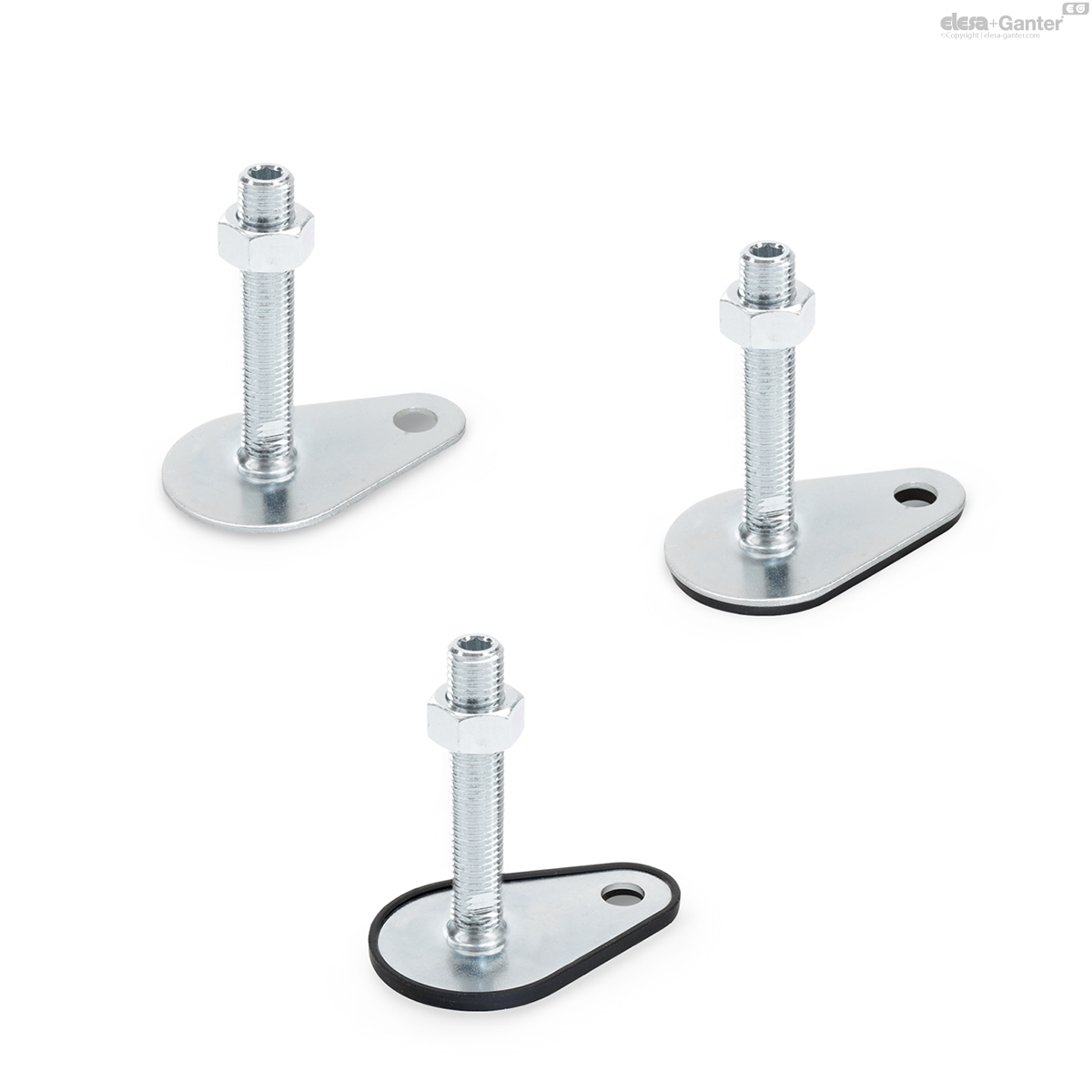

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel

Zinc plated, blue passivated

Threaded stem

Steel

Zinc plated, blue passivated

Hex nut ISO 4032

Steel

Zinc plated, blue passivated

Rubber pad

Clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70±5 Shore A

Information

Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Elastomer Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

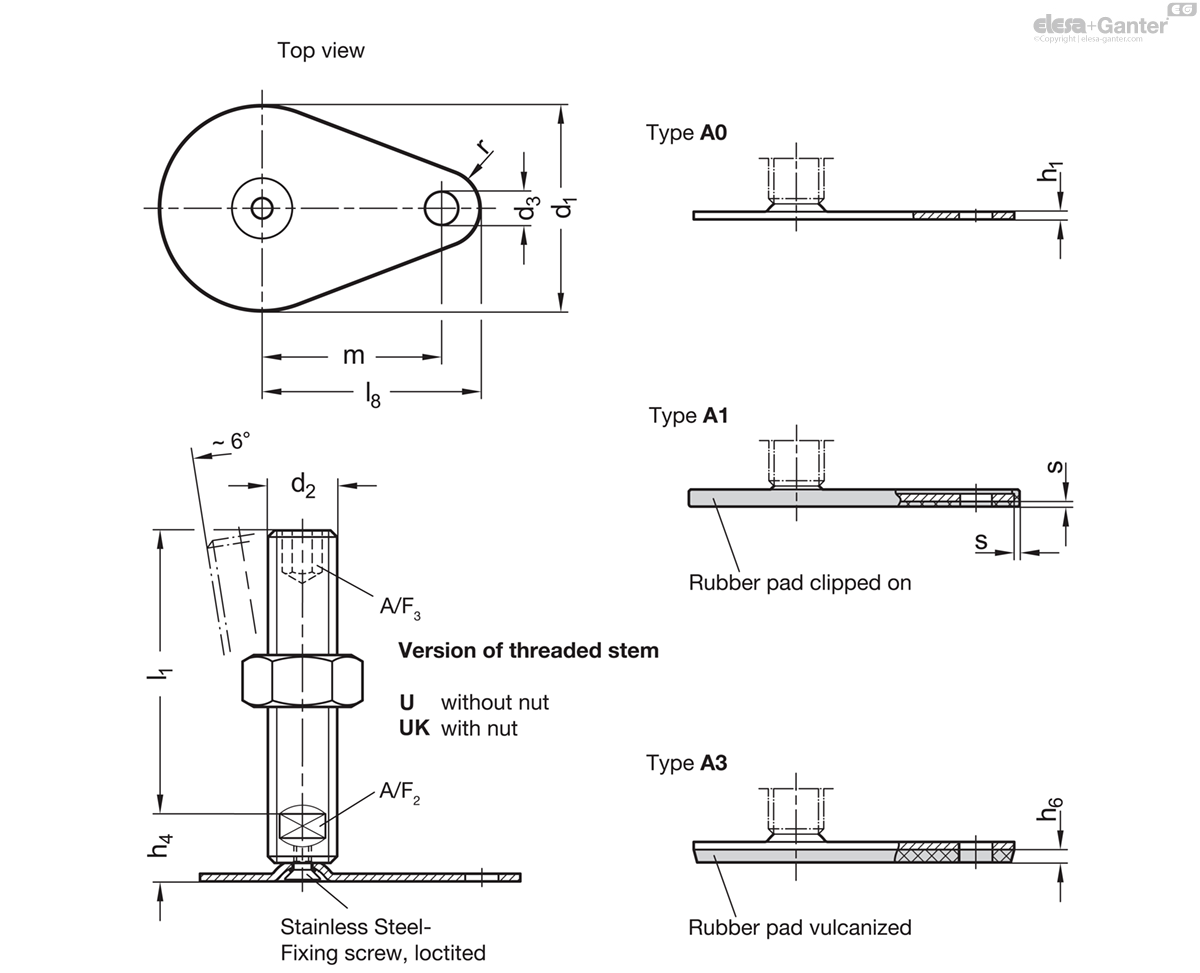

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

GN 42-U/UK

	Color	d₁	d₂	l₁	d₃	h₁	h₆	l₈	m	r	s	h₄	A/F ₂	A/F ₃	Static load Fs in kN
Code																	Actions
GN 42-50-M16-75-A0-U	Type U	50	M 16	75	13	2.5	-	60	45	15	-	17	12	8	8	163
GN 42-50-M16-75-A0-UK	Type UK	50	M 16	75	13	2.5	-	60	45	15	-	17	12	8	8	192
GN 42-50-M16-75-A1-U	Type U	50	M 16	75	13	2.5	-	60	45	15	2	17	12	8	8	172
GN 42-50-M16-75-A1-UK	Type UK	50	M 16	75	13	2.5	-	60	45	15	2	17	12	8	8	201
GN 42-50-M16-75-A3-U	Type U	50	M 16	75	13	2.5	4	60	45	15	-	17	12	8	8	176
GN 42-50-M16-75-A3-UK	Type UK	50	M 16	75	13	2.5	4	60	45	15	-	17	12	8	8	205
GN 42-50-M16-100-A0-U	Type U	50	M 16	100	13	2.5	-	60	45	15	-	17	12	8	8	195
GN 42-50-M16-100-A0-UK	Type UK	50	M 16	100	13	2.5	-	60	45	15	-	17	12	8	8	224
GN 42-50-M16-100-A1-U	Type U	50	M 16	100	13	2.5	-	60	45	15	2	17	12	8	8	204
GN 42-50-M16-100-A1-UK	Type UK	50	M 16	100	13	2.5	-	60	45	15	2	17	12	8	8	233
GN 42-50-M16-100-A3-U	Type U	50	M 16	100	13	2.5	4	60	45	15	-	17	12	8	8	208
GN 42-50-M16-100-A3-UK	Type UK	50	M 16	100	13	2.5	4	60	45	15	-	17	12	8	8	237
GN 42-50-M16-125-A0-U	Type U	50	M 16	125	13	2.5	-	60	45	15	-	17	12	8	8	227
GN 42-50-M16-125-A0-UK	Type UK	50	M 16	125	13	2.5	-	60	45	15	-	17	12	8	8	256
GN 42-50-M16-125-A1-U	Type U	50	M 16	125	13	2.5	-	60	45	15	2	17	12	8	8	236
GN 42-50-M16-125-A1-UK	Type UK	50	M 16	125	13	2.5	-	60	45	15	2	17	12	8	8	265
GN 42-50-M16-125-A3-U	Type U	50	M 16	125	13	2.5	4	60	45	15	-	17	12	8	8	240
GN 42-50-M16-125-A3-UK	Type UK	50	M 16	125	13	2.5	4	60	45	15	-	17	12	8	8	269
GN 42-50-M16-150-A0-U	Type U	50	M 16	150	13	2.5	-	60	45	15	-	17	12	8	8	259
GN 42-50-M16-150-A0-UK	Type UK	50	M 16	150	13	2.5	-	60	45	15	-	17	12	8	8	288
GN 42-50-M16-150-A1-U	Type U	50	M 16	150	13	2.5	-	60	45	15	2	17	12	8	8	268
GN 42-50-M16-150-A1-UK	Type UK	50	M 16	150	13	2.5	-	60	45	15	2	17	12	8	8	297
GN 42-50-M16-150-A3-U	Type U	50	M 16	150	13	2.5	4	60	45	15	-	17	12	8	8	272
GN 42-50-M16-150-A3-UK	Type UK	50	M 16	150	13	2.5	4	60	45	15	-	17	12	8	8	301
GN 42-50-M16-200-A0-U	Type U	50	M 16	200	13	2.5	-	60	45	15	-	17	12	8	8	319
GN 42-50-M16-200-A0-UK	Type UK	50	M 16	200	13	2.5	-	60	45	15	-	17	12	8	8	348
GN 42-50-M16-200-A1-U	Type U	50	M 16	200	13	2.5	-	60	45	15	2	17	12	8	8	328
GN 42-50-M16-200-A1-UK	Type UK	50	M 16	200	13	2.5	-	60	45	15	2	17	12	8	8	357
GN 42-50-M16-200-A3-U	Type U	50	M 16	200	13	2.5	4	60	45	15	-	17	12	8	8	332
GN 42-50-M16-200-A3-UK	Type UK	50	M 16	200	13	2.5	4	60	45	15	-	17	12	8	8	361
GN 42-50-M16-250-A0-U	Type U	50	M 16	250	13	2.5	-	60	45	15	-	17	12	8	8	637
GN 42-50-M16-250-A0-UK	Type UK	50	M 16	250	13	2.5	-	60	45	15	-	17	12	8	8	666
GN 42-50-M16-250-A1-U	Type U	50	M 16	250	13	2.5	-	60	45	15	2	17	12	8	8	646
GN 42-50-M16-250-A1-UK	Type UK	50	M 16	250	13	2.5	-	60	45	15	2	17	12	8	8	675
GN 42-50-M16-250-A3-U	Type U	50	M 16	250	13	2.5	4	60	45	15	-	17	12	8	8	650
GN 42-50-M16-250-A3-UK	Type UK	50	M 16	250	13	2.5	4	60	45	15	-	17	12	8	8	679
GN 42-60-M16-75-A0-U	Type U	60	M 16	75	13	2.5	-	65	50	15	-	17	12	8	10	181
GN 42-60-M16-75-A0-UK	Type UK	60	M 16	75	13	2.5	-	65	50	15	-	17	12	8	10	210
GN 42-60-M16-75-A1-U	Type U	60	M 16	75	13	2.5	-	65	50	15	2	17	12	8	10	192
GN 42-60-M16-75-A1-UK	Type UK	60	M 16	75	13	2.5	-	65	50	15	2	17	12	8	10	221
GN 42-60-M16-75-A3-U	Type U	60	M 16	75	13	2.5	4.5	65	50	15	-	17	12	8	10	201
GN 42-60-M16-75-A3-UK	Type UK	60	M 16	75	13	2.5	4.5	65	50	15	-	17	12	8	10	230
GN 42-60-M16-100-A0-U	Type U	60	M 16	100	13	2.5	-	65	50	15	-	17	12	8	10	213
GN 42-60-M16-100-A0-UK	Type UK	60	M 16	100	13	2.5	-	65	50	15	-	17	12	8	10	242
GN 42-60-M16-100-A1-U	Type U	60	M 16	100	13	2.5	-	65	50	15	2	17	12	8	10	224
GN 42-60-M16-100-A1-UK	Type UK	60	M 16	100	13	2.5	-	65	50	15	2	17	12	8	10	253
GN 42-60-M16-100-A3-U	Type U	60	M 16	100	13	2.5	4.5	65	50	15	-	17	12	8	10	233
GN 42-60-M16-100-A3-UK	Type UK	60	M 16	100	13	2.5	4.5	65	50	15	-	17	12	8	10	262
GN 42-60-M16-125-A0-U	Type U	60	M 16	125	13	2.5	-	65	50	15	-	17	12	8	10	245
GN 42-60-M16-125-A0-UK	Type UK	60	M 16	125	13	2.5	-	65	50	15	-	17	12	8	10	274
GN 42-60-M16-125-A1-U	Type U	60	M 16	125	13	2.5	-	65	50	15	2	17	12	8	10	256
GN 42-60-M16-125-A1-UK	Type UK	60	M 16	125	13	2.5	-	65	50	15	2	17	12	8	10	285
GN 42-60-M16-125-A3-U	Type U	60	M 16	125	13	2.5	4.5	65	50	15	-	17	12	8	10	265
GN 42-60-M16-125-A3-UK	Type UK	60	M 16	125	13	2.5	4.5	65	50	15	-	17	12	8	10	294
GN 42-60-M16-150-A0-U	Type U	60	M 16	150	13	2.5	-	65	50	15	-	17	12	8	10	277
GN 42-60-M16-150-A0-UK	Type UK	60	M 16	150	13	2.5	-	65	50	15	-	17	12	8	10	306
GN 42-60-M16-150-A1-U	Type U	60	M 16	150	13	2.5	-	65	50	15	2	17	12	8	10	288
GN 42-60-M16-150-A1-UK	Type UK	60	M 16	150	13	2.5	-	65	50	15	2	17	12	8	10	317
GN 42-60-M16-150-A3-U	Type U	60	M 16	150	13	2.5	4.5	65	50	15	-	17	12	8	10	297
GN 42-60-M16-150-A3-UK	Type UK	60	M 16	150	13	2.5	4.5	65	50	15	-	17	12	8	10	326
GN 42-60-M16-200-A0-U	Type U	60	M 16	200	13	2.5	-	65	50	15	-	17	12	8	10	337
GN 42-60-M16-200-A0-UK	Type UK	60	M 16	200	13	2.5	-	65	50	15	-	17	12	8	10	366
GN 42-60-M16-200-A1-U	Type U	60	M 16	200	13	2.5	-	65	50	15	2	17	12	8	10	348
GN 42-60-M16-200-A1-UK	Type UK	60	M 16	200	13	2.5	-	65	50	15	2	17	12	8	10	377
GN 42-60-M16-200-A3-U	Type U	60	M 16	200	13	2.5	4.5	65	50	15	-	17	12	8	10	357
GN 42-60-M16-200-A3-UK	Type UK	60	M 16	200	13	2.5	4.5	65	50	15	-	17	12	8	10	386
GN 42-60-M16-250-A0-U	Type U	60	M 16	250	13	2.5	-	65	50	15	-	17	12	8	10	655
GN 42-60-M16-250-A0-UK	Type UK	60	M 16	250	13	2.5	-	65	50	15	-	17	12	8	10	684
GN 42-60-M16-250-A1-U	Type U	60	M 16	250	13	2.5	-	65	50	15	2	17	12	8	10	666
GN 42-60-M16-250-A1-UK	Type UK	60	M 16	250	13	2.5	-	65	50	15	2	17	12	8	10	695
GN 42-60-M16-250-A3-U	Type U	60	M 16	250	13	2.5	4.5	65	50	15	-	17	12	8	10	675
GN 42-60-M16-250-A3-UK	Type UK	60	M 16	250	13	2.5	4.5	65	50	15	-	17	12	8	10	704
GN 42-80-M16-75-A0-U	Type U	80	M 16	75	13	3	-	85	70	15	-	18	12	8	12	265
GN 42-80-M16-75-A0-UK	Type UK	80	M 16	75	13	3	-	85	70	15	-	18	12	8	12	294
GN 42-80-M16-75-A1-U	Type U	80	M 16	75	13	3	-	85	70	15	2	18	12	8	12	282
GN 42-80-M16-75-A1-UK	Type UK	80	M 16	75	13	3	-	85	70	15	2	18	12	8	12	311
GN 42-80-M16-75-A3-U	Type U	80	M 16	75	13	3	5	85	70	15	-	18	12	8	12	301
GN 42-80-M16-75-A3-UK	Type UK	80	M 16	75	13	3	5	85	70	15	-	18	12	8	12	330
GN 42-80-M16-100-A0-U	Type U	80	M 16	100	13	3	-	85	70	15	-	18	12	8	12	297
GN 42-80-M16-100-A0-UK	Type UK	80	M 16	100	13	3	-	85	70	15	-	18	12	8	12	326
GN 42-80-M16-100-A1-U	Type U	80	M 16	100	13	3	-	85	70	15	2	18	12	8	12	314
GN 42-80-M16-100-A1-UK	Type UK	80	M 16	100	13	3	-	85	70	15	2	18	12	8	12	343
GN 42-80-M16-100-A3-U	Type U	80	M 16	100	13	3	5	85	70	15	-	18	12	8	12	333
GN 42-80-M16-100-A3-UK	Type UK	80	M 16	100	13	3	5	85	70	15	-	18	12	8	12	362
GN 42-80-M16-125-A0-U	Type U	80	M 16	125	13	3	-	85	70	15	-	18	12	8	12	329
GN 42-80-M16-125-A0-UK	Type UK	80	M 16	125	13	3	-	85	70	15	-	18	12	8	12	358
GN 42-80-M16-125-A1-U	Type U	80	M 16	125	13	3	-	85	70	15	2	18	12	8	12	346
GN 42-80-M16-125-A1-UK	Type UK	80	M 16	125	13	3	-	85	70	15	2	18	12	8	12	375
GN 42-80-M16-125-A3-U	Type U	80	M 16	125	13	3	5	85	70	15	-	18	12	8	12	365
GN 42-80-M16-125-A3-UK	Type UK	80	M 16	125	13	3	5	85	70	15	-	18	12	8	12	394
GN 42-80-M16-150-A0-U	Type U	80	M 16	150	13	3	-	85	70	15	-	18	12	8	12	361
GN 42-80-M16-150-A0-UK	Type UK	80	M 16	150	13	3	-	85	70	15	-	18	12	8	12	390
GN 42-80-M16-150-A1-U	Type U	80	M 16	150	13	3	-	85	70	15	2	18	12	8	12	378
GN 42-80-M16-150-A1-UK	Type UK	80	M 16	150	13	3	-	85	70	15	2	18	12	8	12	407
GN 42-80-M16-150-A3-U	Type U	80	M 16	150	13	3	5	85	70	15	-	18	12	8	12	397
GN 42-80-M16-150-A3-UK	Type UK	80	M 16	150	13	3	5	85	70	15	-	18	12	8	12	426
GN 42-80-M16-200-A0-U	Type U	80	M 16	200	13	3	-	85	70	15	-	18	12	8	12	421
GN 42-80-M16-200-A0-UK	Type UK	80	M 16	200	13	3	-	85	70	15	-	18	12	8	12	450
GN 42-80-M16-200-A1-U	Type U	80	M 16	200	13	3	-	85	70	15	2	18	12	8	12	438
GN 42-80-M16-200-A1-UK	Type UK	80	M 16	200	13	3	-	85	70	15	2	18	12	8	12	467
GN 42-80-M16-200-A3-U	Type U	80	M 16	200	13	3	5	85	70	15	-	18	12	8	12	457
GN 42-80-M16-200-A3-UK	Type UK	80	M 16	200	13	3	5	85	70	15	-	18	12	8	12	486
GN 42-80-M16-250-A0-U	Type U	80	M 16	250	13	3	-	85	70	15	-	18	12	8	12	483
GN 42-80-M16-250-A0-UK	Type UK	80	M 16	250	13	3	-	85	70	15	-	18	12	8	12	512
GN 42-80-M16-250-A1-U	Type U	80	M 16	250	13	3	-	85	70	15	2	18	12	8	12	756
GN 42-80-M16-250-A1-UK	Type UK	80	M 16	250	13	3	-	85	70	15	2	18	12	8	12	548
GN 42-80-M16-250-A3-U	Type U	80	M 16	250	13	3	5	85	70	15	-	18	12	8	12	775
GN 42-80-M16-250-A3-UK	Type UK	80	M 16	250	13	3	5	85	70	15	-	18	12	8	12	804
GN 42-80-M20-75-A0-U	Type U	80	M 20	75	13	3	-	85	70	15	-	19	15	10	16	323
GN 42-80-M20-75-A0-UK	Type UK	80	M 20	75	13	3	-	85	70	15	-	19	15	10	16	387
GN 42-80-M20-75-A1-U	Type U	80	M 20	75	13	3	-	85	70	15	2	19	15	10	16	340
GN 42-80-M20-75-A1-UK	Type UK	80	M 20	75	13	3	-	85	70	15	2	19	15	10	16	404
GN 42-80-M20-75-A3-U	Type U	80	M 20	75	13	3	5	85	70	15	-	19	15	10	16	360
GN 42-80-M20-75-A3-UK	Type UK	80	M 20	75	13	3	5	85	70	15	-	19	15	10	16	424
GN 42-80-M20-100-A0-U	Type U	80	M 20	100	13	3	-	85	70	15	-	19	15	10	16	373
GN 42-80-M20-100-A0-UK	Type UK	80	M 20	100	13	3	-	85	70	15	-	19	15	10	16	437
GN 42-80-M20-100-A1-U	Type U	80	M 20	100	13	3	-	85	70	15	2	19	15	10	16	390
GN 42-80-M20-100-A1-UK	Type UK	80	M 20	100	13	3	-	85	70	15	2	19	15	10	16	454
GN 42-80-M20-100-A3-U	Type U	80	M 20	100	13	3	5	85	70	15	-	19	15	10	16	410
GN 42-80-M20-100-A3-UK	Type UK	80	M 20	100	13	3	5	85	70	15	-	19	15	10	16	474
GN 42-80-M20-125-A0-U	Type U	80	M 20	125	13	3	-	85	70	15	-	19	15	10	16	423
GN 42-80-M20-125-A0-UK	Type UK	80	M 20	125	13	3	-	85	70	15	-	19	15	10	16	487
GN 42-80-M20-125-A1-U	Type U	80	M 20	125	13	3	-	85	70	15	2	19	15	10	16	440
GN 42-80-M20-125-A1-UK	Type UK	80	M 20	125	13	3	-	85	70	15	2	19	15	10	16	504
GN 42-80-M20-125-A3-U	Type U	80	M 20	125	13	3	5	85	70	15	-	19	15	10	16	460
GN 42-80-M20-125-A3-UK	Type UK	80	M 20	125	13	3	5	85	70	15	-	19	15	10	16	524
GN 42-80-M20-150-A0-U	Type U	80	M 20	150	13	3	-	85	70	15	-	19	15	10	16	472
GN 42-80-M20-150-A0-UK	Type UK	80	M 20	150	13	3	-	85	70	15	-	19	15	10	16	536
GN 42-80-M20-150-A1-U	Type U	80	M 20	150	13	3	-	85	70	15	2	19	15	10	16	489
GN 42-80-M20-150-A1-UK	Type UK	80	M 20	150	13	3	-	85	70	15	2	19	15	10	16	553
GN 42-80-M20-150-A3-U	Type U	80	M 20	150	13	3	5	85	70	15	-	19	15	10	16	509
GN 42-80-M20-150-A3-UK	Type UK	80	M 20	150	13	3	5	85	70	15	-	19	15	10	16	573
GN 42-80-M20-200-A0-U	Type U	80	M 20	200	13	3	-	85	70	15	-	19	15	10	16	563
GN 42-80-M20-200-A0-UK	Type UK	80	M 20	200	13	3	-	85	70	15	-	19	15	10	16	627
GN 42-80-M20-200-A1-U	Type U	80	M 20	200	13	3	-	85	70	15	2	19	15	10	16	580
GN 42-80-M20-200-A1-UK	Type UK	80	M 20	200	13	3	-	85	70	15	2	19	15	10	16	644
GN 42-80-M20-200-A3-U	Type U	80	M 20	200	13	3	5	85	70	15	-	19	15	10	16	600
GN 42-80-M20-200-A3-UK	Type UK	80	M 20	200	13	3	5	85	70	15	-	19	15	10	16	664
GN 42-80-M20-250-A0-U	Type U	80	M 20	250	13	3	-	85	70	15	-	19	15	10	16	1057
GN 42-80-M20-250-A0-UK	Type UK	80	M 20	250	13	3	-	85	70	15	-	19	15	10	16	1121
GN 42-80-M20-250-A1-U	Type U	80	M 20	250	13	3	-	85	70	15	2	19	15	10	16	1074
GN 42-80-M20-250-A1-UK	Type UK	80	M 20	250	13	3	-	85	70	15	2	19	15	10	16	1138
GN 42-80-M20-250-A3-U	Type U	80	M 20	250	13	3	5	85	70	15	-	19	15	10	16	1094
GN 42-80-M20-250-A3-UK	Type UK	80	M 20	250	13	3	5	85	70	15	-	19	15	10	16	1158
GN 42-80-M24-100-A0-U	Type U	80	M 24	100	13	3	-	85	70	15	-	22	19	12	16	474
GN 42-80-M24-100-A0-UK	Type UK	80	M 24	100	13	3	-	85	70	15	-	22	19	12	16	579
GN 42-80-M24-100-A1-U	Type U	80	M 24	100	13	3	-	85	70	15	2	22	19	12	16	491
GN 42-80-M24-100-A1-UK	Type UK	80	M 24	100	13	3	-	85	70	15	2	22	19	12	16	596
GN 42-80-M24-100-A3-U	Type U	80	M 24	100	13	3	5	85	70	15	-	22	19	12	16	511
GN 42-80-M24-100-A3-UK	Type UK	80	M 24	100	13	3	5	85	70	15	-	22	19	12	16	616
GN 42-80-M24-125-A0-U	Type U	80	M 24	125	13	3	-	85	70	15	-	22	19	12	16	546
GN 42-80-M24-125-A0-UK	Type UK	80	M 24	125	13	3	-	85	70	15	-	22	19	12	16	651
GN 42-80-M24-125-A1-U	Type U	80	M 24	125	13	3	-	85	70	15	2	22	19	12	16	563
GN 42-80-M24-125-A1-UK	Type UK	80	M 24	125	13	3	-	85	70	15	2	22	19	12	16	668
GN 42-80-M24-125-A3-U	Type U	80	M 24	125	13	3	5	85	70	15	-	22	19	12	16	583
GN 42-80-M24-125-A3-UK	Type UK	80	M 24	125	13	3	5	85	70	15	-	22	19	12	16	688
GN 42-80-M24-150-A0-U	Type U	80	M 24	150	13	3	-	85	70	15	-	22	19	12	16	618
GN 42-80-M24-150-A0-UK	Type UK	80	M 24	150	13	3	-	85	70	15	-	22	19	12	16	723
GN 42-80-M24-150-A1-U	Type U	80	M 24	150	13	3	-	85	70	15	2	22	19	12	16	635
GN 42-80-M24-150-A1-UK	Type UK	80	M 24	150	13	3	-	85	70	15	2	22	19	12	16	740
GN 42-80-M24-150-A3-U	Type U	80	M 24	150	13	3	5	85	70	15	-	22	19	12	16	655
GN 42-80-M24-150-A3-UK	Type UK	80	M 24	150	13	3	5	85	70	15	-	22	19	12	16	760
GN 42-80-M24-200-A0-U	Type U	80	M 24	200	13	3	-	85	70	15	-	22	19	12	16	756
GN 42-80-M24-200-A0-UK	Type UK	80	M 24	200	13	3	-	85	70	15	-	22	19	12	16	861
GN 42-80-M24-200-A1-U	Type U	80	M 24	200	13	3	-	85	70	15	2	22	19	12	16	773
GN 42-80-M24-200-A1-UK	Type UK	80	M 24	200	13	3	-	85	70	15	2	22	19	12	16	878
GN 42-80-M24-200-A3-U	Type U	80	M 24	200	13	3	5	85	70	15	-	22	19	12	16	793
GN 42-80-M24-200-A3-UK	Type UK	80	M 24	200	13	3	5	85	70	15	-	22	19	12	16	898
GN 42-80-M24-300-A0-U	Type U	80	M 24	300	13	3	-	85	70	15	-	22	19	12	16	1038
GN 42-80-M24-300-A0-UK	Type UK	80	M 24	300	13	3	-	85	70	15	-	22	19	12	16	1143
GN 42-80-M24-300-A1-U	Type U	80	M 24	300	13	3	-	85	70	15	2	22	19	12	16	1055
GN 42-80-M24-300-A1-UK	Type UK	80	M 24	300	13	3	-	85	70	15	2	22	19	12	16	1160
GN 42-80-M24-300-A3-U	Type U	80	M 24	300	13	3	5	85	70	15	-	22	19	12	16	1075
GN 42-80-M24-300-A3-UK	Type UK	80	M 24	300	13	3	5	85	70	15	-	22	19	12	16	1180

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
