GN 42

Leveling Feet

Steel, with Fixing Lug, Drop Shape

Enquire Now

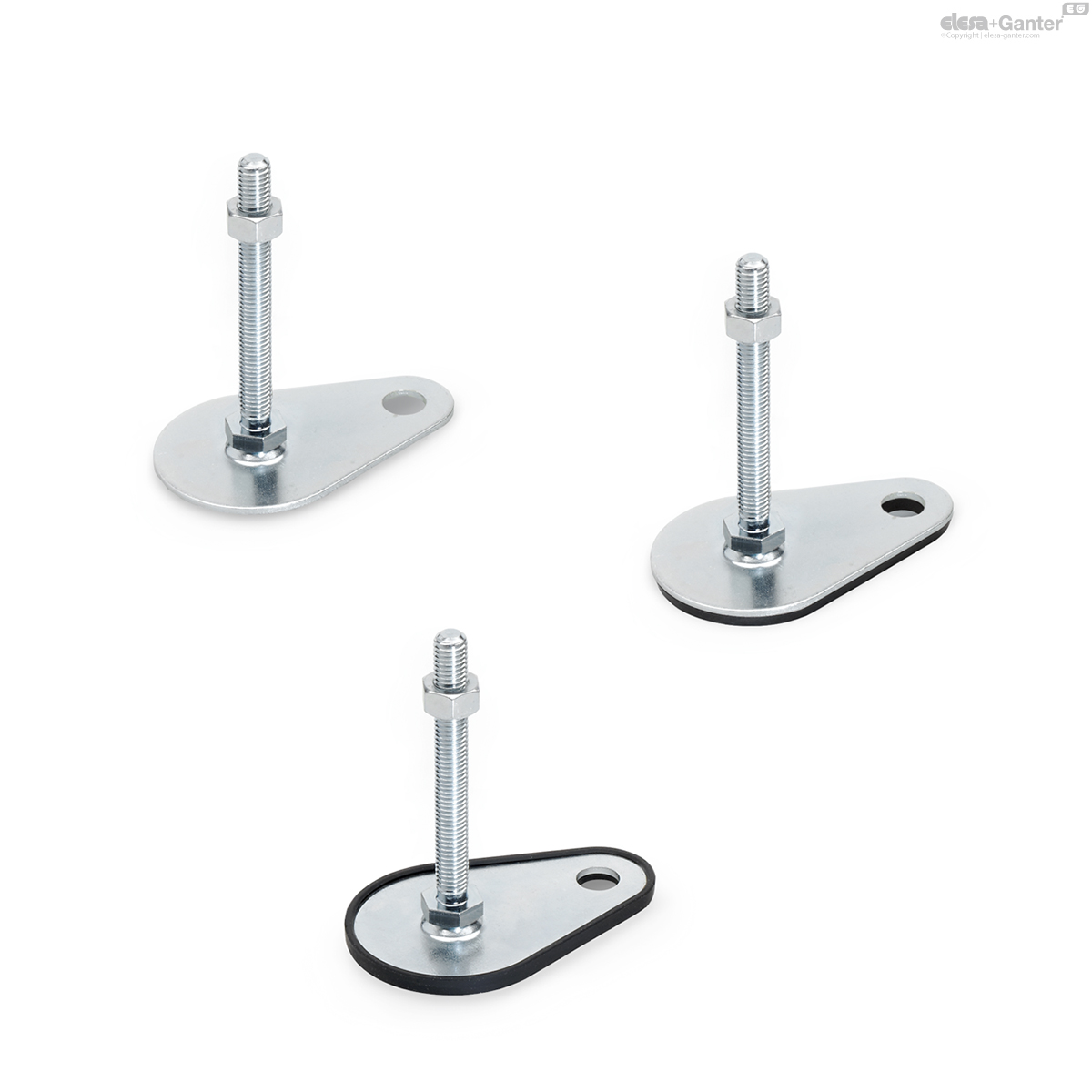

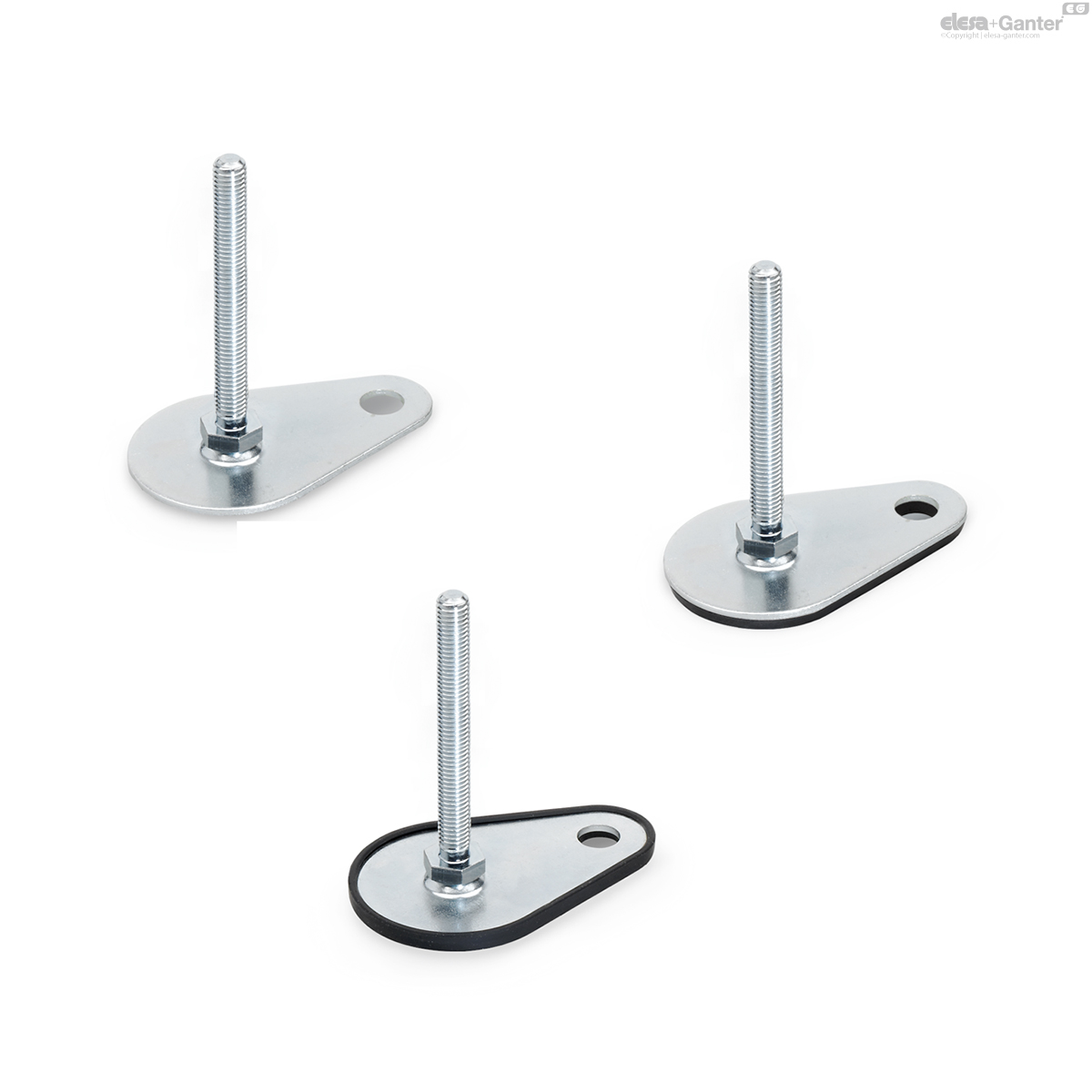

GN 42-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 42-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

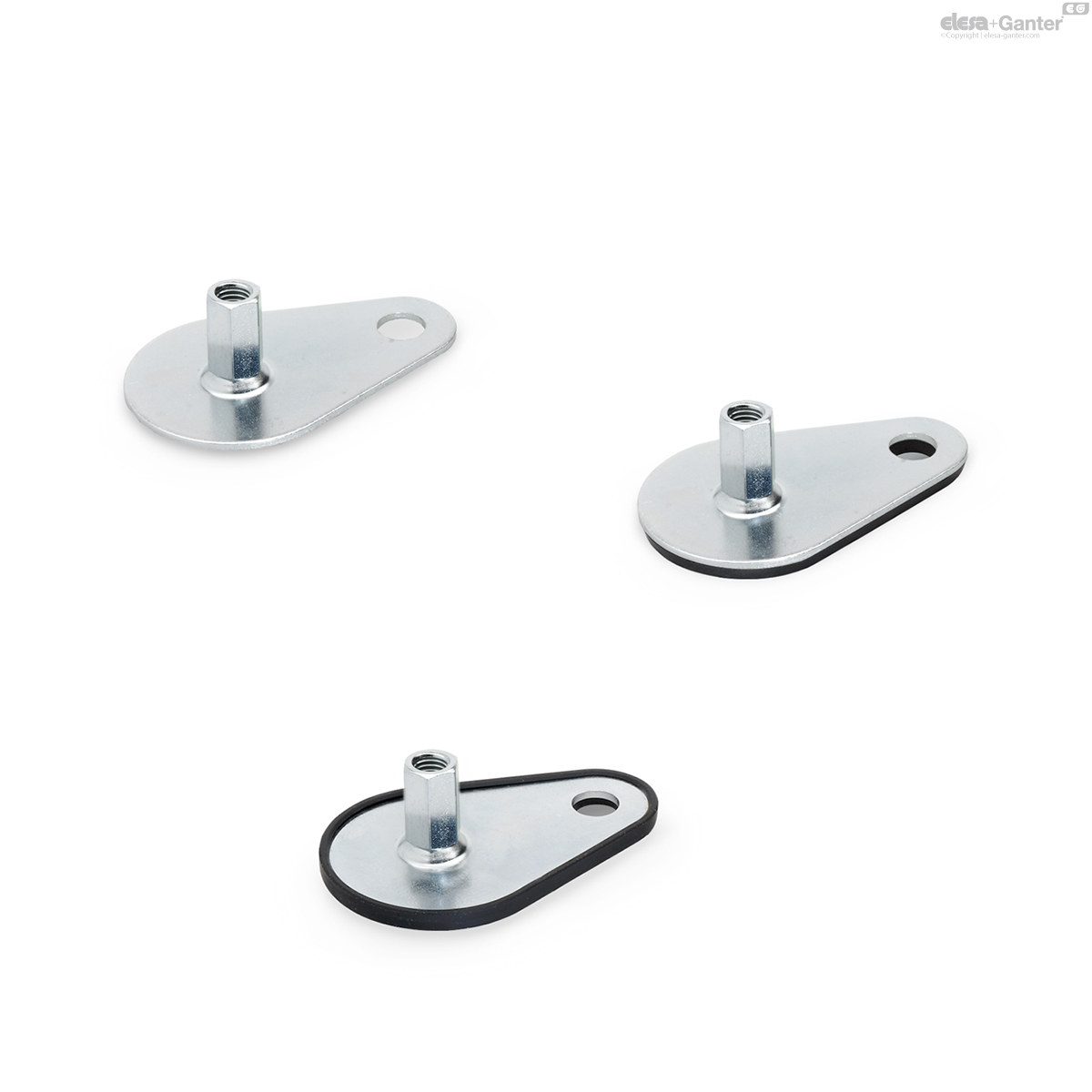

GN 42-X

Leveling Feet

External hex with internal thread

Description

Specification

Type (Base)

Type A0: Without rubber pad

Type A1: With rubber pad, clipped on, black

Type A3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel

Zinc plated, blue passivated

Threaded stem

Steel

Zinc plated, blue passivated

Hex nut ISO 4032

Steel

Zinc plated, blue passivated

Rubber pad

Clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70±5 Shore A

Information

Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Elastomer Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

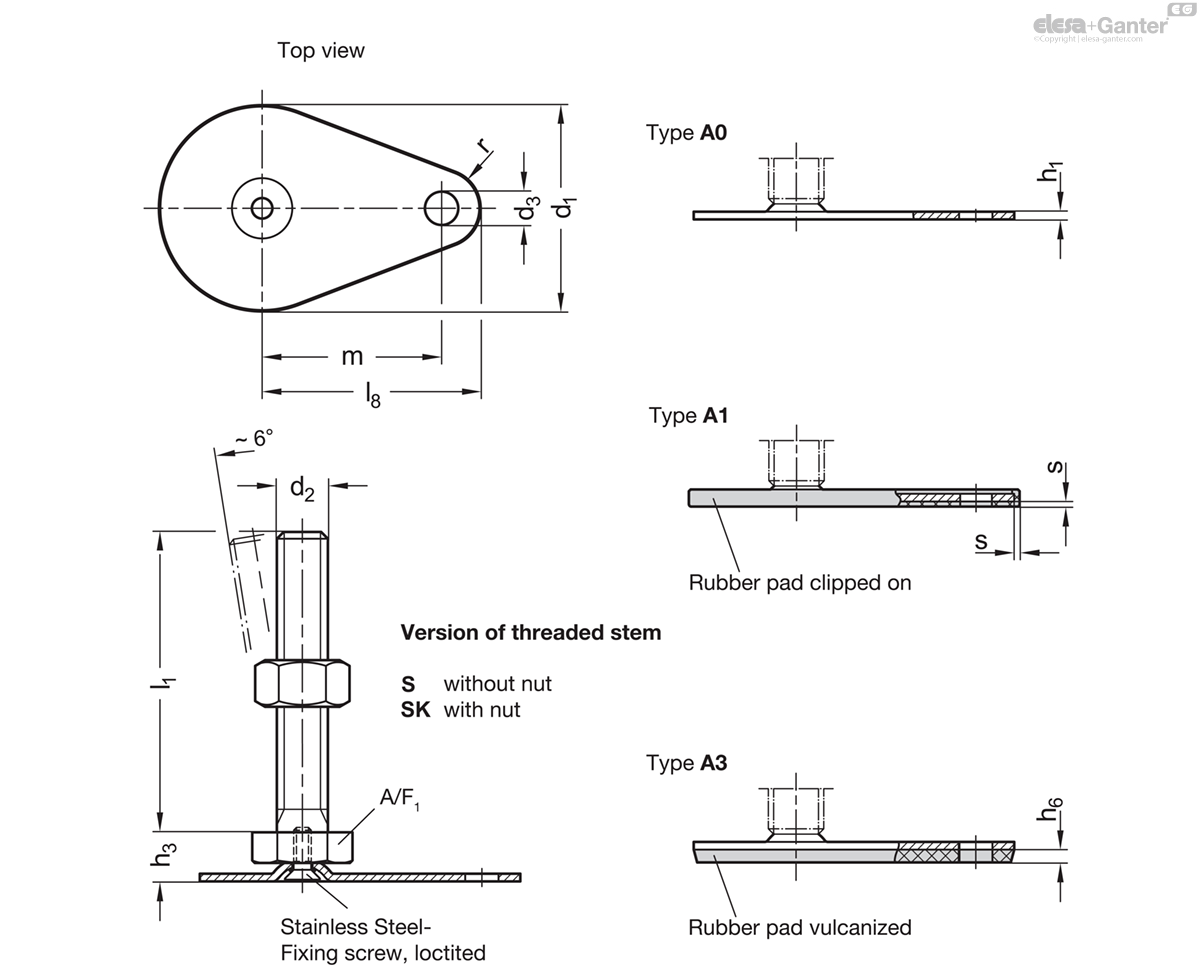

GN 42-S/SK

	Color	d₁	d₂	l₁	d₃	h₁	h₆	l₈	m	r	s	h₃	A/F ₁	Static load Fs in kN
Code																Actions
GN 42-50-M8-40-A0-S	Type S	50	M 8	40	13	2.5	-	60	45	15	-	11	17	8	81
GN 42-50-M8-40-A0-SK	SK	50	M 8	40	13	2.5	-	60	45	15	-	11	17	8	86
GN 42-50-M8-40-A1-S	Type S	50	M 8	40	13	2.5	-	60	45	15	2	11	17	8	90
GN 42-50-M8-40-A1-SK	SK	50	M 8	40	13	2.5	-	60	45	15	2	11	17	8	95
GN 42-50-M8-40-A3-S	Type S	50	M 8	40	13	2.5	4	60	45	15	-	11	17	8	92
GN 42-50-M8-40-A3-SK	SK	50	M 8	40	13	2.5	4	60	45	15	-	11	17	8	97
GN 42-50-M8-50-A0-S	Type S	50	M 8	50	13	2.5	-	60	45	15	-	11	17	8	84
GN 42-50-M8-50-A0-SK	SK	50	M 8	50	13	2.5	-	60	45	15	-	11	17	8	89
GN 42-50-M8-50-A1-S	Type S	50	M 8	50	13	2.5	-	60	45	15	2	11	17	8	93
GN 42-50-M8-50-A1-SK	SK	50	M 8	50	13	2.5	-	60	45	15	2	11	17	8	98
GN 42-50-M8-50-A3-S	Type S	50	M 8	50	13	2.5	4	60	45	15	-	11	17	8	95
GN 42-50-M8-50-A3-SK	SK	50	M 8	50	13	2.5	4	60	45	15	-	11	17	8	100
GN 42-50-M8-63-A0-S	Type S	50	M 8	63	13	2.5	-	60	45	15	-	11	17	8	88
GN 42-50-M8-63-A0-SK	SK	50	M 8	63	13	2.5	-	60	45	15	-	11	17	8	93
GN 42-50-M8-63-A1-S	Type S	50	M 8	63	13	2.5	-	60	45	15	2	11	17	8	97
GN 42-50-M8-63-A1-SK	SK	50	M 8	63	13	2.5	-	60	45	15	2	11	17	8	102
GN 42-50-M8-63-A3-S	Type S	50	M 8	63	13	2.5	4	60	45	15	-	11	17	8	99
GN 42-50-M8-63-A3-SK	SK	50	M 8	63	13	2.5	4	60	45	15	-	11	17	8	104
GN 42-50-M10-50-A0-S	Type S	50	M 10	50	13	2.5	-	60	45	15	-	11	17	8	102
GN 42-50-M10-50-A0-SK	SK	50	M 10	50	13	2.5	-	60	45	15	-	11	17	8	111
GN 42-50-M10-50-A1-S	Type S	50	M 10	50	13	2.5	-	60	45	15	2	11	17	8	111
GN 42-50-M10-50-A1-SK	SK	50	M 10	50	13	2.5	-	60	45	15	2	11	17	8	120
GN 42-50-M10-50-A3-S	Type S	50	M 10	50	13	2.5	4	60	45	15	-	11	17	8	113
GN 42-50-M10-50-A3-SK	SK	50	M 10	50	13	2.5	4	60	45	15	-	11	17	8	122
GN 42-50-M10-60-A0-S	Type S	50	M 10	60	13	2.5	-	60	45	15	-	11	17	8	119
GN 42-50-M10-60-A0-SK	SK	50	M 10	60	13	2.5	-	60	45	15	-	11	17	8	128
GN 42-50-M10-60-A1-S	Type S	50	M 10	60	13	2.5	-	60	45	15	2	11	17	8	128
GN 42-50-M10-60-A1-SK	SK	50	M 10	60	13	2.5	-	60	45	15	2	11	17	8	137
GN 42-50-M10-60-A3-S	Type S	50	M 10	60	13	2.5	4	60	45	15	-	11	17	8	130
GN 42-50-M10-60-A3-SK	SK	50	M 10	60	13	2.5	4	60	45	15	-	11	17	8	139
GN 42-50-M10-80-A0-S	Type S	50	M 10	80	13	2.5	-	60	45	15	-	11	17	8	128
GN 42-50-M10-80-A0-SK	SK	50	M 10	80	13	2.5	-	60	45	15	-	11	17	8	122
GN 42-50-M10-80-A1-S	Type S	50	M 10	80	13	2.5	-	60	45	15	2	11	17	8	137
GN 42-50-M10-80-A1-SK	SK	50	M 10	80	13	2.5	-	60	45	15	2	11	17	8	146
GN 42-50-M10-80-A3-S	Type S	50	M 10	80	13	2.5	4	60	45	15	-	11	17	8	139
GN 42-50-M10-80-A3-SK	SK	50	M 10	80	13	2.5	4	60	45	15	-	11	17	8	148
GN 42-50-M10-100-A0-S	Type S	50	M 10	100	13	2.5	-	60	45	15	-	11	17	8	138
GN 42-50-M10-100-A0-SK	SK	50	M 10	100	13	2.5	-	60	45	15	-	11	17	8	138
GN 42-50-M10-100-A1-S	Type S	50	M 10	100	13	2.5	-	60	45	15	2	11	17	8	147
GN 42-50-M10-100-A1-SK	SK	50	M 10	100	13	2.5	-	60	45	15	2	11	17	8	156
GN 42-50-M10-100-A3-S	Type S	50	M 10	100	13	2.5	4	60	45	15	-	11	17	8	149
GN 42-50-M10-100-A3-SK	SK	50	M 10	100	13	2.5	4	60	45	15	-	11	17	8	158
GN 42-50-M12-60-A0-S	Type S	50	M 12	60	13	2.5	-	60	45	15	-	11	17	8	131
GN 42-50-M12-60-A0-SK	SK	50	M 12	60	13	2.5	-	60	45	15	-	11	17	8	145
GN 42-50-M12-60-A1-S	Type S	50	M 12	60	13	2.5	-	60	45	15	2	11	17	8	140
GN 42-50-M12-60-A1-SK	SK	50	M 12	60	13	2.5	-	60	45	15	2	11	17	8	154
GN 42-50-M12-60-A3-S	Type S	50	M 12	60	13	2.5	4	60	45	15	-	11	17	8	142
GN 42-50-M12-60-A3-SK	SK	50	M 12	60	13	2.5	4	60	45	15	-	11	17	8	156
GN 42-50-M12-80-A0-S	Type S	50	M 12	80	13	2.5	-	60	45	15	-	11	17	8	146
GN 42-50-M12-80-A0-SK	SK	50	M 12	80	13	2.5	-	60	45	15	-	11	17	8	160
GN 42-50-M12-80-A1-S	Type S	50	M 12	80	13	2.5	-	60	45	15	2	11	17	8	155
GN 42-50-M12-80-A1-SK	SK	50	M 12	80	13	2.5	-	60	45	15	2	11	17	8	169
GN 42-50-M12-80-A3-S	Type S	50	M 12	80	13	2.5	4	60	45	15	-	11	17	8	157
GN 42-50-M12-80-A3-SK	SK	50	M 12	80	13	2.5	4	60	45	15	-	11	17	8	171
GN 42-50-M12-100-A0-S	Type S	50	M 12	100	13	2.5	-	60	45	15	-	11	17	8	160
GN 42-50-M12-100-A0-SK	SK	50	M 12	100	13	2.5	-	60	45	15	-	11	17	8	174
GN 42-50-M12-100-A1-S	Type S	50	M 12	100	13	2.5	-	60	45	15	2	11	17	8	169
GN 42-50-M12-100-A1-SK	SK	50	M 12	100	13	2.5	-	60	45	15	2	11	17	8	183
GN 42-50-M12-100-A3-S	Type S	50	M 12	100	13	2.5	4	60	45	15	-	11	17	8	171
GN 42-50-M12-100-A3-SK	SK	50	M 12	100	13	2.5	4	60	45	15	-	11	17	8	185
GN 42-50-M12-125-A0-S	Type S	50	M 12	125	13	2.5	-	60	45	15	-	11	17	8	182
GN 42-50-M12-125-A0-SK	SK	50	M 12	125	13	2.5	-	60	45	15	-	11	17	8	196
GN 42-50-M12-125-A1-S	Type S	50	M 12	125	13	2.5	-	60	45	15	2	11	17	8	191
GN 42-50-M12-125-A1-SK	SK	50	M 12	125	13	2.5	-	60	45	15	2	11	17	8	205
GN 42-50-M12-125-A3-S	Type S	50	M 12	125	13	2.5	4	60	45	15	-	11	17	8	193
GN 42-50-M12-125-A3-SK	SK	50	M 12	125	13	2.5	4	60	45	15	-	11	17	8	207
GN 42-60-M8-40-A0-S	Type S	60	M 8	40	13	2.5	-	65	50	15	-	11	17	8	99
GN 42-60-M8-40-A0-SK	SK	60	M 8	40	13	2.5	-	65	50	15	-	11	17	8	104
GN 42-60-M8-40-A1-S	Type S	60	M 8	40	13	2.5	-	65	50	15	2	11	17	8	110
GN 42-60-M8-40-A1-SK	SK	60	M 8	40	13	2.5	-	65	50	15	2	11	17	8	115
GN 42-60-M8-40-A3-S	Type S	60	M 8	40	13	2.5	4.5	65	50	15	-	11	17	8	119
GN 42-60-M8-40-A3-SK	SK	60	M 8	40	13	2.5	4.5	65	50	15	-	11	17	8	124
GN 42-60-M8-50-A0-S	Type S	60	M 8	50	13	2.5	-	65	50	15	-	11	17	8	102
GN 42-60-M8-50-A0-SK	SK	60	M 8	50	13	2.5	-	65	50	15	-	11	17	8	107
GN 42-60-M8-50-A1-S	Type S	60	M 8	50	13	2.5	-	65	50	15	2	11	17	8	113
GN 42-60-M8-50-A1-SK	SK	60	M 8	50	13	2.5	-	65	50	15	2	11	17	8	118
GN 42-60-M8-50-A3-S	Type S	60	M 8	50	13	2.5	4.5	65	50	15	-	11	17	8	122
GN 42-60-M8-50-A3-SK	SK	60	M 8	50	13	2.5	4.5	65	50	15	-	11	17	8	127
GN 42-60-M8-63-A0-S	Type S	60	M 8	63	13	2.5	-	65	50	15	-	11	17	8	106
GN 42-60-M8-63-A0-SK	SK	60	M 8	63	13	2.5	-	65	50	15	-	11	17	8	111
GN 42-60-M8-63-A1-S	Type S	60	M 8	63	13	2.5	-	65	50	15	2	11	17	8	117
GN 42-60-M8-63-A1-SK	SK	60	M 8	63	13	2.5	-	65	50	15	2	11	17	8	122
GN 42-60-M8-63-A3-S	Type S	60	M 8	63	13	2.5	4.5	65	50	15	-	11	17	8	126
GN 42-60-M8-63-A3-SK	SK	60	M 8	63	13	2.5	4.5	65	50	15	-	11	17	8	131
GN 42-60-M10-50-A0-S	Type S	60	M 10	50	13	2.5	-	65	50	15	-	11	17	10	120
GN 42-60-M10-50-A0-SK	SK	60	M 10	50	13	2.5	-	65	50	15	-	11	17	10	129
GN 42-60-M10-50-A1-S	Type S	60	M 10	50	13	2.5	-	65	50	15	2	11	17	10	131
GN 42-60-M10-50-A1-SK	SK	60	M 10	50	13	2.5	-	65	50	15	2	11	17	10	140
GN 42-60-M10-50-A3-S	Type S	60	M 10	50	13	2.5	4.5	65	50	15	-	11	17	10	140
GN 42-60-M10-50-A3-SK	SK	60	M 10	50	13	2.5	4.5	65	50	15	-	11	17	10	149
GN 42-60-M10-60-A0-S	Type S	60	M 10	60	13	2.5	-	65	50	15	-	11	17	10	137
GN 42-60-M10-60-A0-SK	SK	60	M 10	60	13	2.5	-	65	50	15	-	11	17	10	146
GN 42-60-M10-60-A1-S	Type S	60	M 10	60	13	2.5	-	65	50	15	2	11	17	10	130
GN 42-60-M10-60-A1-SK	SK	60	M 10	60	13	2.5	-	65	50	15	2	11	17	10	157
GN 42-60-M10-60-A3-S	Type S	60	M 10	60	13	2.5	4.5	65	50	15	-	11	17	10	157
GN 42-60-M10-60-A3-SK	SK	60	M 10	60	13	2.5	4.5	65	50	15	-	11	17	10	166
GN 42-60-M10-80-A0-S	Type S	60	M 10	80	13	2.5	-	65	50	15	-	11	17	10	146
GN 42-60-M10-80-A0-SK	SK	60	M 10	80	13	2.5	-	65	50	15	-	11	17	10	155
GN 42-60-M10-80-A1-S	Type S	60	M 10	80	13	2.5	-	65	50	15	2	11	17	10	157
GN 42-60-M10-80-A1-SK	SK	60	M 10	80	13	2.5	-	65	50	15	2	11	17	10	166
GN 42-60-M10-80-A3-S	Type S	60	M 10	80	13	2.5	4.5	65	50	15	-	11	17	10	166
GN 42-60-M10-80-A3-SK	SK	60	M 10	80	13	2.5	4.5	65	50	15	-	11	17	10	175
GN 42-60-M10-100-A0-S	Type S	60	M 10	100	13	2.5	-	65	50	15	-	11	17	10	135
GN 42-60-M10-100-A0-SK	SK	60	M 10	100	13	2.5	-	65	50	15	-	11	17	10	144
GN 42-60-M10-100-A1-S	Type S	60	M 10	100	13	2.5	-	65	50	15	2	11	17	10	146
GN 42-60-M10-100-A1-SK	SK	60	M 10	100	13	2.5	-	65	50	15	2	11	17	10	155
GN 42-60-M10-100-A3-S	Type S	60	M 10	100	13	2.5	4.5	65	50	15	-	11	17	10	155
GN 42-60-M10-100-A3-SK	SK	60	M 10	100	13	2.5	4.5	65	50	15	-	11	17	10	164
GN 42-60-M12-60-A0-S	Type S	60	M 12	60	13	2.5	-	65	50	15	-	11	17	10	149
GN 42-60-M12-60-A0-SK	SK	60	M 12	60	13	2.5	-	65	50	15	-	11	17	10	163
GN 42-60-M12-60-A1-S	Type S	60	M 12	60	13	2.5	-	65	50	15	2	11	17	10	160
GN 42-60-M12-60-A1-SK	SK	60	M 12	60	13	2.5	-	65	50	15	2	11	17	10	174
GN 42-60-M12-60-A3-S	Type S	60	M 12	60	13	2.5	4.5	65	50	15	-	11	17	10	169
GN 42-60-M12-60-A3-SK	SK	60	M 12	60	13	2.5	4.5	65	50	15	-	11	17	10	183
GN 42-60-M12-80-A0-S	Type S	60	M 12	80	13	2.5	-	65	50	15	-	11	17	10	164
GN 42-60-M12-80-A0-SK	SK	60	M 12	80	13	2.5	-	65	50	15	-	11	17	10	178
GN 42-60-M12-80-A1-S	Type S	60	M 12	80	13	2.5	-	65	50	15	2	11	17	10	175
GN 42-60-M12-80-A1-SK	SK	60	M 12	80	13	2.5	-	65	50	15	2	11	17	10	189
GN 42-60-M12-80-A3-S	Type S	60	M 12	80	13	2.5	4.5	65	50	15	-	11	17	10	184
GN 42-60-M12-80-A3-SK	SK	60	M 12	80	13	2.5	4.5	65	50	15	-	11	17	10	198
GN 42-60-M12-100-A0-S	Type S	60	M 12	100	13	2.5	-	65	50	15	-	11	17	10	178
GN 42-60-M12-100-A0-SK	SK	60	M 12	100	13	2.5	-	65	50	15	-	11	17	10	192
GN 42-60-M12-100-A1-S	Type S	60	M 12	100	13	2.5	-	65	50	15	2	11	17	10	189
GN 42-60-M12-100-A1-SK	SK	60	M 12	100	13	2.5	-	65	50	15	2	11	17	10	203
GN 42-60-M12-100-A3-S	Type S	60	M 12	100	13	2.5	4.5	65	50	15	-	11	17	10	198
GN 42-60-M12-100-A3-SK	SK	60	M 12	100	13	2.5	4.5	65	50	15	-	11	17	10	212
GN 42-60-M12-125-A0-S	Type S	60	M 12	125	13	2.5	-	65	50	15	-	11	17	10	200
GN 42-60-M12-125-A0-SK	SK	60	M 12	125	13	2.5	-	65	50	15	-	11	17	10	214
GN 42-60-M12-125-A1-S	Type S	60	M 12	125	13	2.5	-	65	50	15	2	11	17	10	211
GN 42-60-M12-125-A1-SK	SK	60	M 12	125	13	2.5	-	65	50	15	2	11	17	10	225
GN 42-60-M12-125-A3-S	Type S	60	M 12	125	13	2.5	4.5	65	50	15	-	11	17	10	220
GN 42-60-M12-125-A3-SK	SK	60	M 12	125	13	2.5	4.5	65	50	15	-	11	17	10	234
GN 42-80-M8-40-A0-S	Type S	80	M 8	40	13	3	-	85	70	15	-	12	17	8	182
GN 42-80-M8-40-A0-SK	SK	80	M 8	40	13	3	-	85	70	15	-	12	17	8	187
GN 42-80-M8-40-A1-S	Type S	80	M 8	40	13	3	-	85	70	15	2	12	17	8	199
GN 42-80-M8-40-A1-SK	SK	80	M 8	40	13	3	-	85	70	15	2	12	17	8	204
GN 42-80-M8-40-A3-S	Type S	80	M 8	40	13	3	5	85	70	15	-	12	17	8	220
GN 42-80-M8-40-A3-SK	SK	80	M 8	40	13	3	5	85	70	15	-	12	17	8	225
GN 42-80-M8-50-A0-S	Type S	80	M 8	50	13	3	-	85	70	15	-	12	17	8	185
GN 42-80-M8-50-A0-SK	SK	80	M 8	50	13	3	-	85	70	15	-	12	17	8	190
GN 42-80-M8-50-A1-S	Type S	80	M 8	50	13	3	-	85	70	15	2	12	17	8	202
GN 42-80-M8-50-A1-SK	SK	80	M 8	50	13	3	-	85	70	15	2	12	17	8	207
GN 42-80-M8-50-A3-S	Type S	80	M 8	50	13	3	5	85	70	15	-	12	17	8	223
GN 42-80-M8-50-A3-SK	SK	80	M 8	50	13	3	5	85	70	15	-	12	17	8	228
GN 42-80-M8-63-A0-S	Type S	80	M 8	63	13	3	-	85	70	15	-	12	17	8	189
GN 42-80-M8-63-A0-SK	SK	80	M 8	63	13	3	-	85	70	15	-	12	17	8	194
GN 42-80-M8-63-A1-S	Type S	80	M 8	63	13	3	-	85	70	15	2	12	17	8	206
GN 42-80-M8-63-A1-SK	SK	80	M 8	63	13	3	-	85	70	15	2	12	17	8	211
GN 42-80-M8-63-A3-S	Type S	80	M 8	63	13	3	5	85	70	15	-	12	17	8	227
GN 42-80-M8-63-A3-SK	SK	80	M 8	63	13	3	5	85	70	15	-	12	17	8	232
GN 42-80-M10-50-A0-S	Type S	80	M 10	50	13	3	-	85	70	15	-	12	17	10	203
GN 42-80-M10-50-A0-SK	SK	80	M 10	50	13	3	-	85	70	15	-	12	17	10	212
GN 42-80-M10-50-A1-S	Type S	80	M 10	50	13	3	-	85	70	15	2	12	17	10	220
GN 42-80-M10-50-A1-SK	SK	80	M 10	50	13	3	-	85	70	15	2	12	17	10	229
GN 42-80-M10-50-A3-S	Type S	80	M 10	50	13	3	5	85	70	15	-	12	17	10	241
GN 42-80-M10-50-A3-SK	SK	80	M 10	50	13	3	5	85	70	15	-	12	17	10	250
GN 42-80-M10-60-A0-S	Type S	80	M 10	60	13	3	-	85	70	15	-	12	17	10	220
GN 42-80-M10-60-A0-SK	SK	80	M 10	60	13	3	-	85	70	15	-	12	17	10	229
GN 42-80-M10-60-A1-S	Type S	80	M 10	60	13	3	-	85	70	15	2	12	17	10	237
GN 42-80-M10-60-A1-SK	SK	80	M 10	60	13	3	-	85	70	15	2	12	17	10	246
GN 42-80-M10-60-A3-S	Type S	80	M 10	60	13	3	5	85	70	15	-	12	17	10	258
GN 42-80-M10-60-A3-SK	SK	80	M 10	60	13	3	5	85	70	15	-	12	17	10	267
GN 42-80-M10-80-A0-S	Type S	80	M 10	80	13	3	-	85	70	15	-	12	17	10	229
GN 42-80-M10-80-A0-SK	SK	80	M 10	80	13	3	-	85	70	15	-	12	17	10	238
GN 42-80-M10-80-A1-S	Type S	80	M 10	80	13	3	-	85	70	15	2	12	17	10	246
GN 42-80-M10-80-A1-SK	SK	80	M 10	80	13	3	-	85	70	15	2	12	17	10	255
GN 42-80-M10-80-A3-S	Type S	80	M 10	80	13	3	5	85	70	15	-	12	17	10	267
GN 42-80-M10-80-A3-SK	SK	80	M 10	80	13	3	5	85	70	15	-	12	17	10	276
GN 42-80-M10-100-A0-S	Type S	80	M 10	100	13	3	-	85	70	15	-	12	17	10	239
GN 42-80-M10-100-A0-SK	SK	80	M 10	100	13	3	-	85	70	15	-	12	17	10	248
GN 42-80-M10-100-A1-S	Type S	80	M 10	100	13	3	-	85	70	15	2	12	17	10	256
GN 42-80-M10-100-A1-SK	SK	80	M 10	100	13	3	-	85	70	15	2	12	17	10	265
GN 42-80-M10-100-A3-S	Type S	80	M 10	100	13	3	5	85	70	15	-	12	17	10	277
GN 42-80-M10-100-A3-SK	SK	80	M 10	100	13	3	5	85	70	15	-	12	17	10	286
GN 42-80-M12-60-A0-S	Type S	80	M 12	60	13	3	-	85	70	15	-	12	17	12	232
GN 42-80-M12-60-A0-SK	SK	80	M 12	60	13	3	-	85	70	15	-	12	17	12	220
GN 42-80-M12-60-A1-S	Type S	80	M 12	60	13	3	-	85	70	15	2	12	17	12	249
GN 42-80-M12-60-A1-SK	SK	80	M 12	60	13	3	-	85	70	15	2	12	17	12	263
GN 42-80-M12-60-A3-S	Type S	80	M 12	60	13	3	5	85	70	15	-	12	17	12	270
GN 42-80-M12-60-A3-SK	SK	80	M 12	60	13	3	5	85	70	15	-	12	17	12	284
GN 42-80-M12-80-A0-S	Type S	80	M 12	80	13	3	-	85	70	15	-	12	17	12	247
GN 42-80-M12-80-A0-SK	SK	80	M 12	80	13	3	-	85	70	15	-	12	17	12	261
GN 42-80-M12-80-A1-S	Type S	80	M 12	80	13	3	-	85	70	15	2	12	17	12	264
GN 42-80-M12-80-A1-SK	SK	80	M 12	80	13	3	-	85	70	15	2	12	17	12	278
GN 42-80-M12-80-A3-S	Type S	80	M 12	80	13	3	5	85	70	15	-	12	17	12	285
GN 42-80-M12-80-A3-SK	SK	80	M 12	80	13	3	5	85	70	15	-	12	17	12	299
GN 42-80-M12-100-A0-S	Type S	80	M 12	100	13	3	-	85	70	15	-	12	17	12	261
GN 42-80-M12-100-A0-SK	SK	80	M 12	100	13	3	-	85	70	15	-	12	17	12	275
GN 42-80-M12-100-A1-S	Type S	80	M 12	100	13	3	-	85	70	15	2	12	17	12	278
GN 42-80-M12-100-A1-SK	SK	80	M 12	100	13	3	-	85	70	15	2	12	17	12	292
GN 42-80-M12-100-A3-S	Type S	80	M 12	100	13	3	5	85	70	15	-	12	17	12	299
GN 42-80-M12-100-A3-SK	SK	80	M 12	100	13	3	5	85	70	15	-	12	17	12	313
GN 42-80-M12-125-A0-S	Type S	80	M 12	125	13	3	-	85	70	15	-	12	17	12	262
GN 42-80-M12-125-A0-SK	SK	80	M 12	125	13	3	-	85	70	15	-	12	17	12	276
GN 42-80-M12-125-A1-S	Type S	80	M 12	125	13	3	-	85	70	15	2	12	17	12	279
GN 42-80-M12-125-A1-SK	SK	80	M 12	125	13	3	-	85	70	15	2	12	17	12	293
GN 42-80-M12-125-A3-S	Type S	80	M 12	125	13	3	5	85	70	15	-	12	17	12	300
GN 42-80-M12-125-A3-SK	SK	80	M 12	125	13	3	5	85	70	15	-	12	17	12	314

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
