GN 41i
Rotating Angle Brackets
Zinc Die Casting, for Aluminum Profiles (i-Modular System)
Description
Specification
Type
- Type C: With fastening set
Housing
Zinc Die Casting
Painted, white aluminum ZW
Fastening set
Screws, T-nuts and bushing
Steel, zinc plated, blue passivated SZ
Information

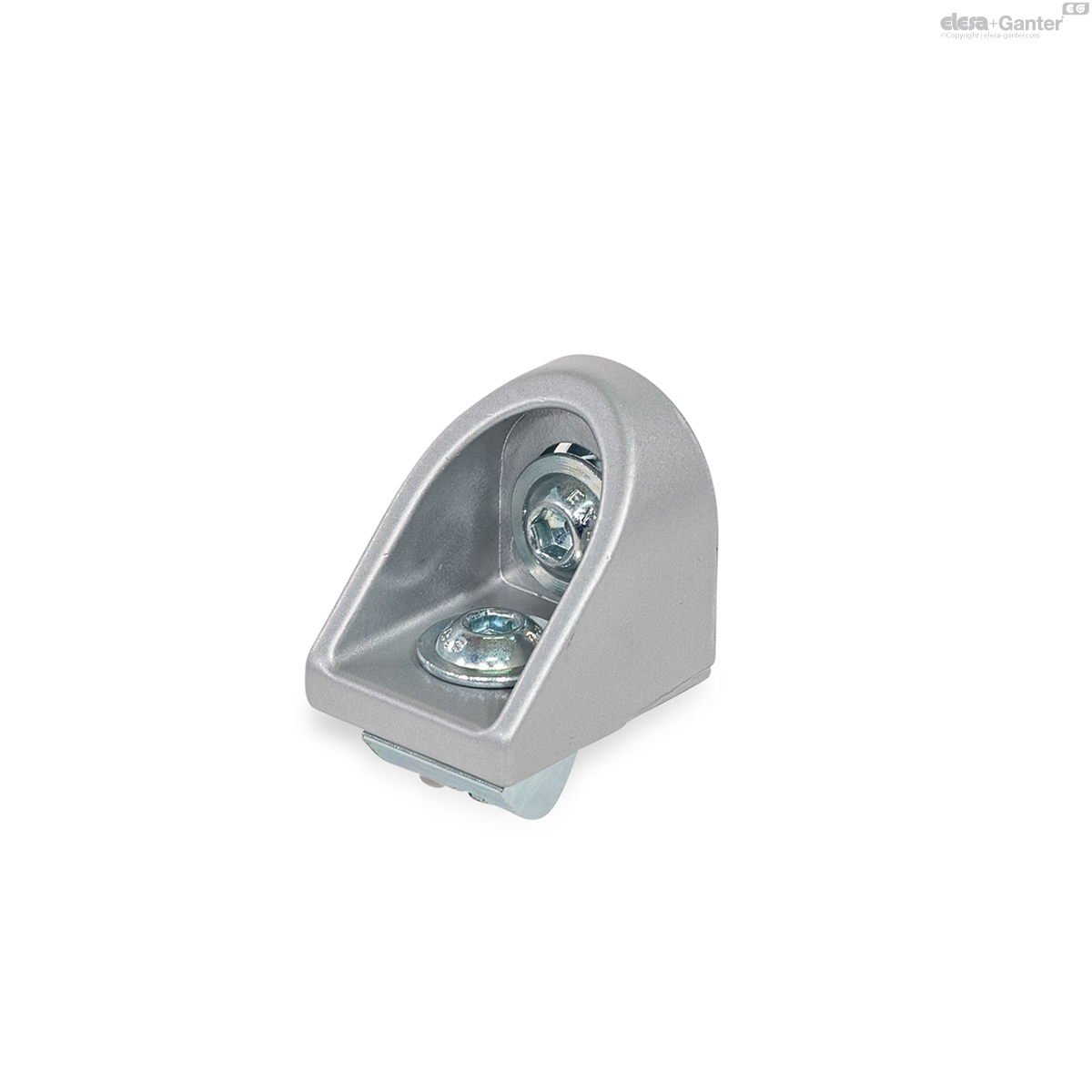

Rotating angle brackets GN 41i connect two intersecting aluminum profiles, rotatably mounted via a bushing. Machining of the profile is not necessary.

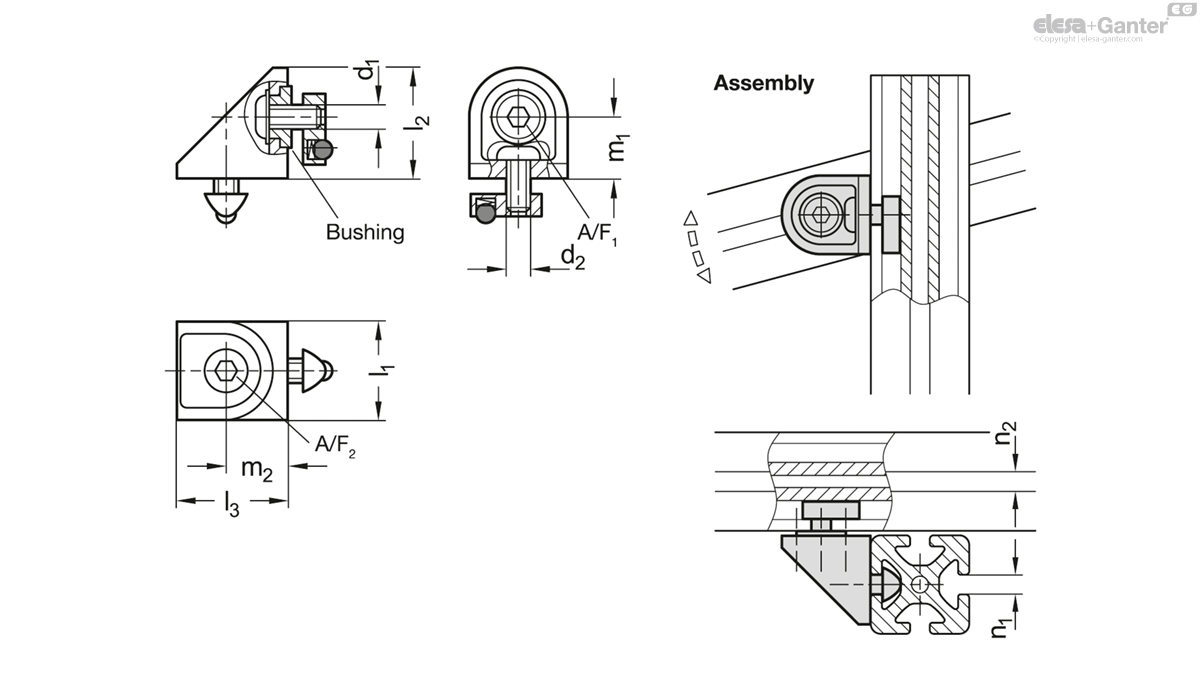

GN 41i
| l1 | n1 | n2 | d1 | d2 | l2 | l3 | m1 | m2 | A/F 1 | A/F 2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 41i-2466-C-ZWSZ | 24 | 6 | 6 | M 6 | M 6 | 27 | 27 | 15 | 15 | 4 | 4 | 65 |
|
| GN 41i-3288-C-ZWSZ | 32 | 8 | 8 | M 8 | M 8 | 36 | 36 | 20 | 20 | 5 | 5 | 135 |
|
