GN 417.1

Locators

Steel / Stainless Steel, for Indexing Plungers GN 417

Enquire Now

Description

Specification

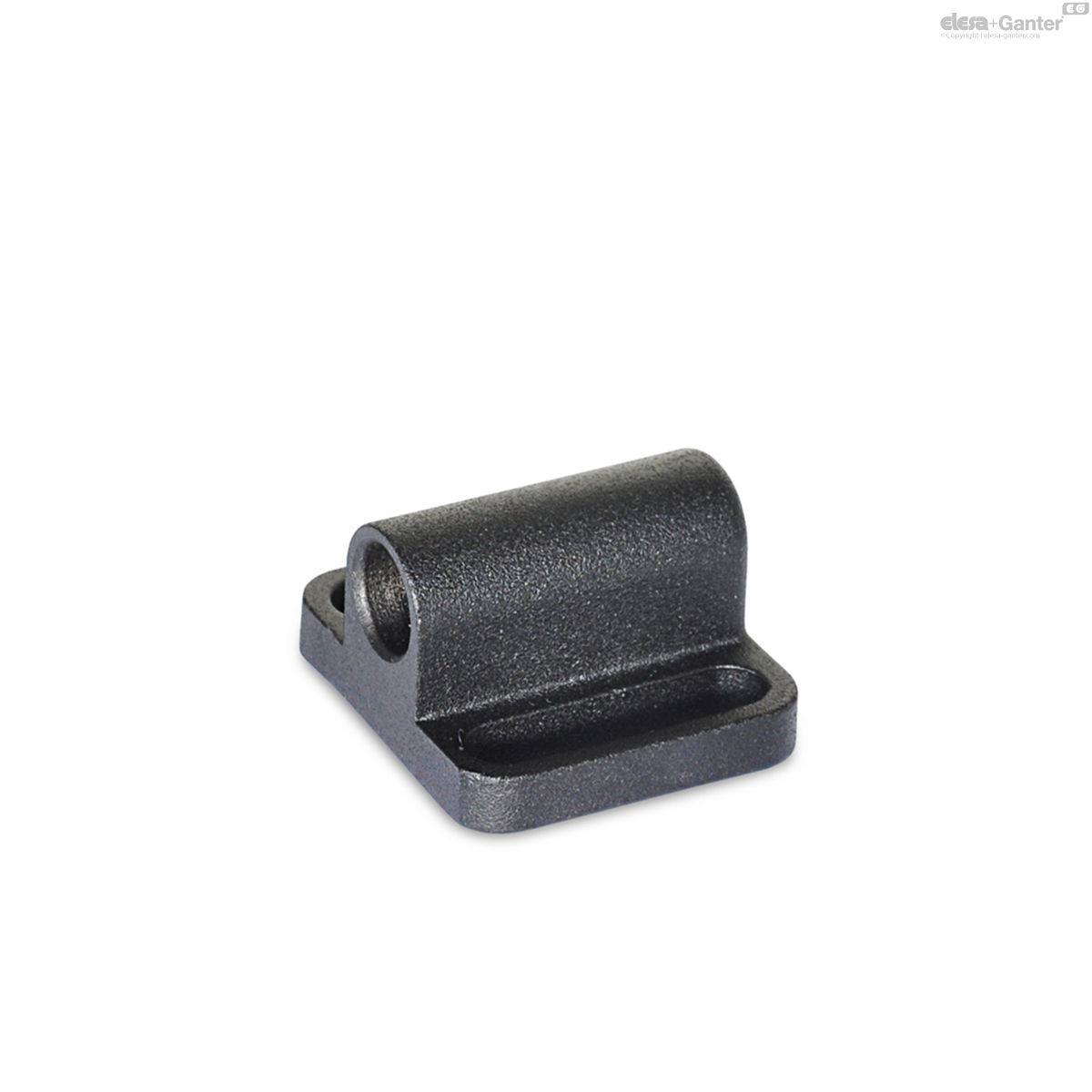

Version in Steel precision casting ST

Powder coated

Black, RAL 9005, textured finish SW

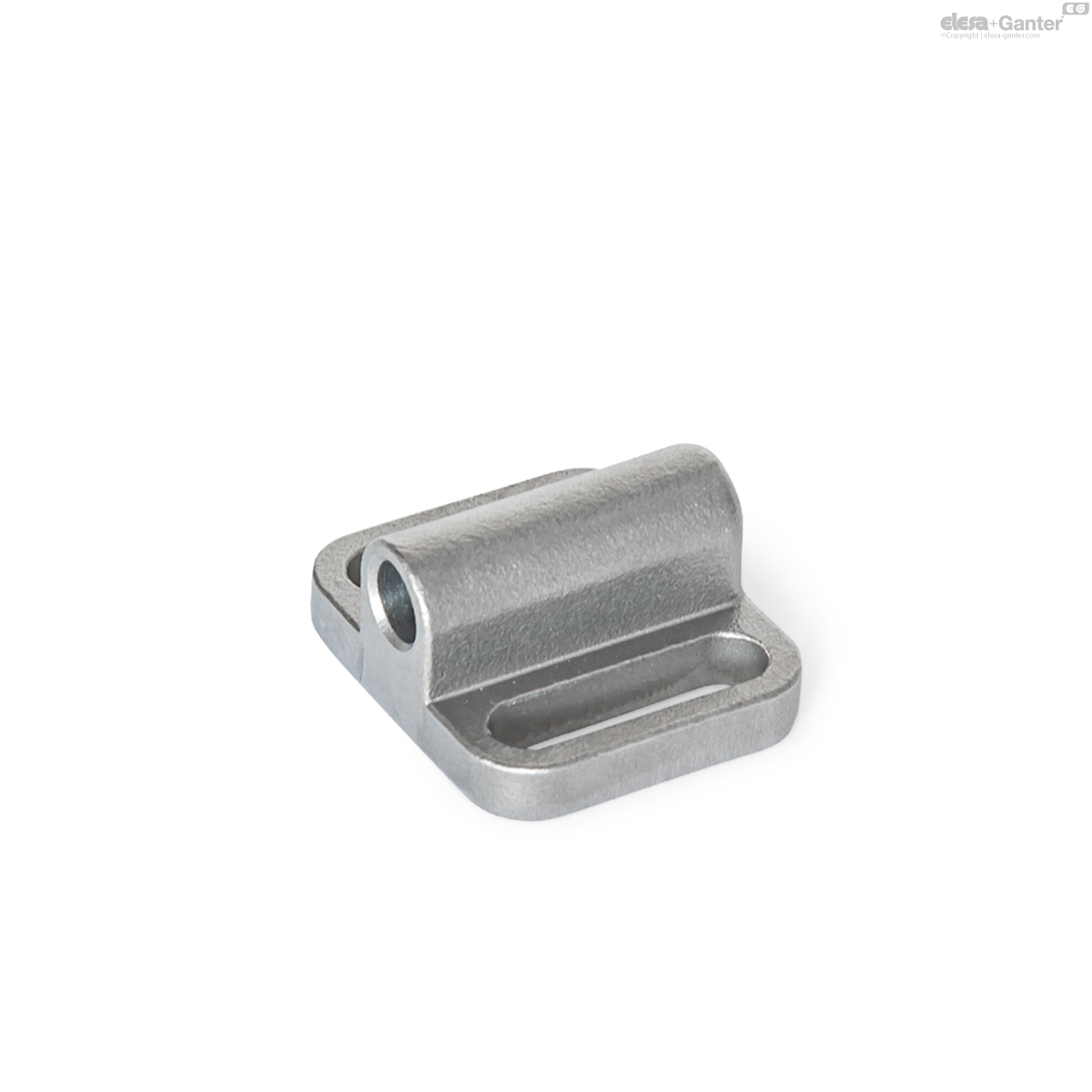

Version in Stainless Steel precision casting NI

AISI CF-8

Blank, matte shot-blasted GS

Information

Locators GN 417.1 are used for positioning the indexing pins of indexing plungers GN 417.

They are mounted using slots that permit adjustment parallel to the mounting hole. For example, this allows gap dimensions to be adjusted for doors or tolerance errors to be compensated. Washers make it easier to mount the parts using the slots.

Technical information

Stainless Steel Characteristics

GN 417.1-ST

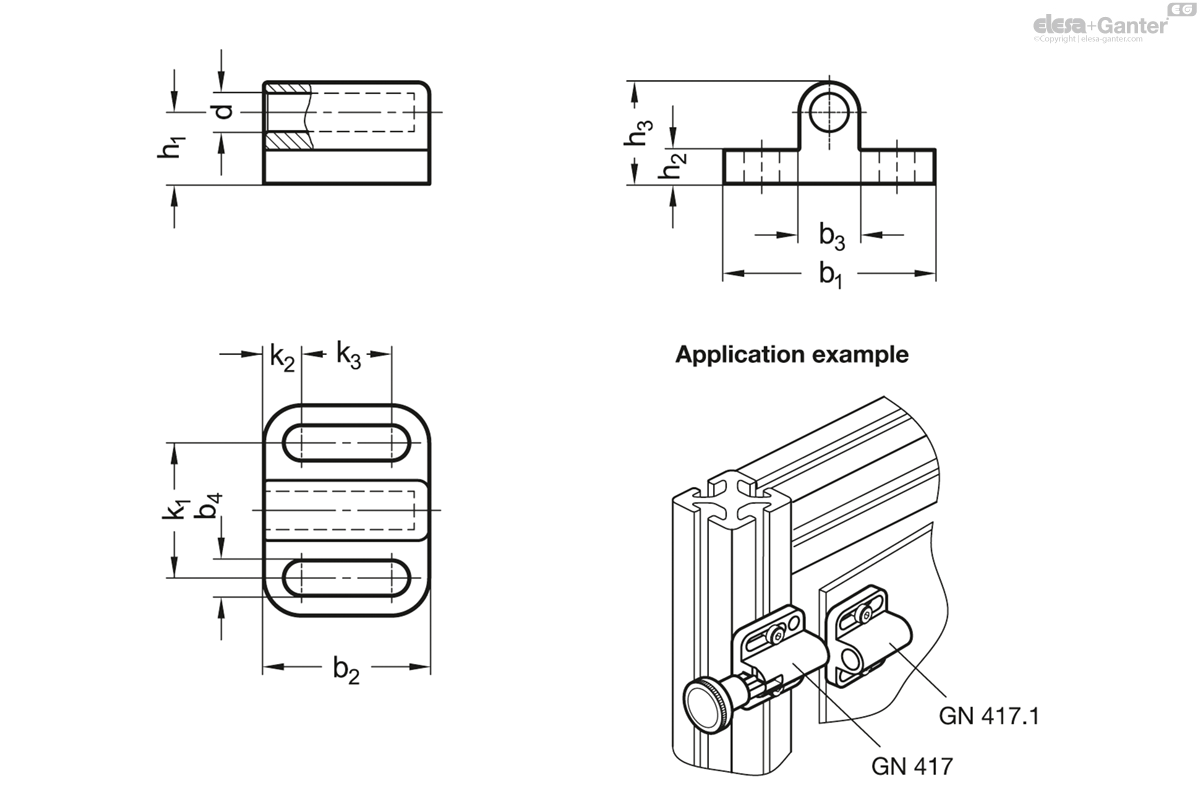

	d Nominal dimension	d Actual dimension +0.1	b₁	b₂	b₃	b₄ -0.2	h₁	h₂	h₃	k₁	k₂	k₃
Code														Actions
GN 417.1-4-ST-SW	4	4.1	22	16.5	6	3.3	7	4	10	14	4	8.5	10
GN 417.1-5-ST-SW	5	5.1	28	22	8	4.3	9.5	4.5	13.5	18	5	12	20
GN 417.1-6-ST-SW	6	6.2	32	27.5	10	5.4	10.5	5	15.5	21	5.5	16.5	30
GN 417.1-8-ST-SW	8	8.2	34	33	12	5.4	12.5	6	18.5	23	5.5	22	50
GN 417.1-10-ST-SW	10	10.2	39	35	14.5	6.8	14.5	6	21.75	27	6	23	65
