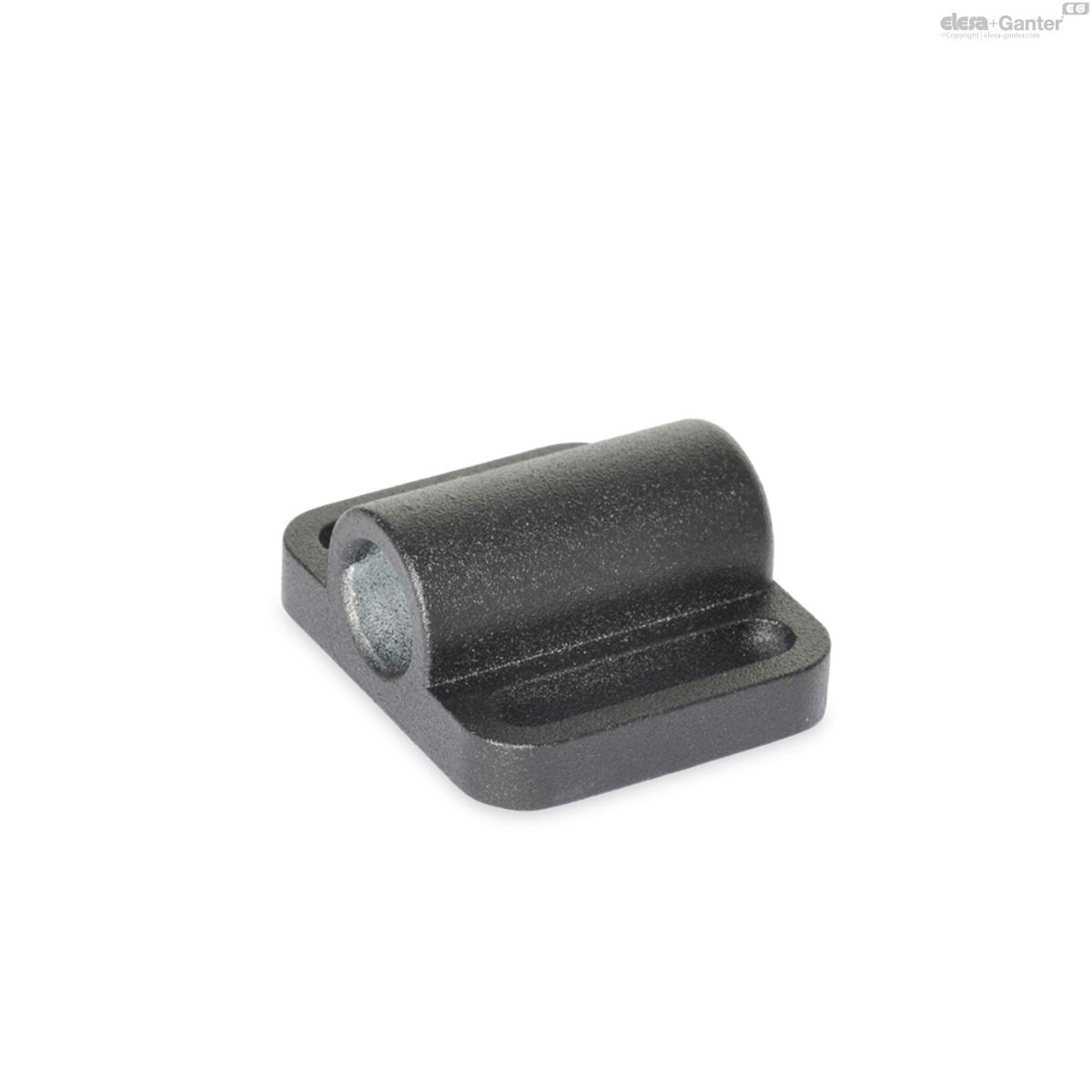

GN 416.1

Locators

for spring latches GN 416

Enquire Now

Description

Specification

Zinc die casting

plastic coated

black, RAL 2005, textured finish

Information

Locators GN 416.1 are matched to the spring latches GN 416 and are used to position the indexing pin.

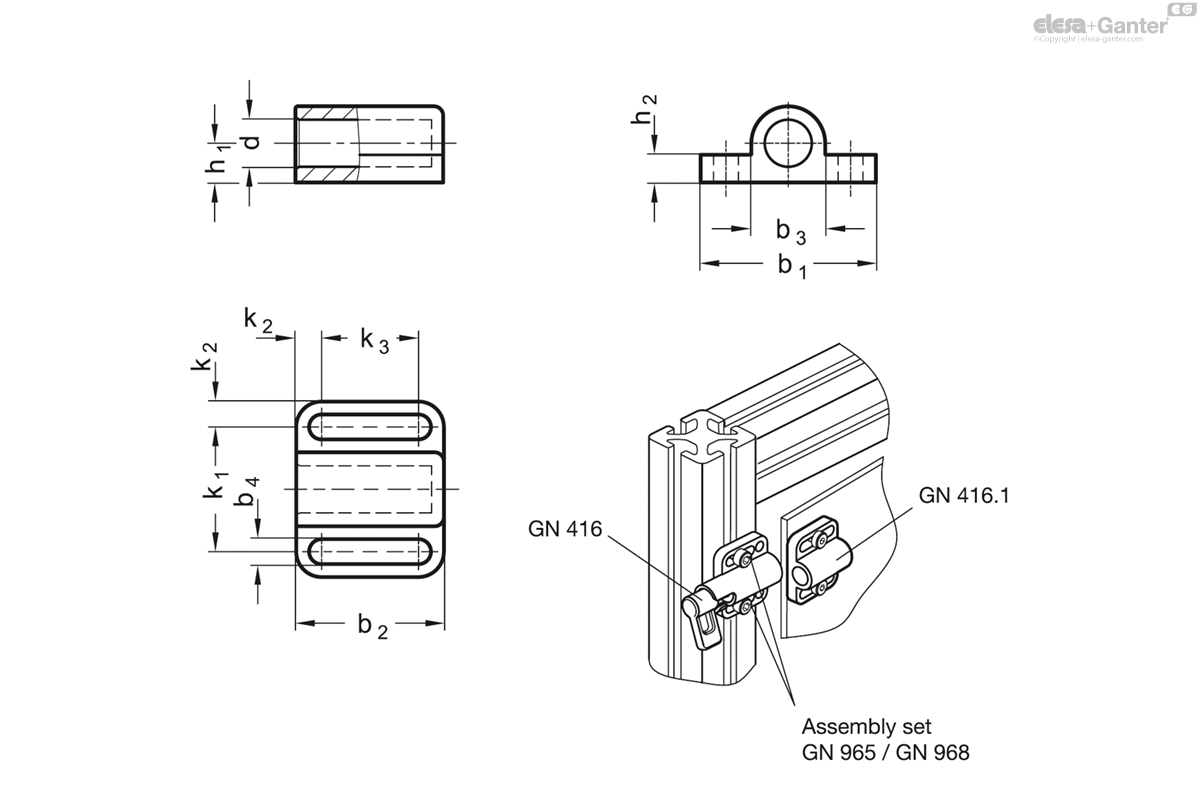

	d Nominal dimension	d Actual dimension +0.15/-0.05	b₁	b₂	b₃	b₄	h₁	h₂	k₁	k₂	k₃
Code													Actions
GN 416.1-6-38	6	6.2	38	32	16	5.4	8.5	6	27	5.5	17	51
GN 416.1-8-38	8	8.2	38	32	16	5.4	8.5	6	27	5.5	17	47
GN 416.1-8-46	8	8.2	46	40	20	6.4	11	6	33	5.5	25	90
GN 416.1-10-38	10	10.2	38	32	16	5.4	8.5	6	27	5.5	17	20
GN 416.1-10-46	10	10.2	46	40	20	6.4	11	6	27	5.5	17	87
GN 416.1-12-46	12	12.2	46	40	20	6.4	11	6	33	6.5	25	79
