GN 412.5

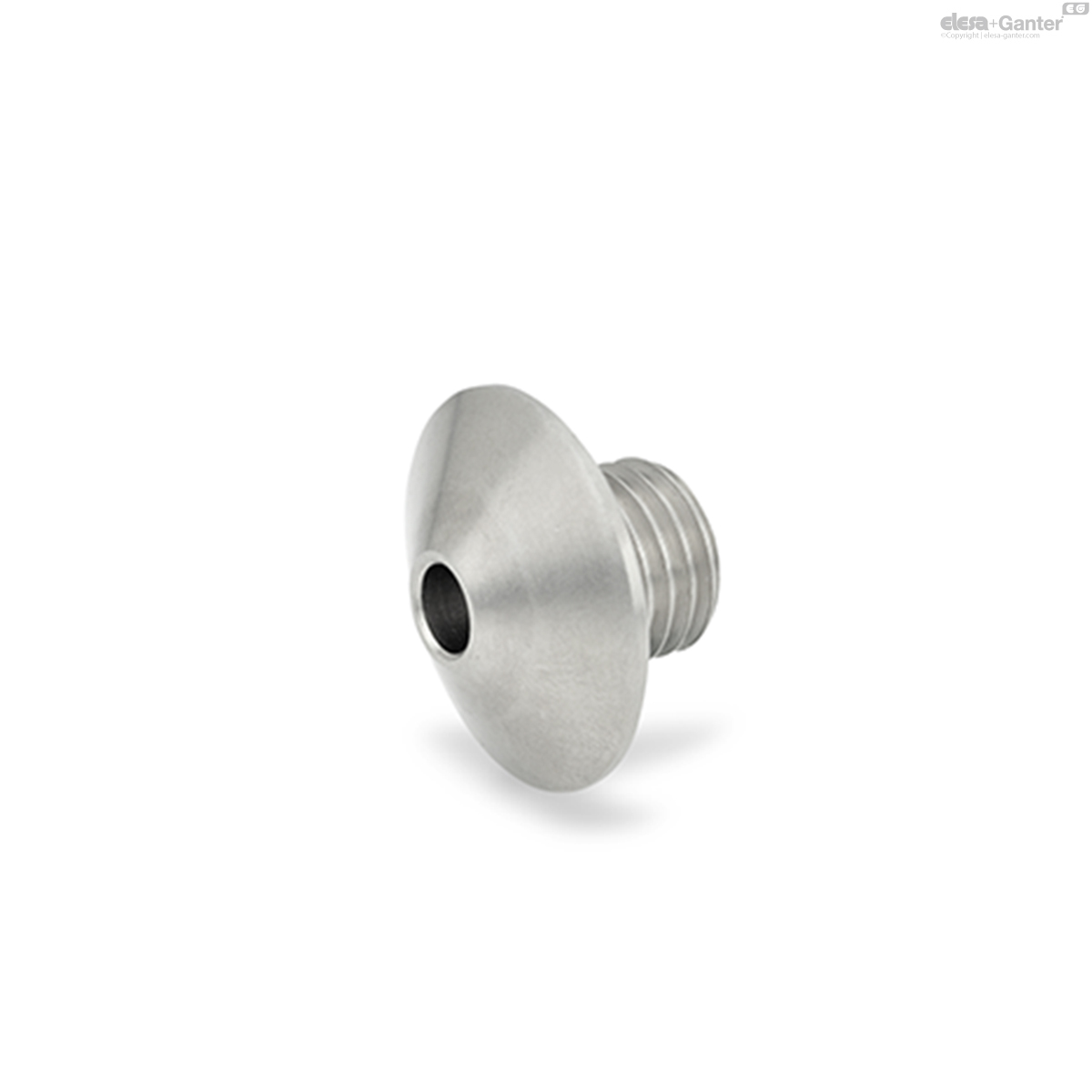

Stainless Steel-Positioning bushings with ramping cone

for indexing plungers / cam action indexing plunger

Enquire Now

Description

Specification

Stainless Steel AISI 431

hardened

Information

Stainless Steel-Positioning bushings with ramping cone GN 412.5 are used in connection with bolts of indexing plungers.

The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.

Technical Information

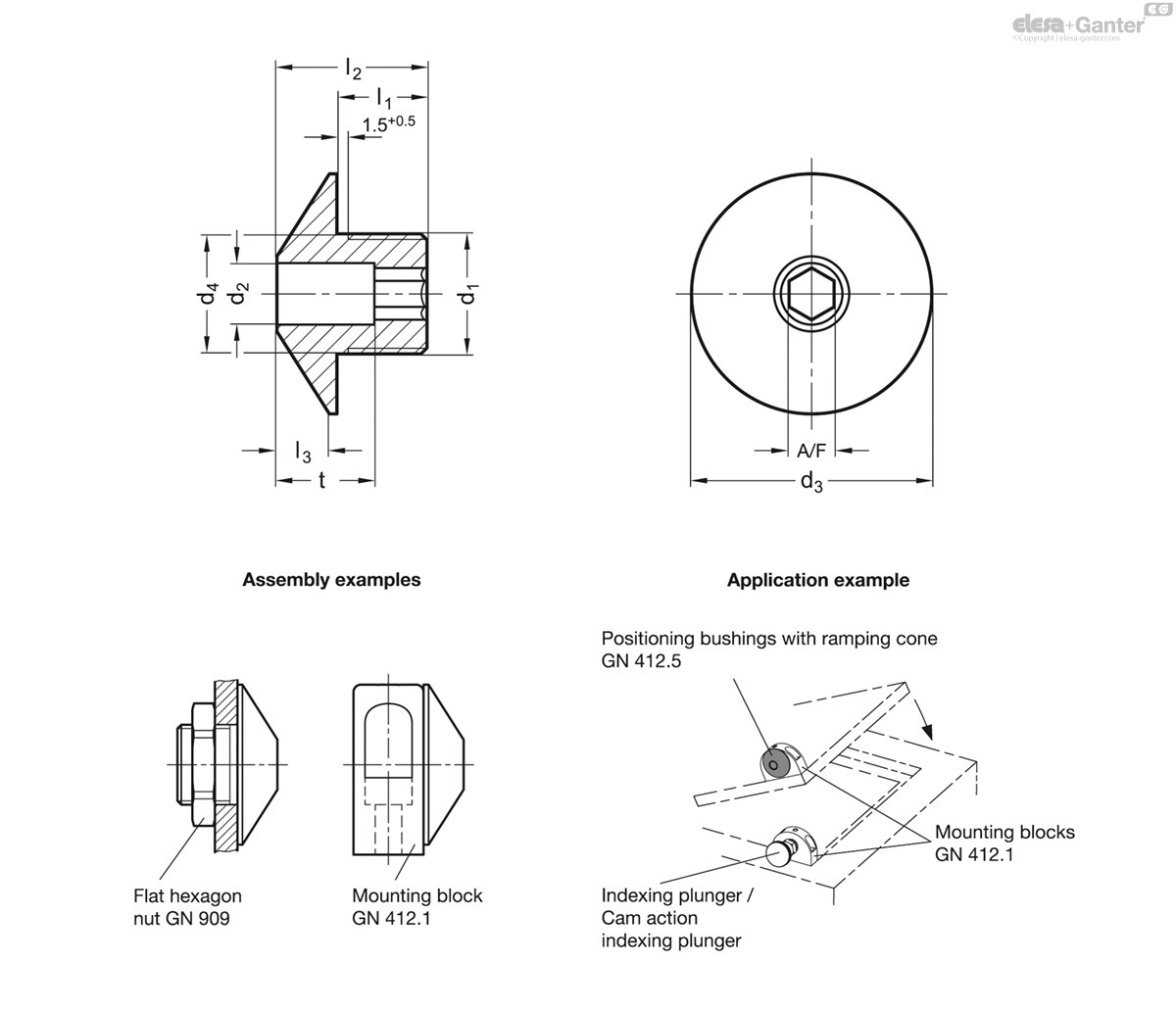

	d₁	d₂ +0.1	d₃	d₄ -0.05	l₁	l₂	l₃	A/F	t
Code											Actions
GN 412.5-M12x1,5-B4,2	M 12 x 1.5	B 4.2	24	12	10	16	5	4	11	17
GN 412.5-M12x1,5-B5,2	M 12 x 1.5	B 5.2	24	12	10	16	5	4	11	17
GN 412.5-M12x1,5-B6,2	M 12 x 1.5	B 6.2	24	12	10	16	5	4	11	16
GN 412.5-M16x1,5-B8,2	M 16 x 1.5	B 8.2	32	16	12	20	7	6	13	37
GN 412.5-M16x1,5-B10,2	M 16 x 1.5	B 10.2	32	16	12	20	7	6	13	36
GN 412.5-M16x1,5-B12,2	M 16 x 1.5	B 12.2	32	16	12	20	7	6	13	34
