GN 412.3

Positioning bushings with ramping cone

for indexing plungers

Enquire Now

Description

Specification

Steel

Information

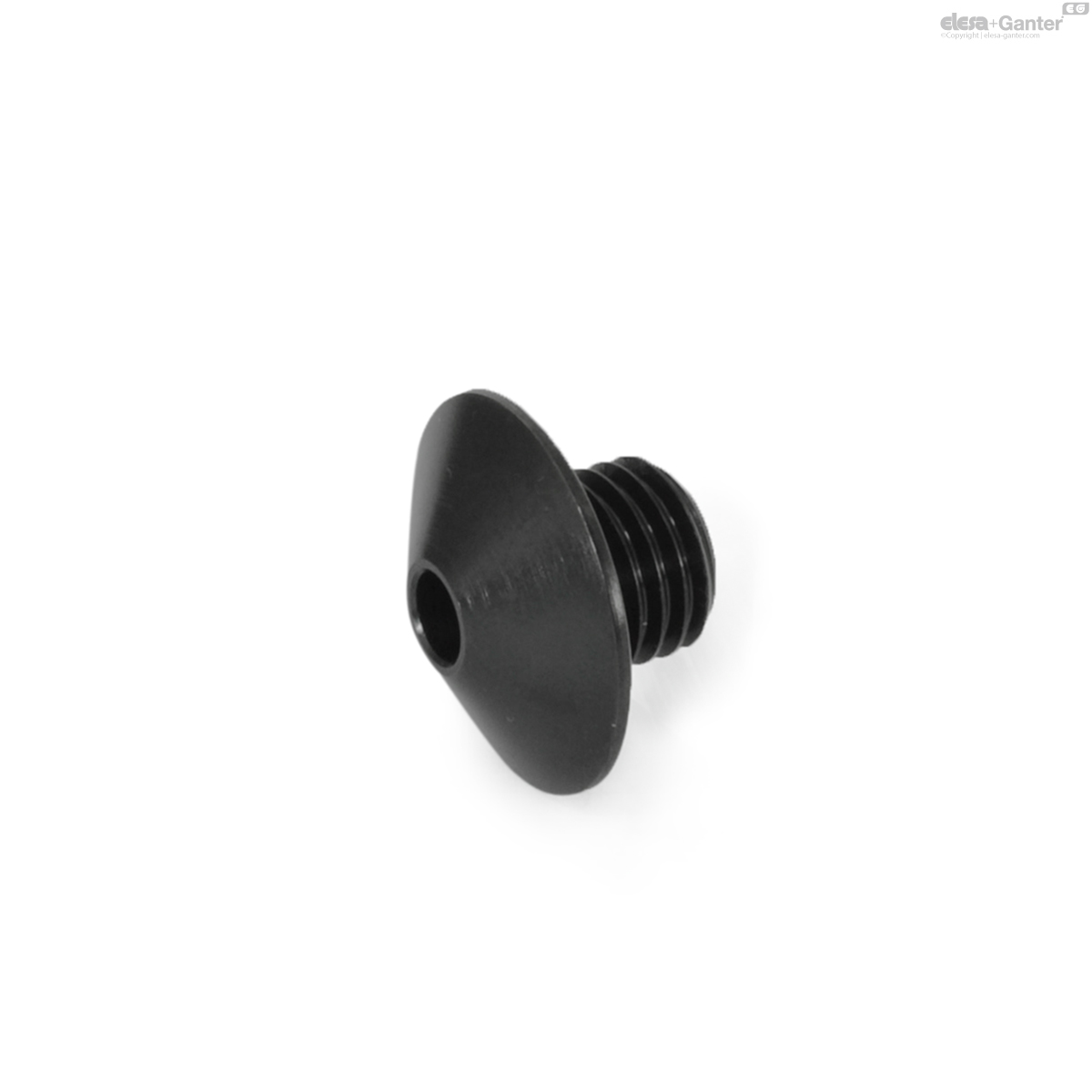

Positioning bushings with ramping cone GN 412.3 are used in connection with bolts of indexing plungers.

The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.

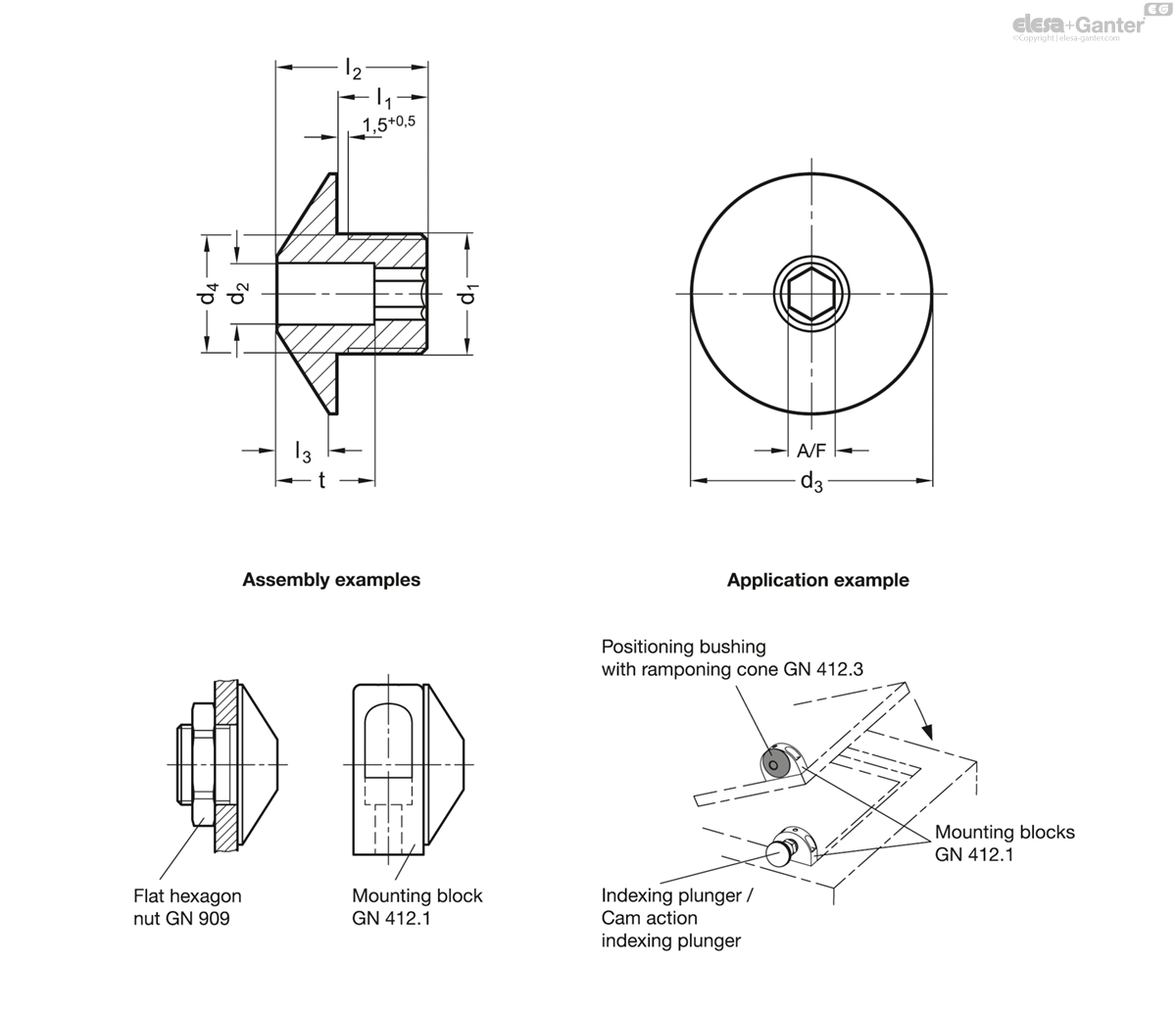

	d₁	d₂ +0.1	d₃	d₄ -0.05	l₁	l₂	l₃	A/F	t
Code											Actions
GN 412.3-M12x1,5-B4,2	M 12 x 1.5	B 4.2	24	12	10	16	5	4	11	17
GN 412.3-M12x1,5-B5,2	M 12 x 1.5	B 5.2	24	12	10	16	5	4	11	17
GN 412.3-M12x1,5-B6,2	M 12 x 1.5	B 6.2	24	12	10	16	5	4	11	17
GN 412.3-M16x1,5-B8,2	M 16 x 1.5	B 8.2	32	16	12	20	7	6	13	37
GN 412.3-M16x1,5-B10,2	M 16 x 1.5	B 10.2	32	16	12	20	7	6	13	33
GN 412.3-M16x1,5-B12,2	M 16 x 1.5	B 12.2	32	16	12	20	7	6	13	35
