GN 412.2

Positioning bushings

for indexing plungers / cam action indexing plungers

Enquire Now

Description

Specification

Steel

Information

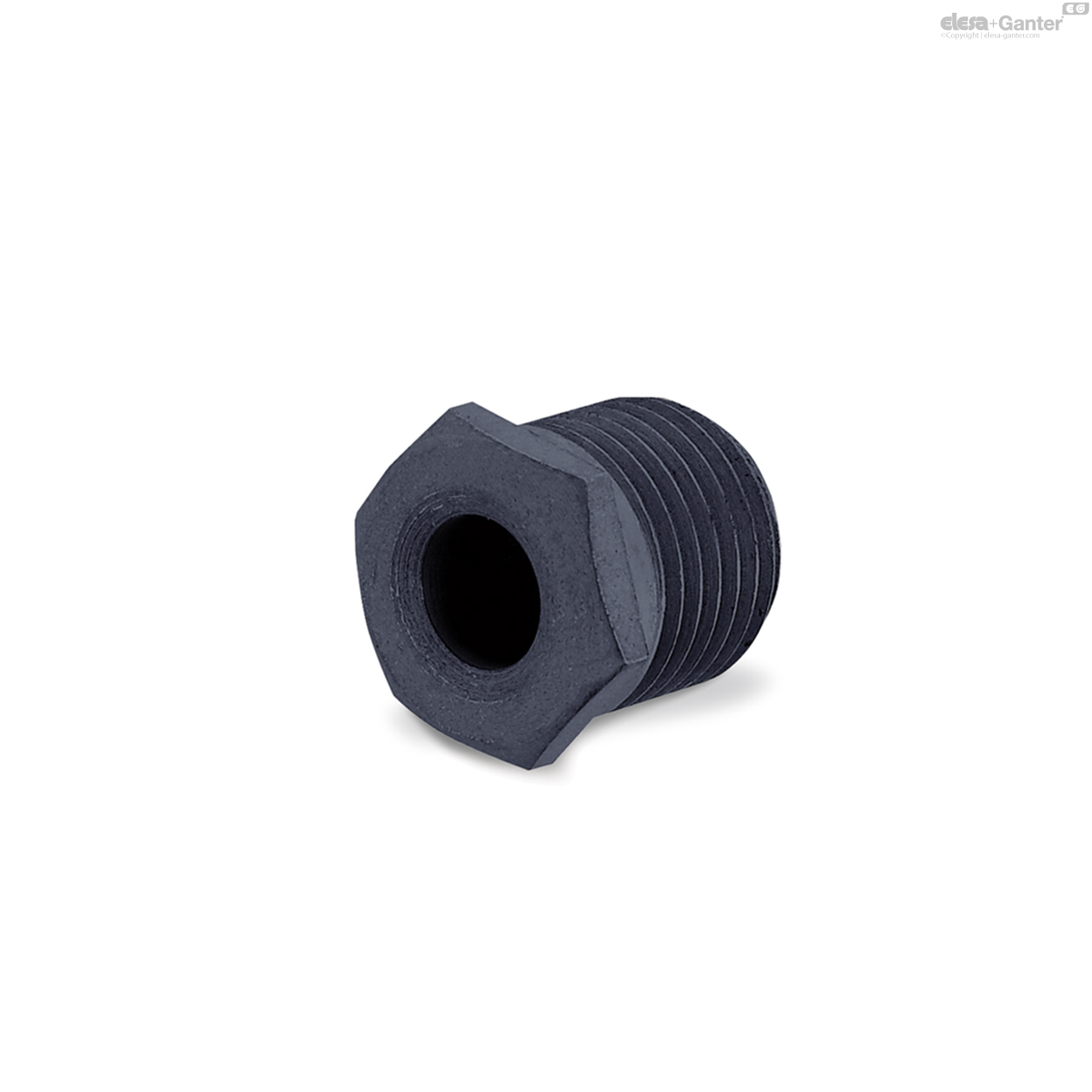

Positioning bushings GN 412.2 are used in connection with bolts of indxing plungers and cam action indexing plungers.

The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.

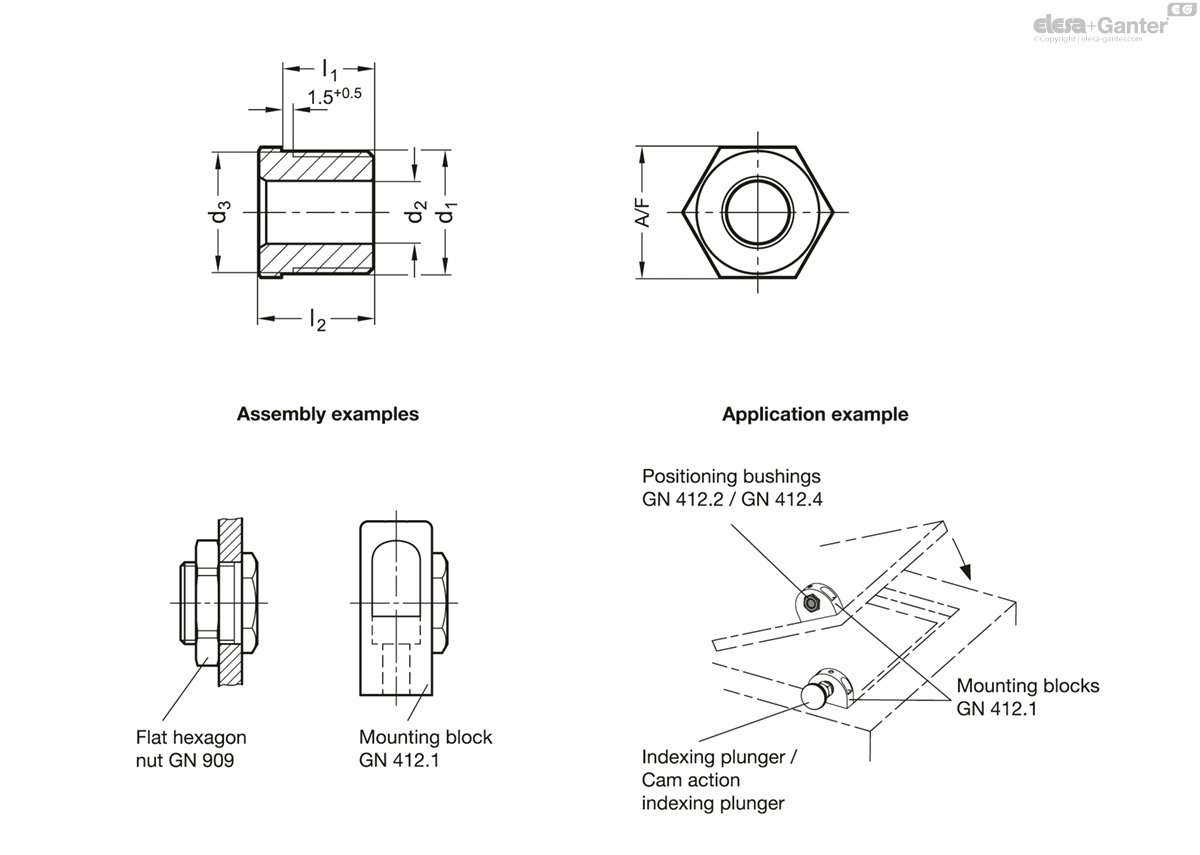

	d₁	d₂ +0.1	d₃ -0.05	l₁ -0.2	l₂	A/F
Code								Actions
GN 412.2-M12x1,5-B4,2	M 12 x 1.5	B 4.1	12	10	13	13	10
GN 412.2-M12x1,5-B5,2	M 12 x 1.5	B 5.2	12	10	13	13	9
GN 412.2-M12x1,5-B6,2	M 12 x 1.5	B 6.2	12	10	13	13	9
GN 412.2-M16x1,5-B8,2	M 16 x 1.5	B 8.2	16	12	15	17	18
GN 412.2-M16x1,5-B10,2	M 16 x 1.5	B 10.2	16	12	15	17	13
GN 412.2-M16x1,5-B12,2	M 16 x 1.5	B 12.2	16	12	15	17	9
