GN 41

Leveling Feet
Stainless Steel
__logo__INOX__ __logo__RoHS__
Enquire Now
product image
GN 41-S/SK
Leveling Feet
With / without nut, external hex at the bottom
product image
GN 41-T/TK
Leveling Feet
With / without nut, wrench flat at the bottom
product image
GN 41-U/UK
Leveling Feet
With / without nut, hex socket at the top and wrench flat at the bottom
product image

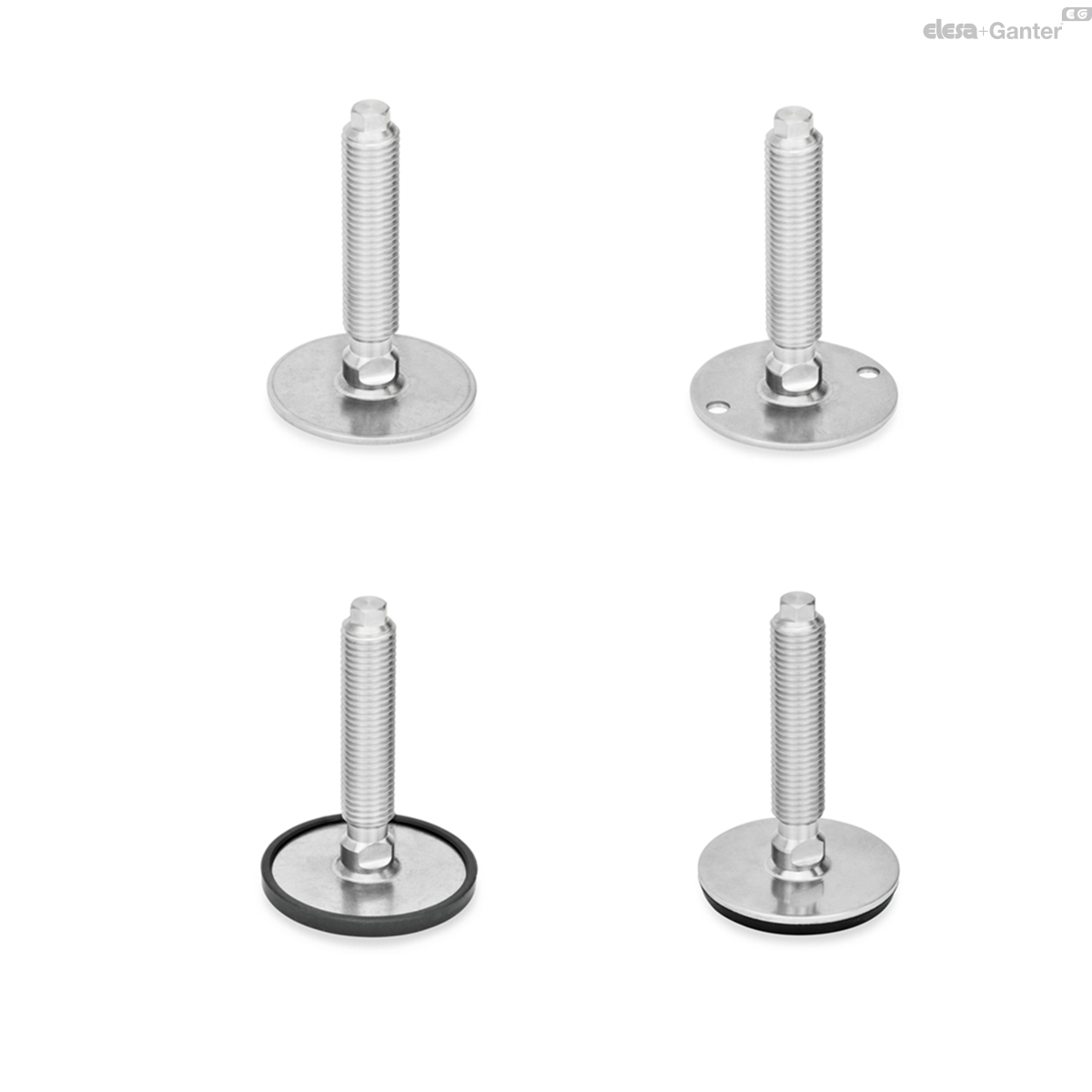

GN 41-V/VK
Leveling Feet
With / without nut, external hex at the top and wrench flat at the bottom
product image
GN 41-W
Leveling Feet
With adjustable sleeve, covered thread and wrench flat at the bottom
product image
GN 41-X
Leveling Feet
External hex with internal thread
  • product-image
  • product-image
  • product-image
  • product-image

Description

Specification

Types (Base plate)

  • Type D0: Without rubber pad
  • Type B0: Without rubber pad, with 2 mounting holes
  • Type D1: With rubber pad, clipped on, black
  • Type D3: With rubber pad, vulcanized, black

Version (Screw)

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom
  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom
  • Version U: Without nut, hex socket at the top and wrench flat at the bottom
  • Version UK: With nut, hex socket at the top and wrench flat at the bottom
  • Version V: Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom
  • Version W: With adjustable sleeve, covered thread and wrench flat at the bottom
  • Version X: External hex with internal thread

Base plate

Stainless steel AISI 304

Blank ground

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad

Clipped on

Black, TPE (Santoprene®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan®)

70 ± 5 Shore A

Information

Leveling feet GN 41 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feet to be used in every situation.

The base plate with the rubber pad protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.

Technical information
  • Plastic Characteristics
  • Stainless Steel Characteristics
Load Rating of Leveling Feet
d1--d2Static load in kN----
GN 41 / GN 44GN 43 / GN 45GN 43-Versions of threaded stem----
-Drop shapeRectangular shape-S / SKT / TK and U / UKV / VKWX
40--M 88---8
40--M 1012---12
40--M 1212---12
40--M 16-12--12
5050-M 88---8
5050-M 1014---14
5050-M 1214---14
5050-M 16-14--14
6060-M 88---8
6060-M 1014---14
6060-M 1216---16
6060-M 16-16161616
808080M 88---8
808080M 1014---14
808080M 1220---20
808080M 16-20202020
808080M 20-20202020
808080M 24-222222-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2.

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem
Versions of threaded stem
____logo__40_NA-22235-0______logo__41_NA-22245-0______logo__40_NA-22237-0__
S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24
____logo__41_NA-22247-0______logo__41_NA-22249-1______logo__40_NA-22239-0__

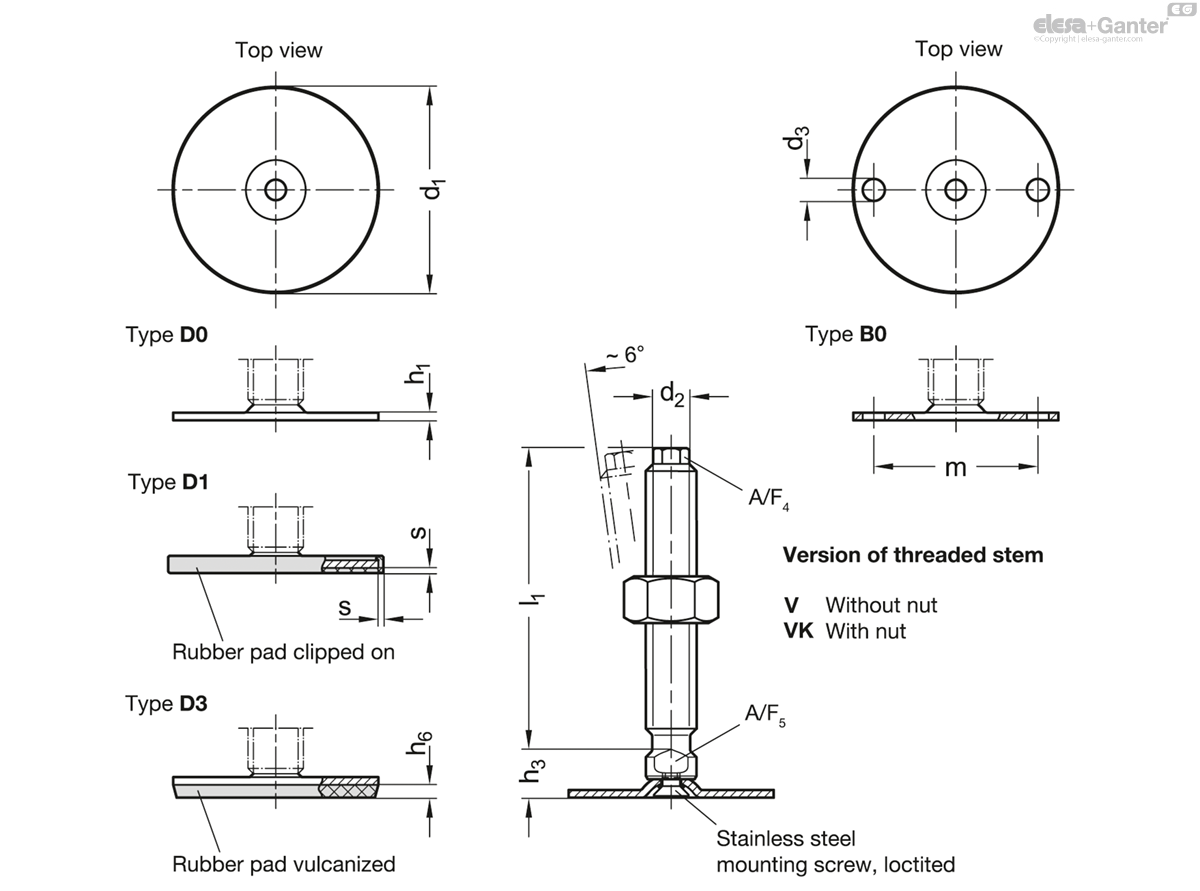

V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24W: Covered thread and wrench flat at the bottom at d2 M 16, M 20, M 24X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20

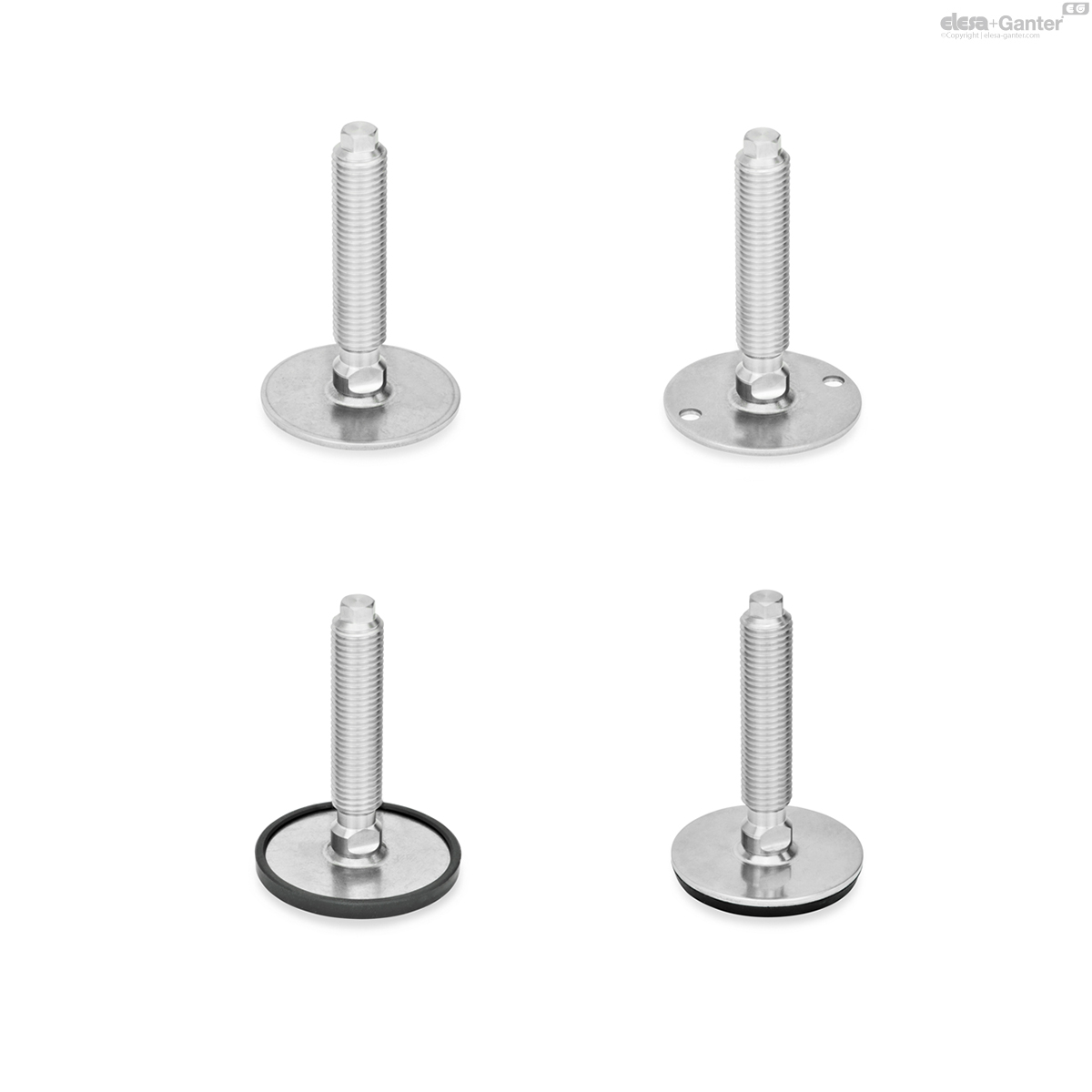

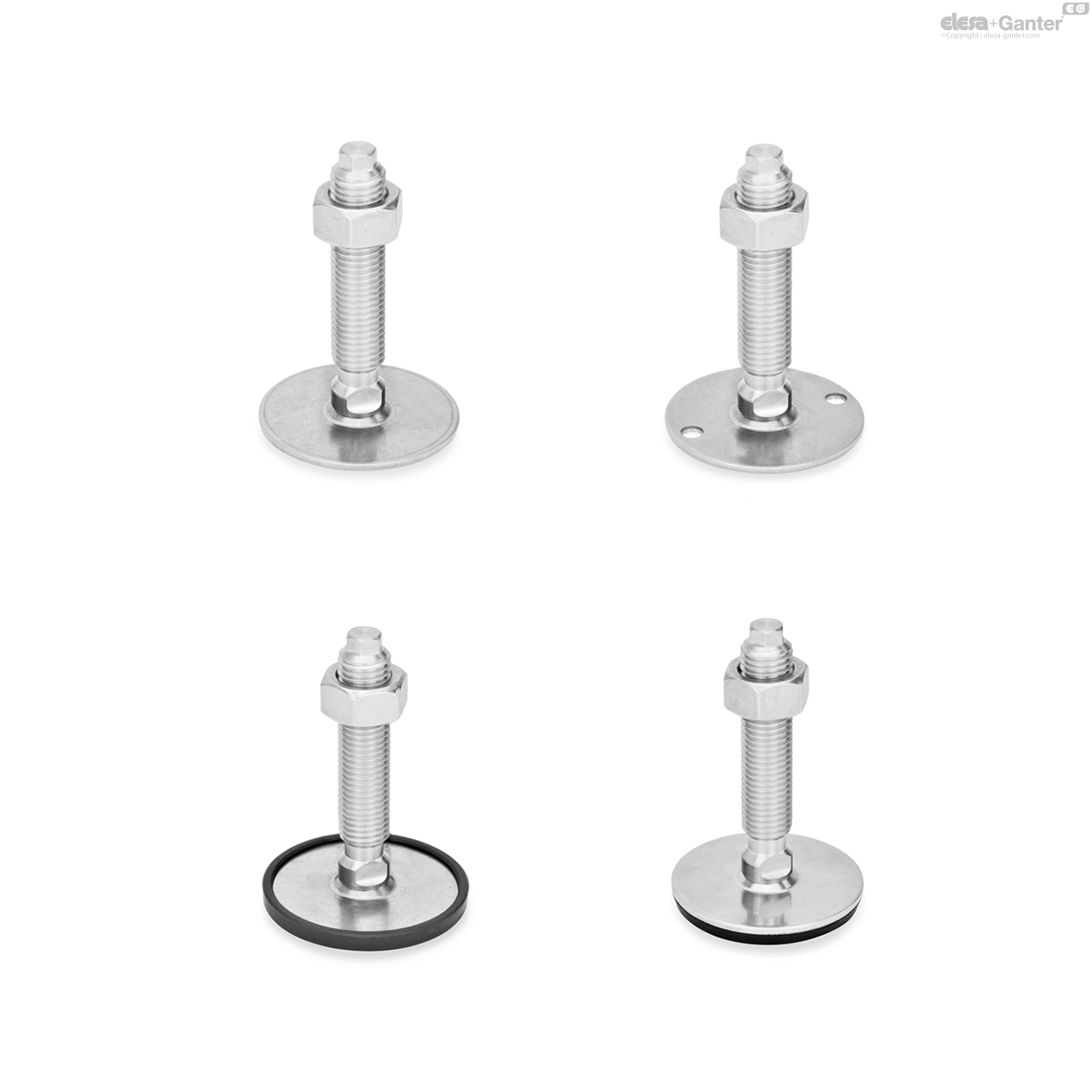

GN 41-V/VK

Color d1 d2 l2 +4 d3 h1 h5 h6 m s A/F 4 A/F 5 Static load
in kN		 __logo__weight__
Code Actions
GN 41-60-M16-75-B0-V V 60 M 16 75 6.6 2.5 14 - 48 - 10 12 16 153 cart-icon
GN 41-60-M16-75-B0-VK VK 60 M 16 75 6.6 2.5 14 - 48 - 10 12 16 182 cart-icon
GN 41-60-M16-75-D0-V V 60 M 16 75 - 2.5 14 - 48 - 10 12 16 157 cart-icon
GN 41-60-M16-75-D0-VK VK 60 M 16 75 - 2.5 14 - 48 - 10 12 16 185 cart-icon
GN 41-60-M16-75-D1-V V 60 M 16 75 - 2.5 14 - 48 2 10 12 16 165 cart-icon
GN 41-60-M16-75-D1-VK VK 60 M 16 75 - 2.5 14 - 48 2 10 12 16 193 cart-icon
GN 41-60-M16-75-D3-V V 60 M 16 75 - 2.5 14 4.5 48 - 10 12 16 161 cart-icon
GN 41-60-M16-75-D3-VK VK 60 M 16 75 - 2.5 14 4.5 48 - 10 12 16 189 cart-icon
GN 41-60-M16-100-B0-V V 60 M 16 100 6.6 2.5 14 - 48 - 10 12 16 187 cart-icon
GN 41-60-M16-100-B0-VK VK 60 M 16 100 6.6 2.5 14 - 48 - 10 12 16 221 cart-icon
GN 41-60-M16-100-D0-V V 60 M 16 100 - 2.5 14 - 48 - 10 12 16 191 cart-icon
GN 41-60-M16-100-D0-VK VK 60 M 16 100 - 2.5 14 - 48 - 10 12 16 225 cart-icon
GN 41-60-M16-100-D1-V V 60 M 16 100 - 2.5 14 - 48 2 10 12 16 199 cart-icon
GN 41-60-M16-100-D1-VK VK 60 M 16 100 - 2.5 14 - 48 2 10 12 16 233 cart-icon
GN 41-60-M16-100-D3-V V 60 M 16 100 - 2.5 14 4.5 48 - 10 12 16 195 cart-icon
GN 41-60-M16-100-D3-VK VK 60 M 16 100 - 2.5 14 4.5 48 - 10 12 16 229 cart-icon
GN 41-60-M16-125-B0-V V 60 M 16 125 6.6 2.5 14 - 48 - 10 12 16 219 cart-icon
GN 41-60-M16-125-B0-VK VK 60 M 16 125 6.6 2.5 14 - 48 - 10 12 16 253 cart-icon
GN 41-60-M16-125-D0-V V 60 M 16 125 - 2.5 14 - 48 - 10 12 16 223 cart-icon
GN 41-60-M16-125-D0-VK VK 60 M 16 125 - 2.5 14 - 48 - 10 12 16 257 cart-icon
GN 41-60-M16-125-D1-V V 60 M 16 125 - 2.5 14 - 48 2 10 12 16 231 cart-icon
GN 41-60-M16-125-D1-VK VK 60 M 16 125 - 2.5 14 - 48 2 10 12 16 265 cart-icon
GN 41-60-M16-125-D3-V V 60 M 16 125 - 2.5 14 4.5 48 - 10 12 16 227 cart-icon
GN 41-60-M16-125-D3-VK VK 60 M 16 125 - 2.5 14 4.5 48 - 10 12 16 261 cart-icon
GN 41-60-M16-150-B0-V V 60 M 16 150 6.6 2.5 14 - 48 - 10 12 16 252 cart-icon
GN 41-60-M16-150-B0-VK VK 60 M 16 150 6.6 2.5 14 - 48 - 10 12 16 286 cart-icon
GN 41-60-M16-150-D0-V V 60 M 16 150 - 2.5 14 - 48 - 10 12 16 256 cart-icon
GN 41-60-M16-150-D0-VK VK 60 M 16 150 - 2.5 14 - 48 - 10 12 16 290 cart-icon
GN 41-60-M16-150-D1-V V 60 M 16 150 - 2.5 14 - 48 2 10 12 16 264 cart-icon
GN 41-60-M16-150-D1-VK VK 60 M 16 150 - 2.5 14 - 48 2 10 12 16 298 cart-icon
GN 41-60-M16-150-D3-V V 60 M 16 150 - 2.5 14 4.5 48 - 10 12 16 260 cart-icon
GN 41-60-M16-150-D3-VK VK 60 M 16 150 - 2.5 14 4.5 48 - 10 12 16 294 cart-icon
GN 41-80-M16-75-B0-V V 80 M 16 75 8.5 3 15 - 64 - 10 12 20 219 cart-icon
GN 41-80-M16-75-B0-VK VK 80 M 16 75 8.5 3 15 - 64 - 10 12 20 253 cart-icon
GN 41-80-M16-75-D0-V V 80 M 16 75 - 3 15 - 64 - 10 12 20 218 cart-icon
GN 41-80-M16-75-D0-VK VK 80 M 16 75 - 3 15 - 64 - 10 12 20 252 cart-icon
GN 41-80-M16-75-D1-V V 80 M 16 75 - 3 15 - 64 2 10 12 20 232 cart-icon
GN 41-80-M16-75-D1-VK VK 80 M 16 75 - 3 15 - 64 2 10 12 20 266 cart-icon
GN 41-80-M16-75-D3-V V 80 M 16 75 - 3 15 5 64 - 10 12 20 242 cart-icon
GN 41-80-M16-75-D3-VK VK 80 M 16 75 - 3 15 5 64 - 10 12 20 276 cart-icon
GN 41-80-M16-100-B0-V V 80 M 16 100 8.5 3 15 - 64 - 10 12 20 253 cart-icon
GN 41-80-M16-100-B0-VK VK 80 M 16 100 8.5 3 15 - 64 - 10 12 20 287 cart-icon
GN 41-80-M16-100-D0-V V 80 M 16 100 - 3 15 - 64 - 10 12 20 252 cart-icon
GN 41-80-M16-100-D0-VK VK 80 M 16 100 - 3 15 - 64 - 10 12 20 286 cart-icon
GN 41-80-M16-100-D1-V V 80 M 16 100 - 3 15 - 64 2 10 12 20 266 cart-icon
GN 41-80-M16-100-D1-VK VK 80 M 16 100 - 3 15 - 64 2 10 12 20 300 cart-icon
GN 41-80-M16-100-D3-V V 80 M 16 100 - 3 15 5 64 - 10 12 20 276 cart-icon
GN 41-80-M16-100-D3-VK VK 80 M 16 100 - 3 15 5 64 - 10 12 20 310 cart-icon
GN 41-80-M16-125-B0-V V 80 M 16 125 8.5 3 15 - 64 - 10 12 20 285 cart-icon
GN 41-80-M16-125-B0-VK VK 80 M 16 125 8.5 3 15 - 64 - 10 12 20 319 cart-icon
GN 41-80-M16-125-D0-V V 80 M 16 125 - 3 15 - 64 - 10 12 20 284 cart-icon
GN 41-80-M16-125-D0-VK VK 80 M 16 125 - 3 15 - 64 - 10 12 20 318 cart-icon
GN 41-80-M16-125-D1-V V 80 M 16 125 - 3 15 - 64 2 10 12 20 298 cart-icon
GN 41-80-M16-125-D1-VK VK 80 M 16 125 - 3 15 - 64 2 10 12 20 332 cart-icon
GN 41-80-M16-125-D3-V V 80 M 16 125 - 3 15 5 64 - 10 12 20 308 cart-icon
GN 41-80-M16-125-D3-VK VK 80 M 16 125 - 3 15 5 64 - 10 12 20 342 cart-icon
GN 41-80-M16-150-B0-V V 80 M 16 150 8.5 3 15 - 64 - 10 12 20 318 cart-icon
GN 41-80-M16-150-B0-VK VK 80 M 16 150 8.5 3 15 - 64 - 10 12 20 352 cart-icon
GN 41-80-M16-150-D0-V V 80 M 16 150 - 3 15 - 64 - 10 12 20 317 cart-icon
GN 41-80-M16-150-D0-VK VK 80 M 16 150 - 3 15 - 64 - 10 12 20 351 cart-icon
GN 41-80-M16-150-D1-V V 80 M 16 150 - 3 15 - 64 2 10 12 20 331 cart-icon
GN 41-80-M16-150-D1-VK VK 80 M 16 150 - 3 15 - 64 2 10 12 20 365 cart-icon
GN 41-80-M16-150-D3-V V 80 M 16 150 - 3 15 5 64 - 10 12 20 341 cart-icon
GN 41-80-M16-150-D3-VK VK 80 M 16 150 - 3 15 5 64 - 10 12 20 375 cart-icon
GN 41-80-M20-100-B0-V V 80 M 20 100 8.5 3 15 - 64 - 13 16 20 331 cart-icon
GN 41-80-M20-100-B0-VK VK 80 M 20 100 8.5 3 15 - 64 - 13 16 20 384 cart-icon
GN 41-80-M20-100-D0-V V 80 M 20 100 - 3 15 - 64 - 13 16 20 332 cart-icon
GN 41-80-M20-100-D0-VK VK 80 M 20 100 - 3 15 - 64 - 13 16 20 385 cart-icon
GN 41-80-M20-100-D1-V V 80 M 20 100 - 3 15 - 64 2 13 16 20 346 cart-icon
GN 41-80-M20-100-D1-VK VK 80 M 20 100 - 3 15 - 64 2 13 16 20 399 cart-icon
GN 41-80-M20-100-D3-V V 80 M 20 100 - 3 15 5 64 - 13 16 20 356 cart-icon
GN 41-80-M20-100-D3-VK VK 80 M 20 100 - 3 15 5 64 - 13 16 20 409 cart-icon
GN 41-80-M20-125-B0-V V 80 M 20 125 8.5 3 15 - 64 - 13 16 20 382 cart-icon
GN 41-80-M20-125-B0-VK VK 80 M 20 125 8.5 3 15 - 64 - 13 16 20 435 cart-icon
GN 41-80-M20-125-D0-V V 80 M 20 125 - 3 15 - 64 - 13 16 20 383 cart-icon
GN 41-80-M20-125-D0-VK VK 80 M 20 125 - 3 15 - 64 - 13 16 20 436 cart-icon
GN 41-80-M20-125-D1-V V 80 M 20 125 - 3 15 - 64 2 13 16 20 397 cart-icon
GN 41-80-M20-125-D1-VK VK 80 M 20 125 - 3 15 - 64 2 13 16 20 450 cart-icon
GN 41-80-M20-125-D3-V V 80 M 20 125 - 3 15 5 64 - 13 16 20 407 cart-icon
GN 41-80-M20-125-D3-VK VK 80 M 20 125 - 3 15 5 64 - 13 16 20 460 cart-icon
GN 41-80-M20-150-B0-V V 80 M 20 150 8.5 3 15 - 64 - 13 16 20 434 cart-icon
GN 41-80-M20-150-B0-VK VK 80 M 20 150 8.5 3 15 - 64 - 13 16 20 487 cart-icon
GN 41-80-M20-150-D0-V V 80 M 20 150 - 3 15 - 64 - 13 16 20 435 cart-icon
GN 41-80-M20-150-D0-VK VK 80 M 20 150 - 3 15 - 64 - 13 16 20 488 cart-icon
GN 41-80-M20-150-D1-V V 80 M 20 150 - 3 15 - 64 2 13 16 20 449 cart-icon
GN 41-80-M20-150-D1-VK VK 80 M 20 150 - 3 15 - 64 2 13 16 20 502 cart-icon
GN 41-80-M20-150-D3-V V 80 M 20 150 - 3 15 5 64 - 13 16 20 459 cart-icon
GN 41-80-M20-150-D3-VK VK 80 M 20 150 - 3 15 5 64 - 13 16 20 512 cart-icon
GN 41-80-M20-200-B0-V V 80 M 20 200 8.5 3 15 - 64 - 13 16 20 539 cart-icon
GN 41-80-M20-200-B0-VK VK 80 M 20 200 8.5 3 15 - 64 - 13 16 20 592 cart-icon
GN 41-80-M20-200-D0-V V 80 M 20 200 - 3 15 - 64 - 13 16 20 540 cart-icon
GN 41-80-M20-200-D0-VK VK 80 M 20 200 - 3 15 - 64 - 13 16 20 593 cart-icon
GN 41-80-M20-200-D1-V V 80 M 20 200 - 3 15 - 64 2 13 16 20 554 cart-icon
GN 41-80-M20-200-D1-VK VK 80 M 20 200 - 3 15 - 64 2 13 16 20 607 cart-icon
GN 41-80-M20-200-D3-V V 80 M 20 200 - 3 15 5 64 - 13 16 20 564 cart-icon
GN 41-80-M20-200-D3-VK VK 80 M 20 200 - 3 15 5 64 - 13 16 20 617 cart-icon
GN 41-80-M24-100-B0-V V 80 M 24 100 8.5 3 18 - 64 - 17 20 22 435 cart-icon
GN 41-80-M24-100-B0-VK VK 80 M 24 100 8.5 3 18 - 64 - 17 20 22 535 cart-icon
GN 41-80-M24-100-D0-V V 80 M 24 100 - 3 18 - 64 - 17 20 22 434 cart-icon
GN 41-80-M24-100-D0-VK VK 80 M 24 100 - 3 18 - 64 - 17 20 22 534 cart-icon
GN 41-80-M24-100-D1-V V 80 M 24 100 - 3 18 - 64 2 17 20 22 448 cart-icon
GN 41-80-M24-100-D1-VK VK 80 M 24 100 - 3 18 - 64 2 17 20 22 548 cart-icon
GN 41-80-M24-100-D3-V V 80 M 24 100 - 3 18 5 64 - 17 20 22 461 cart-icon
GN 41-80-M24-100-D3-VK VK 80 M 24 100 - 3 18 5 64 - 17 20 22 561 cart-icon
GN 41-80-M24-150-B0-V V 80 M 24 150 8.5 3 18 - 64 - 17 20 22 583 cart-icon
GN 41-80-M24-150-B0-VK VK 80 M 24 150 8.5 3 18 - 64 - 17 20 22 683 cart-icon
GN 41-80-M24-150-D0-V V 80 M 24 150 - 3 18 - 64 - 17 20 22 582 cart-icon
GN 41-80-M24-150-D0-VK VK 80 M 24 150 - 3 18 - 64 - 17 20 22 682 cart-icon
GN 41-80-M24-150-D1-V V 80 M 24 150 - 3 18 - 64 2 17 20 22 596 cart-icon
GN 41-80-M24-150-D1-VK VK 80 M 24 150 - 3 18 - 64 2 17 20 22 696 cart-icon
GN 41-80-M24-150-D3-V V 80 M 24 150 - 3 18 5 64 - 17 20 22 609 cart-icon
GN 41-80-M24-150-D3-VK VK 80 M 24 150 - 3 18 5 64 - 17 20 22 709 cart-icon
GN 41-80-M24-200-B0-V V 80 M 24 200 8.5 3 18 - 64 - 17 20 22 729 cart-icon
GN 41-80-M24-200-B0-VK VK 80 M 24 200 8.5 3 18 - 64 - 17 20 22 829 cart-icon
GN 41-80-M24-200-D0-V V 80 M 24 200 - 3 18 - 64 - 17 20 22 728 cart-icon
GN 41-80-M24-200-D0-VK VK 80 M 24 200 - 3 18 - 64 - 17 20 22 828 cart-icon
GN 41-80-M24-200-D1-V V 80 M 24 200 - 3 18 - 64 2 17 20 22 742 cart-icon
GN 41-80-M24-200-D1-VK VK 80 M 24 200 - 3 18 - 64 2 17 20 22 842 cart-icon
GN 41-80-M24-200-D3-V V 80 M 24 200 - 3 18 5 64 - 17 20 22 755 cart-icon
GN 41-80-M24-200-D3-VK VK 80 M 24 200 - 3 18 5 64 - 17 20 22 855 cart-icon
form-enquire-bg

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.

    Attachment File

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    logo-text
    Related Products
    Proud Australian Distributor for World-Leading Brands Content
    movex elesa-ganter
