GN 409.2

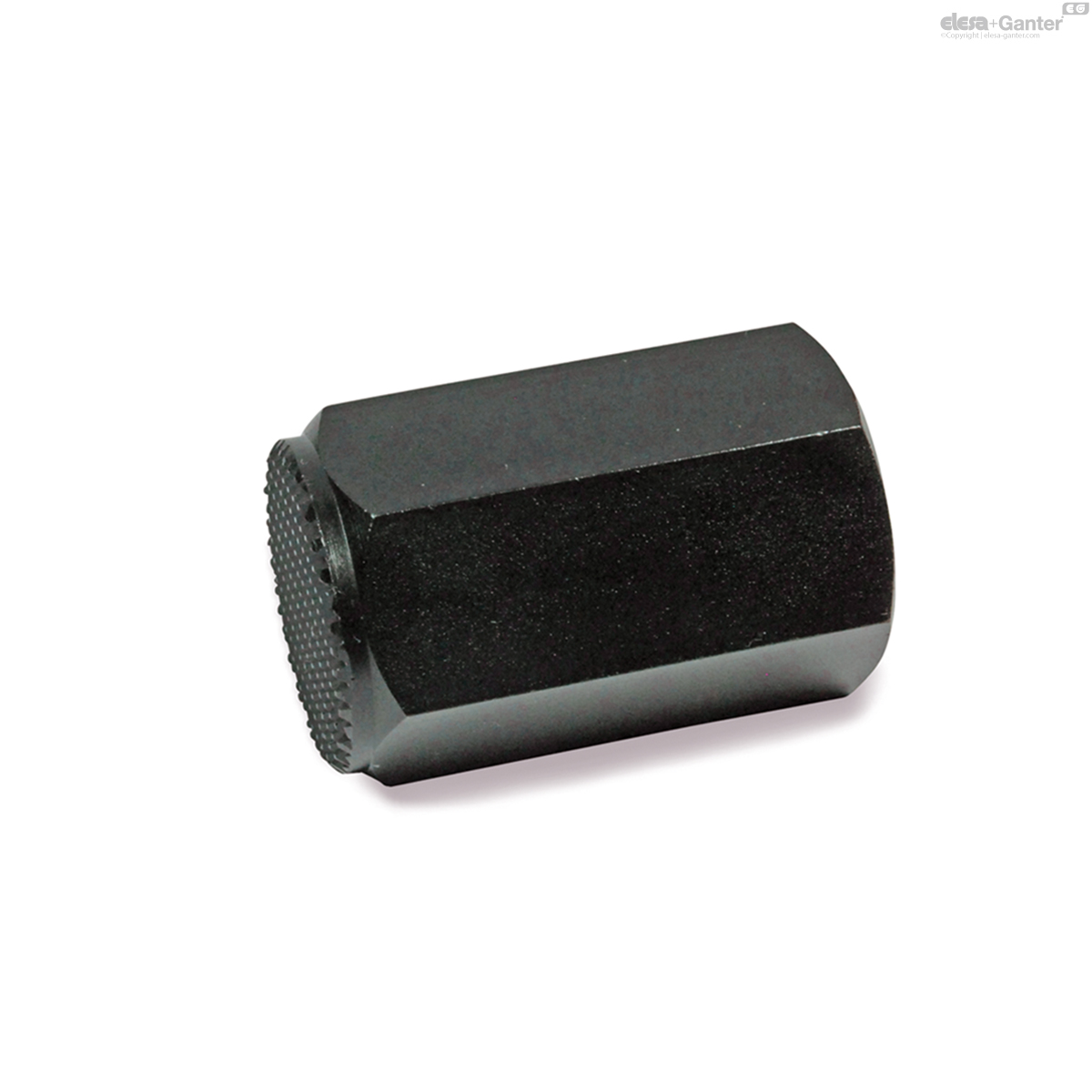

Positioning elements

with female thread

Enquire Now

Description

Specification

Steel

Information

Positioning elements GN 409.2 with male thread are designe for use as locating plungers, stops and thrust blocks.

	h ±0.01	h ±0.1	d₁	d₂	t min.	A/F	e
Code									Actions
GN 409.2-15-M8-B	15	-	M 8	17	6	17	19.4	25
GN 409.2-15-M8-K	-	15	M 8	-	6	17	19.4	25
GN 409.2-15-M8-R	-	15	M 8	17	6	17	19.4	25
GN 409.2-20-M10-B	20	-	M 10	19	10	19	21.9	39
GN 409.2-20-M10-K	-	20	M 10	-	10	19	21.9	39
GN 409.2-20-M10-R	-	20	M 10	19	10	19	21.9	39
GN 409.2-20-M12-B	20	-	M 12	22	10	22	25.2	52
GN 409.2-20-M12-K	-	20	M 12	-	10	22	25.2	52
GN 409.2-20-M12-R	-	20	M 12	22	10	22	25.2	52
GN 409.2-25-M8-B	25	-	M 8	17	12	17	19.4	42
GN 409.2-25-M8-K	-	25	M 8	-	12	17	19.4	42
GN 409.2-25-M8-R	-	25	M 8	17	12	17	19.4	42
GN 409.2-25-M12-B	25	-	M 12	22	15	22	25.2	63
GN 409.2-25-M12-K	-	25	M 12	-	15	22	25.2	63
GN 409.2-25-M12-R	-	25	M 12	22	15	22	25.2	63
GN 409.2-30-M10-B	30	-	M 10	19	15	19	21.9	61
GN 409.2-30-M10-K	-	30	M 10	-	15	19	21.9	61
GN 409.2-30-M10-R	-	30	M 10	19	15	19	21.9	61
GN 409.2-30-M12-B	30	-	M 12	22	18	22	25.2	79
GN 409.2-30-M12-K	-	30	M 12	-	18	22	25.2	79
GN 409.2-30-M12-R	-	30	M 12	22	18	22	25.2	79
GN 409.2-30-M16-B	30	-	M 16	30	20	30	33	136
GN 409.2-30-M16-K	-	30	M 16	-	20	30	33	136
GN 409.2-30-M16-R	-	30	M 16	30	20	30	33	136
GN 409.2-40-M10-B	40	-	M 10	19	15	19	21.9	85
GN 409.2-40-M10-K	-	40	M 10	-	15	19	21.9	85
GN 409.2-40-M10-R	-	40	M 10	19	15	19	21.9	85
GN 409.2-40-M12-B	40	-	M 12	22	18	22	25,2	110
GN 409.2-40-M12-K	-	40	M 12	-	18	22	25.2	110
GN 409.2-40-M12-R	-	40	M 12	22	18	22	25.2	110
GN 409.2-50-M12-B	50	-	M 12	22	18	22	25.2	142
GN 409.2-50-M12-K	-	50	M 12	-	18	22	25.2	142
GN 409.2-50-M12-R	-	50	M 12	22	18	22	25.2	142
GN 409.2-50-M16-B	50	-	M 16	30	24	30	33	270
GN 409.2-50-M16-K	-	50	M 16	-	24	30	33	270
GN 409.2-50-M16-R	-	50	M 16	30	24	30	33	270
