Home Levelling Elements Levelling feet GN 40

GN 40

Leveling Feet

Steel

Enquire Now

GN 40-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 40-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 40-X

Leveling Feet

External hex with internal thread

Description

Specification

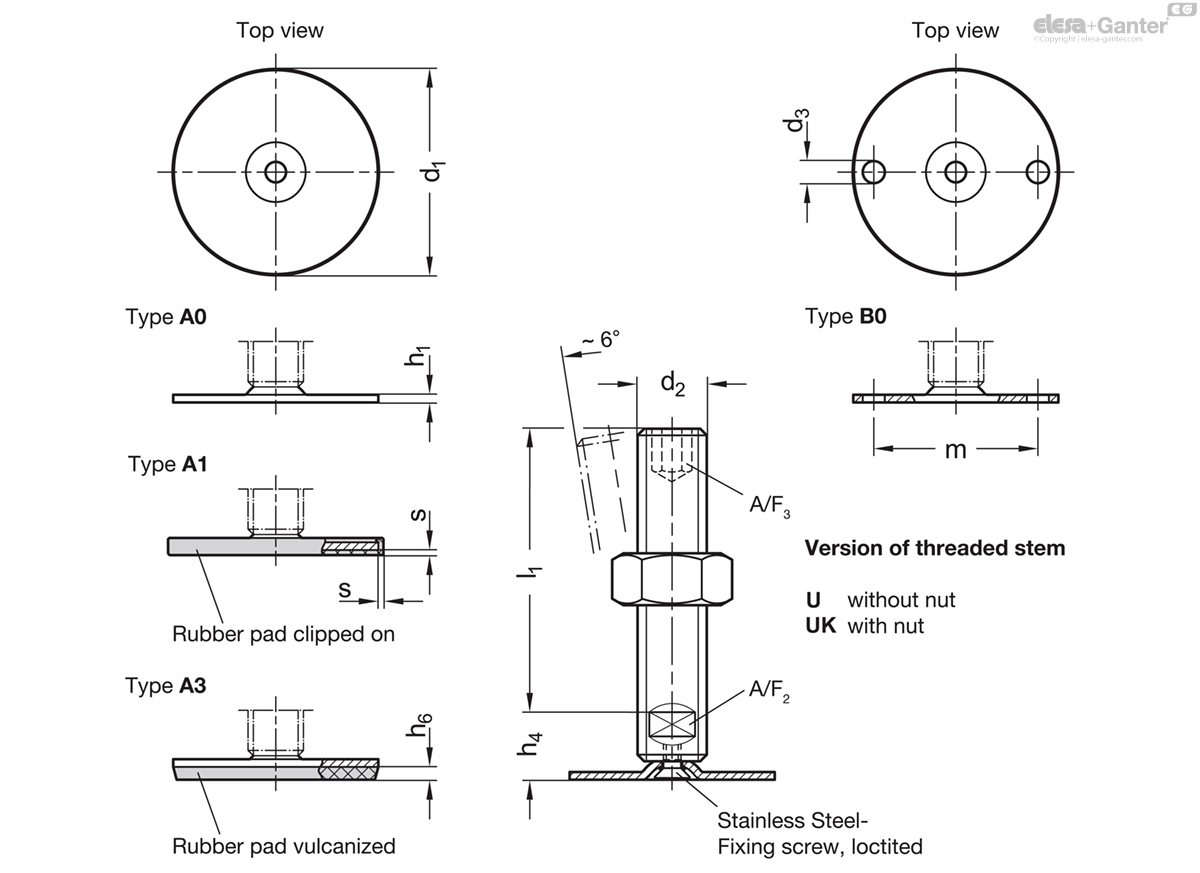

Types (Base plate)

Type A0: Without rubber pad

Type B0: Without rubber pad, with 2 mounting holes

Type A1: With rubber pad, clipped on, black

Type A3: With rubber pad, vulcanized, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

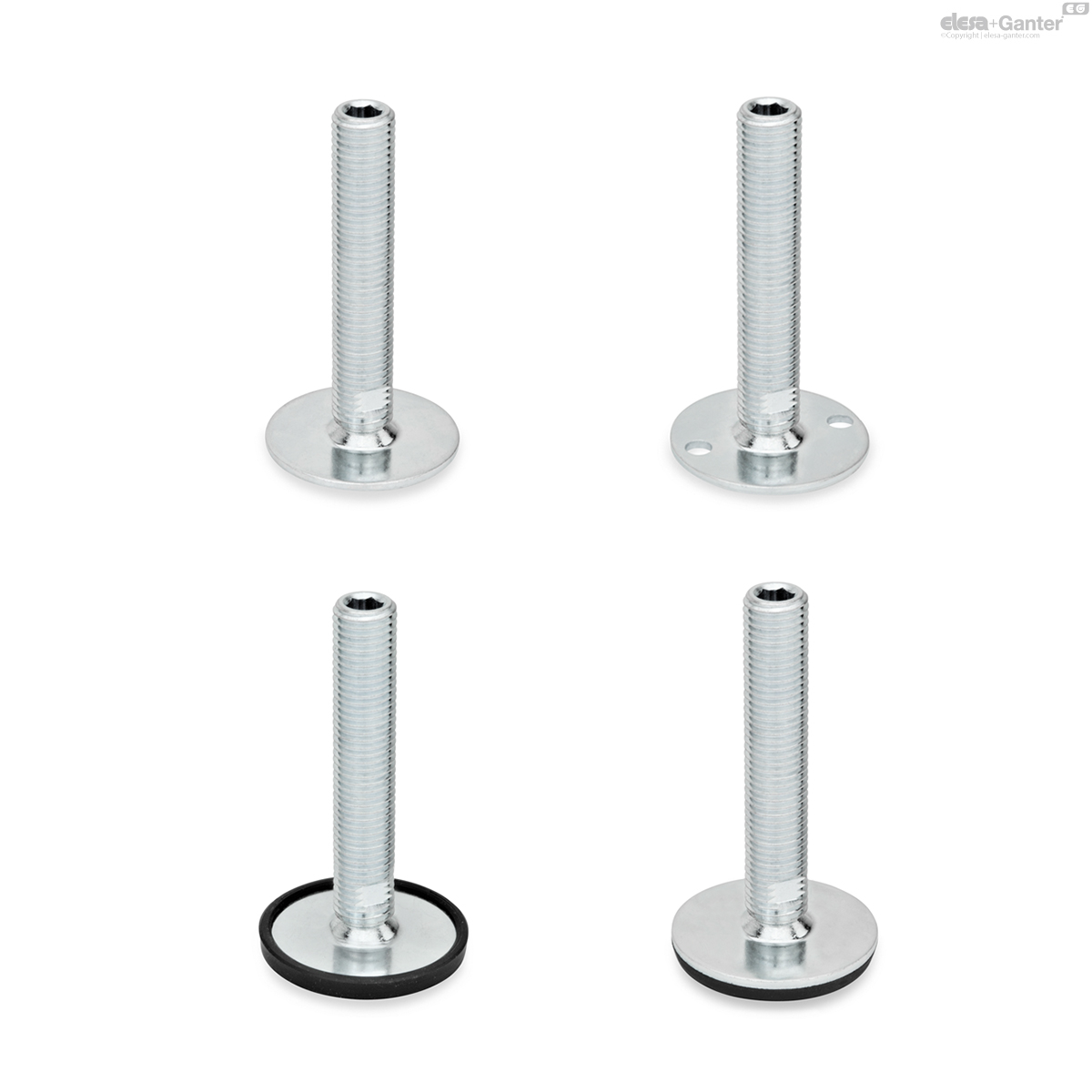

Version U: Without nut, hex socket at the top and wrench flat at the bottom

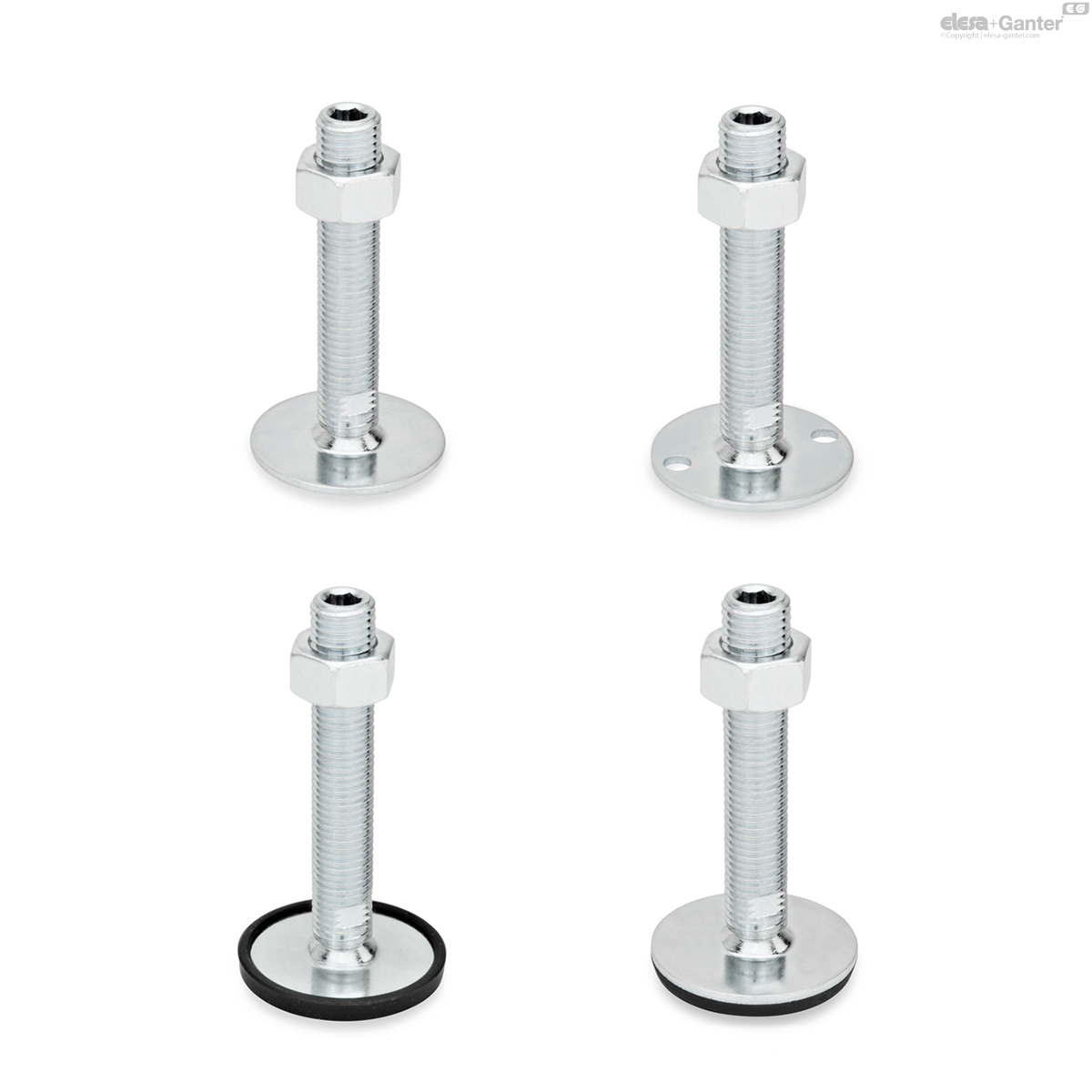

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel, zinc plated, blue passivated

Threaded stem

Steel, zinc plated, blue passivated

Hex nut ISO 4032

Steel, zinc plated, blue passivated

Rubber pad

Clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 40 can be used in a host of combinations of base plates and adjustable spindle versions.

The base plate with the rubber pad protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

GN 40-U/UK

	Color	d₁	d₂	l₁	d₃	h₁	h₆	m	s	h₄	A/F ₂	A/F ₃	Static load Fs in kN
Code															Actions
GN 40-40-M16-75-A0-U	Type U	40	M 16	75	-	2	-	30	-	17	12	8	7	153
GN 40-40-M16-75-A0-UK	Type UK	40	M 16	75	-	2	-	30	-	17	12	8	7	153
GN 40-40-M16-75-A1-U	Type U	40	M 16	75	-	2	-	30	1.5	17	12	8	7	120
GN 40-40-M16-75-A1-UK	Type UK	40	M 16	75	-	2	-	30	1.5	17	12	8	7	157
GN 40-40-M16-75-A3-U	Type U	40	M 16	75	-	2	3.5	30	-	17	12	8	7	127
GN 40-40-M16-75-A3-UK	Type UK	40	M 16	75	-	2	3.5	30	-	17	12	8	7	160
GN 40-40-M16-100-A0-U	Type U	40	M 16	100	-	2	-	30	-	17	12	8	7	192
GN 40-40-M16-100-A0-UK	Type UK	40	M 16	100	-	2	-	30	-	17	12	8	7	192
GN 40-40-M16-100-A1-U	Type U	40	M 16	100	-	2	-	30	1.5	17	12	8	7	180
GN 40-40-M16-100-A1-UK	Type UK	40	M 16	100	-	2	-	30	1.5	17	12	8	7	180
GN 40-40-M16-100-A3-U	Type U	40	M 16	100	-	2	3.5	30	-	17	12	8	7	159
GN 40-40-M16-100-A3-UK	Type UK	40	M 16	100	-	2	3.5	30	-	17	12	8	7	188
GN 40-40-M16-125-A0-U	Type U	40	M 16	125	-	2	-	30	-	17	12	8	7	216
GN 40-40-M16-125-A0-UK	Type UK	40	M 16	125	-	2	-	30	-	17	12	8	7	215
GN 40-40-M16-125-A1-U	Type U	40	M 16	125	-	2	-	30	1.5	17	12	8	7	220
GN 40-40-M16-125-A1-UK	Type UK	40	M 16	125	-	2	-	30	1.5	17	12	8	7	220
GN 40-40-M16-125-A3-U	Type U	40	M 16	125	-	2	3.5	30	-	17	12	8	7	191
GN 40-40-M16-125-A3-UK	Type UK	40	M 16	125	-	2	3.5	30	-	17	12	8	7	220
GN 40-40-M16-150-A0-U	Type U	40	M 16	150	-	2	-	30	-	17	12	8	7	220
GN 40-40-M16-150-A0-UK	Type UK	40	M 16	150	-	2	-	30	-	17	12	8	7	251
GN 40-40-M16-150-A1-U	Type U	40	M 16	150	-	2	-	30	1.5	17	12	8	7	254
GN 40-40-M16-150-A1-UK	Type UK	40	M 16	150	-	2	-	30	1.5	17	12	8	7	254
GN 40-40-M16-150-A3-U	Type U	40	M 16	150	-	2	3.5	30	-	17	12	8	7	223
GN 40-40-M16-150-A3-UK	Type UK	40	M 16	150	-	2	3.5	30	-	17	12	8	7	250
GN 40-40-M16-200-A0-U	Type U	40	M 16	200	-	2	-	30	-	17	12	8	7	320
GN 40-40-M16-200-A0-UK	Type UK	40	M 16	200	-	2	-	30	-	17	12	8	7	320
GN 40-40-M16-200-A1-U	Type U	40	M 16	200	-	2	-	30	1.5	17	12	8	7	300
GN 40-40-M16-200-A1-UK	Type UK	40	M 16	200	-	2	-	30	1.5	17	12	8	7	300
GN 40-40-M16-200-A3-U	Type U	40	M 16	200	-	2	3.5	30	-	17	12	8	7	283
GN 40-40-M16-200-A3-UK	Type UK	40	M 16	200	-	2	3.5	30	-	17	12	8	7	300
GN 40-40-M16-250-A0-U	Type U	40	M 16	250	-	2	-	30	-	17	12	8	7	638
GN 40-40-M16-250-A0-UK	Type UK	40	M 16	250	-	2	-	30	-	17	12	8	7	638
GN 40-40-M16-250-A1-U	Type U	40	M 16	250	-	2	-	30	1.5	17	12	8	7	618
GN 40-40-M16-250-A1-UK	Type UK	40	M 16	250	-	2	-	30	1.5	17	12	8	7	618
GN 40-40-M16-250-A3-U	Type U	40	M 16	250	-	2	3.5	30	-	17	12	8	7	601
GN 40-40-M16-250-A3-UK	Type UK	40	M 16	250	-	2	3.5	30	-	17	12	8	7	618
GN 40-50-M16-75-A0-U	Type U	50	M 16	75	-	2.5	-	38	-	17	12	8	8	140
GN 40-50-M16-75-A0-UK	Type UK	50	M 16	75	-	2.5	-	38	-	17	12	8	8	176
GN 40-50-M16-75-A1-U	Type U	50	M 16	75	-	2.5	-	38	2	17	12	8	8	177
GN 40-50-M16-75-A1-UK	Type UK	50	M 16	75	-	2.5	-	38	2	17	12	8	8	177
GN 40-50-M16-75-A3-U	Type U	50	M 16	75	-	2.5	4	38	-	17	12	8	8	150
GN 40-50-M16-75-A3-UK	Type UK	50	M 16	75	-	2.5	4	38	-	17	12	8	8	182
GN 40-50-M16-75-B0-U	Type U	50	M 16	75	6.6	2.5	-	38	-	17	12	8	8	140
GN 40-50-M16-75-B0-UK	Type UK	50	M 16	75	6.6	2.5	-	38	-	17	12	8	8	169
GN 40-50-M16-100-A0-U	Type U	50	M 16	100	-	2.5	-	38	-	17	12	8	8	205
GN 40-50-M16-100-A0-UK	Type UK	50	M 16	100	-	2.5	-	38	-	17	12	8	8	205
GN 40-50-M16-100-A1-U	Type U	50	M 16	100	-	2.5	-	38	2	17	12	8	8	213
GN 40-50-M16-100-A1-UK	Type UK	50	M 16	100	-	2.5	-	38	2	17	12	8	8	213
GN 40-50-M16-100-A3-U	Type U	50	M 16	100	-	2.5	4	38	-	17	12	8	8	182
GN 40-50-M16-100-A3-UK	Type UK	50	M 16	100	-	2.5	4	38	-	17	12	8	8	211
GN 40-50-M16-100-B0-U	Type U	50	M 16	100	6.6	2.5	-	38	-	17	12	8	8	172
GN 40-50-M16-100-B0-UK	Type UK	50	M 16	100	6.6	2.5	-	38	-	17	12	8	8	201
GN 40-50-M16-125-A0-U	Type U	50	M 16	125	-	2.5	-	38	-	17	12	8	8	243
GN 40-50-M16-125-A0-UK	Type UK	50	M 16	125	-	2.5	-	38	-	17	12	8	8	240
GN 40-50-M16-125-A1-U	Type U	50	M 16	125	-	2.5	-	38	2	17	12	8	8	241
GN 40-50-M16-125-A1-UK	Type UK	50	M 16	125	-	2.5	-	38	2	17	12	8	8	241
GN 40-50-M16-125-A3-U	Type U	50	M 16	125	-	2.5	4	38	-	17	12	8	8	200
GN 40-50-M16-125-A3-UK	Type UK	50	M 16	125	-	2.5	4	38	-	17	12	8	8	243
GN 40-50-M16-125-B0-U	Type U	50	M 16	125	6.6	2.5	-	38	-	17	12	8	8	204
GN 40-50-M16-125-B0-UK	Type UK	50	M 16	125	6.6	2.5	-	38	-	17	12	8	8	233
GN 40-50-M16-150-A0-U	Type U	50	M 16	150	-	2.5	-	38	-	17	12	8	8	269
GN 40-50-M16-150-A0-UK	Type UK	50	M 16	150	-	2.5	-	38	-	17	12	8	8	262
GN 40-50-M16-150-A1-U	Type U	50	M 16	150	-	2.5	-	38	2	17	12	8	8	280
GN 40-50-M16-150-A1-UK	Type UK	50	M 16	150	-	2.5	-	38	2	17	12	8	8	280
GN 40-50-M16-150-A3-U	Type U	50	M 16	150	-	2.5	4	38	-	17	12	8	8	246
GN 40-50-M16-150-A3-UK	Type UK	50	M 16	150	-	2.5	4	38	-	17	12	8	8	282
GN 40-50-M16-150-B0-U	Type U	50	M 16	150	6.6	2.5	-	38	-	17	12	8	8	236
GN 40-50-M16-150-B0-UK	Type UK	50	M 16	150	6.6	2.5	-	38	-	17	12	8	8	265
GN 40-50-M16-200-A0-U	Type U	50	M 16	200	-	2.5	-	38	-	17	12	8	8	332
GN 40-50-M16-200-A0-UK	Type UK	50	M 16	200	-	2.5	-	38	-	17	12	8	8	331
GN 40-50-M16-200-A1-U	Type U	50	M 16	200	-	2.5	-	38	2	17	12	8	8	340
GN 40-50-M16-200-A1-UK	Type UK	50	M 16	200	-	2.5	-	38	2	17	12	8	8	340
GN 40-50-M16-200-A3-U	Type U	50	M 16	200	-	2.5	4	38	-	17	12	8	8	306
GN 40-50-M16-200-A3-UK	Type UK	50	M 16	200	-	2.5	4	38	-	17	12	8	8	335
GN 40-50-M16-200-B0-U	Type U	50	M 16	200	6.6	2.5	-	38	-	17	12	8	8	296
GN 40-50-M16-200-B0-UK	Type UK	50	M 16	200	6.6	2.5	-	38	-	17	12	8	8	325
GN 40-50-M16-250-A0-U	Type U	50	M 16	250	-	2.5	-	38	-	17	12	8	8	360
GN 40-50-M16-250-A0-UK	Type UK	50	M 16	250	-	2.5	-	38	-	17	12	8	8	389
GN 40-50-M16-250-A1-U	Type U	50	M 16	250	-	2.5	-	38	2	17	12	8	8	366
GN 40-50-M16-250-A1-UK	Type UK	50	M 16	250	-	2.5	-	38	2	17	12	8	8	395
GN 40-50-M16-250-A3-U	Type U	50	M 16	250	-	2.5	4	38	-	17	12	8	8	368
GN 40-50-M16-250-A3-UK	Type UK	50	M 16	250	-	2.5	4	38	-	17	12	8	8	397
GN 40-50-M16-250-B0-U	Type U	50	M 16	250	6.6	2.5	-	38	-	17	12	8	8	358
GN 40-50-M16-250-B0-UK	Type UK	50	M 16	250	6.6	2.5	-	38	-	17	12	8	8	387
GN 40-60-M16-75-A0-U	Type U	60	M 16	75	-	2.5	-	48	-	17	12	8	10	192
GN 40-60-M16-75-A0-UK	Type UK	60	M 16	75	-	2.5	-	48	-	17	12	8	10	195
GN 40-60-M16-75-A1-U	Type U	60	M 16	75	-	2.5	-	48	2	17	12	8	10	200
GN 40-60-M16-75-A1-UK	Type UK	60	M 16	75	-	2.5	-	48	2	17	12	8	10	200
GN 40-60-M16-75-A3-U	Type U	60	M 16	75	-	2.5	4.5	48	-	17	12	8	10	172
GN 40-60-M16-75-A3-UK	Type UK	60	M 16	75	-	2.5	4.5	48	-	17	12	8	10	185
GN 40-60-M16-75-B0-U	Type U	60	M 16	75	6.6	2.5	-	48	-	17	12	8	10	157
GN 40-60-M16-75-B0-UK	Type UK	60	M 16	75	6.6	2.5	-	48	-	17	12	8	10	186
GN 40-60-M16-100-A0-U	Type U	60	M 16	100	-	2.5	-	48	-	17	12	8	10	180
GN 40-60-M16-100-A0-UK	Type UK	60	M 16	100	-	2.5	-	48	-	17	12	8	10	225
GN 40-60-M16-100-A1-U	Type U	60	M 16	100	-	2.5	-	48	2	17	12	8	10	200
GN 40-60-M16-100-A1-UK	Type UK	60	M 16	100	-	2.5	-	48	2	17	12	8	10	220
GN 40-60-M16-100-A3-U	Type U	60	M 16	100	-	2.5	4.5	48	-	17	12	8	10	208
GN 40-60-M16-100-A3-UK	Type UK	60	M 16	100	-	2.5	4.5	48	-	17	12	8	10	238
GN 40-60-M16-100-B0-U	Type U	60	M 16	100	6.6	2.5	-	48	-	17	12	8	10	189
GN 40-60-M16-100-B0-UK	Type UK	60	M 16	100	6.6	2.5	-	48	-	17	12	8	10	218
GN 40-60-M16-125-A0-U	Type U	60	M 16	125	-	2.5	-	48	-	17	12	8	10	260
GN 40-60-M16-125-A0-UK	Type UK	60	M 16	125	-	2.5	-	48	-	17	12	8	10	259
GN 40-60-M16-125-A1-U	Type U	60	M 16	125	-	2.5	-	48	2	17	12	8	10	240
GN 40-60-M16-125-A1-UK	Type UK	60	M 16	125	-	2.5	-	48	2	17	12	8	10	260
GN 40-60-M16-125-A3-U	Type U	60	M 16	125	-	2.5	4.5	48	-	17	12	8	10	236
GN 40-60-M16-125-A3-UK	Type UK	60	M 16	125	-	2.5	4.5	48	-	17	12	8	10	200
GN 40-60-M16-125-B0-U	Type U	60	M 16	125	6.6	2.5	-	48	-	17	12	8	10	221
GN 40-60-M16-125-B0-UK	Type UK	60	M 16	125	6.6	2.5	-	48	-	17	12	8	10	250
GN 40-60-M16-150-A0-U	Type U	60	M 16	150	-	2.5	-	48	-	17	12	8	10	283
GN 40-60-M16-150-A0-UK	Type UK	60	M 16	150	-	2.5	-	48	-	17	12	8	10	283
GN 40-60-M16-150-A1-U	Type U	60	M 16	150	-	2.5	-	48	2	17	12	8	10	300
GN 40-60-M16-150-A1-UK	Type UK	60	M 16	150	-	2.5	-	48	2	17	12	8	10	290
GN 40-60-M16-150-A3-U	Type U	60	M 16	150	-	2.5	4.5	48	-	17	12	8	10	268
GN 40-60-M16-150-A3-UK	Type UK	60	M 16	150	-	2.5	4.5	48	-	17	12	8	10	300
GN 40-60-M16-150-B0-U	Type U	60	M 16	150	6.6	2.5	-	48	-	17	12	8	10	253
GN 40-60-M16-150-B0-UK	Type UK	60	M 16	150	6.6	2.5	-	48	-	17	12	8	10	282
GN 40-60-M16-200-A0-U	Type U	60	M 16	200	-	2.5	-	48	-	17	12	8	10	312
GN 40-60-M16-200-A0-UK	Type UK	60	M 16	200	-	2.5	-	48	-	17	12	8	10	341
GN 40-60-M16-200-A1-U	Type U	60	M 16	200	-	2.5	-	48	2	17	12	8	10	320
GN 40-60-M16-200-A1-UK	Type UK	60	M 16	200	-	2.5	-	48	2	17	12	8	10	349
GN 40-60-M16-200-A3-U	Type U	60	M 16	200	-	2.5	4.5	48	-	17	12	8	10	328
GN 40-60-M16-200-A3-UK	Type UK	60	M 16	200	-	2.5	4.5	48	-	17	12	8	10	357
GN 40-60-M16-200-B0-U	Type U	60	M 16	200	6.6	2.5	-	48	-	17	12	8	10	313
GN 40-60-M16-200-B0-UK	Type UK	60	M 16	200	6.6	2.5	-	48	-	17	12	8	10	342
GN 40-60-M16-250-A0-U	Type U	60	M 16	250	-	2.5	-	48	-	17	12	8	10	666
GN 40-60-M16-250-A0-UK	Type UK	60	M 16	250	-	2.5	-	48	-	17	12	8	10	666
GN 40-60-M16-250-A1-U	Type U	60	M 16	250	-	2.5	-	48	2	17	12	8	10	658
GN 40-60-M16-250-A1-UK	Type UK	60	M 16	250	-	2.5	-	48	2	17	12	8	10	678
GN 40-60-M16-250-A3-U	Type U	60	M 16	250	-	2.5	4.5	48	-	17	12	8	10	646
GN 40-60-M16-250-A3-UK	Type UK	60	M 16	250	-	2.5	4.5	48	-	17	12	8	10	668
GN 40-60-M16-250-B0-U	Type U	60	M 16	250	6.6	2.5	-	48	-	17	12	8	10	631
GN 40-60-M16-250-B0-UK	Type UK	60	M 16	250	6.6	2.5	-	48	-	17	12	8	10	660
GN 40-80-M16-75-A0-U	Type U	80	M 16	75	-	3	-	64	-	18	12	8	12	220
GN 40-80-M16-75-A0-UK	Type UK	80	M 16	75	-	3	-	64	-	18	12	8	12	252
GN 40-80-M16-75-A1-U	Type U	80	M 16	75	-	3	-	64	2	18	12	8	12	220
GN 40-80-M16-75-A1-UK	Type UK	80	M 16	75	-	3	-	64	2	18	12	8	12	270
GN 40-80-M16-75-A3-U	Type U	80	M 16	75	-	3	5	64	-	18	12	8	12	251
GN 40-80-M16-75-A3-UK	Type UK	80	M 16	75	-	3	5	64	-	18	12	8	12	260
GN 40-80-M16-75-B0-U	Type U	80	M 16	75	8.6	3	-	64	-	18	12	8	12	218
GN 40-80-M16-75-B0-UK	Type UK	80	M 16	75	8.6	3	-	64	-	18	12	8	12	247
GN 40-80-M16-100-A0-U	Type U	80	M 16	100	-	3	-	64	-	18	12	8	12	270
GN 40-80-M16-100-A0-UK	Type UK	80	M 16	100	-	3	-	64	-	18	12	8	12	300
GN 40-80-M16-100-A1-U	Type U	80	M 16	100	-	3	-	64	2	18	12	8	12	275
GN 40-80-M16-100-A1-UK	Type UK	80	M 16	100	-	3	-	64	2	18	12	8	12	300
GN 40-80-M16-100-A3-U	Type U	80	M 16	100	-	3	5	64	-	18	12	8	12	283
GN 40-80-M16-100-A3-UK	Type UK	80	M 16	100	-	3	5	64	-	18	12	8	12	314
GN 40-80-M16-100-B0-U	Type U	80	M 16	100	8.6	3	-	64	-	18	12	8	12	250
GN 40-80-M16-100-B0-UK	Type UK	80	M 16	100	8.6	3	-	64	-	18	12	8	12	279
GN 40-80-M16-125-A0-U	Type U	80	M 16	125	-	3	-	64	-	18	12	8	12	300
GN 40-80-M16-125-A0-UK	Type UK	80	M 16	125	-	3	-	64	-	18	12	8	12	319
GN 40-80-M16-125-A1-U	Type U	80	M 16	125	-	3	-	64	2	18	12	8	12	331
GN 40-80-M16-125-A1-UK	Type UK	80	M 16	125	-	3	-	64	2	18	12	8	12	320
GN 40-80-M16-125-A3-U	Type U	80	M 16	125	-	3	5	64	-	18	12	8	12	315
GN 40-80-M16-125-A3-UK	Type UK	80	M 16	125	-	3	5	64	-	18	12	8	12	300
GN 40-80-M16-125-B0-U	Type U	80	M 16	125	8.6	3	-	64	-	18	12	8	12	282
GN 40-80-M16-125-B0-UK	Type UK	80	M 16	125	8.6	3	-	64	-	18	12	8	12	280
GN 40-80-M16-150-A0-U	Type U	80	M 16	150	-	3	-	64	-	18	12	8	12	320
GN 40-80-M16-150-A0-UK	Type UK	80	M 16	150	-	3	-	64	-	18	12	8	12	360
GN 40-80-M16-150-A1-U	Type U	80	M 16	150	-	3	-	64	2	18	12	8	12	380
GN 40-80-M16-150-A1-UK	Type UK	80	M 16	150	-	3	-	64	2	18	12	8	12	380
GN 40-80-M16-150-A3-U	Type U	80	M 16	150	-	3	5	64	-	18	12	8	12	347
GN 40-80-M16-150-A3-UK	Type UK	80	M 16	150	-	3	5	64	-	18	12	8	12	350
GN 40-80-M16-150-B0-U	Type U	80	M 16	150	8.6	3	-	64	-	18	12	8	12	314
GN 40-80-M16-150-B0-UK	Type UK	80	M 16	150	8.6	3	-	64	-	18	12	8	12	343
GN 40-80-M16-200-A0-U	Type U	80	M 16	200	-	3	-	64	-	18	12	8	12	414
GN 40-80-M16-200-A0-UK	Type UK	80	M 16	200	-	3	-	64	-	18	12	8	12	414
GN 40-80-M16-200-A1-U	Type U	80	M 16	200	-	3	-	64	2	18	12	8	12	400
GN 40-80-M16-200-A1-UK	Type UK	80	M 16	200	-	3	-	64	2	18	12	8	12	400
GN 40-80-M16-200-A3-U	Type U	80	M 16	200	-	3	5	64	-	18	12	8	12	407
GN 40-80-M16-200-A3-UK	Type UK	80	M 16	200	-	3	5	64	-	18	12	8	12	445
GN 40-80-M16-200-B0-U	Type U	80	M 16	200	8.6	3	-	64	-	18	12	8	12	374
GN 40-80-M16-200-B0-UK	Type UK	80	M 16	200	8.6	3	-	64	-	18	12	8	12	403
GN 40-80-M16-250-A0-U	Type U	80	M 16	250	-	3	-	64	-	18	12	8	12	440
GN 40-80-M16-250-A0-UK	Type UK	80	M 16	250	-	3	-	64	-	18	12	8	12	469
GN 40-80-M16-250-A1-U	Type U	80	M 16	250	-	3	-	64	2	18	12	8	12	454
GN 40-80-M16-250-A1-UK	Type UK	80	M 16	250	-	3	-	64	2	18	12	8	12	483
GN 40-80-M16-250-A3-U	Type U	80	M 16	250	-	3	5	64	-	18	12	8	12	469
GN 40-80-M16-250-A3-UK	Type UK	80	M 16	250	-	3	5	64	-	18	12	8	12	498
GN 40-80-M16-250-B0-U	Type U	80	M 16	250	8.6	3	-	64	-	18	12	8	12	436
GN 40-80-M16-250-B0-UK	Type UK	80	M 16	250	8.6	3	-	64	-	18	12	8	12	465
GN 40-80-M20-75-A0-U	Type U	80	M 20	75	-	3	-	64	-	19	15	10	16	347
GN 40-80-M20-75-A0-UK	Type UK	80	M 20	75	-	3	-	64	-	19	15	10	16	347
GN 40-80-M20-75-A1-U	Type U	80	M 20	75	-	3	-	64	2	19	15	10	16	360
GN 40-80-M20-75-A1-UK	Type UK	80	M 20	75	-	3	-	64	2	19	15	10	16	360
GN 40-80-M20-75-A3-U	Type U	80	M 20	75	-	3	5	64	-	19	15	10	16	309
GN 40-80-M20-75-A3-UK	Type UK	80	M 20	75	-	3	5	64	-	19	15	10	16	350
GN 40-80-M20-75-B0-U	Type U	80	M 20	75	8.6	3	-	64	-	19	15	10	16	277
GN 40-80-M20-75-B0-UK	Type UK	80	M 20	75	8.6	3	-	64	-	19	15	10	16	341
GN 40-80-M20-100-A0-U	Type U	80	M 20	100	-	3	-	64	-	19	15	10	16	397
GN 40-80-M20-100-A0-UK	Type UK	80	M 20	100	-	3	-	64	-	19	15	10	16	390
GN 40-80-M20-100-A1-U	Type U	80	M 20	100	-	3	-	64	2	19	15	10	16	400
GN 40-80-M20-100-A1-UK	Type UK	80	M 20	100	-	3	-	64	2	19	15	10	16	400
GN 40-80-M20-100-A3-U	Type U	80	M 20	100	-	3	5	64	-	19	15	10	16	359
GN 40-80-M20-100-A3-UK	Type UK	80	M 20	100	-	3	5	64	-	19	15	10	16	423
GN 40-80-M20-100-B0-U	Type U	80	M 20	100	8.6	3	-	64	-	19	15	10	16	327
GN 40-80-M20-100-B0-UK	Type UK	80	M 20	100	8.6	3	-	64	-	19	15	10	16	391
GN 40-80-M20-125-A0-U	Type U	80	M 20	125	-	3	-	64	-	19	15	10	16	450
GN 40-80-M20-125-A0-UK	Type UK	80	M 20	125	-	3	-	64	-	19	15	10	16	450
GN 40-80-M20-125-A1-U	Type U	80	M 20	125	-	3	-	64	2	19	15	10	16	459
GN 40-80-M20-125-A1-UK	Type UK	80	M 20	125	-	3	-	64	2	19	15	10	16	459
GN 40-80-M20-125-A3-U	Type U	80	M 20	125	-	3	5	64	-	19	15	10	16	409
GN 40-80-M20-125-A3-UK	Type UK	80	M 20	125	-	3	5	64	-	19	15	10	16	473
GN 40-80-M20-125-B0-U	Type U	80	M 20	125	8.6	3	-	64	-	19	15	10	16	377
GN 40-80-M20-125-B0-UK	Type UK	80	M 20	125	8.6	3	-	64	-	19	15	10	16	441
GN 40-80-M20-150-A0-U	Type U	80	M 20	150	-	3	-	64	-	19	15	10	16	495
GN 40-80-M20-150-A0-UK	Type UK	80	M 20	150	-	3	-	64	-	19	15	10	16	494
GN 40-80-M20-150-A1-U	Type U	80	M 20	150	-	3	-	64	2	19	15	10	16	420
GN 40-80-M20-150-A1-UK	Type UK	80	M 20	150	-	3	-	64	2	19	15	10	16	620
GN 40-80-M20-150-A3-U	Type U	80	M 20	150	-	3	5	64	-	19	15	10	16	458
GN 40-80-M20-150-A3-UK	Type UK	80	M 20	150	-	3	5	64	-	19	15	10	16	550
GN 40-80-M20-150-B0-U	Type U	80	M 20	150	8.6	3	-	64	-	19	15	10	16	426
GN 40-80-M20-150-B0-UK	Type UK	80	M 20	150	8.6	3	-	64	-	19	15	10	16	490
GN 40-80-M20-200-A0-U	Type U	80	M 20	200	-	3	-	64	-	19	15	10	16	596
GN 40-80-M20-200-A0-UK	Type UK	80	M 20	200	-	3	-	64	-	19	15	10	16	595
GN 40-80-M20-200-A1-U	Type U	80	M 20	200	-	3	-	64	2	19	15	10	16	620
GN 40-80-M20-200-A1-UK	Type UK	80	M 20	200	-	3	-	64	2	19	15	10	16	600
GN 40-80-M20-200-A3-U	Type U	80	M 20	200	-	3	5	64	-	19	15	10	16	549
GN 40-80-M20-200-A3-UK	Type UK	80	M 20	200	-	3	5	64	-	19	15	10	16	550
GN 40-80-M20-200-B0-U	Type U	80	M 20	200	8.6	3	-	64	-	19	15	10	16	517
GN 40-80-M20-200-B0-UK	Type UK	80	M 20	200	8.6	3	-	64	-	19	15	10	16	581
GN 40-80-M20-250-A0-U	Type U	80	M 20	250	-	3	-	64	-	19	15	10	16	618
GN 40-80-M20-250-A0-UK	Type UK	80	M 20	250	-	3	-	64	-	19	15	10	16	682
GN 40-80-M20-250-A1-U	Type U	80	M 20	250	-	3	-	64	2	19	15	10	16	632
GN 40-80-M20-250-A1-UK	Type UK	80	M 20	250	-	3	-	64	2	19	15	10	16	696
GN 40-80-M20-250-A3-U	Type U	80	M 20	250	-	3	5	64	-	19	15	10	16	644
GN 40-80-M20-250-A3-UK	Type UK	80	M 20	250	-	3	5	64	-	19	15	10	16	708
GN 40-80-M20-250-B0-U	Type U	80	M 20	250	8.6	3	-	64	-	19	15	10	16	612
GN 40-80-M20-250-B0-UK	Type UK	80	M 20	250	8.6	3	-	64	-	19	15	10	16	676
GN 40-80-M24-100-A0-U	Type U	80	M 24	100	-	3	-	64	-	22	19	12	16	543
GN 40-80-M24-100-A0-UK	Type UK	80	M 24	100	-	3	-	64	-	22	19	12	16	542
GN 40-80-M24-100-A1-U	Type U	80	M 24	100	-	3	-	64	2	22	19	12	16	560
GN 40-80-M24-100-A1-UK	Type UK	80	M 24	100	-	3	-	64	2	22	19	12	16	560
GN 40-80-M24-100-A3-U	Type U	80	M 24	100	-	3	5	64	-	22	19	12	16	461
GN 40-80-M24-100-A3-UK	Type UK	80	M 24	100	-	3	5	64	-	22	19	12	16	566
GN 40-80-M24-100-B0-U	Type U	80	M 24	100	8.6	3	-	64	-	22	19	12	16	429
GN 40-80-M24-100-B0-UK	Type UK	80	M 24	100	8.6	3	-	64	-	22	19	12	16	534
GN 40-80-M24-125-A0-U	Type U	80	M 24	125	-	3	-	64	-	22	19	12	16	613
GN 40-80-M24-125-A0-UK	Type UK	80	M 24	125	-	3	-	64	-	22	19	12	16	613
GN 40-80-M24-125-A1-U	Type U	80	M 24	125	-	3	-	64	2	22	19	12	16	620
GN 40-80-M24-125-A1-UK	Type UK	80	M 24	125	-	3	-	64	2	22	19	12	16	620
GN 40-80-M24-125-A3-U	Type U	80	M 24	125	-	3	5	64	-	22	19	12	16	533
GN 40-80-M24-125-A3-UK	Type UK	80	M 24	125	-	3	5	64	-	22	19	12	16	638
GN 40-80-M24-125-B0-U	Type U	80	M 24	125	8.6	3	-	64	-	22	19	12	16	501
GN 40-80-M24-125-B0-UK	Type UK	80	M 24	125	8.6	3	-	64	-	22	19	12	16	606
GN 40-80-M24-150-A0-U	Type U	80	M 24	150	-	3	-	64	-	22	19	12	16	685
GN 40-80-M24-150-A0-UK	Type UK	80	M 24	150	-	3	-	64	-	22	19	12	16	650
GN 40-80-M24-150-A1-U	Type U	80	M 24	150	-	3	-	64	2	22	19	12	16	650
GN 40-80-M24-150-A1-UK	Type UK	80	M 24	150	-	3	-	64	2	22	19	12	16	700
GN 40-80-M24-150-A3-U	Type U	80	M 24	150	-	3	5	64	-	22	19	12	16	605
GN 40-80-M24-150-A3-UK	Type UK	80	M 24	150	-	3	5	64	-	22	19	12	16	710
GN 40-80-M24-150-B0-U	Type U	80	M 24	150	8.6	3	-	64	-	22	19	12	16	573
GN 40-80-M24-150-B0-UK	Type UK	80	M 24	150	8.6	3	-	64	-	22	19	12	16	678
GN 40-80-M24-200-A0-U	Type U	80	M 24	200	-	3	-	64	-	22	19	12	16	820
GN 40-80-M24-200-A0-UK	Type UK	80	M 24	200	-	3	-	64	-	22	19	12	16	820
GN 40-80-M24-200-A1-U	Type U	80	M 24	200	-	3	-	64	2	22	19	12	16	732
GN 40-80-M24-200-A1-UK	Type UK	80	M 24	200	-	3	-	64	2	22	19	12	16	834
GN 40-80-M24-200-A3-U	Type U	80	M 24	200	-	3	5	64	-	22	19	12	16	743
GN 40-80-M24-200-A3-UK	Type UK	80	M 24	200	-	3	5	64	-	22	19	12	16	848
GN 40-80-M24-200-B0-U	Type U	80	M 24	200	8.6	3	-	64	-	22	19	12	16	711
GN 40-80-M24-200-B0-UK	Type UK	80	M 24	200	8.6	3	-	64	-	22	19	12	16	816
GN 40-80-M24-300-A0-U	Type U	80	M 24	300	-	3	-	64	-	22	19	12	16	998
GN 40-80-M24-300-A0-UK	Type UK	80	M 24	300	-	3	-	64	-	22	19	12	16	1103
GN 40-80-M24-300-A1-U	Type U	80	M 24	300	-	3	-	64	2	22	19	12	16	1012
GN 40-80-M24-300-A1-UK	Type UK	80	M 24	300	-	3	-	64	2	22	19	12	16	1117
GN 40-80-M24-300-A3-U	Type U	80	M 24	300	-	3	5	64	-	22	19	12	16	1025
GN 40-80-M24-300-A3-UK	Type UK	80	M 24	300	-	3	5	64	-	22	19	12	16	1130
GN 40-80-M24-300-B0-U	Type U	80	M 24	300	8.6	3	-	64	-	22	19	12	16	993
GN 40-80-M24-300-B0-UK	Type UK	80	M 24	300	8.6	3	-	64	-	22	19	12	16	1098

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
