GN 40

Leveling Feet

Steel

Enquire Now

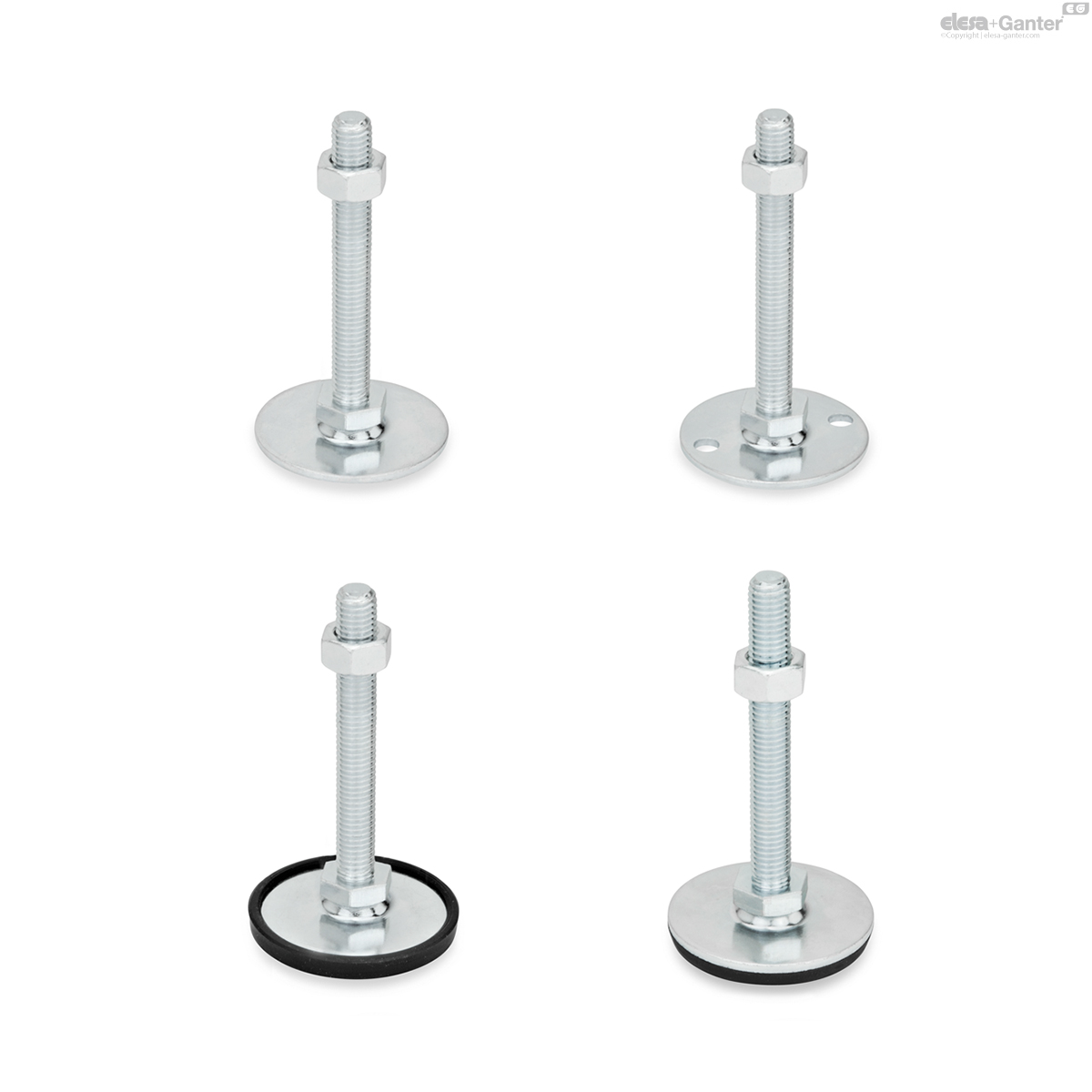

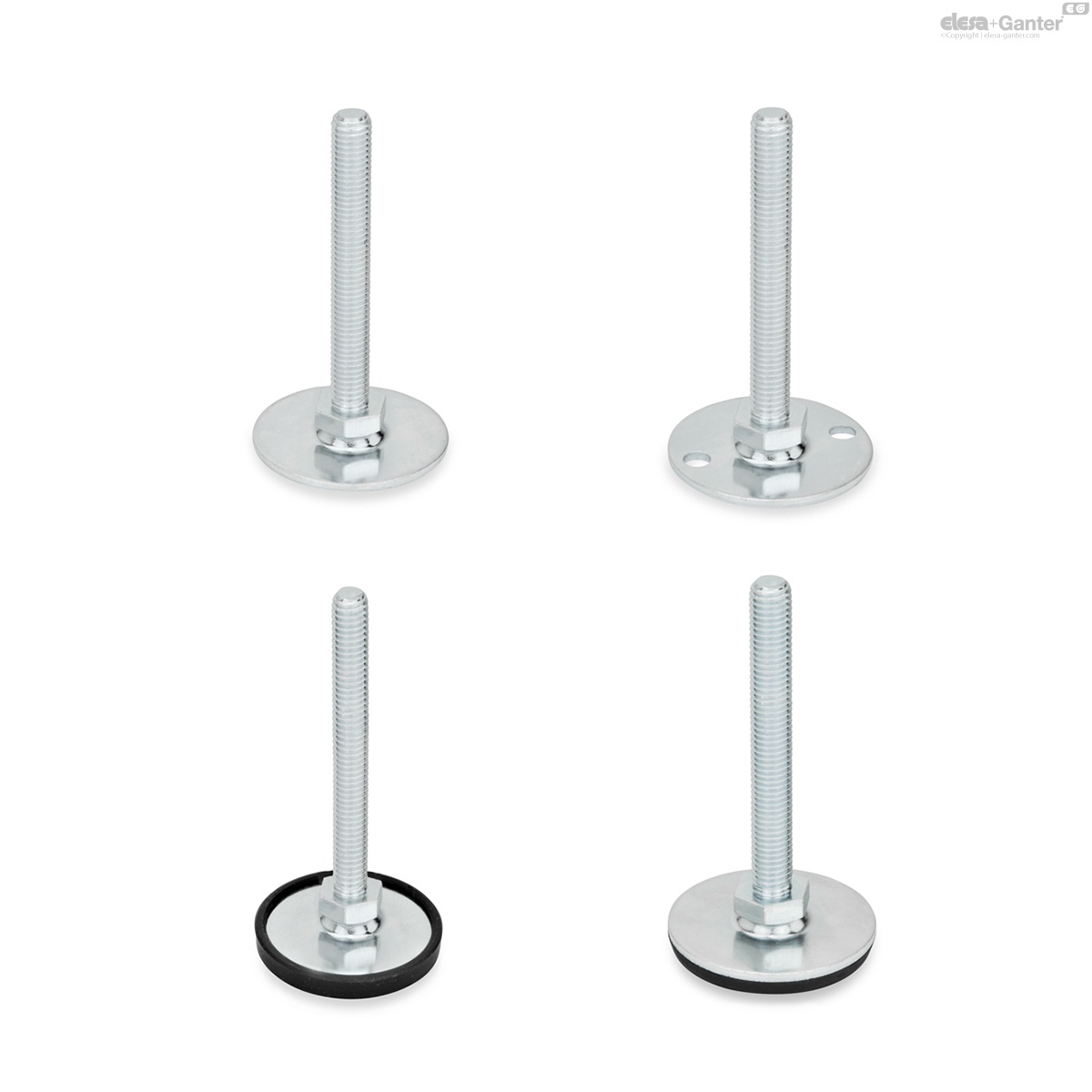

GN 40-S/SK

Leveling Feet

With / without nut, external hex at the bottom

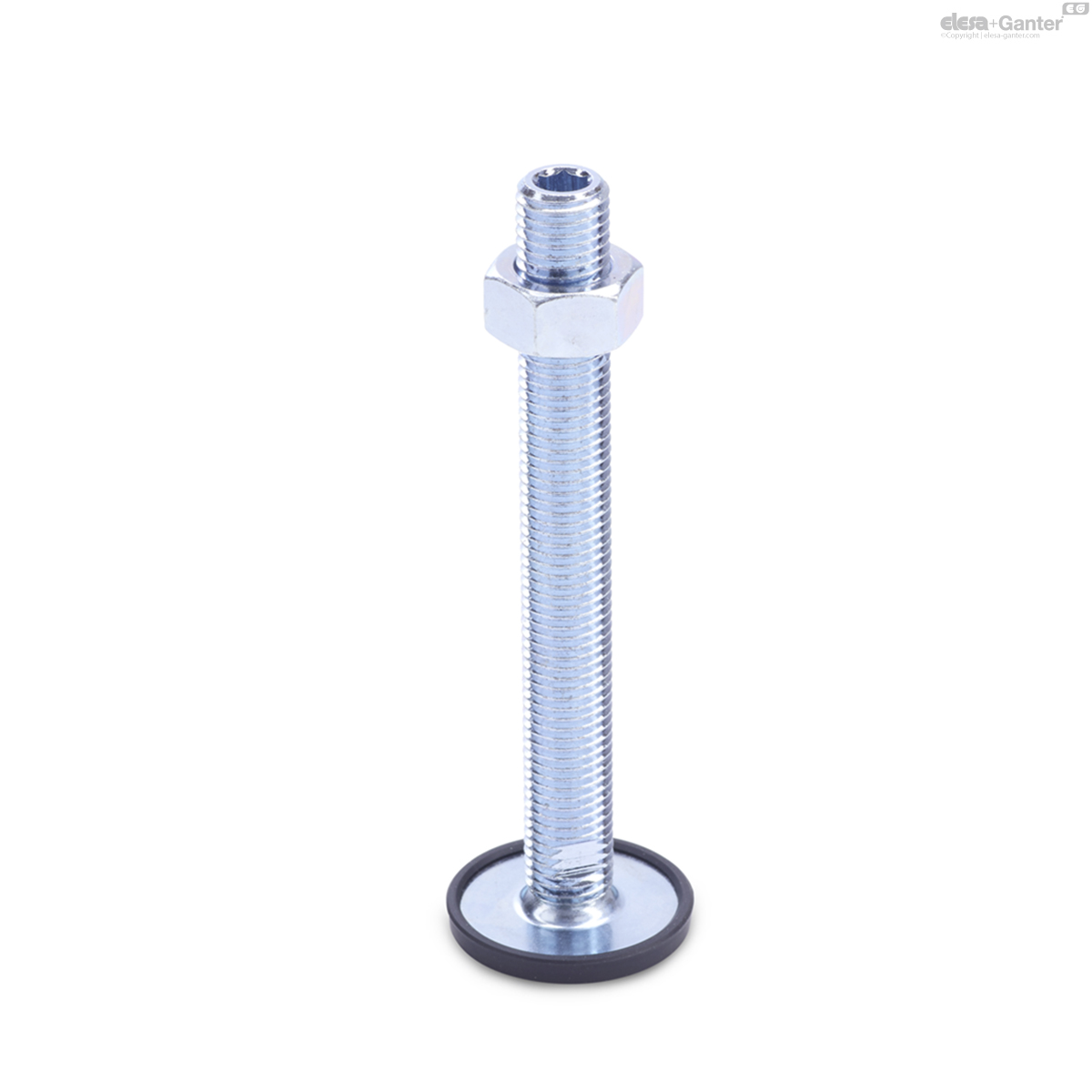

GN 40-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

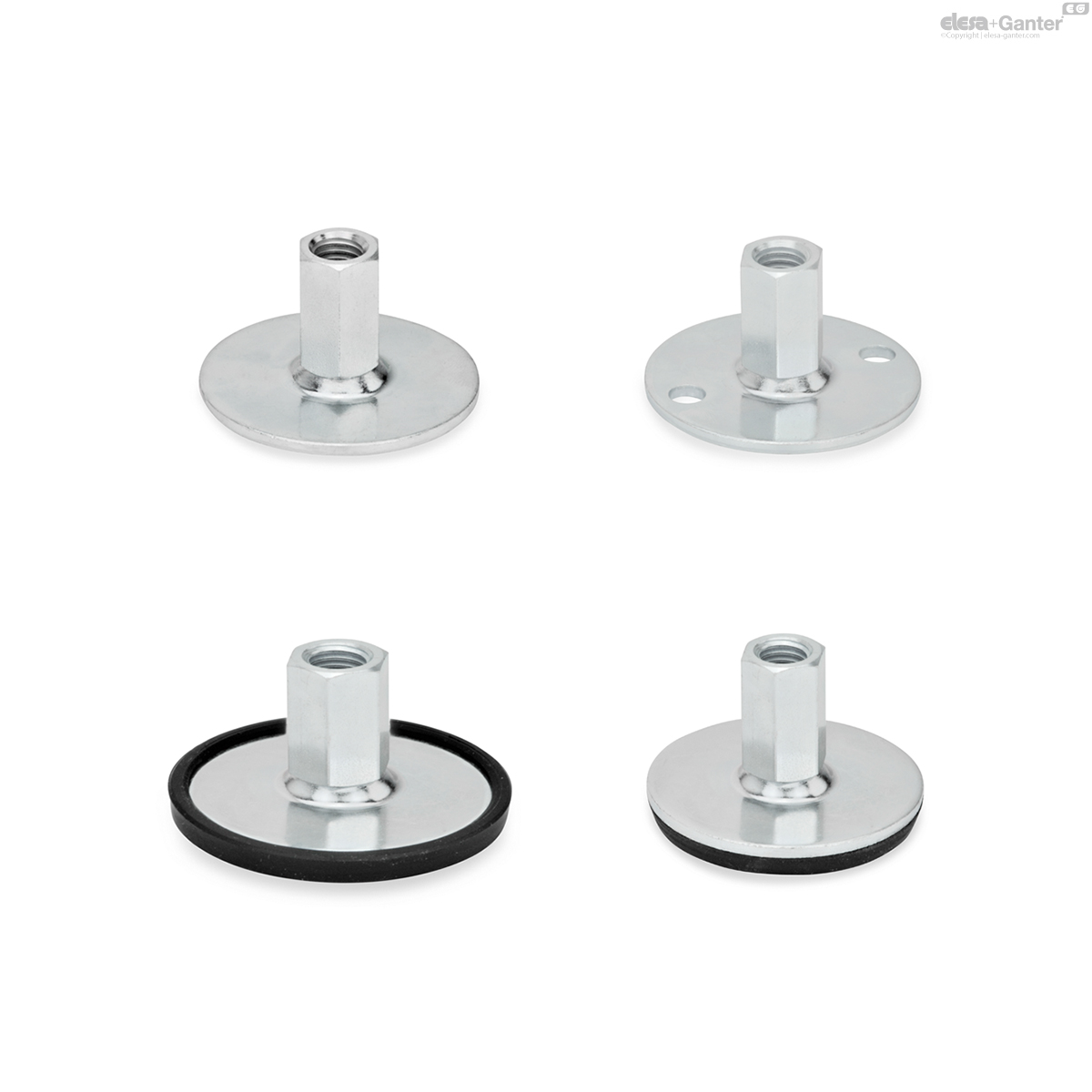

GN 40-X

Leveling Feet

External hex with internal thread

Description

Specification

Types (Base plate)

Type A0: Without rubber pad

Type B0: Without rubber pad, with 2 mounting holes

Type A1: With rubber pad, clipped on, black

Type A3: With rubber pad, vulcanized, black

Version (Screw)

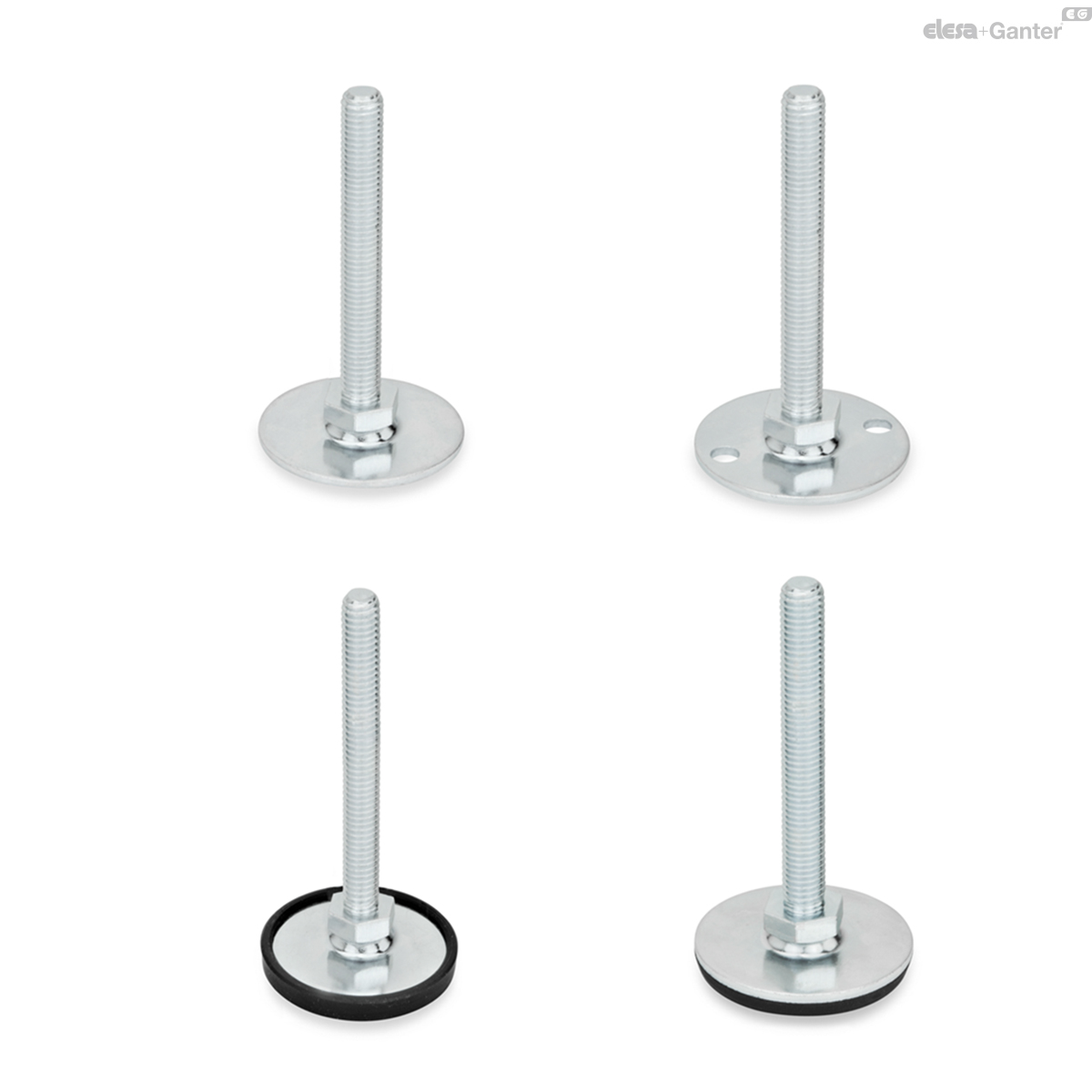

Version S: Without nut, external hex at the bottom

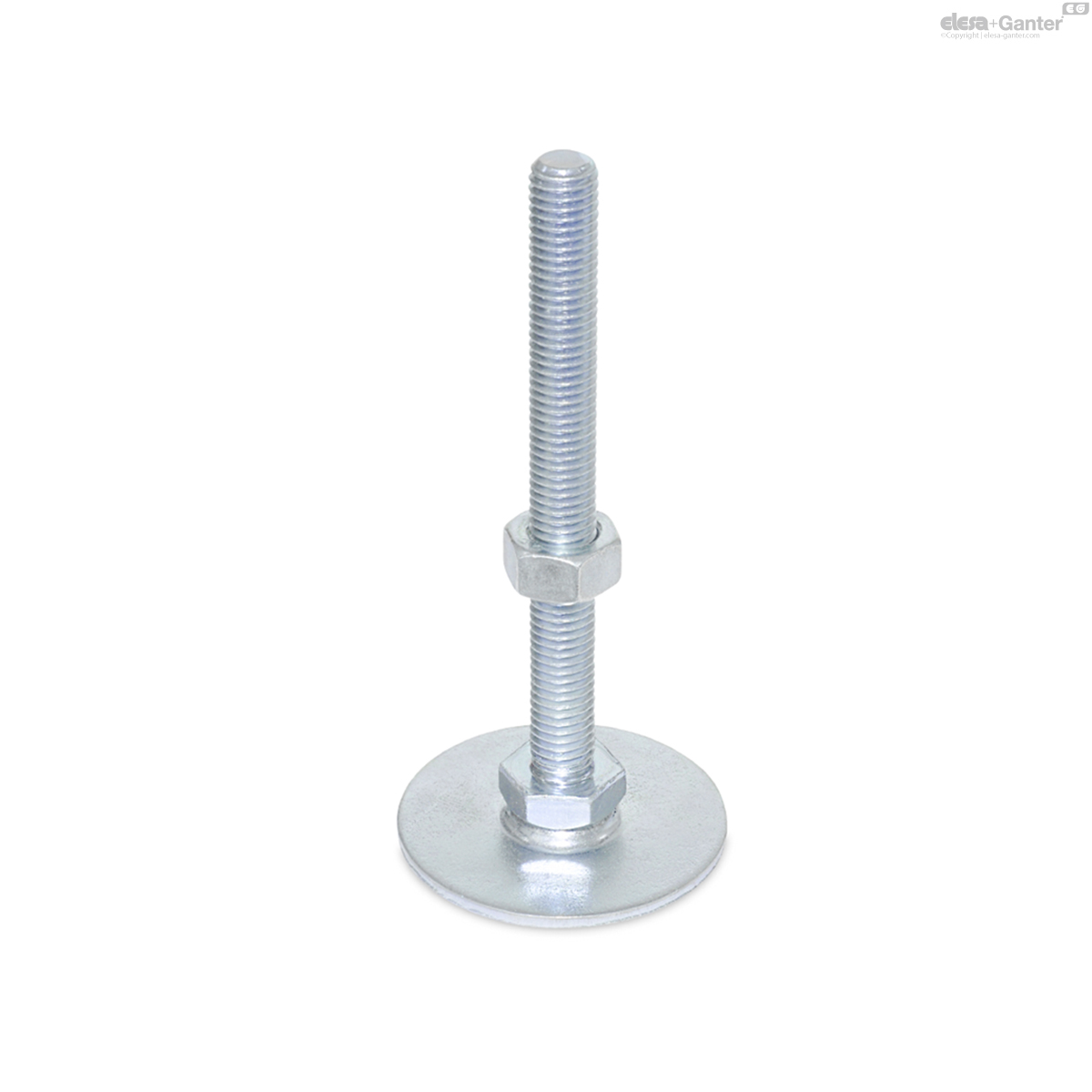

Version SK: With nut, external hex at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Steel, zinc plated, blue passivated

Threaded stem

Steel, zinc plated, blue passivated

Hex nut ISO 4032

Steel, zinc plated, blue passivated

Rubber pad

Clipped on

Black, TPE (Santoprene^®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan^®)

70 ± 5 Shore A

Information

Leveling feet GN 40 can be used in a host of combinations of base plates and adjustable spindle versions.

The base plate with the rubber pad protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.

Technical information

Plastic Characteristics

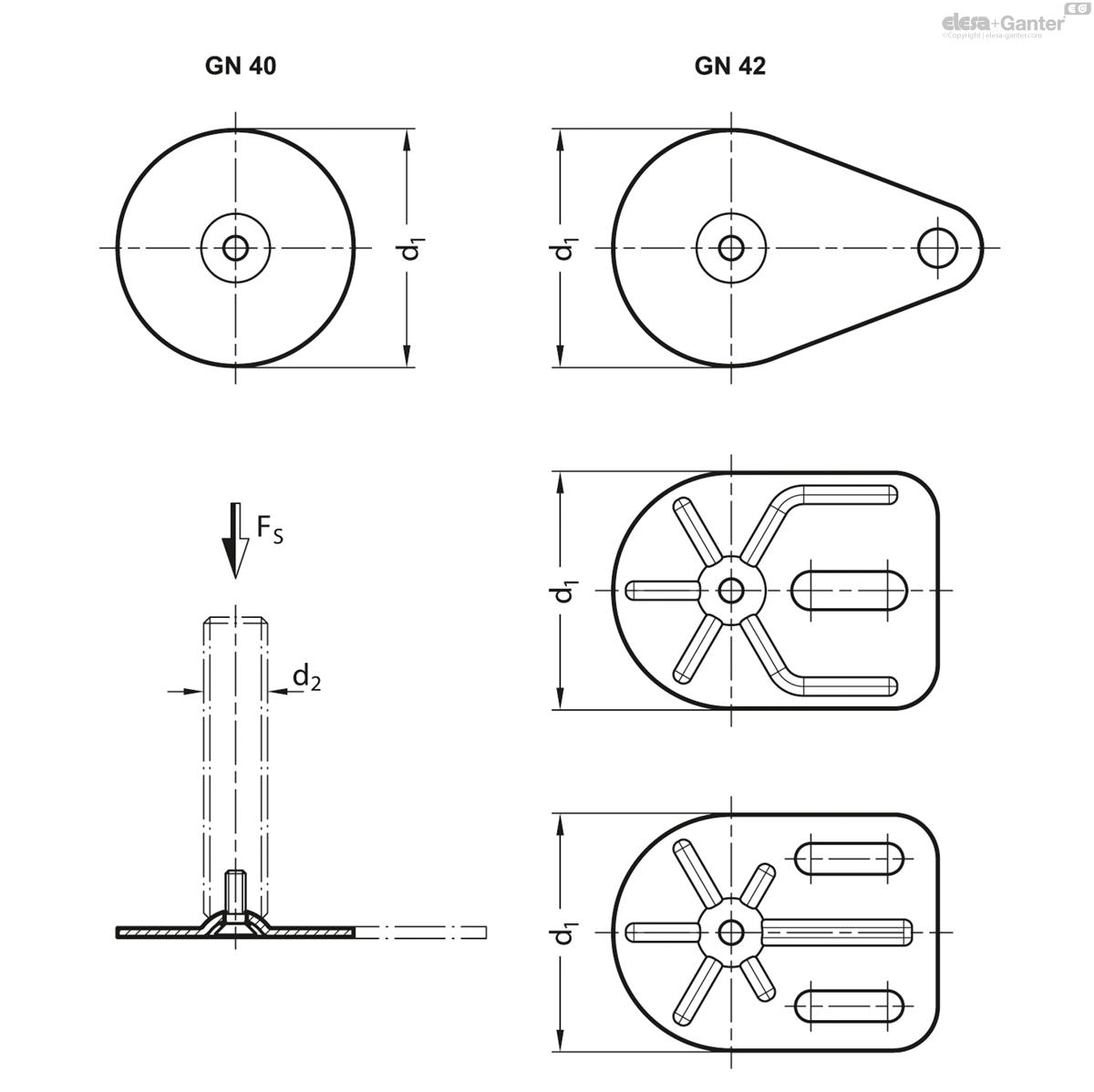

Load Rating of Leveling Feet

d1	-	-	d2	Static load Fs in kN	-	-
GN 40	GN 42	GN 42	-	Versions of threaded stem	-	-
-	Drope shape	Rectangular shape	-	S / SK	U / UK	X
40	-	-	M 8	7	-	7
40	-	-	M 10	7	-	7
40	-	-	M 12	7	-	7
40	-	-	M 16	-	7	7
50	50	-	M 8	8	-	8
50	50	-	M 10	8	-	8
50	50	-	M 12	8	-	8
50	50	-	M 16	-	8	8
60	60	-	M 8	8	-	8
60	60	-	M 10	10	-	10
60	60	-	M 12	10	-	10
60	60	-	M 16	-	10	10
80	80	80	M 8	8	-	8
80	80	80	M 10	10	-	10
80	80	80	M 12	12	-	12
80	80	80	M 16	-	12	12
80	80	80	M 20	-	16	16
80	80	80	M 24	-	16	-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

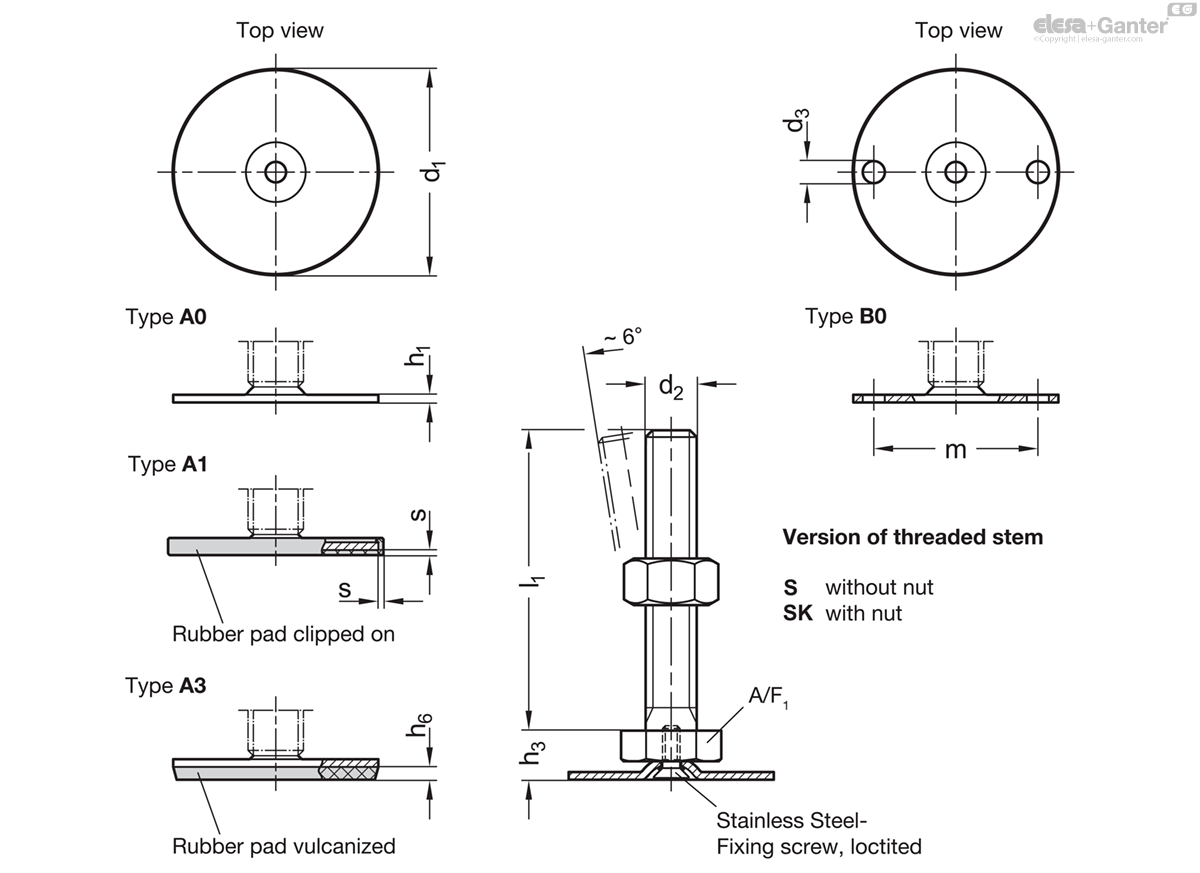

GN 40-S/SK

	Color	d₁	d₂	l₁	d₃	h₁	h₆	m	s	h₃	A/F ₁	Static load Fs in kN
Code														Actions
GN 40-40-M8-40-A0-S	Type S	40	M 8	40	-	2	-	30	-	11	17	7	47
GN 40-40-M8-40-A0-SK	SK	40	M 8	40	-	2	-	30	-	11	17	7	47
GN 40-40-M8-40-A1-S	Type S	40	M 8	40	-	2	-	30	1.5	11	17	7	50
GN 40-40-M8-40-A1-SK	SK	40	M 8	40	-	2	-	30	1.5	11	17	7	50
GN 40-40-M8-40-A3-S	Type S	40	M 8	40	-	2	3.5	30	-	11	17	7	46
GN 40-40-M8-40-A3-SK	SK	40	M 8	40	-	2	3.5	30	-	11	17	7	52
GN 40-40-M8-40-B0-S	Type S	40	M 8	40	5.4	2	-	30	-	11	17	7	43
GN 40-40-M8-40-B0-SK	SK	40	M 8	40	5.4	2	-	30	-	11	17	7	45
GN 40-40-M8-50-A0-S	Type S	40	M 8	50	-	2	-	30	-	11	17	7	51
GN 40-40-M8-50-A0-SK	SK	40	M 8	50	-	2	-	30	-	11	17	7	51
GN 40-40-M8-50-A1-S	Type S	40	M 8	50	-	2	-	30	1.5	11	17	7	53
GN 40-40-M8-50-A1-SK	SK	40	M 8	50	-	2	-	30	1.5	11	17	7	54
GN 40-40-M8-50-A3-S	Type S	40	M 8	50	-	2	3.5	30	-	11	17	7	40
GN 40-40-M8-50-A3-SK	SK	40	M 8	50	-	2	3.5	30	-	11	17	7	54
GN 40-40-M8-50-B0-S	Type S	40	M 8	50	5.4	2	-	30	-	11	17	7	43
GN 40-40-M8-50-B0-SK	SK	40	M 8	50	5.4	2	-	30	-	11	17	7	48
GN 40-40-M8-63-A0-S	Type S	40	M 8	63	-	2	-	30	-	11	17	7	55
GN 40-40-M8-63-A0-SK	SK	40	M 8	63	-	2	-	30	-	11	17	7	55
GN 40-40-M8-63-A1-S	Type S	40	M 8	63	-	2	-	30	1.5	11	17	7	57
GN 40-40-M8-63-A1-SK	SK	40	M 8	63	-	2	-	30	1.5	11	17	7	57
GN 40-40-M8-63-A3-S	Type S	40	M 8	63	-	2	3.5	30	-	11	17	7	53
GN 40-40-M8-63-A3-SK	SK	40	M 8	63	-	2	3.5	30	-	11	17	7	58
GN 40-40-M8-63-B0-S	Type S	40	M 8	63	5.4	2	-	30	-	11	17	7	47
GN 40-40-M8-63-B0-SK	SK	40	M 8	63	5.4	2	-	30	-	11	17	7	52
GN 40-40-M10-50-A0-S	Type S	40	M 10	50	-	2	-	30	-	11	17	7	55
GN 40-40-M10-50-A0-SK	SK	40	M 10	50	-	2	-	30	-	11	17	7	64
GN 40-40-M10-50-A1-S	Type S	40	M 10	50	-	2	-	30	1.5	11	17	7	59
GN 40-40-M10-50-A1-SK	SK	40	M 10	50	-	2	-	30	1.5	11	17	7	67
GN 40-40-M10-50-A3-S	Type S	40	M 10	50	-	2	3.5	30	-	11	17	7	60
GN 40-40-M10-50-A3-SK	SK	40	M 10	50	-	2	3.5	30	-	11	17	7	70
GN 40-40-M10-50-B0-S	Type S	40	M 10	50	5.4	2	-	30	-	11	17	7	73
GN 40-40-M10-50-B0-SK	SK	40	M 10	50	5.4	2	-	30	-	11	17	7	82
GN 40-40-M10-60-A0-S	Type S	40	M 10	60	-	2	-	30	-	11	17	7	60
GN 40-40-M10-60-A0-SK	SK	40	M 10	60	-	2	-	30	-	11	17	7	60
GN 40-40-M10-60-A1-S	Type S	40	M 10	60	-	2	-	30	1.5	11	17	7	60
GN 40-40-M10-60-A1-SK	SK	40	M 10	60	-	2	-	30	1.5	11	17	7	73
GN 40-40-M10-60-A3-S	Type S	40	M 10	60	-	2	3.5	30	-	11	17	7	83
GN 40-40-M10-60-A3-SK	SK	40	M 10	60	-	2	3.5	30	-	11	17	7	73
GN 40-40-M10-60-B0-S	Type S	40	M 10	60	5.4	2	-	30	-	11	17	7	78
GN 40-40-M10-60-B0-SK	SK	40	M 10	60	5.4	2	-	30	-	11	17	7	87
GN 40-40-M10-80-A0-S	Type S	40	M 10	80	-	2	-	30	-	11	17	7	100
GN 40-40-M10-80-A0-SK	SK	40	M 10	80	-	2	-	30	-	11	17	7	90
GN 40-40-M10-80-A1-S	Type S	40	M 10	80	-	2	-	30	1.5	11	17	7	82
GN 40-40-M10-80-A1-SK	SK	40	M 10	80	-	2	-	30	1.5	11	17	7	82
GN 40-40-M10-80-A3-S	Type S	40	M 10	80	-	2	3.5	30	-	11	17	7	70
GN 40-40-M10-80-A3-SK	SK	40	M 10	80	-	2	3.5	30	-	11	17	7	80
GN 40-40-M10-80-B0-S	Type S	40	M 10	80	5.4	2	-	30	-	11	17	7	87
GN 40-40-M10-80-B0-SK	SK	40	M 10	80	5.4	2	-	30	-	11	17	7	96
GN 40-40-M10-100-A0-S	Type S	40	M 10	100	-	2	-	30	-	11	17	7	85
GN 40-40-M10-100-A0-SK	SK	40	M 10	100	-	2	-	30	-	11	17	7	90
GN 40-40-M10-100-A1-S	Type S	40	M 10	100	-	2	-	30	1.5	11	17	7	83
GN 40-40-M10-100-A1-SK	SK	40	M 10	100	-	2	-	30	1.5	11	17	7	90
GN 40-40-M10-100-A3-S	Type S	40	M 10	100	-	2	3.5	30	-	11	17	7	100
GN 40-40-M10-100-A3-SK	SK	40	M 10	100	-	2	3.5	30	-	11	17	7	100
GN 40-40-M10-100-B0-S	Type S	40	M 10	100	5.4	2	-	30	-	11	17	7	80
GN 40-40-M10-100-B0-SK	SK	40	M 10	100	5.4	2	-	30	-	11	17	7	106
GN 40-40-M12-60-A0-S	Type S	40	M 12	60	-	2	-	30	-	11	17	7	90
GN 40-40-M12-60-A0-SK	SK	40	M 12	60	-	2	-	30	-	11	17	7	83
GN 40-40-M12-60-A1-S	Type S	40	M 12	60	-	2	-	30	1.5	11	17	7	70
GN 40-40-M12-60-A1-SK	SK	40	M 12	60	-	2	-	30	1.5	11	17	7	91
GN 40-40-M12-60-A3-S	Type S	40	M 12	60	-	2	3.5	30	-	11	17	7	78
GN 40-40-M12-60-A3-SK	SK	40	M 12	60	-	2	3.5	30	-	11	17	7	90
GN 40-40-M12-60-B0-S	Type S	40	M 12	60	5.4	2	-	30	-	11	17	7	90
GN 40-40-M12-60-B0-SK	SK	40	M 12	60	5.4	2	-	30	-	11	17	7	104
GN 40-40-M12-80-A0-S	Type S	40	M 12	80	-	2	-	30	-	11	17	7	103
GN 40-40-M12-80-A0-SK	SK	40	M 12	80	-	2	-	30	-	11	17	7	103
GN 40-40-M12-80-A1-S	Type S	40	M 12	80	-	2	-	30	1.5	11	17	7	80
GN 40-40-M12-80-A1-SK	SK	40	M 12	80	-	2	-	30	1.5	11	17	7	106
GN 40-40-M12-80-A3-S	Type S	40	M 12	80	-	2	3.5	30	-	11	17	7	110
GN 40-40-M12-80-A3-SK	SK	40	M 12	80	-	2	3.5	30	-	11	17	7	150
GN 40-40-M12-80-B0-S	Type S	40	M 12	80	5.4	2	-	30	-	11	17	7	105
GN 40-40-M12-80-B0-SK	SK	40	M 12	80	5.4	2	-	30	-	11	17	7	109
GN 40-40-M12-100-A0-S	Type S	40	M 12	100	-	2	-	30	-	11	17	7	118
GN 40-40-M12-100-A0-SK	SK	40	M 12	100	-	2	-	30	-	11	17	7	118
GN 40-40-M12-100-A1-S	Type S	40	M 12	100	-	2	-	30	1.5	11	17	7	120
GN 40-40-M12-100-A1-SK	SK	40	M 12	100	-	2	-	30	1.5	11	17	7	120
GN 40-40-M12-100-A3-S	Type S	40	M 12	100	-	2	3.5	30	-	11	17	7	124
GN 40-40-M12-100-A3-SK	SK	40	M 12	100	-	2	3.5	30	-	11	17	7	138
GN 40-40-M12-100-B0-S	Type S	40	M 12	100	5.4	2	-	30	-	11	17	7	119
GN 40-40-M12-100-B0-SK	SK	40	M 12	100	5.4	2	-	30	-	11	17	7	133
GN 40-40-M12-125-A0-S	Type S	40	M 12	125	-	2	-	30	-	11	17	7	120
GN 40-40-M12-125-A0-SK	SK	40	M 12	125	-	2	-	30	-	11	17	7	140
GN 40-40-M12-125-A1-S	Type S	40	M 12	125	-	2	-	30	1.5	11	17	7	140
GN 40-40-M12-125-A1-SK	SK	40	M 12	125	-	2	-	30	1.5	11	17	7	140
GN 40-40-M12-125-A3-S	Type S	40	M 12	125	-	2	3.5	30	-	11	17	7	146
GN 40-40-M12-125-A3-SK	SK	40	M 12	125	-	2	3.5	30	-	11	17	7	140
GN 40-40-M12-125-B0-S	Type S	40	M 12	125	5.4	2	-	30	-	11	17	7	135
GN 40-40-M12-125-B0-SK	SK	40	M 12	125	5.4	2	-	30	-	11	17	7	135
GN 40-50-M8-40-A0-S	Type S	50	M 8	40	-	2.5	-	38	-	11	17	8	648
GN 40-50-M8-40-A0-SK	SK	50	M 8	40	-	2.5	-	38	-	11	17	8	648
GN 40-50-M8-40-A1-S	Type S	50	M 8	40	-	2.5	-	38	2	11	17	8	71
GN 40-50-M8-40-A1-SK	SK	50	M 8	40	-	2.5	-	38	2	11	17	8	71
GN 40-50-M8-40-A3-S	Type S	50	M 8	40	-	2.5	4	38	-	11	17	8	69
GN 40-50-M8-40-A3-SK	SK	50	M 8	40	-	2.5	4	38	-	11	17	8	71
GN 40-50-M8-40-B0-S	Type S	50	M 8	40	6.6	2.5	-	38	-	11	17	8	58
GN 40-50-M8-40-B0-SK	SK	50	M 8	40	6.6	2.5	-	38	-	11	17	8	63
GN 40-50-M8-50-A0-S	Type S	50	M 8	50	-	2.5	-	38	-	11	17	8	69
GN 40-50-M8-50-A0-SK	SK	50	M 8	50	-	2.5	-	38	-	11	17	8	69
GN 40-50-M8-50-A1-S	Type S	50	M 8	50	-	2.5	-	38	2	11	17	8	72
GN 40-50-M8-50-A1-SK	SK	50	M 8	50	-	2.5	-	38	2	11	17	8	72
GN 40-50-M8-50-A3-S	Type S	50	M 8	50	-	2.5	4	38	-	11	17	8	70
GN 40-50-M8-50-A3-SK	SK	50	M 8	50	-	2.5	4	38	-	11	17	8	75
GN 40-50-M8-50-B0-S	Type S	50	M 8	50	6.6	2.5	-	38	-	11	17	8	61
GN 40-50-M8-50-B0-SK	SK	50	M 8	50	6.6	2.5	-	38	-	11	17	8	66
GN 40-50-M8-63-A0-S	Type S	50	M 8	63	-	2.5	-	38	-	11	17	8	73
GN 40-50-M8-63-A0-SK	SK	50	M 8	63	-	2.5	-	38	-	11	17	8	72
GN 40-50-M8-63-A1-S	Type S	50	M 8	63	-	2.5	-	38	2	11	17	8	80
GN 40-50-M8-63-A1-SK	SK	50	M 8	63	-	2.5	-	38	2	11	17	8	79
GN 40-50-M8-63-A3-S	Type S	50	M 8	63	-	2.5	4	38	-	11	17	8	74
GN 40-50-M8-63-A3-SK	SK	50	M 8	63	-	2.5	4	38	-	11	17	8	82
GN 40-50-M8-63-B0-S	Type S	50	M 8	63	6.6	2.5	-	38	-	11	17	8	65
GN 40-50-M8-63-B0-SK	SK	50	M 8	63	6.6	2.5	-	38	-	11	17	8	70
GN 40-50-M10-50-A0-S	Type S	50	M 10	50	-	2.5	-	38	-	11	17	8	83
GN 40-50-M10-50-A0-SK	SK	50	M 10	50	-	2.5	-	38	-	11	17	8	82
GN 40-50-M10-50-A1-S	Type S	50	M 10	50	-	2.5	-	38	2	11	17	8	89
GN 40-50-M10-50-A1-SK	SK	50	M 10	50	-	2.5	-	38	2	11	17	8	89
GN 40-50-M10-50-A3-S	Type S	50	M 10	50	-	2.5	4	38	-	11	17	8	88
GN 40-50-M10-50-A3-SK	SK	50	M 10	50	-	2.5	4	38	-	11	17	8	92
GN 40-50-M10-50-B0-S	Type S	50	M 10	50	6.6	2.5	-	38	-	11	17	8	91
GN 40-50-M10-50-B0-SK	SK	50	M 10	50	6.6	2.5	-	38	-	11	17	8	84
GN 40-50-M10-60-A0-S	Type S	50	M 10	60	-	2.5	-	38	-	11	17	8	80
GN 40-50-M10-60-A0-SK	SK	50	M 10	60	-	2.5	-	38	-	11	17	8	88
GN 40-50-M10-60-A1-S	Type S	50	M 10	60	-	2.5	-	38	2	11	17	8	80
GN 40-50-M10-60-A1-SK	SK	50	M 10	60	-	2.5	-	38	2	11	17	8	80
GN 40-50-M10-60-A3-S	Type S	50	M 10	60	-	2.5	4	38	-	11	17	8	105
GN 40-50-M10-60-A3-SK	SK	50	M 10	60	-	2.5	4	38	-	11	17	8	100
GN 40-50-M10-60-B0-S	Type S	50	M 10	60	6.6	2.5	-	38	-	11	17	8	96
GN 40-50-M10-60-B0-SK	SK	50	M 10	60	6.6	2.5	-	38	-	11	17	8	105
GN 40-50-M10-80-A0-S	Type S	50	M 10	80	-	2.5	-	38	-	11	17	8	98
GN 40-50-M10-80-A0-SK	SK	50	M 10	80	-	2.5	-	38	-	11	17	8	98
GN 40-50-M10-80-A1-S	Type S	50	M 10	80	-	2.5	-	38	2	11	17	8	103
GN 40-50-M10-80-A1-SK	SK	50	M 10	80	-	2.5	-	38	2	11	17	8	103
GN 40-50-M10-80-A3-S	Type S	50	M 10	80	-	2.5	4	38	-	11	17	8	100
GN 40-50-M10-80-A3-SK	SK	50	M 10	80	-	2.5	4	38	-	11	17	8	107
GN 40-50-M10-80-B0-S	Type S	50	M 10	80	6.6	2.5	-	38	-	11	17	8	80
GN 40-50-M10-80-B0-SK	SK	50	M 10	80	6.6	2.5	-	38	-	11	17	8	114
GN 40-50-M10-100-A0-S	Type S	50	M 10	100	-	2.5	-	38	-	11	17	8	108
GN 40-50-M10-100-A0-SK	SK	50	M 10	100	-	2.5	-	38	-	11	17	8	108
GN 40-50-M10-100-A1-S	Type S	50	M 10	100	-	2.5	-	38	2	11	17	8	100
GN 40-50-M10-100-A1-SK	SK	50	M 10	100	-	2.5	-	38	2	11	17	8	100
GN 40-50-M10-100-A3-S	Type S	50	M 10	100	-	2.5	4	38	-	11	17	8	100
GN 40-50-M10-100-A3-SK	SK	50	M 10	100	-	2.5	4	38	-	11	17	8	133
GN 40-50-M10-100-B0-S	Type S	50	M 10	100	6.6	2.5	-	38	-	11	17	8	115
GN 40-50-M10-100-B0-SK	SK	50	M 10	100	6.6	2.5	-	38	-	11	17	8	124
GN 40-50-M12-60-A0-S	Type S	50	M 12	60	-	2.5	-	38	-	11	17	8	106
GN 40-50-M12-60-A0-SK	SK	50	M 12	60	-	2.5	-	38	-	11	17	8	106
GN 40-50-M12-60-A1-S	Type S	50	M 12	60	-	2.5	-	38	2	11	17	8	90
GN 40-50-M12-60-A1-SK	SK	50	M 12	60	-	2.5	-	38	2	11	17	8	112
GN 40-50-M12-60-A3-S	Type S	50	M 12	60	-	2.5	4	38	-	11	17	8	220
GN 40-50-M12-60-A3-SK	SK	50	M 12	60	-	2.5	4	38	-	11	17	8	115
GN 40-50-M12-60-B0-S	Type S	50	M 12	60	6.6	2.5	-	38	-	11	17	8	108
GN 40-50-M12-60-B0-SK	SK	50	M 12	60	6.6	2.5	-	38	-	11	17	8	100
GN 40-50-M12-80-A0-S	Type S	50	M 12	80	-	2.5	-	38	-	11	17	8	119
GN 40-50-M12-80-A0-SK	SK	50	M 12	80	-	2.5	-	38	-	11	17	8	119
GN 40-50-M12-80-A1-S	Type S	50	M 12	80	-	2.5	-	38	2	11	17	8	120
GN 40-50-M12-80-A1-SK	SK	50	M 12	80	-	2.5	-	38	2	11	17	8	120
GN 40-50-M12-80-A3-S	Type S	50	M 12	80	-	2.5	4	38	-	11	17	8	132
GN 40-50-M12-80-A3-SK	SK	50	M 12	80	-	2.5	4	38	-	11	17	8	159
GN 40-50-M12-80-B0-S	Type S	50	M 12	80	6.6	2.5	-	38	-	11	17	8	123
GN 40-50-M12-80-B0-SK	SK	50	M 12	80	6.6	2.5	-	38	-	11	17	8	137
GN 40-50-M12-100-A0-S	Type S	50	M 12	100	-	2.5	-	38	-	11	17	8	137
GN 40-50-M12-100-A0-SK	SK	50	M 12	100	-	2.5	-	38	-	11	17	8	137
GN 40-50-M12-100-A1-S	Type S	50	M 12	100	-	2.5	-	38	2	11	17	8	130
GN 40-50-M12-100-A1-SK	SK	50	M 12	100	-	2.5	-	38	2	11	17	8	140
GN 40-50-M12-100-A3-S	Type S	50	M 12	100	-	2.5	4	38	-	11	17	8	146
GN 40-50-M12-100-A3-SK	SK	50	M 12	100	-	2.5	4	38	-	11	17	8	160
GN 40-50-M12-100-B0-S	Type S	50	M 12	100	6.6	2.5	-	38	-	11	17	8	137
GN 40-50-M12-100-B0-SK	SK	50	M 12	100	6.6	2.5	-	38	-	11	17	8	151
GN 40-50-M12-125-A0-S	Type S	50	M 12	125	-	2.5	-	38	-	11	17	8	140
GN 40-50-M12-125-A0-SK	SK	50	M 12	125	-	2.5	-	38	-	11	17	8	153
GN 40-50-M12-125-A1-S	Type S	50	M 12	125	-	2.5	-	38	2	11	17	8	140
GN 40-50-M12-125-A1-SK	SK	50	M 12	125	-	2.5	-	38	2	11	17	8	160
GN 40-50-M12-125-A3-S	Type S	50	M 12	125	-	2.5	4	38	-	11	17	8	110
GN 40-50-M12-125-A3-SK	SK	50	M 12	125	-	2.5	4	38	-	11	17	8	160
GN 40-50-M12-125-B0-S	Type S	50	M 12	125	6.6	2.5	-	38	-	11	17	8	140
GN 40-50-M12-125-B0-SK	SK	50	M 12	125	6.6	2.5	-	38	-	11	17	8	160
GN 40-60-M8-40-A0-S	Type S	60	M 8	40	-	2.5	-	48	-	11	17	8	85
GN 40-60-M8-40-A0-SK	SK	60	M 8	40	-	2.5	-	48	-	11	17	8	84
GN 40-60-M8-40-A1-S	Type S	60	M 8	40	-	2.5	-	48	2	11	17	8	91
GN 40-60-M8-40-A1-SK	SK	60	M 8	40	-	2.5	-	48	2	11	17	8	91
GN 40-60-M8-40-A3-S	Type S	60	M 8	40	-	2.5	4.5	48	-	11	17	8	90
GN 40-60-M8-40-A3-SK	SK	60	M 8	40	-	2.5	4.5	48	-	11	17	8	140
GN 40-60-M8-40-B0-S	Type S	60	M 8	40	6.6	2.5	-	48	-	11	17	8	75
GN 40-60-M8-40-B0-SK	SK	60	M 8	40	6.6	2.5	-	48	-	11	17	8	80
GN 40-60-M8-50-A0-S	Type S	60	M 8	50	-	2.5	-	48	-	11	17	8	863
GN 40-60-M8-50-A0-SK	SK	60	M 8	50	-	2.5	-	48	-	11	17	8	863
GN 40-60-M8-50-A1-S	Type S	60	M 8	50	-	2.5	-	48	2	11	17	8	95
GN 40-60-M8-50-A1-SK	SK	60	M 8	50	-	2.5	-	48	2	11	17	8	95
GN 40-60-M8-50-A3-S	Type S	60	M 8	50	-	2.5	4.5	48	-	11	17	8	93
GN 40-60-M8-50-A3-SK	SK	60	M 8	50	-	2.5	4.5	48	-	11	17	8	98
GN 40-60-M8-50-B0-S	Type S	60	M 8	50	6.6	2.5	-	48	-	11	17	8	78
GN 40-60-M8-50-B0-SK	SK	60	M 8	50	6.6	2.5	-	48	-	11	17	8	83
GN 40-60-M8-63-A0-S	Type S	60	M 8	63	-	2.5	-	48	-	11	17	8	80
GN 40-60-M8-63-A0-SK	SK	60	M 8	63	-	2.5	-	48	-	11	17	8	100
GN 40-60-M8-63-A1-S	Type S	60	M 8	63	-	2.5	-	48	2	11	17	8	96
GN 40-60-M8-63-A1-SK	SK	60	M 8	63	-	2.5	-	48	2	11	17	8	100
GN 40-60-M8-63-A3-S	Type S	60	M 8	63	-	2.5	4.5	48	-	11	17	8	100
GN 40-60-M8-63-A3-SK	SK	60	M 8	63	-	2.5	4.5	48	-	11	17	8	102
GN 40-60-M8-63-B0-S	Type S	60	M 8	63	6.6	2.5	-	48	-	11	17	8	82
GN 40-60-M8-63-B0-SK	SK	60	M 8	63	6.6	2.5	-	48	-	11	17	8	87
GN 40-60-M10-50-A0-S	Type S	60	M 10	50	-	2.5	-	48	-	11	17	10	100
GN 40-60-M10-50-A0-SK	SK	60	M 10	50	-	2.5	-	48	-	11	17	10	100
GN 40-60-M10-50-A1-S	Type S	60	M 10	50	-	2.5	-	48	2	11	17	10	108
GN 40-60-M10-50-A1-SK	SK	60	M 10	50	-	2.5	-	48	2	11	17	10	108
GN 40-60-M10-50-A3-S	Type S	60	M 10	50	-	2.5	4.5	48	-	11	17	10	110
GN 40-60-M10-50-A3-SK	SK	60	M 10	50	-	2.5	4.5	48	-	11	17	10	119
GN 40-60-M10-50-B0-S	Type S	60	M 10	50	6.6	2.5	-	48	-	11	17	10	108
GN 40-60-M10-50-B0-SK	SK	60	M 10	50	6.6	2.5	-	48	-	11	17	10	117
GN 40-60-M10-60-A0-S	Type S	60	M 10	60	-	2.5	-	48	-	11	17	10	104
GN 40-60-M10-60-A0-SK	SK	60	M 10	60	-	2.5	-	48	-	11	17	10	104
GN 40-60-M10-60-A1-S	Type S	60	M 10	60	-	2.5	-	48	2	11	17	10	100
GN 40-60-M10-60-A1-SK	SK	60	M 10	60	-	2.5	-	48	2	11	17	10	100
GN 40-60-M10-60-A3-S	Type S	60	M 10	60	-	2.5	4.5	48	-	11	17	10	127
GN 40-60-M10-60-A3-SK	SK	60	M 10	60	-	2.5	4.5	48	-	11	17	10	125
GN 40-60-M10-60-B0-S	Type S	60	M 10	60	6.6	2.5	-	48	-	11	17	10	113
GN 40-60-M10-60-B0-SK	SK	60	M 10	60	6.6	2.5	-	48	-	11	17	10	122
GN 40-60-M10-80-A0-S	Type S	60	M 10	80	-	2.5	-	48	-	11	17	10	114
GN 40-60-M10-80-A0-SK	SK	60	M 10	80	-	2.5	-	48	-	11	17	10	115
GN 40-60-M10-80-A1-S	Type S	60	M 10	80	-	2.5	-	48	2	11	17	10	120
GN 40-60-M10-80-A1-SK	SK	60	M 10	80	-	2.5	-	48	2	11	17	10	120
GN 40-60-M10-80-A3-S	Type S	60	M 10	80	-	2.5	4.5	48	-	11	17	10	136
GN 40-60-M10-80-A3-SK	SK	60	M 10	80	-	2.5	4.5	48	-	11	17	10	145
GN 40-60-M10-80-B0-S	Type S	60	M 10	80	6.6	2.5	-	48	-	11	17	10	122
GN 40-60-M10-80-B0-SK	SK	60	M 10	80	6.6	2.5	-	48	-	11	17	10	131
GN 40-60-M10-100-A0-S	Type S	60	M 10	100	-	2.5	-	48	-	11	17	10	126
GN 40-60-M10-100-A0-SK	SK	60	M 10	100	-	2.5	-	48	-	11	17	10	125
GN 40-60-M10-100-A1-S	Type S	60	M 10	100	-	2.5	-	48	2	11	17	10	120
GN 40-60-M10-100-A1-SK	SK	60	M 10	100	-	2.5	-	48	2	11	17	10	120
GN 40-60-M10-100-A3-S	Type S	60	M 10	100	-	2.5	4.5	48	-	11	17	10	146
GN 40-60-M10-100-A3-SK	SK	60	M 10	100	-	2.5	4.5	48	-	11	17	10	140
GN 40-60-M10-100-B0-S	Type S	60	M 10	100	6.6	2.5	-	48	-	11	17	10	132
GN 40-60-M10-100-B0-SK	SK	60	M 10	100	6.6	2.5	-	48	-	11	17	10	141
GN 40-60-M12-60-A0-S	Type S	60	M 12	60	-	2.5	-	48	-	11	17	10	121
GN 40-60-M12-60-A0-SK	SK	60	M 12	60	-	2.5	-	48	-	11	17	10	121
GN 40-60-M12-60-A1-S	Type S	60	M 12	60	-	2.5	-	48	2	11	17	10	120
GN 40-60-M12-60-A1-SK	SK	60	M 12	60	-	2.5	-	48	2	11	17	10	120
GN 40-60-M12-60-A3-S	Type S	60	M 12	60	-	2.5	4.5	48	-	11	17	10	139
GN 40-60-M12-60-A3-SK	SK	60	M 12	60	-	2.5	4.5	48	-	11	17	10	150
GN 40-60-M12-60-B0-S	Type S	60	M 12	60	6.6	2.5	-	48	-	11	17	10	125
GN 40-60-M12-60-B0-SK	SK	60	M 12	60	6.6	2.5	-	48	-	11	17	10	139
GN 40-60-M12-80-A0-S	Type S	60	M 12	80	-	2.5	-	48	-	11	17	10	136
GN 40-60-M12-80-A0-SK	SK	60	M 12	80	-	2.5	-	48	-	11	17	10	136
GN 40-60-M12-80-A1-S	Type S	60	M 12	80	-	2.5	-	48	2	11	17	10	140
GN 40-60-M12-80-A1-SK	SK	60	M 12	80	-	2.5	-	48	2	11	17	10	150
GN 40-60-M12-80-A3-S	Type S	60	M 12	80	-	2.5	4.5	48	-	11	17	10	138
GN 40-60-M12-80-A3-SK	SK	60	M 12	80	-	2.5	4.5	48	-	11	17	10	152
GN 40-60-M12-80-B0-S	Type S	60	M 12	80	6.6	2.5	-	48	-	11	17	10	140
GN 40-60-M12-80-B0-SK	SK	60	M 12	80	6.6	2.5	-	48	-	11	17	10	154
GN 40-60-M12-100-A0-S	Type S	60	M 12	100	-	2.5	-	48	-	11	17	10	151
GN 40-60-M12-100-A0-SK	SK	60	M 12	100	-	2.5	-	48	-	11	17	10	151
GN 40-60-M12-100-A1-S	Type S	60	M 12	100	-	2.5	-	48	2	11	17	10	140
GN 40-60-M12-100-A1-SK	SK	60	M 12	100	-	2.5	-	48	2	11	17	10	150
GN 40-60-M12-100-A3-S	Type S	60	M 12	100	-	2.5	4.5	48	-	11	17	10	168
GN 40-60-M12-100-A3-SK	SK	60	M 12	100	-	2.5	4.5	48	-	11	17	10	160
GN 40-60-M12-100-B0-S	Type S	60	M 12	100	6.6	2.5	-	48	-	11	17	10	154
GN 40-60-M12-100-B0-SK	SK	60	M 12	100	6.6	2.5	-	48	-	11	17	10	150
GN 40-60-M12-125-A0-S	Type S	60	M 12	125	-	2.5	-	48	-	11	17	10	167
GN 40-60-M12-125-A0-SK	SK	60	M 12	125	-	2.5	-	48	-	11	17	10	167
GN 40-60-M12-125-A1-S	Type S	60	M 12	125	-	2.5	-	48	2	11	17	10	180
GN 40-60-M12-125-A1-SK	SK	60	M 12	125	-	2.5	-	48	2	11	17	10	180
GN 40-60-M12-125-A3-S	Type S	60	M 12	125	-	2.5	4.5	48	-	11	17	10	171
GN 40-60-M12-125-A3-SK	SK	60	M 12	125	-	2.5	4.5	48	-	11	17	10	204
GN 40-60-M12-125-B0-S	Type S	60	M 12	125	6.6	2.5	-	48	-	11	17	10	176
GN 40-60-M12-125-B0-SK	SK	60	M 12	125	6.6	2.5	-	48	-	11	17	10	190
GN 40-80-M8-40-A0-S	Type S	80	M 8	40	-	3	-	64	-	12	17	8	170
GN 40-80-M8-40-A0-SK	SK	80	M 8	40	-	3	-	64	-	12	17	8	145
GN 40-80-M8-40-A1-S	Type S	80	M 8	40	-	3	-	64	2	12	17	8	160
GN 40-80-M8-40-A1-SK	SK	80	M 8	40	-	3	-	64	2	12	17	8	160
GN 40-80-M8-40-A3-S	Type S	80	M 8	40	-	3	5	64	-	12	17	8	167
GN 40-80-M8-40-A3-SK	SK	80	M 8	40	-	3	5	64	-	12	17	8	172
GN 40-80-M8-40-B0-S	Type S	80	M 8	40	8.6	3	-	64	-	12	17	8	136
GN 40-80-M8-40-B0-SK	SK	80	M 8	40	8.6	3	-	64	-	12	17	8	141
GN 40-80-M8-50-A0-S	Type S	80	M 8	50	-	3	-	64	-	12	17	8	125
GN 40-80-M8-50-A0-SK	SK	80	M 8	50	-	3	-	64	-	12	17	8	60
GN 40-80-M8-50-A1-S	Type S	80	M 8	50	-	3	-	64	2	12	17	8	160
GN 40-80-M8-50-A1-SK	SK	80	M 8	50	-	3	-	64	2	12	17	8	160
GN 40-80-M8-50-A3-S	Type S	80	M 8	50	-	3	5	64	-	12	17	8	170
GN 40-80-M8-50-A3-SK	SK	80	M 8	50	-	3	5	64	-	12	17	8	175
GN 40-80-M8-50-B0-S	Type S	80	M 8	50	8.6	3	-	64	-	12	17	8	139
GN 40-80-M8-50-B0-SK	SK	80	M 8	50	8.6	3	-	64	-	12	17	8	144
GN 40-80-M8-63-A0-S	Type S	80	M 8	63	-	3	-	64	-	12	17	8	160
GN 40-80-M8-63-A0-SK	SK	80	M 8	63	-	3	-	64	-	12	17	8	151
GN 40-80-M8-63-A1-S	Type S	80	M 8	63	-	3	-	64	2	12	17	8	160
GN 40-80-M8-63-A1-SK	SK	80	M 8	63	-	3	-	64	2	12	17	8	160
GN 40-80-M8-63-A3-S	Type S	80	M 8	63	-	3	5	64	-	12	17	8	174
GN 40-80-M8-63-A3-SK	SK	80	M 8	63	-	3	5	64	-	12	17	8	180
GN 40-80-M8-63-B0-S	Type S	80	M 8	63	8.6	3	-	64	-	12	17	8	143
GN 40-80-M8-63-B0-SK	SK	80	M 8	63	8.6	3	-	64	-	12	17	8	148
GN 40-80-M10-50-A0-S	Type S	80	M 10	50	-	3	-	64	-	12	17	10	166
GN 40-80-M10-50-A0-SK	SK	80	M 10	50	-	3	-	64	-	12	17	10	166
GN 40-80-M10-50-A1-S	Type S	80	M 10	50	-	3	-	64	2	12	17	10	170
GN 40-80-M10-50-A1-SK	SK	80	M 10	50	-	3	-	64	2	12	17	10	180
GN 40-80-M10-50-A3-S	Type S	80	M 10	50	-	3	5	64	-	12	17	10	190
GN 40-80-M10-50-A3-SK	SK	80	M 10	50	-	3	5	64	-	12	17	10	150
GN 40-80-M10-50-B0-S	Type S	80	M 10	50	8.6	3	-	64	-	12	17	10	169
GN 40-80-M10-50-B0-SK	SK	80	M 10	50	8.6	3	-	64	-	12	17	10	178
GN 40-80-M10-60-A0-S	Type S	80	M 10	60	-	3	-	64	-	12	17	10	180
GN 40-80-M10-60-A0-SK	SK	80	M 10	60	-	3	-	64	-	12	17	10	180
GN 40-80-M10-60-A1-S	Type S	80	M 10	60	-	3	-	64	2	12	17	10	180
GN 40-80-M10-60-A1-SK	SK	80	M 10	60	-	3	-	64	2	12	17	10	180
GN 40-80-M10-60-A3-S	Type S	80	M 10	60	-	3	5	64	-	12	17	10	205
GN 40-80-M10-60-A3-SK	SK	80	M 10	60	-	3	5	64	-	12	17	10	214
GN 40-80-M10-60-B0-S	Type S	80	M 10	60	8.6	3	-	64	-	12	17	10	173
GN 40-80-M10-60-B0-SK	SK	80	M 10	60	8.6	3	-	64	-	12	17	10	182
GN 40-80-M10-80-A0-S	Type S	80	M 10	80	-	3	-	64	-	12	17	10	180
GN 40-80-M10-80-A0-SK	SK	80	M 10	80	-	3	-	64	-	12	17	10	181
GN 40-80-M10-80-A1-S	Type S	80	M 10	80	-	3	-	64	2	12	17	10	200
GN 40-80-M10-80-A1-SK	SK	80	M 10	80	-	3	-	64	2	12	17	10	180
GN 40-80-M10-80-A3-S	Type S	80	M 10	80	-	3	5	64	-	12	17	10	214
GN 40-80-M10-80-A3-SK	SK	80	M 10	80	-	3	5	64	-	12	17	10	223
GN 40-80-M10-80-B0-S	Type S	80	M 10	80	8.6	3	-	64	-	12	17	10	183
GN 40-80-M10-80-B0-SK	SK	80	M 10	80	8.6	3	-	64	-	12	17	10	192
GN 40-80-M10-100-A0-S	Type S	80	M 10	100	-	3	-	64	-	12	17	10	189
GN 40-80-M10-100-A0-SK	SK	80	M 10	100	-	3	-	64	-	12	17	10	187
GN 40-80-M10-100-A1-S	Type S	80	M 10	100	-	3	-	64	2	12	17	10	200
GN 40-80-M10-100-A1-SK	SK	80	M 10	100	-	3	-	64	2	12	17	10	200
GN 40-80-M10-100-A3-S	Type S	80	M 10	100	-	3	5	64	-	12	17	10	224
GN 40-80-M10-100-A3-SK	SK	80	M 10	100	-	3	5	64	-	12	17	10	220
GN 40-80-M10-100-B0-S	Type S	80	M 10	100	8.6	3	-	64	-	12	17	10	193
GN 40-80-M10-100-B0-SK	SK	80	M 10	100	8.6	3	-	64	-	12	17	10	167
GN 40-80-M12-60-A0-S	Type S	80	M 12	60	-	3	-	64	-	12	17	12	180
GN 40-80-M12-60-A0-SK	SK	80	M 12	60	-	3	-	64	-	12	17	12	187
GN 40-80-M12-60-A1-S	Type S	80	M 12	60	-	3	-	64	2	12	17	12	205
GN 40-80-M12-60-A1-SK	SK	80	M 12	60	-	3	-	64	2	12	17	12	205
GN 40-80-M12-60-A3-S	Type S	80	M 12	60	-	3	5	64	-	12	17	12	203
GN 40-80-M12-60-A3-SK	SK	80	M 12	60	-	3	5	64	-	12	17	12	200
GN 40-80-M12-60-B0-S	Type S	80	M 12	60	8.6	3	-	64	-	12	17	12	186
GN 40-80-M12-60-B0-SK	SK	80	M 12	60	8.6	3	-	64	-	12	17	12	200
GN 40-80-M12-80-A0-S	Type S	80	M 12	80	-	3	-	64	-	12	17	12	201
GN 40-80-M12-80-A0-SK	SK	80	M 12	80	-	3	-	64	-	12	17	12	201
GN 40-80-M12-80-A1-S	Type S	80	M 12	80	-	3	-	64	2	12	17	12	200
GN 40-80-M12-80-A1-SK	SK	80	M 12	80	-	3	-	64	2	12	17	12	200
GN 40-80-M12-80-A3-S	Type S	80	M 12	80	-	3	5	64	-	12	17	12	232
GN 40-80-M12-80-A3-SK	SK	80	M 12	80	-	3	5	64	-	12	17	12	400
GN 40-80-M12-80-B0-S	Type S	80	M 12	80	8.6	3	-	64	-	12	17	12	201
GN 40-80-M12-80-B0-SK	SK	80	M 12	80	8.6	3	-	64	-	12	17	12	200
GN 40-80-M12-100-A0-S	Type S	80	M 12	100	-	3	-	64	-	12	17	12	216
GN 40-80-M12-100-A0-SK	SK	80	M 12	100	-	3	-	64	-	12	17	12	215
GN 40-80-M12-100-A1-S	Type S	80	M 12	100	-	3	-	64	2	12	17	12	230
GN 40-80-M12-100-A1-SK	SK	80	M 12	100	-	3	-	64	2	12	17	12	230
GN 40-80-M12-100-A3-S	Type S	80	M 12	100	-	3	5	64	-	12	17	12	246
GN 40-80-M12-100-A3-SK	SK	80	M 12	100	-	3	5	64	-	12	17	12	260
GN 40-80-M12-100-B0-S	Type S	80	M 12	100	8.6	3	-	64	-	12	17	12	215
GN 40-80-M12-100-B0-SK	SK	80	M 12	100	8.6	3	-	64	-	12	17	12	229
GN 40-80-M12-125-A0-S	Type S	80	M 12	125	-	3	-	64	-	12	17	12	233
GN 40-80-M12-125-A0-SK	SK	80	M 12	125	-	3	-	64	-	12	17	12	233
GN 40-80-M12-125-A1-S	Type S	80	M 12	125	-	3	-	64	2	12	17	12	236
GN 40-80-M12-125-A1-SK	SK	80	M 12	125	-	3	-	64	2	12	17	12	240
GN 40-80-M12-125-A3-S	Type S	80	M 12	125	-	3	5	64	-	12	17	12	268
GN 40-80-M12-125-A3-SK	SK	80	M 12	125	-	3	5	64	-	12	17	12	282
GN 40-80-M12-125-B0-S	Type S	80	M 12	125	8.6	3	-	64	-	12	17	12	245
GN 40-80-M12-125-B0-SK	SK	80	M 12	125	8.6	3	-	64	-	12	17	12	240

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
