GN 391

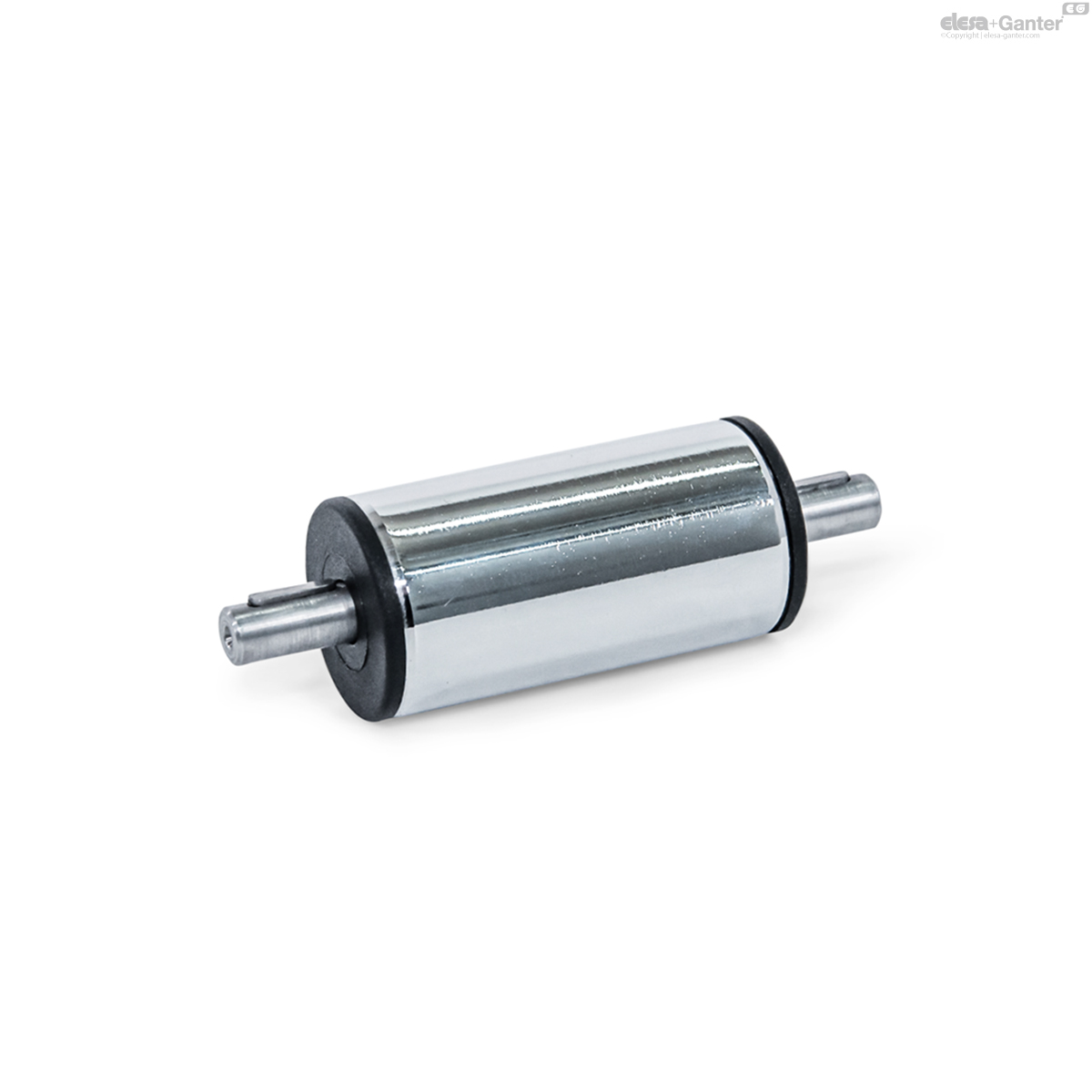

Transfer units GN 391 are normally used in connection with linear actuators. They are designed to transfer the rotary movement for operating the linear actuators to another or a further position.

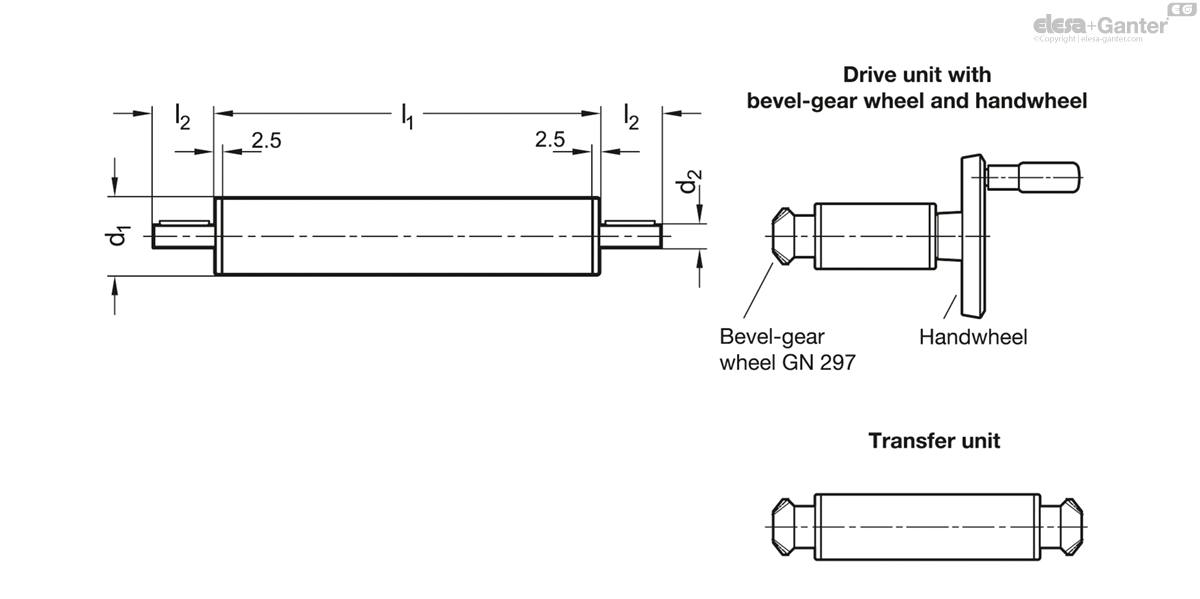

The transfer unit in the standard length l₁ is a special design: It is designed to turn the operating axis for the linear actuators (handwheel) by 90° together with an angular gear.

As in linear actuators, digital position indicators can be fitted.

• Bevel gear wheels, handwheels, tube clamp connectors and accessory have to be ordered seperately.

• ISO-Fundamental Tolerances

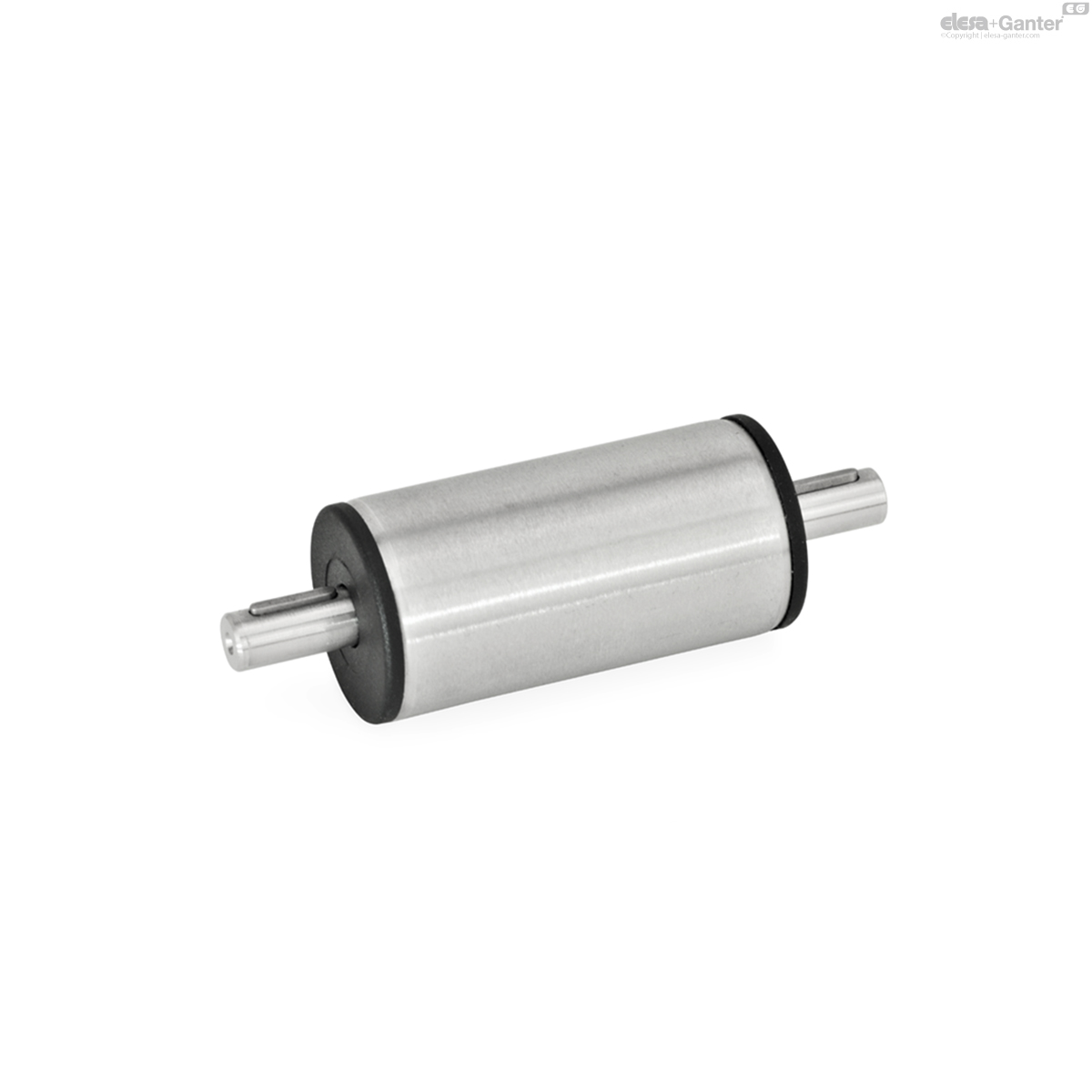

• Stainless Steel characteristics

• Assembly and application examples of Transfer units



Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.

The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.



Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.

The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.
