GN 366
Oval Tubular Handles
Tube Aluminum, Handle Legs Plastic
Description
Specification
Handle tube
Aluminum
- Powder coated

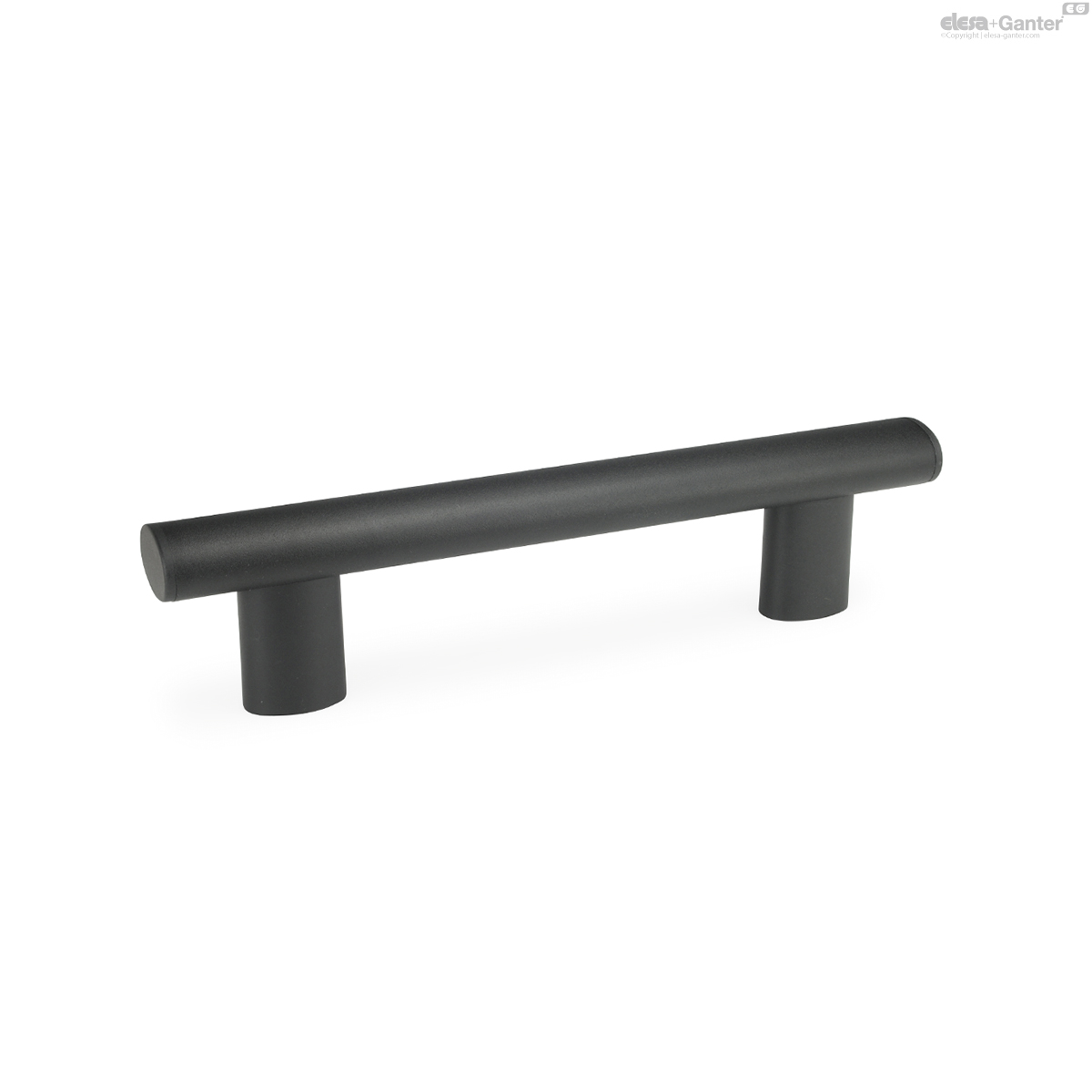

- Black, RAL 9005, textured finish SW
- Handle legs / Covers, black, matte finish

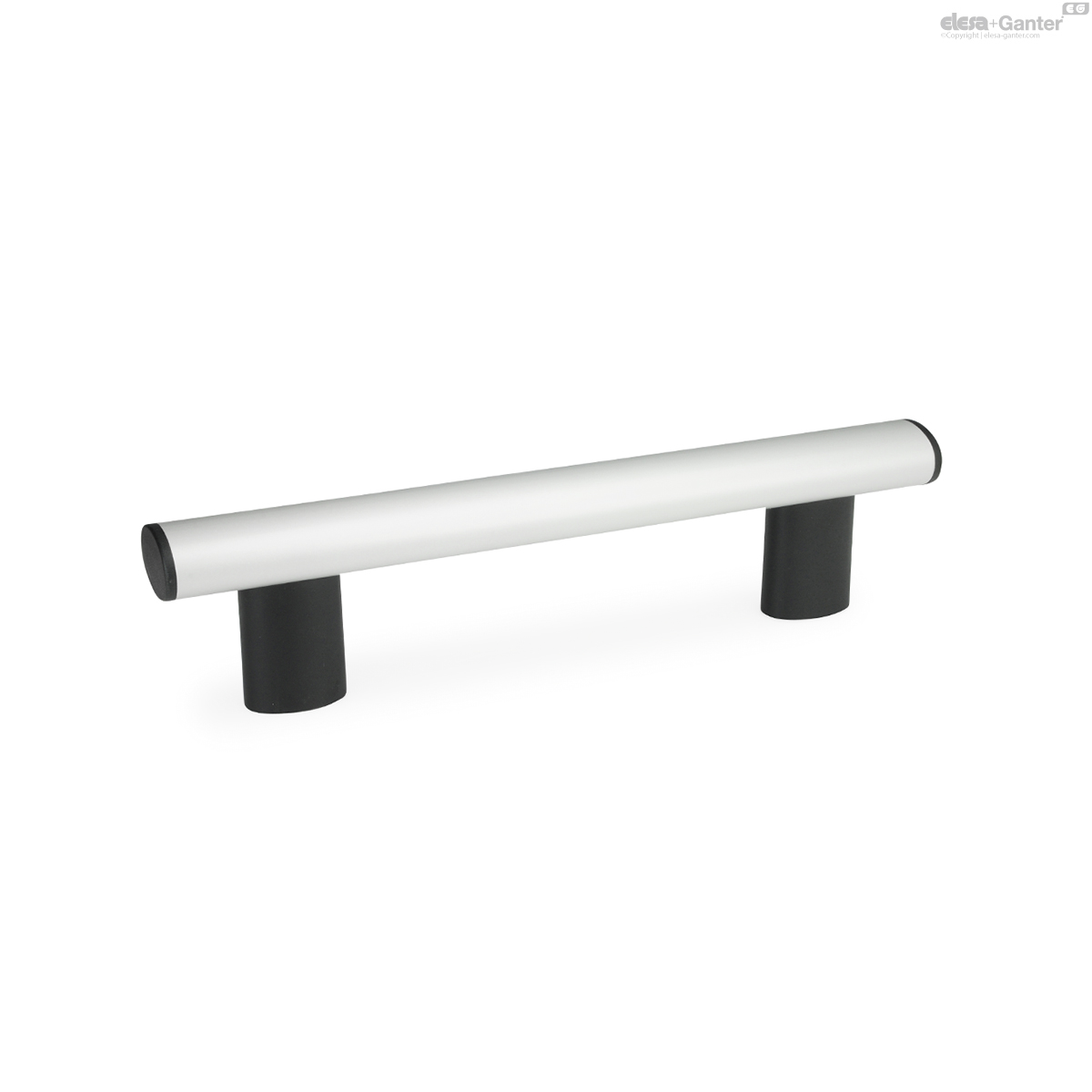

- Anodized, natural color ELS
- Handle legs / Covers, black, matte finish

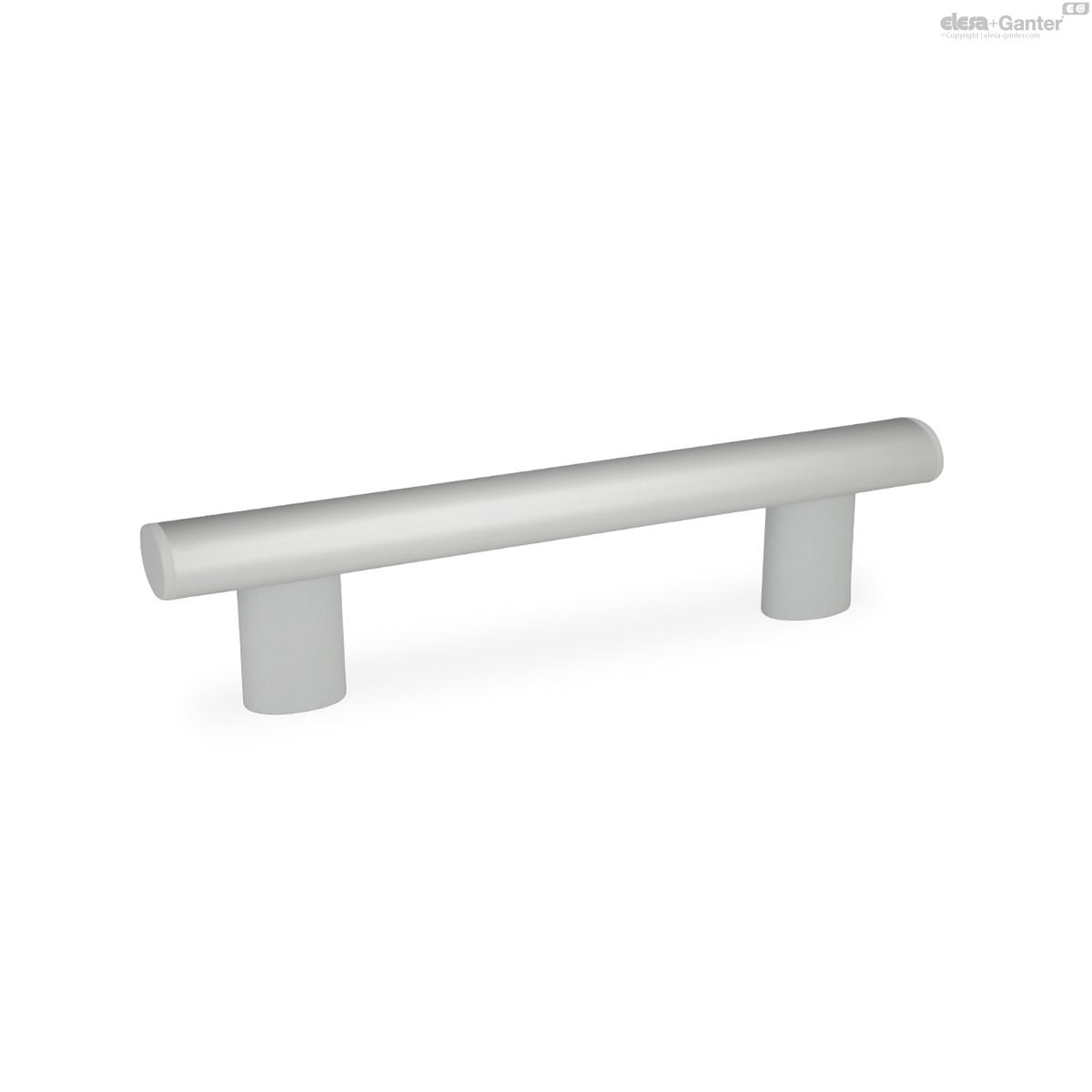

- Anodized, natural color ELG
- Handle legs / Covers, light gray, matte finish
Handle legs / Covers
Plastic, Polyamide (PA)
- Glass fiber reinforced
- Operating temperature up to 100 °C
Bushing
Steel, zinc plated
Information
Characteristic for the design of the GN 366 oval handles: Tube and handle leg are made in the same elliptical profile.
Technical information
- Load Rating InformationÂ
- Plastic CharacteristicsÂ

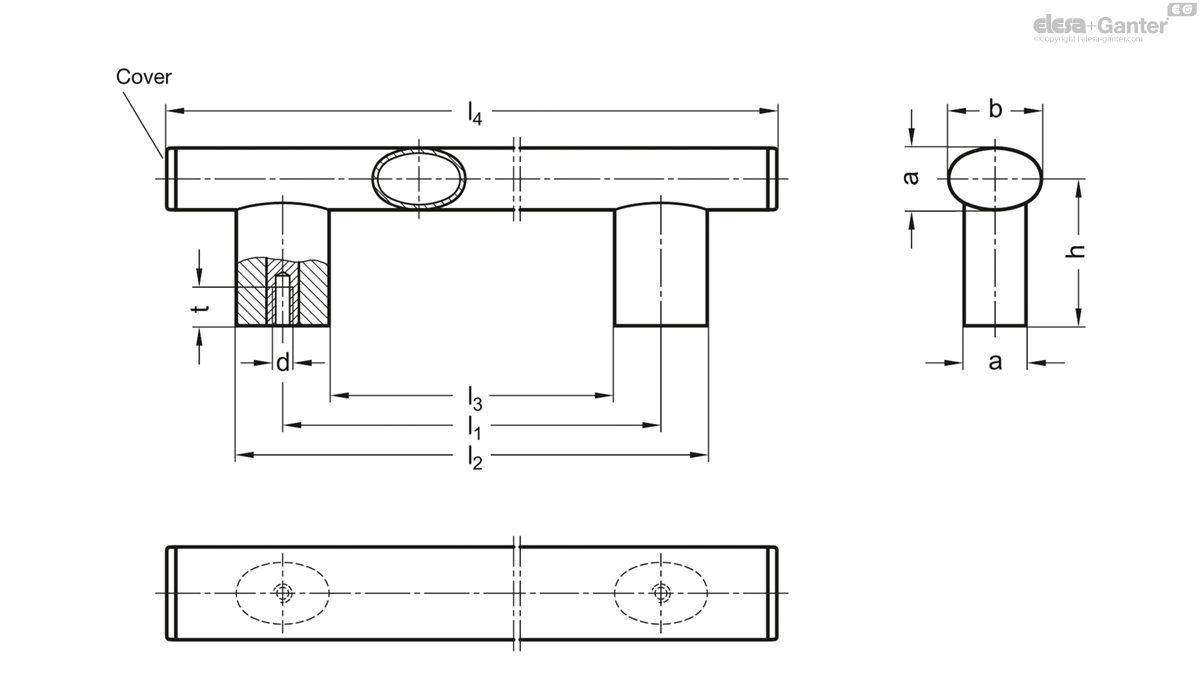

GN 366
| Color | b | d | l1 ±0.5 | a | h | l2 | l3 | l4 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 366-36-M6-200-ELG | ELG - Anodized, natural color | 36 | M 6 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 345 |
|
| GN 366-36-M6-200-ELS | ELS - Anodized | 36 | M 6 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 345 |
|
| GN 366-36-M6-200-SW | SW - RAL 9005 | 36 | M 6 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 345 |
|
| GN 366-36-M6-250-ELG | ELG - Anodized, natural color | 36 | M 6 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 397 |
|
| GN 366-36-M6-250-ELS | ELS - Anodized | 36 | M 6 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 397 |
|
| GN 366-36-M6-250-SW | SW - RAL 9005 | 36 | M 6 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 397 |
|
| GN 366-36-M6-300-ELG | ELG - Anodized, natural color | 36 | M 6 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 443 |
|
| GN 366-36-M6-300-ELS | ELS - Anodized | 36 | M 6 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 443 |
|
| GN 366-36-M6-300-SW | SW - RAL 9005 | 36 | M 6 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 443 |
|
| GN 366-36-M6-400-ELG | ELG - Anodized, natural color | 36 | M 6 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 522 |
|
| GN 366-36-M6-400-ELS | ELS - Anodized | 36 | M 6 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 522 |
|
| GN 366-36-M6-400-SW | SW - RAL 9005 | 36 | M 6 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 522 |
|
| GN 366-36-M6-500-ELG | ELG - Anodized, natural color | 36 | M 6 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 610 |
|
| GN 366-36-M6-500-ELS | ELS - Anodized | 36 | M 6 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 610 |
|
| GN 366-36-M6-500-SW | SW - RAL 9005 | 36 | M 6 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 610 |
|
| GN 366-36-M6-600-ELG | ELG - Anodized, natural color | 36 | M 6 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 693 |
|
| GN 366-36-M6-600-ELS | ELS - Anodized | 36 | M 6 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 693 |
|
| GN 366-36-M6-600-SW | SW - RAL 9005 | 36 | M 6 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 693 |
|
| GN 366-36-M8-200-ELG | ELG - Anodized, natural color | 36 | M 8 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 337 |
|
| GN 366-36-M8-200-ELS | ELS - Anodized | 36 | M 8 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 337 |
|
| GN 366-36-M8-200-SW | SW - RAL 9005 | 36 | M 8 | 200 | 24 | 57 | 236 | 164 | 290 | 15 | 337 |
|
| GN 366-36-M8-250-ELG | ELG - Anodized, natural color | 36 | M 8 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 389 |
|
| GN 366-36-M8-250-ELS | ELS - Anodized | 36 | M 8 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 389 |
|
| GN 366-36-M8-250-SW | SW - RAL 9005 | 36 | M 8 | 250 | 24 | 57 | 286 | 214 | 340 | 15 | 389 |
|
| GN 366-36-M8-300-ELG | ELG - Anodized, natural color | 36 | M 8 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 434 |
|
| GN 366-36-M8-300-ELS | ELS - Anodized | 36 | M 8 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 434 |
|
| GN 366-36-M8-300-SW | SW - RAL 9005 | 36 | M 8 | 300 | 24 | 57 | 336 | 264 | 390 | 15 | 434 |
|
| GN 366-36-M8-400-ELG | ELG - Anodized, natural color | 36 | M 8 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 514 |
|
| GN 366-36-M8-400-ELS | ELS - Anodized | 36 | M 8 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 514 |
|
| GN 366-36-M8-400-SW | SW - RAL 9005 | 36 | M 8 | 400 | 24 | 57 | 436 | 364 | 490 | 15 | 514 |
|
| GN 366-36-M8-500-ELG | ELG - Anodized, natural color | 36 | M 8 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 602 |
|
| GN 366-36-M8-500-ELS | ELS - Anodized | 36 | M 8 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 602 |
|
| GN 366-36-M8-500-SW | SW - RAL 9005 | 36 | M 8 | 500 | 24 | 57 | 536 | 464 | 590 | 15 | 602 |
|
| GN 366-36-M8-600-ELG | ELG - Anodized, natural color | 36 | M 8 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 685 |
|
| GN 366-36-M8-600-ELS | ELS - Anodized | 36 | M 8 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 685 |
|
| GN 366-36-M8-600-SW | SW - RAL 9005 | 36 | M 8 | 600 | 24 | 57 | 636 | 564 | 690 | 15 | 685 |
|
