Home Machine Elements Positioning elements GN 350.5

GN 350.5

Levelling sets

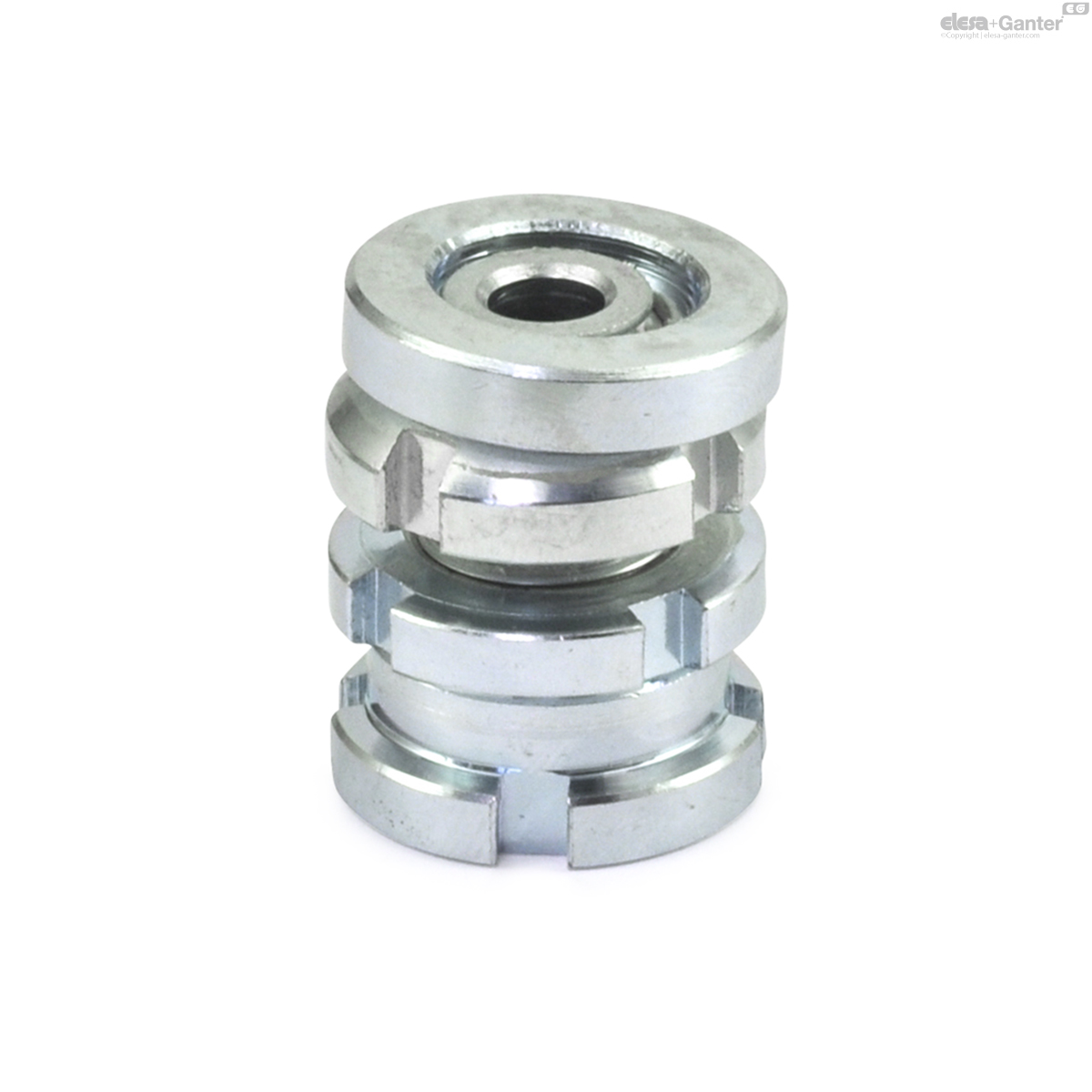

Steel / Stainless Steel, with spherical washer, with locknut

Enquire Now

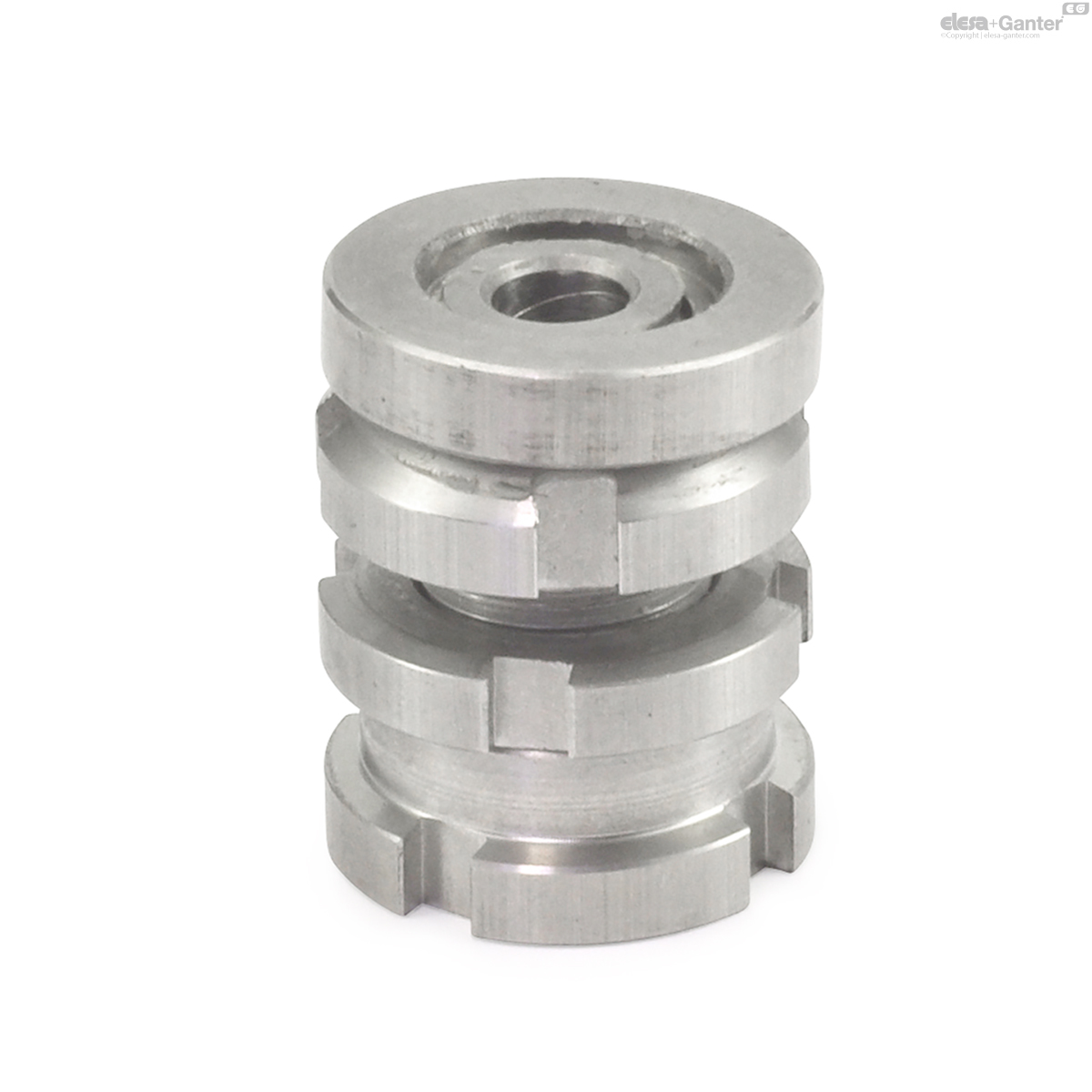

Levelling sets, Stainless Steel

Description

Specification

Version in Steel

Steel, 1.7225 (42 CrMo 4V) ST

zinc plated, blue passivated

Version in Stainless Steel

Stainless Steel AISI 303

(X 10 CrNiS 18-9) NI

F₁: max. total load

F₂: max. load after deduction of the max. preload

for screws 8.8 µ = 0.125 (Steel version)

for screws 6.8 µ = 0.14 (Stainless Steel version)

Information

Levelling sets GN 350.5 are used for levelling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.

They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.

Technical information

Stainless Steel characteristics

Accessory

C-Spanner DIN 1810 (code no. see table)

GN 350.5

	d₁	d p6/h6	d₂	h₁	d₃	h₂	h₃	For screw	r	Static load F in kN F₁	Code no. for C-Spanner	Static load F in kN F₂
Code														Actions
GN 350.5-25-6,6-27-ST	25	25	6.6	27	M 15 x 1	31	4	M 6	M 6	40	DIN 1810-A25-28	DIN 1810-A25-28	80
GN 350.5-25-6,6-40-ST	25	25	6.6	40	M 15 x 1	50	10	M 6	M 6	40	DIN 1810-A25-28	DIN 1810-A25-28	85
GN 350.5-32-6,6-32-ST	32	32	6.6	32	M 20 x 1	37	5	M 6	M 6	65	DIN 1810-A30-32	DIN 1810-A30-32	140
GN 350.5-32-6,6-49-ST	32	32	6.6	49	M 20 x 1	63	14	M 6	M 6	65	DIN 1810-A30-32	DIN 1810-A30-32	147
GN 350.5-32-9-32-ST	32	32	9	32	M 20 x 1	37	5	M 8	M 8	65	DIN 1810-A30-32	DIN 1810-A30-32	130
GN 350.5-32-9-49-ST	32	32	9	49	M 20 x 1	63	14	M 8	M 8	65	DIN 1810-A30-32	DIN 1810-A30-32	147
GN 350.5-32-11-32-ST	32	32	11	32	M 20 x 1	37	5	M 10	M 10	65	DIN 1810-A30-32	DIN 1810-A30-32	120
GN 350.5-32-11-49-ST	32	32	11	49	M 20 x 1	63	14	M 10	M 10	65	DIN 1810-A30-32	DIN 1810-A30-32	200
GN 350.5-45-11-41-ST	45	45	11	41	M 30 x 1.5	48	7	M 10	M 10	120	DIN 1810-A45-50	DIN 1810-A45-50	360
GN 350.5-45-11-61-ST	45	45	11	61	M 30 x 1.5	79	18	M 10	M 10	120	DIN 1810-A45-50	DIN 1810-A45-50	360
GN 350.5-45-13,5-41-ST	45	45	13.5	41	M 30 x 1.5	48	7	M 12	M 12	120	DIN 1810-A45-50	DIN 1810-A45-50	350
GN 350.5-45-13,5-61-ST	45	45	13.5	61	M 30 x 1.5	79	18	M 12	M 12	120	DIN 1810-A45-50	DIN 1810-A45-50	510
GN 350.5-45-17,5-41-ST	45	45	17.5	41	M 30 x 1.5	48	7	M 16	M 16	120	DIN 1810-A45-50	DIN 1810-A45-50	360
GN 350.5-45-17,5-61-ST	45	45	17.5	61	M 30 x 1.5	79	18	M 16	M 16	120	DIN 1810-A45-50	DIN 1810-A45-50	470
GN 350.5-58-17,5-53-ST	58	58	17.5	53	M 40 x 1.5	62	9	M 16	M 16	210	DIN 1810-A58-62	DIN 1810-A58-62	780
GN 350.5-58-17,5-79-ST	58	58	17.5	79	M 40 x 1.5	102	23	M 16	M 16	210	DIN 1810-A58-62	DIN 1810-A58-62	1184
GN 350.5-58-22-53-ST	58	58	22	53	M 40 x 1.5	62	9	M 20	M 20	210	DIN 1810-A58-62	DIN 1810-A58-62	770
GN 350.5-58-22-79-ST	58	58	22	79	M 40 x 1.5	102	23	M 20	M 20	210	DIN 1810-A58-62	DIN 1810-A58-62	840
GN 350.5-58-26-53-ST	58	58	26	53	M 40 x 1.5	62	9	M 24	M 24	210	DIN 1810-A58-62	DIN 1810-A58-62	760
GN 350.5-58-26-79-ST	58	58	26	79	M 40 x 1.5	102	23	M 24	M 24	210	DIN 1810-A58-62	DIN 1810-A58-62	830
GN 350.5-70-22-61-ST	70	70	22	61	M 50 x 1.5	71	10	M 20	M 20	330	DIN 1810-A68-75	DIN 1810-A68-75	1300
GN 350.5-70-22-94-ST	70	70	22	94	M 50 x 1.5	123	29	M 20	M 20	330	DIN 1810-A68-75	DIN 1810-A68-75	2100
GN 350.5-70-26-61-ST	70	70	26	61	M 50 x 1.5	71	10	M 24	M 24	330	DIN 1810-A68-75	DIN 1810-A68-75	1400
GN 350.5-70-26-94-ST	70	70	26	94	M 50 x 1.5	123	29	M 24	M 24	330	DIN 1810-A68-75	DIN 1810-A68-75	1900
GN 350.5-70-33-61-ST	70	70	33	61	M 50 x 1.5	71	10	M 30	M 30	330	DIN 1810-A68-75	DIN 1810-A68-75	1100
GN 350.5-70-33-94-ST	70	70	33	94	M 50 x 1.5	123	29	M 30	M 30	330	DIN 1810-A68-75	DIN 1810-A68-75	1800
GN 350.5-80-26-67-ST	80	80	26	67	M 60 x 2	79	12	M 24	M 24	495	DIN 1810-A80-90	DIN 1810-A80-90	1650
GN 350.5-80-26-105-ST	80	80	26	105	M 60 x 2	144	39	M 24	M 24	495	DIN 1810-A80-90	DIN 1810-A80-90	2900
GN 350.5-80-33-67-ST	80	80	33	67	M 60 x 2	79	12	M 30	M 30	495	DIN 1810-A80-90	DIN 1810-A80-90	1550
GN 350.5-80-33-105-ST	80	80	33	105	M 60 x 2	144	39	M 30	M 30	495	DIN 1810-A80-90	DIN 1810-A80-90	1911
GN 350.5-80-39-67-ST	80	80	39	67	M 60 x 2	79	12	M 36	M 36	495	DIN 1810-A80-90	DIN 1810-A80-90	1450
GN 350.5-80-39-105-ST	80	80	39	105	M 60 x 2	144	39	M 36	M 36	495	DIN 1810-A80-90	DIN 1810-A80-90	1811
