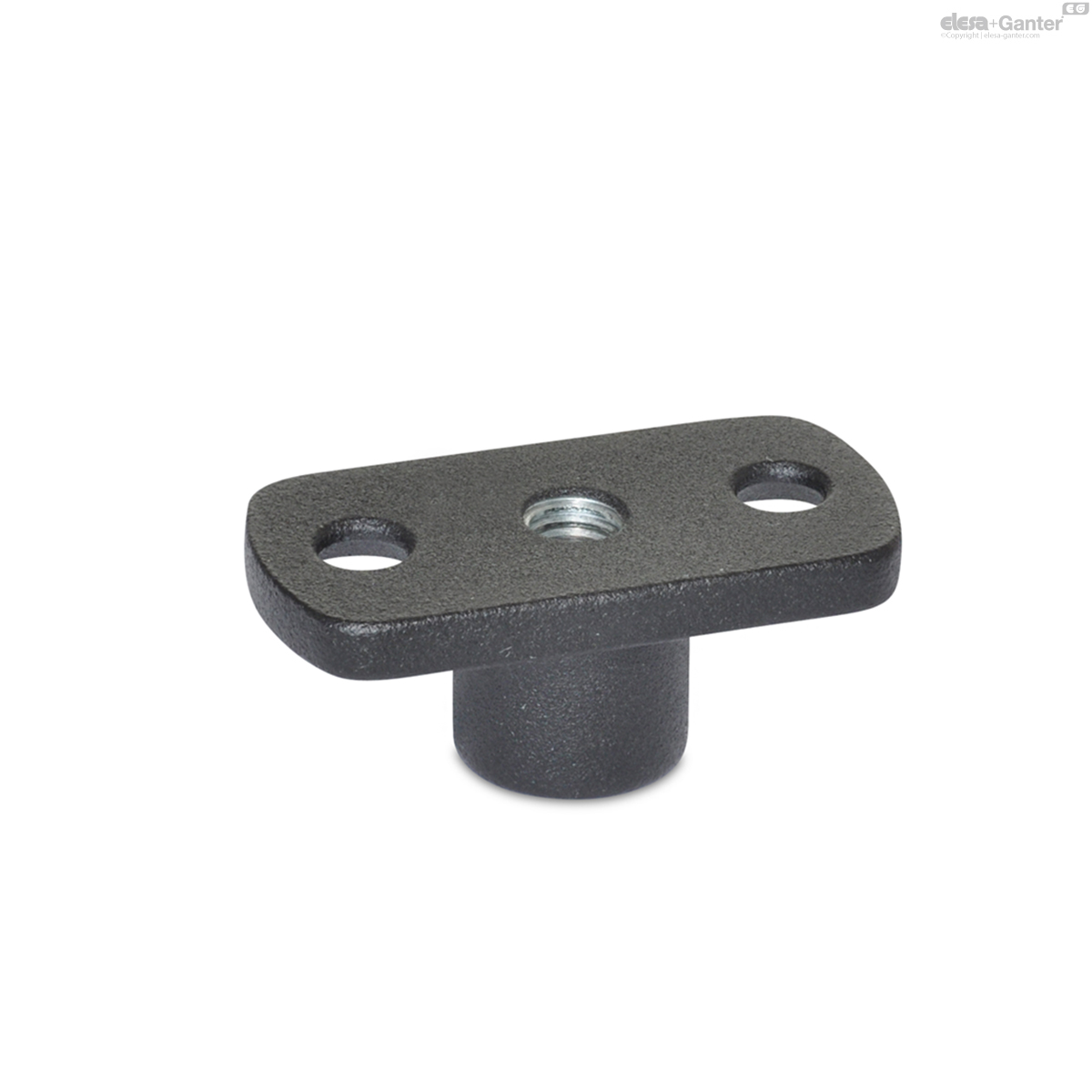

GN 3490
Threaded flanges
for profile systems
Description
Specification
Steel fine casting
- zinc plated, blue passivated ZB
- zinc plated and plastic coated black, RAL 9005, textured finish SW
Information
Threaded flanges GN 3490 are used in connection with T-slot profile systems and allow elements to be assembled on or underneath the profiles, e.g. levelling feet.
Depending on the threaded flange, thread size and thread depth dimensions that are available can exceed the dimensions of the profile groove.
GN 3490

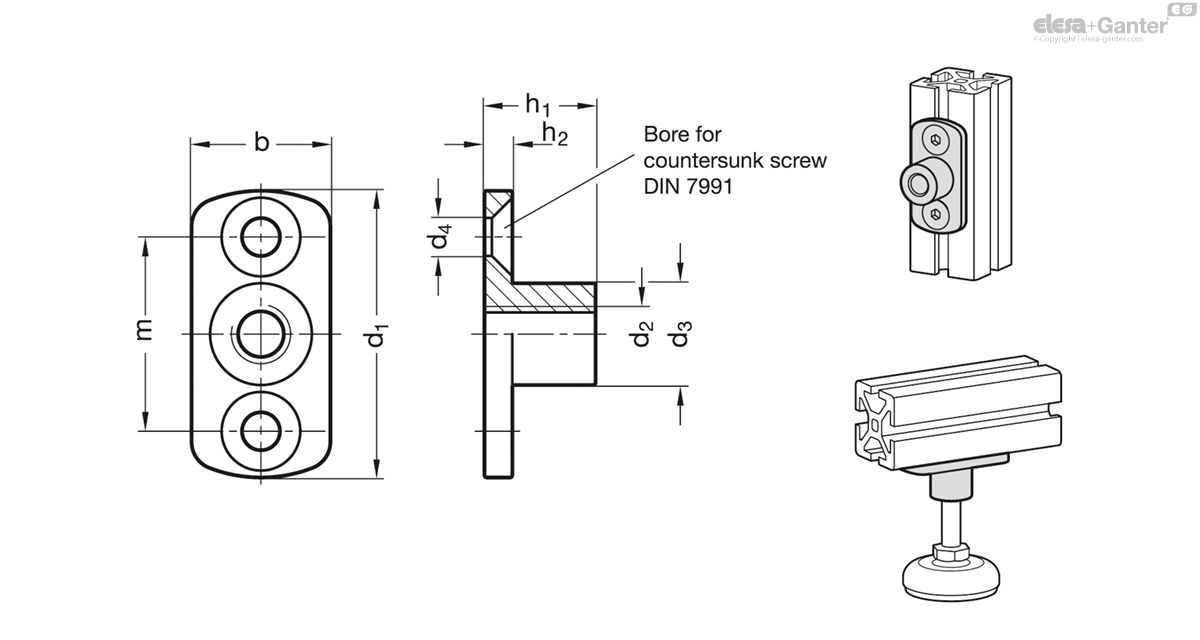

| d1 | d2 | h1 | b | d3 | d4 | h2 | m |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 3490-45-M6-16-SW | 45 | M 6 | 16 | 25 | 15 | M 6 | 6 | 30 | 52 |
|
| GN 3490-45-M6-16-ZB | 45 | M 6 | 16 | 25 | 15 | M 6 | 6 | 30 | 52 |
|
| GN 3490-45-M8-16-SW | 45 | M 8 | 16 | 25 | 15 | M 6 | 6 | 30 | 50 |
|
| GN 3490-45-M8-16-ZB | 45 | M 8 | 16 | 25 | 15 | M 6 | 6 | 30 | 50 |
|
| GN 3490-60-M10-24-SW | 60 | M 10 | 24 | 30 | 21.5 | M 8 | 6 | 40 | 108 |
|
| GN 3490-60-M10-24-ZB | 60 | M 10 | 24 | 30 | 21.5 | M 8 | 6 | 40 | 108 |
|
| GN 3490-60-M12-24-SW | 60 | M 12 | 24 | 30 | 21.5 | M 8 | 6 | 40 | 103 |
|
| GN 3490-60-M12-24-ZB | 60 | M 12 | 24 | 30 | 21.5 | M 8 | 6 | 40 | 103 |
|
