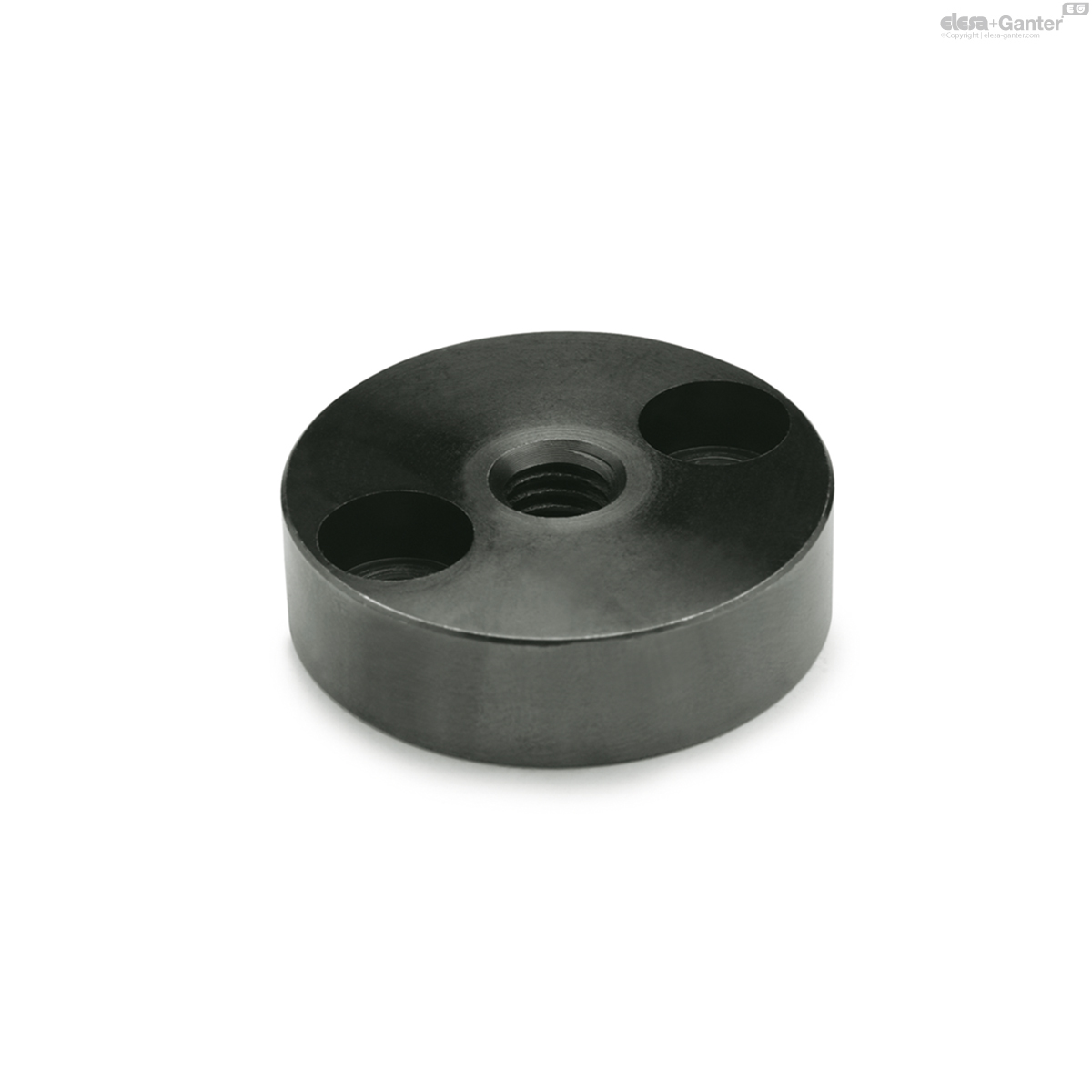

GN 349
Mounts for levelling feet
Description
Specification
Steel
- weldable
- blackened
Information
GN 349 mounts are used on levelling feet particularly in such cases where a machine shrouding is made of very thin sheet metal.

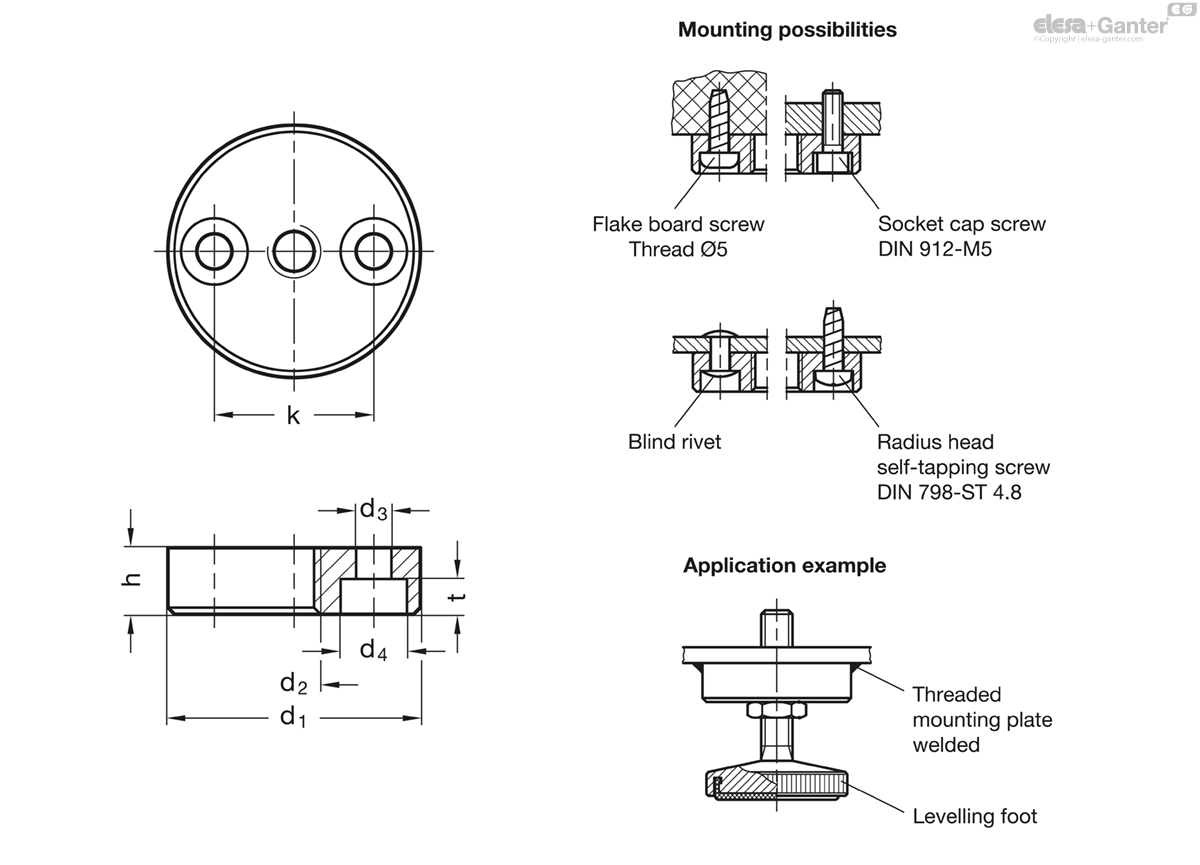

GN 349
| d1 | d2 | d3 | d4 | h | k | t |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 349-36-M8 | 36 | M 8 | 5.3 | 10 | 10 | 24 | 5.3 | 67 |
|
| GN 349-36-M10 | 36 | M 10 | 5.3 | 10 | 10 | 24 | 5.3 | 65 |
|
| GN 349-36-M12 | 36 | M 12 | 5.3 | 10 | 10 | 24 | 5.3 | 63 |
|
