GN 346

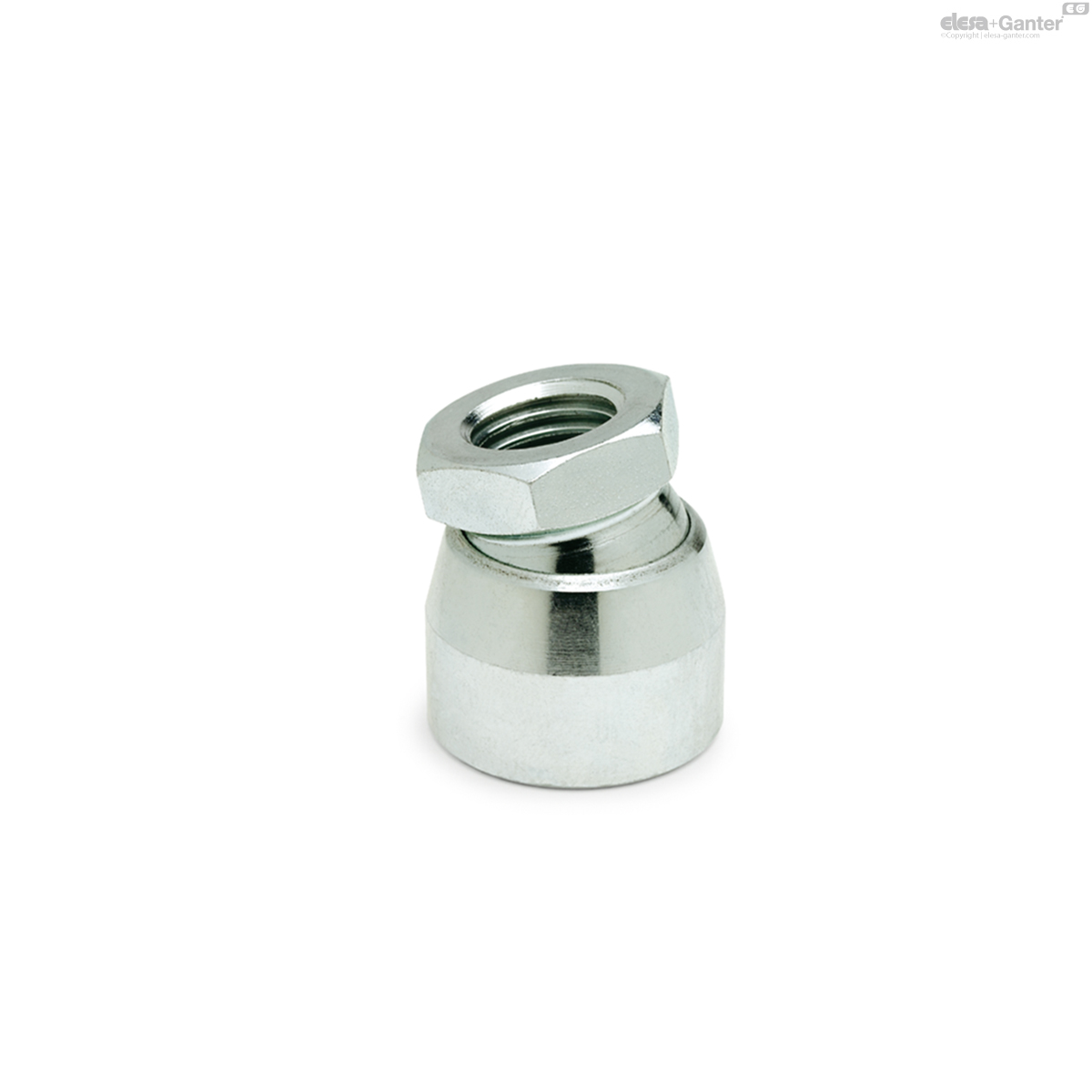

Ball joint thrust pads
Description
Specification
Steel
- Tensile strength class 5.8
- zinc plated, blue passivated
Information
Ball joint thrust pads GN 346 are in general used for transfer of clamping forces. They adjust themselves to uneven or non-parallel surfaces and clamp without twisting the clamped parts.
The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads.
At the values given in the table a permanent deformation of the ball is almost impossible.
Ball joint thrust pads GN 346 can also be used as levelling feet with a small foot diameter.
Technical information
- Strength values of nutsÂ
GN 346

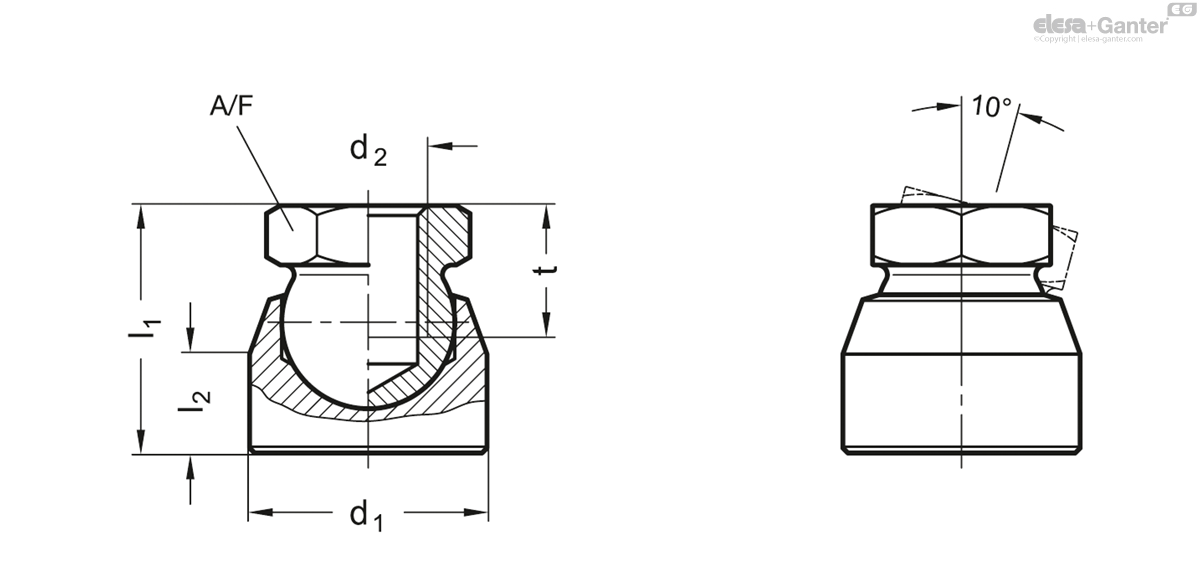

| d1 | d2 | l1 ≈ | l2 | t min. | A/F | Static load in kN |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 346-16-M8 | 16 | M 8 | 19 | 7 | 9 | 12 | 5 | 18 |
|
| GN 346-20-M10 | 20 | M 10 | 22 | 8 | 11 | 15 | 7.5 | 32 |
|
| GN 346-24-M12 | 24 | M 12 | 25 | 10 | 12 | 17 | 10 | 50 |
|
| GN 346-30-M16 | 30 | M 16 | 34 | 13 | 16 | 24 | 15 | 115 |
|
