Home Levelling Elements Levelling feet GN 343.1

GN 343.1

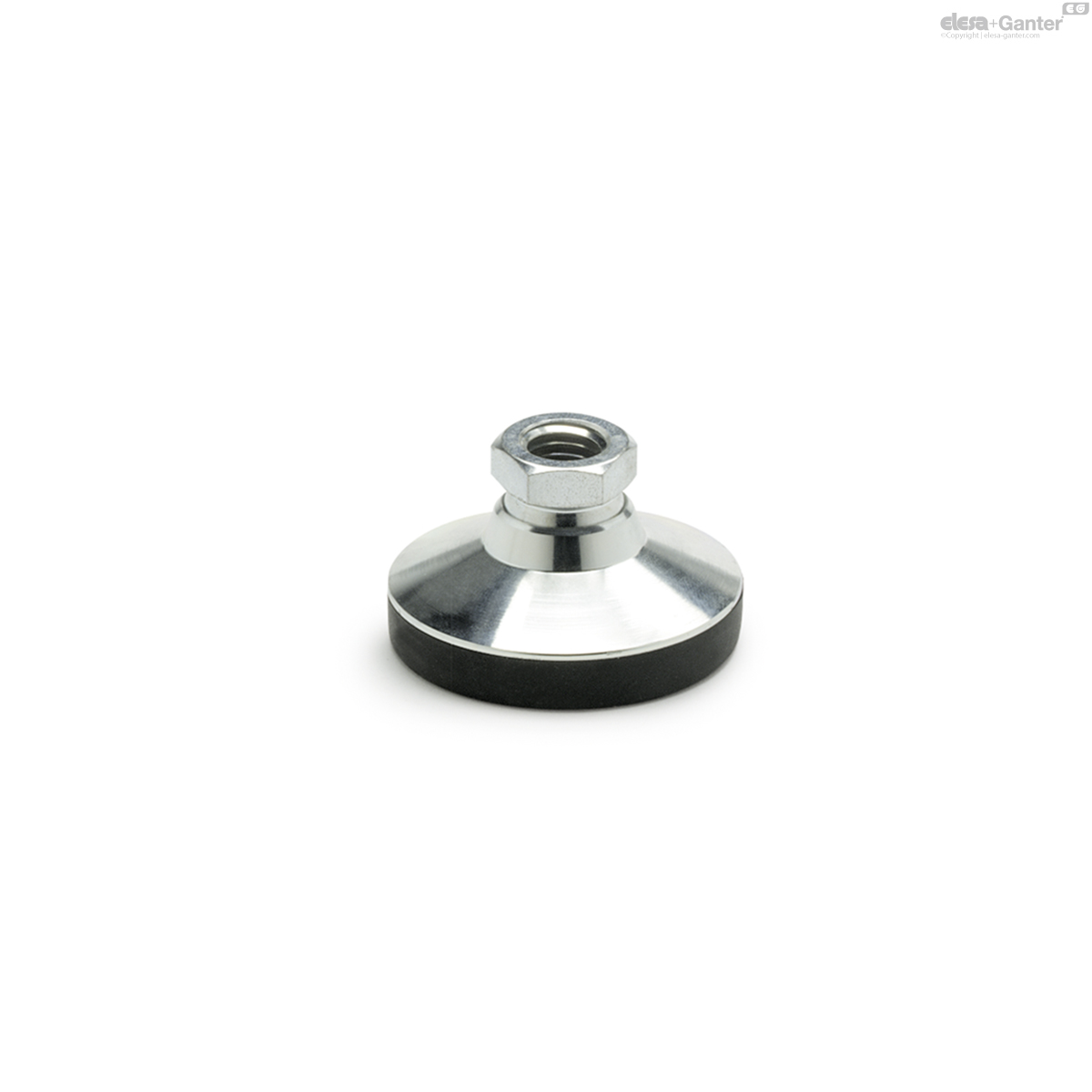

Levelling mounts

Foot, female thread

Enquire Now

Description

Specification

Types

Type OS: without plastic cap

Type KS: with plastic cap, gliding

Type KR: with plastic cap, non-gliding

Type KSE: with plastic cap, gliding, electrically conductive (antistatic)

Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)

Steel

Tensile strength class 5.8

zinc plated, blue passivated

Type KS / KSE

Plastic cap Polyacetal (POM)

KS: white (natural colour) RAL 9001

KSE: black, electrically conductive

Surface resistivity: < 10⁶ Ω

Volume resistivity: < 10⁷ Ω

DIN EN 61340-5-1 / 61340-2-3

Type KR / KRE

Plastic cap Elastomer (TPE), 78 Shore A ≈

KR: black

KRE: black, electrically conductive

Surface resistivity: < 10⁶ Ω

Volume resistivity: < 10⁷ Ω

DIN EN 61340-5-1 / 61340-2-3

Information

The static load of the levelling mounts GN 343.1 is limited by the load capacity of the ball joint with threaded stud (tensile strength class 5.8 ). The static load values (only valid for Type OS / KS) in the table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Levelling feet GN 343.1 cannot be disassembled.

Technical information

Elastomer characteristics

Plastic characteristics

Strength values

GN 343.1

	d₁	d₂	l₂	l₃	l₄	l₅	A/F	t min.
Code										Actions
GN 343.1-25-M6-KR	25	M 6	-	20.5	-	-	12	9	31
GN 343.1-25-M6-KRE	25	M 6	-	20.5	-	5.5	12	9	42
GN 343.1-25-M6-KS	25	M 6	-	20.5	-	5.5	12	9	43
GN 343.1-25-M6-KSE	25	M 6	-	20.5	-	5.5	12	9	43
GN 343.1-25-M6-OS	25	M 6	19	-	4	5.5	12	9	34
GN 343.1-25-M8-KR	25	M 8	-	20.5	-	-	12	9	30
GN 343.1-25-M8-KRE	25	M 8	-	20.5	-	5.5	12	9	31
GN 343.1-25-M8-KS	25	M 8	-	20.5	-	5.5	12	9	32
GN 343.1-25-M8-KSE	25	M 8	-	20.5	-	5.5	12	9	32
GN 343.1-25-M8-OS	25	M 8	19	-	4	5.5	12	9	30
GN 343.1-32-M8-KR	32	M 8	-	24.5	-	-	12	9	57
GN 343.1-32-M8-KRE	32	M 8	-	24.5	-	6.5	12	9	57
GN 343.1-32-M8-KS	32	M 8	-	24.5	-	6.5	12	9	60
GN 343.1-32-M8-KSE	32	M 8	-	24.5	-	6.5	12	9	60
GN 343.1-32-M8-OS	32	M 8	23	-	5	6.5	12	9	65
GN 343.1-32-M10-KR	32	M 10	-	24.5	-	-	15	10.5	59
GN 343.1-32-M10-KRE	32	M 10	-	24.5	-	6.5	15	10.5	60
GN 343.1-32-M10-KS	32	M 10	-	24.5	-	6.5	15	10.5	63
GN 343.1-32-M10-KSE	32	M 10	-	24.5	-	6.5	15	10.5	63
GN 343.1-32-M10-OS	32	M 10	23	-	5	6.5	15	10.5	65
GN 343.1-40-M10-KR	40	M 10	-	27.5	-	-	15	10.5	101
GN 343.1-40-M10-KRE	40	M 10	-	27.5	-	7.5	15	10.5	102
GN 343.1-40-M10-KS	40	M 10	-	27.5	-	7.5	15	10.5	107
GN 343.1-40-M10-KSE	40	M 10	-	27.5	-	7.5	15	10.5	107
GN 343.1-40-M10-OS	40	M 10	26	-	6	7.5	15	10.5	108
GN 343.1-40-M12-KR	40	M 12	-	27.5	-	-	17	11.5	97
GN 343.1-40-M12-KRE	40	M 12	-	27.5	-	7.5	17	11.5	98
GN 343.1-40-M12-KS	40	M 12	-	27.5	-	7.5	17	11.5	103
GN 343.1-40-M12-KSE	40	M 12	-	27.5	-	7.5	17	11.5	103
GN 343.1-40-M12-OS	40	M 12	26	-	6	7.5	17	11.5	100
GN 343.1-50-M10-KR	50	M 10	-	29.5	-	-	15	10.5	165
GN 343.1-50-M10-KRE	50	M 10	-	29.5	-	8.5	15	10.5	166
GN 343.1-50-M10-KS	50	M 10	-	29.5	-	8.5	15	10.5	177
GN 343.1-50-M10-KSE	50	M 10	-	29.5	-	8.5	15	10.5	177
GN 343.1-50-M10-OS	50	M 10	28	-	7	8.5	15	10.5	180
GN 343.1-50-M12-KR	50	M 12	-	29.5	-	-	17	11.5	160
GN 343.1-50-M12-KRE	50	M 12	-	29.5	-	8.5	17	11.5	161
GN 343.1-50-M12-KS	50	M 12	-	29.5	-	8.5	17	11.5	169
GN 343.1-50-M12-KSE	50	M 12	-	29.5	-	8.5	17	11.5	170
GN 343.1-50-M12-OS	50	M 12	28	-	7	8.5	17	11.5	160
GN 343.1-60-M12-KR	60	M 12	-	37.5	-	-	17	11.5	313
GN 343.1-60-M12-KRE	60	M 12	-	37.5	-	10	17	11.5	317
GN 343.1-60-M12-KS	60	M 12	-	37.5	-	10	17	11.5	336
GN 343.1-60-M12-KSE	60	M 12	-	37.5	-	10	17	11.5	336
GN 343.1-60-M12-OS	60	M 12	36	-	8.5	10	17	11.5	340
GN 343.1-60-M16-KR	60	M 16	-	37.5	-	-	24	16	294
GN 343.1-60-M16-KRE	60	M 16	-	37.5	-	10	24	16	298
GN 343.1-60-M16-KS	60	M 16	-	37.5	-	10	24	16	319
GN 343.1-60-M16-KSE	60	M 16	-	37.5	-	10	24	16	318
GN 343.1-60-M16-OS	60	M 16	36	-	8.5	10	24	16	323
