GN 33b
Cube Connectors
Aluminum, for Aluminum Profiles (b-Modular System)
Description
Specification
Identification no.
- 2: Connecting 2 profiles
- 3: Connecting 3 profiles
Type
- Type C: With fastening set
Housing
Aluminum, plain finish AB
Screws
Steel, zinc plated, blue passivated SZ
Cover caps
Plastic (Polyamide PA)
Black S
Information
Cube connectors GN 33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary.
The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance.
If panels are used in the slot, they must be given a suitable corner chamfer.
Technical information
- Plastic CharacteristicsÂ

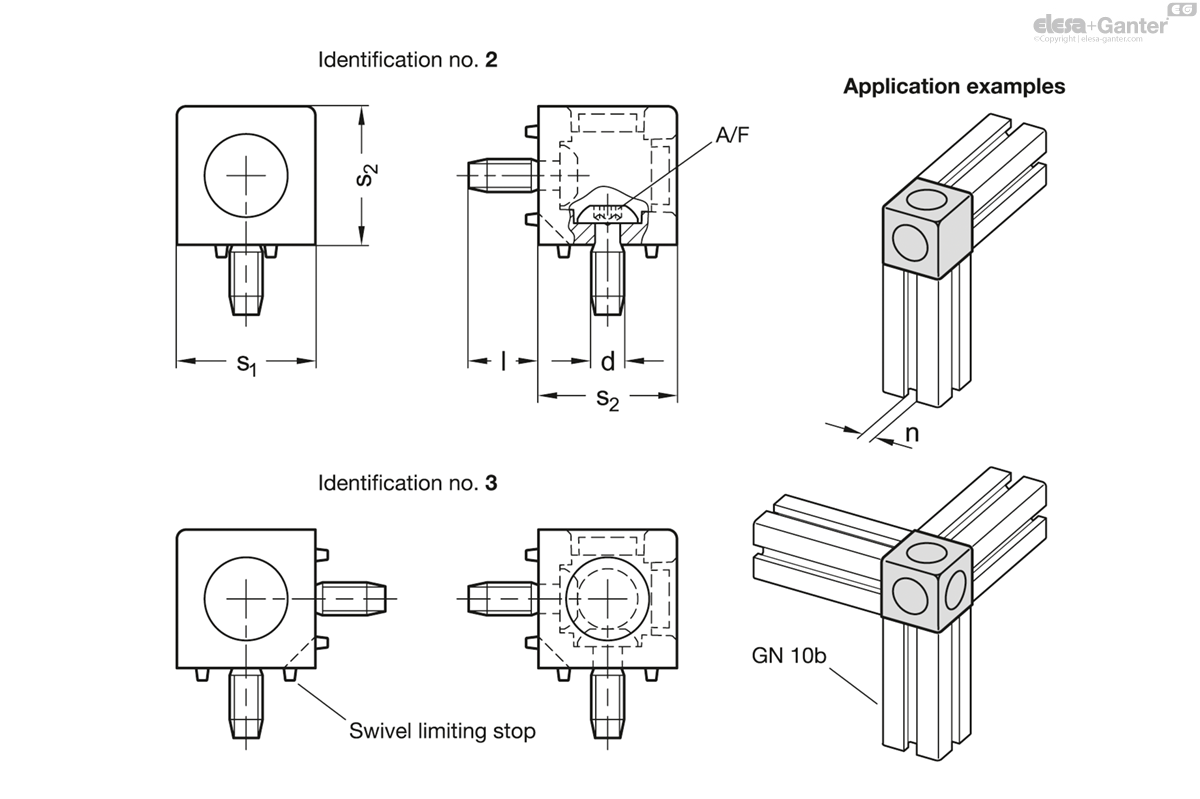

GN 33b-2
| s1 | s2 | n | d Self-forming thread | Length l ≈ | A/F | Tightening torque in Nm |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||

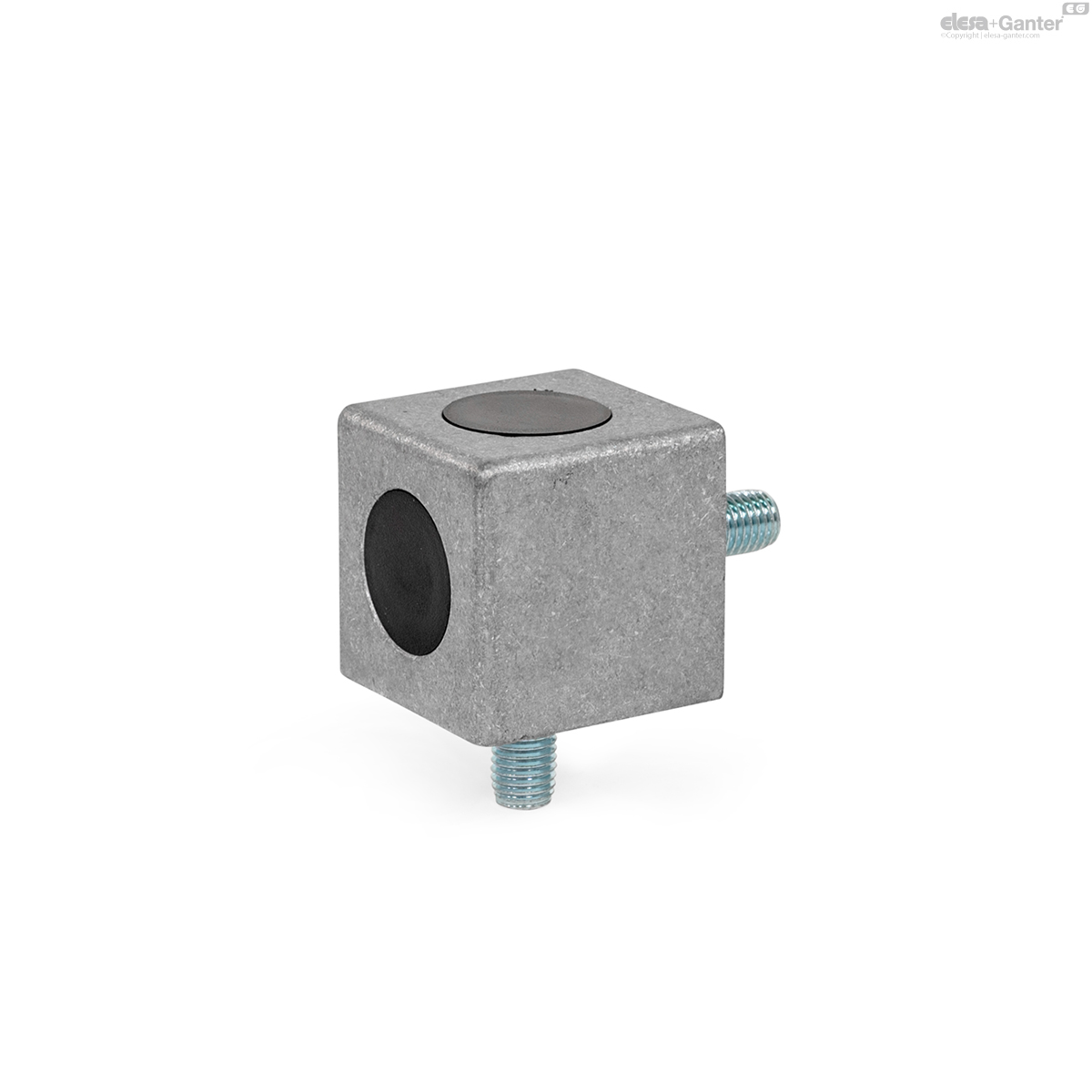

| GN 33b-30308-2-C-ABSZS | 30 | 30 | 8 | S 8 | 21 | 5 | 25 | 55 |
|

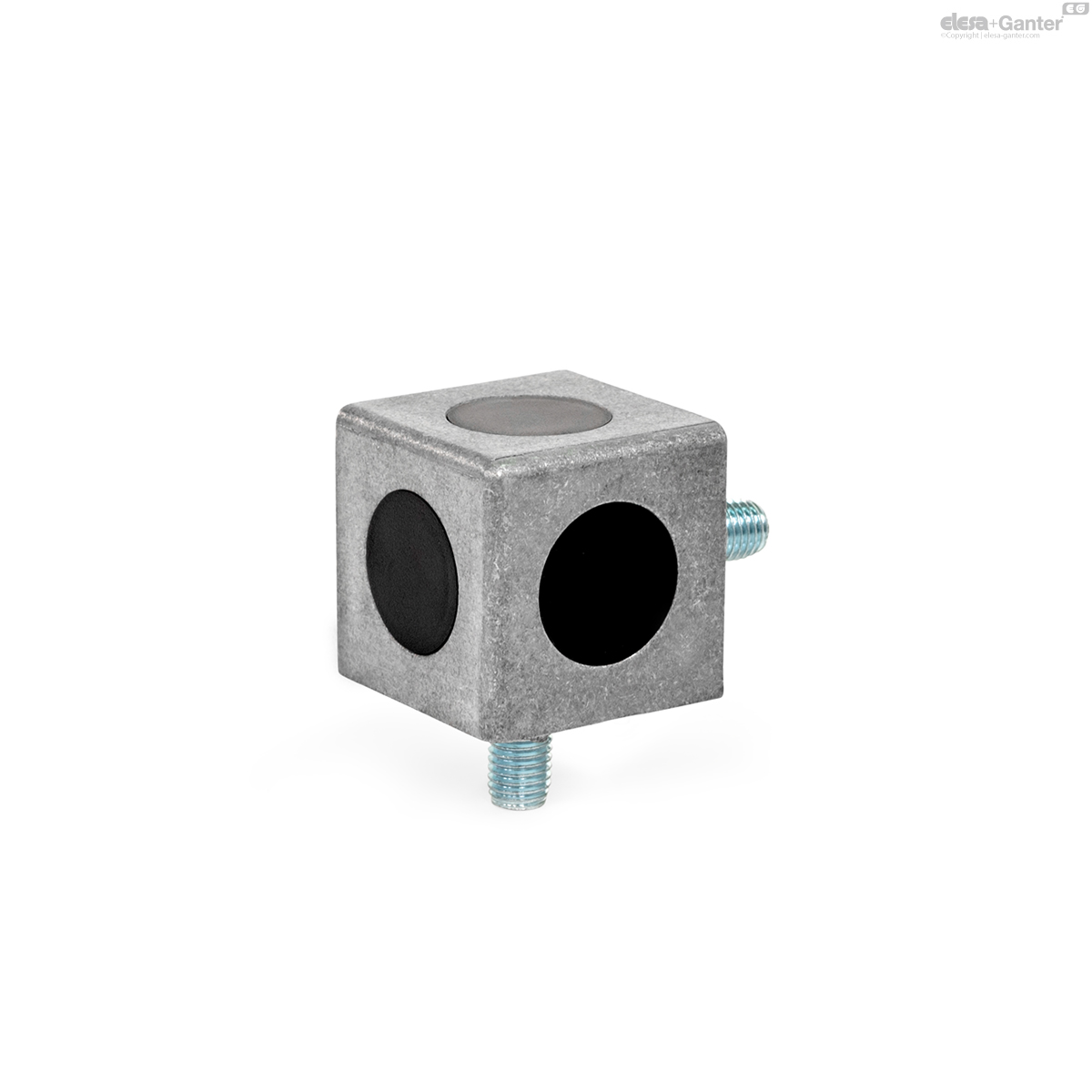

| GN 33b-454510-2-C-ABSZS | 45 | 45 | 10 | S 12 | 24 | T50 | 35 | 158 |
|
