GN 3380

Sensor

for Pneumatically Operated Clamps / Pneumatically Operated Cylinders

Enquire Now

Description

Specification

Type

Type T: for T-groove cylinder

Connection type

Connection type S: Plug

Housing

Plastic

Cable (outer sheath)

Polyurethan PUR

Black

Plug

Plastic, 3-pole

Knurled screw connection

Brass, nickel plated

Freely rotating

Temperature range: -30 °C to +80 °C

Protection class IP 65, IP 67

Information

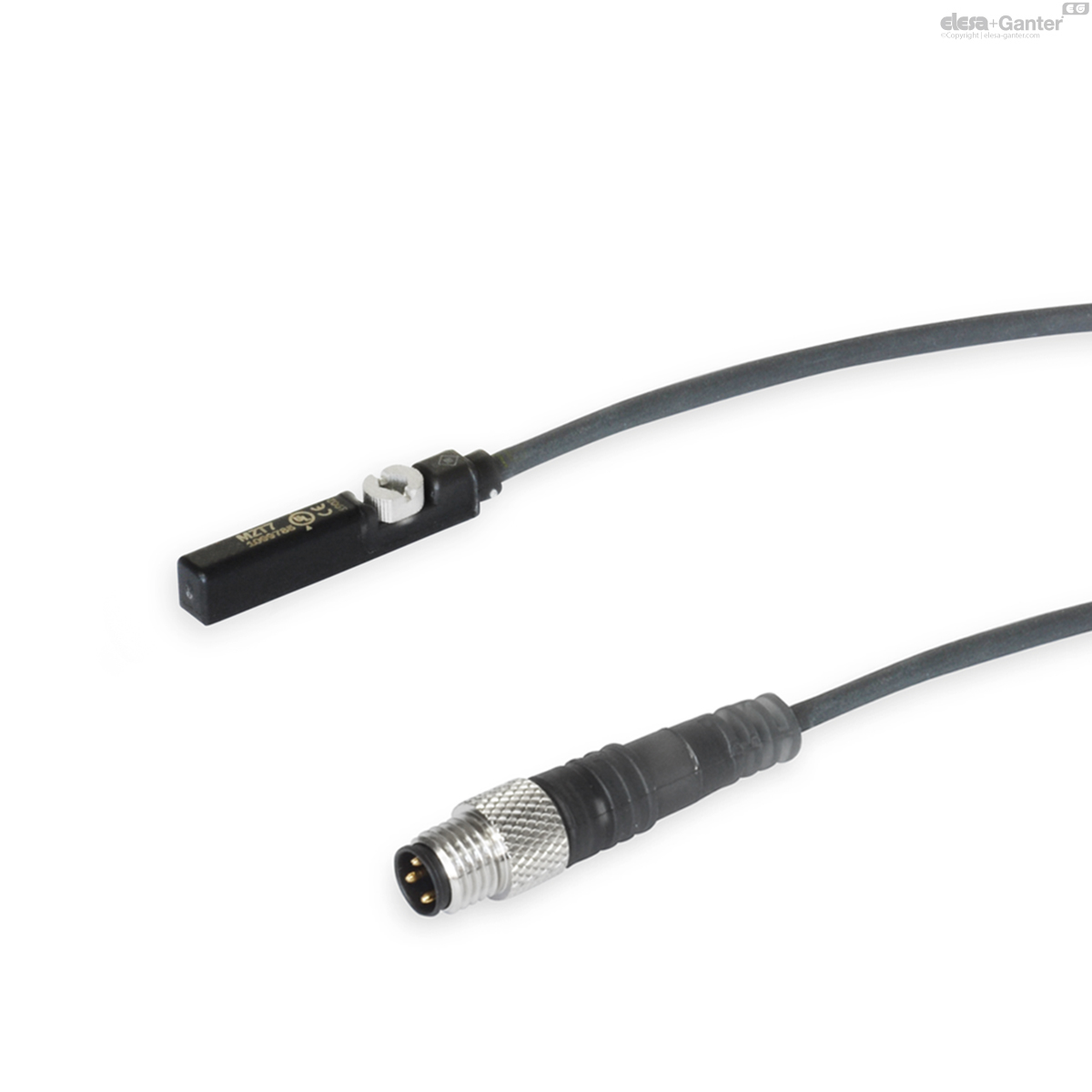

The sensor GN 3380 detects the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor. Upon reaching the switch point, the sensor electronics deliver a high signal, for instance to a machine controller, and also indicate this switch state via the integrated LED.

For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.

Technical information

IP Protection classes

Elastomer characteristics

Electrical properties

Electrical properties
Output function	Normally open (NO)
Output type	PNP
Supply voltage	10 - 30 V DC
Continuous current I_a	≤ 100 mA
Connection type	3-pole plug M8x1,with knurled screw connection, with PUR cable 0.3 m
Plug (S)
Switching frequency	1000 Hz
Power consumption	≤ 8 mA
Voltage drop	≤ 2 V
Protection class	III
Response sensitivity	3 mT
Overrun distance	10 mm
Hysteresis	< 0.8 mT
Repeatability	≤ 0.1 mT
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC	According to EN 60947-5-2
Switch state LED	Yes
Reverse polarity protection	Yes
Short-circuit protection	Yes
Approvals, conformity declarations CE marking UL

GN 3380

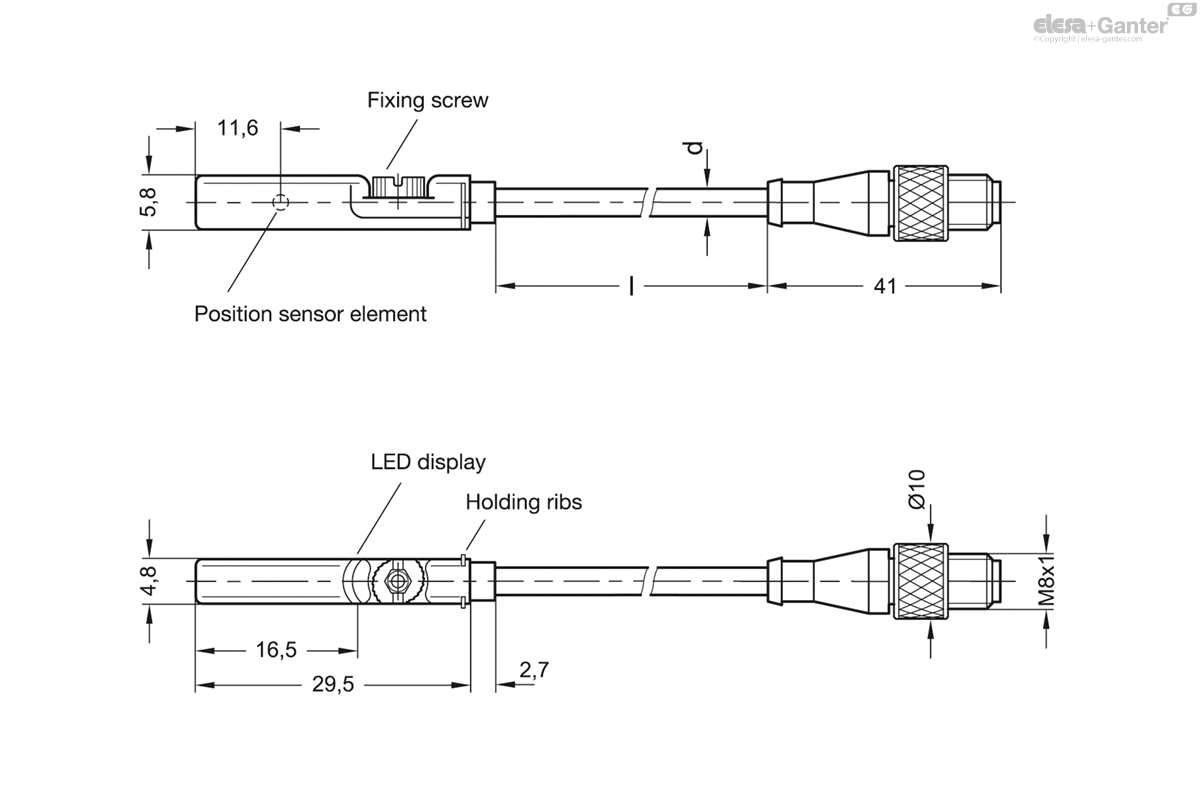

	Cable length l in m	d
Code				Actions
GN 3380-T-S-0,3	0.3	3	14
