GN 337

Hinges

Detachable / Zinc Die Casting / Stainless Steel

Enquire Now

Description

Specification

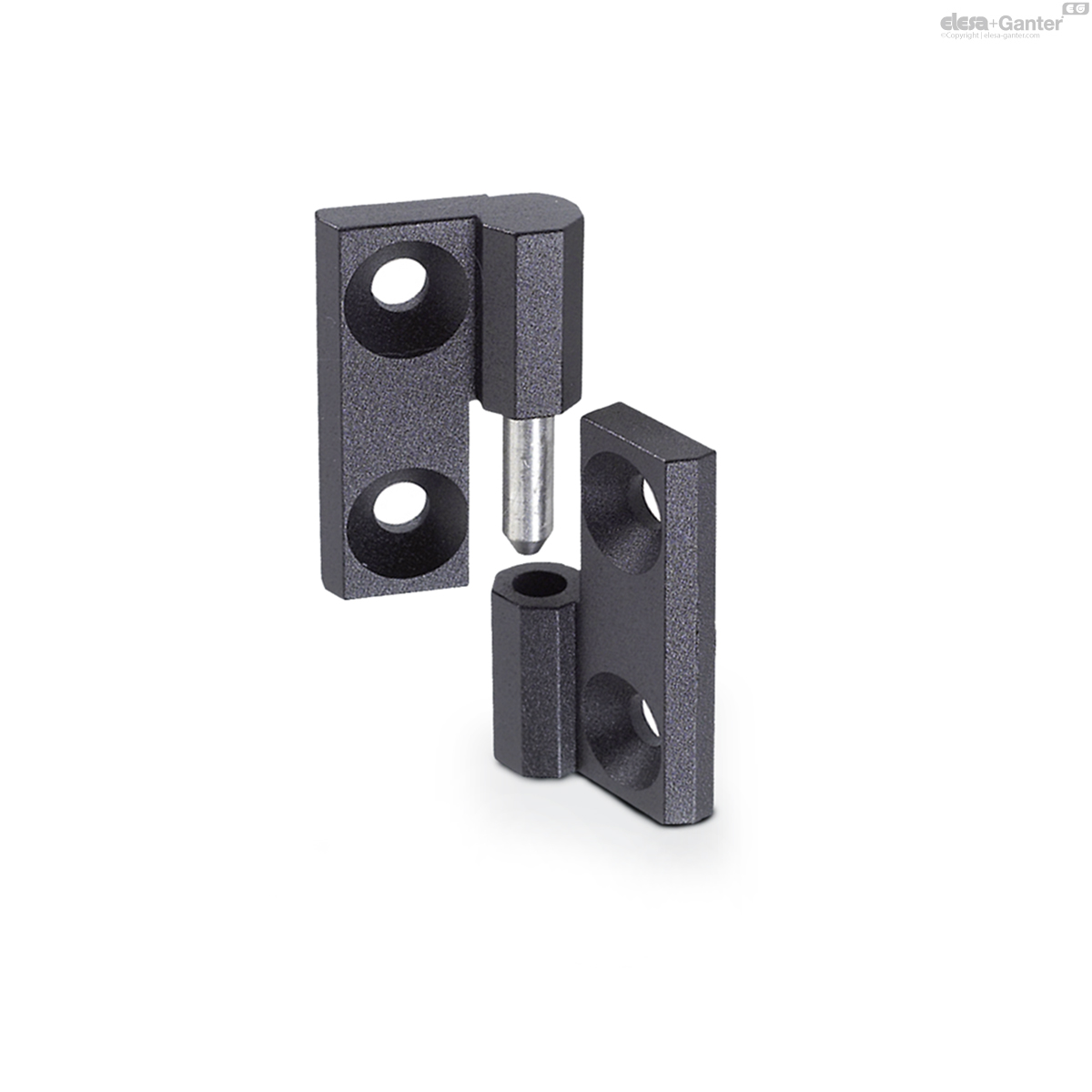

Zinc die casting

plastic coated

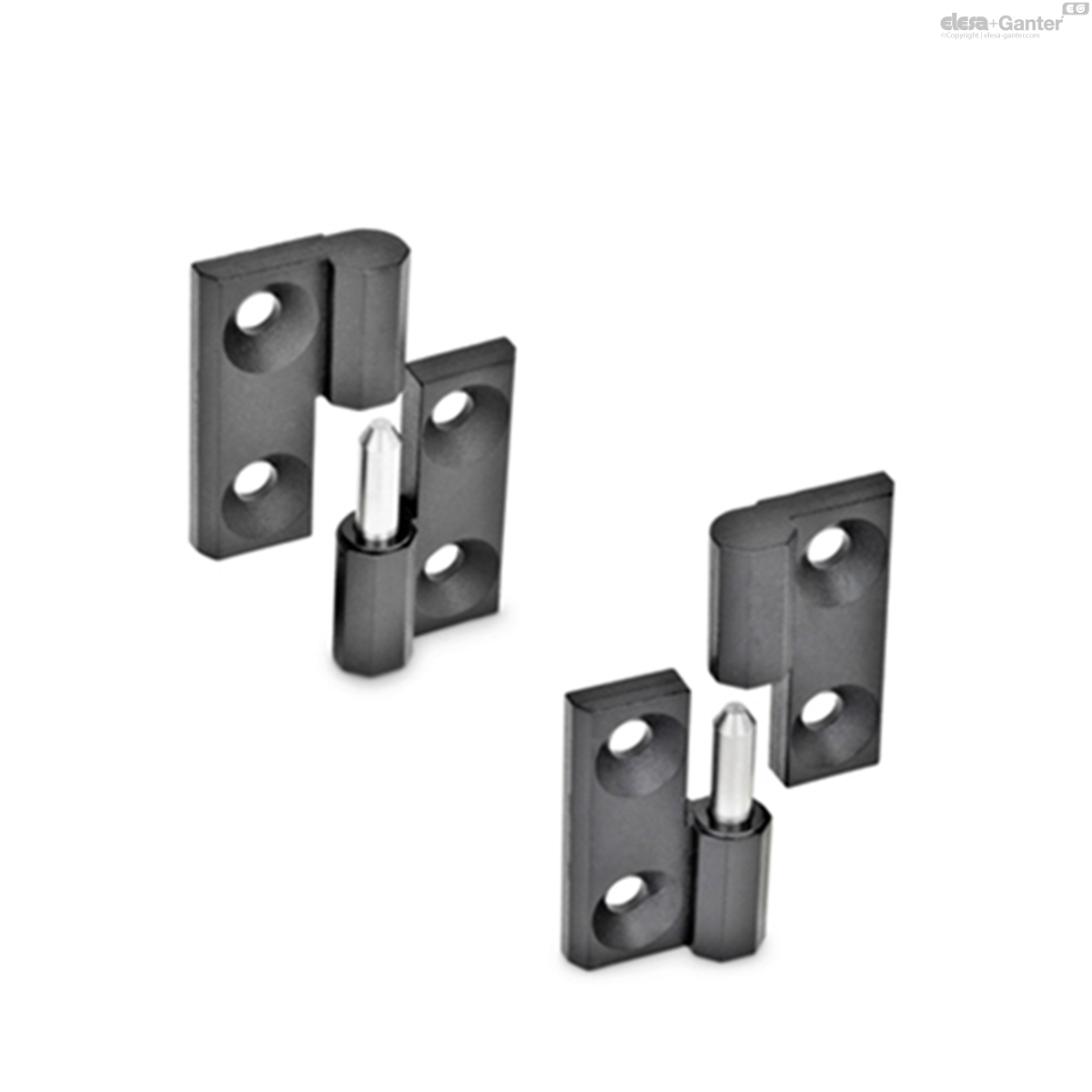

black, RAL 9005, textured finish SW

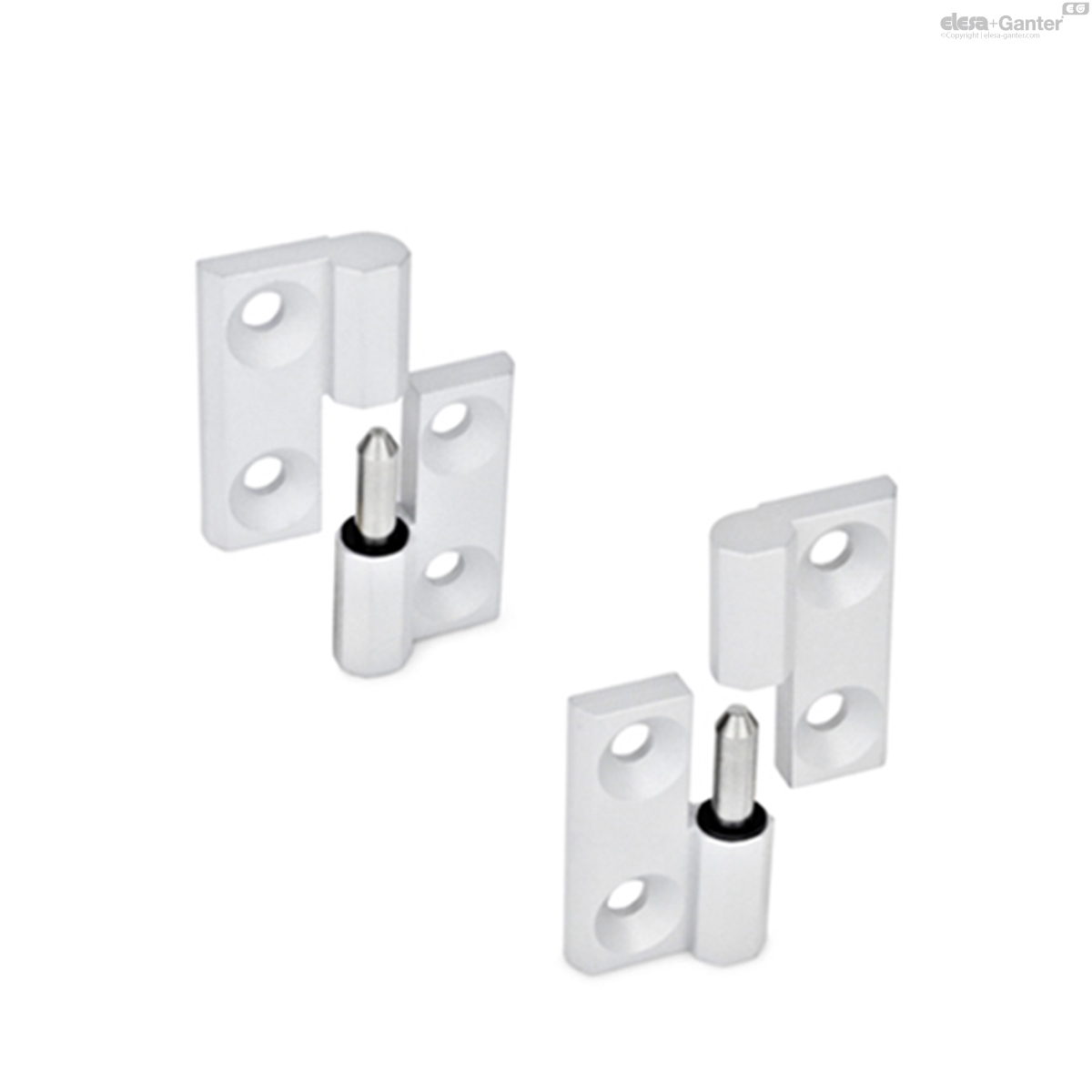

silver, RAL 9006, textured finish SR

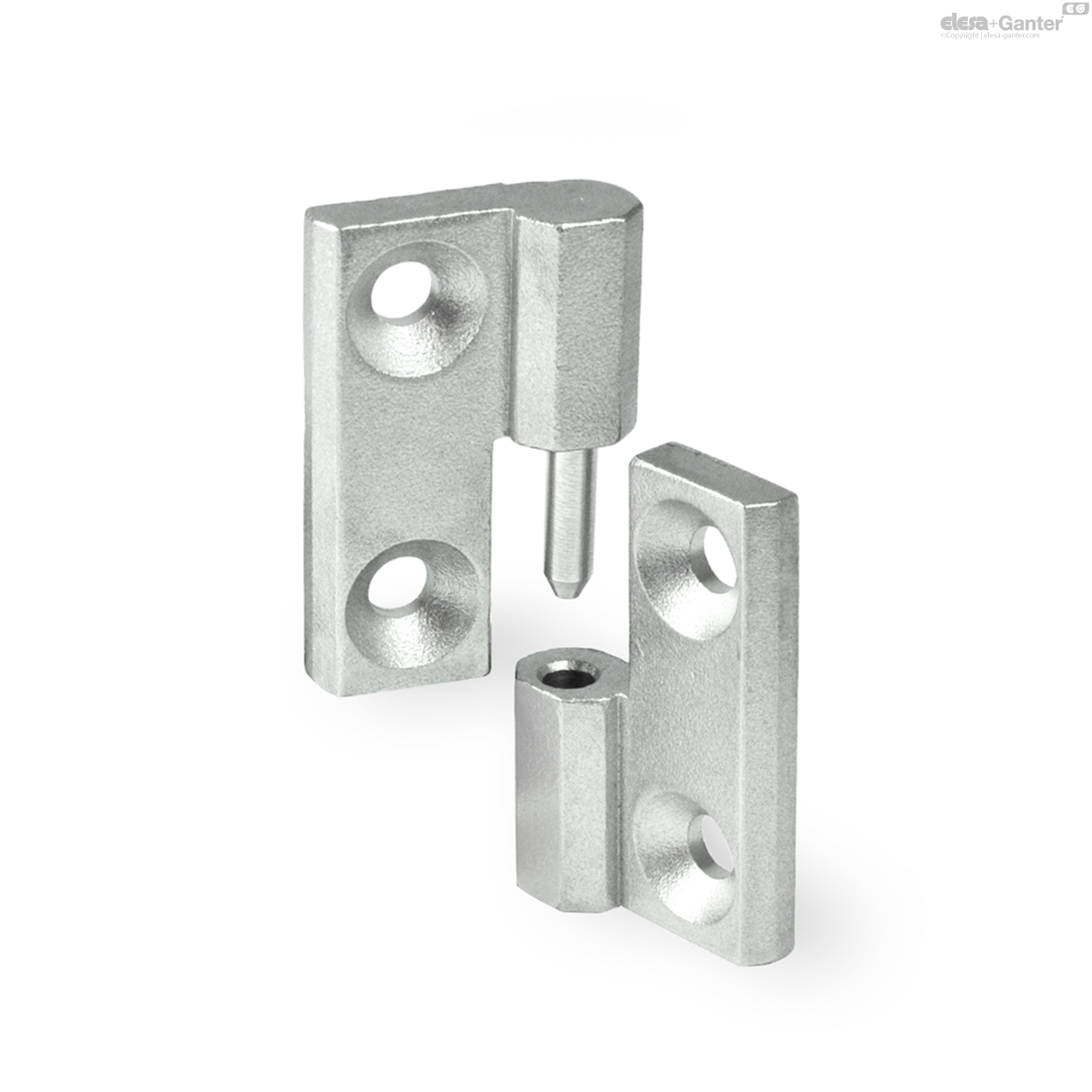

Stainless Steel AISI CF-8

matt shot-blasted GS

Stainless Steel AISI 303

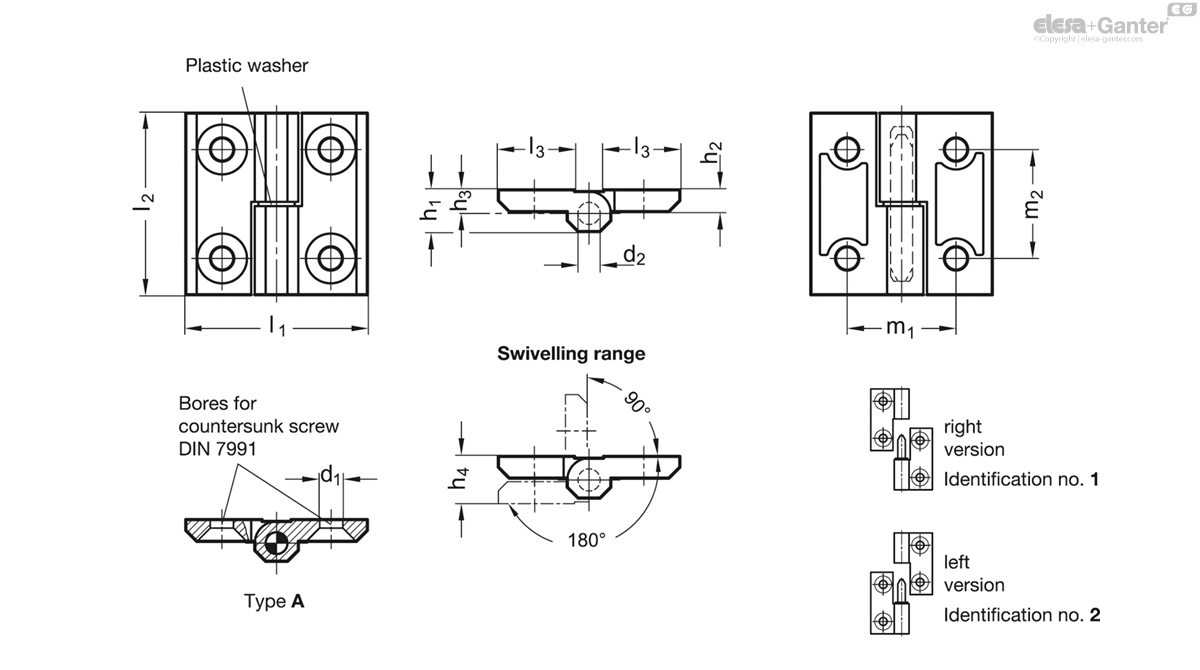

Technical information

	Color	l₁	l₂	d₁	d₂	h₁	h₂	h₃	h₄ +0.5	l₃	m₁	m₂
Code														Actions
GN 337-ZD-40-40-A-1-SR	SR - RAL 9006	40	40	5.3	4	9	5	5.5	11	16	25	25	40
GN 337-ZD-40-40-A-1-SW	SW - RAL 9004	40	40	5.3	4	9	5	5.5	11	16	25	25	44
GN 337-ZD-40-40-A-2-SR	SR - RAL 9006	40	40	5.3	4	9	5	5.5	11	16	25	25	42
GN 337-ZD-40-40-A-2-SW	SW - RAL 9004	40	40	5.3	4	9	5	5.5	11	16	25	25	42
GN 337-ZD-50-50-A-1-SR	SR - RAL 9006	50	50	6.4	6	11.5	6	6.5	13	21	30	30	84
GN 337-ZD-50-50-A-1-SW	SW - RAL 9004	50	50	6.4	6	11.5	6	6.5	13	21	30	30	85
GN 337-ZD-50-50-A-2-SR	SR - RAL 9006	50	50	6.4	6	11.5	6	6.5	13	21	30	30	85
GN 337-ZD-50-50-A-2-SW	SW - RAL 9004	50	50	6.4	6	11.5	6	6.5	13	21	30	30	85
GN 337-ZD-60-60-A-1-SR	SR - RAL 9006	60	60	8.3	8	15	8	8.5	17	26	36	36	150
GN 337-ZD-60-60-A-1-SW	SW - RAL 9004	60	60	8.3	8	15	8	8.5	17	26	36	36	159
GN 337-ZD-60-60-A-2-SR	SR - RAL 9006	60	60	8.3	8	15	8	8.5	17	26	36	36	160
GN 337-ZD-60-60-A-2-SW	SW - RAL 9004	60	60	8.3	8	15	8	8.5	17	26	36	36	159
