GN 334.1

Oval Tubular Handles

Tube Aluminum, Handle Legs Zinc Die Casting, Mounting from the Operator‘s Side

Enquire Now

Description

Specification

Handle tube

Aluminum

Powder coated

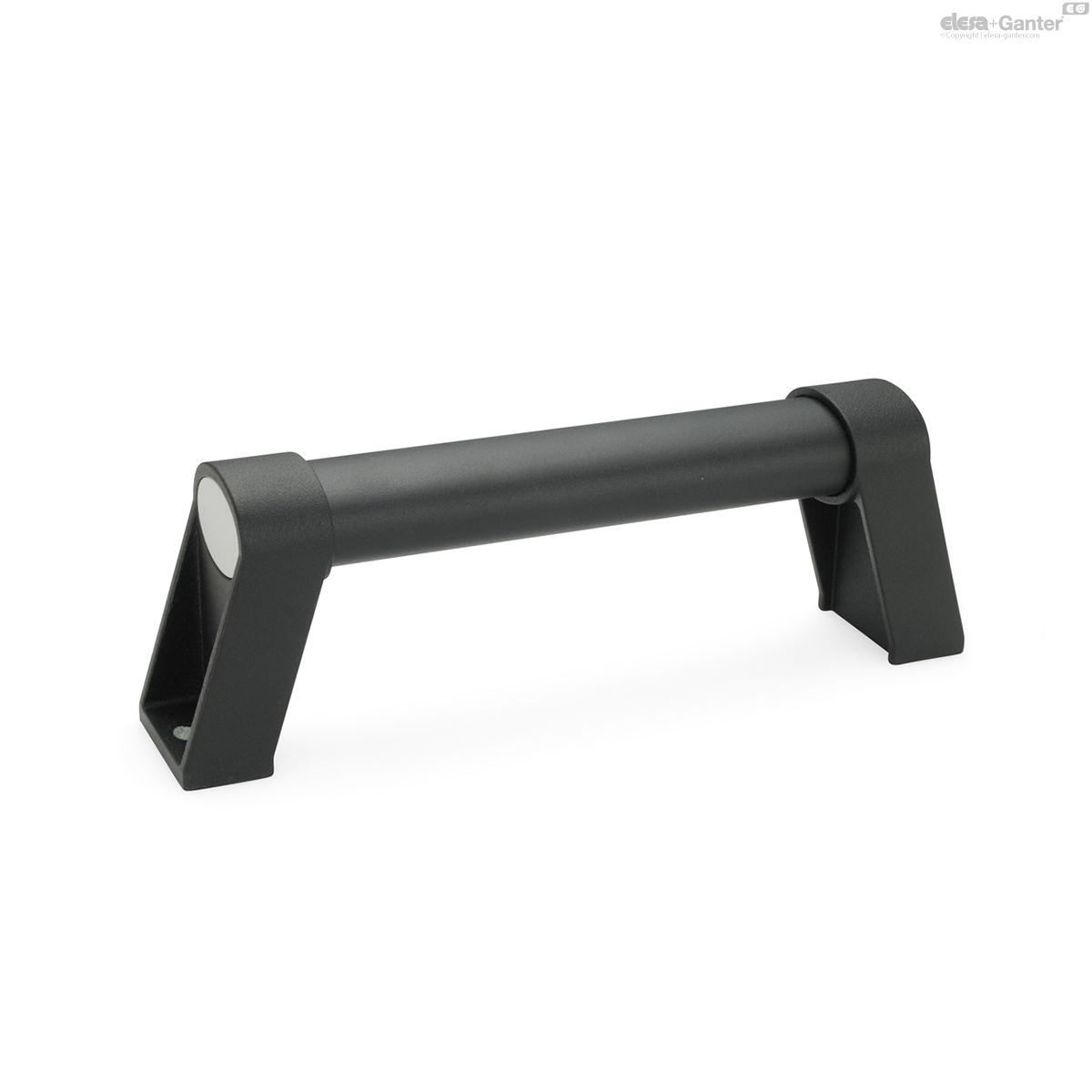

Black, RAL 9005, textured finish SW

Handle legs black

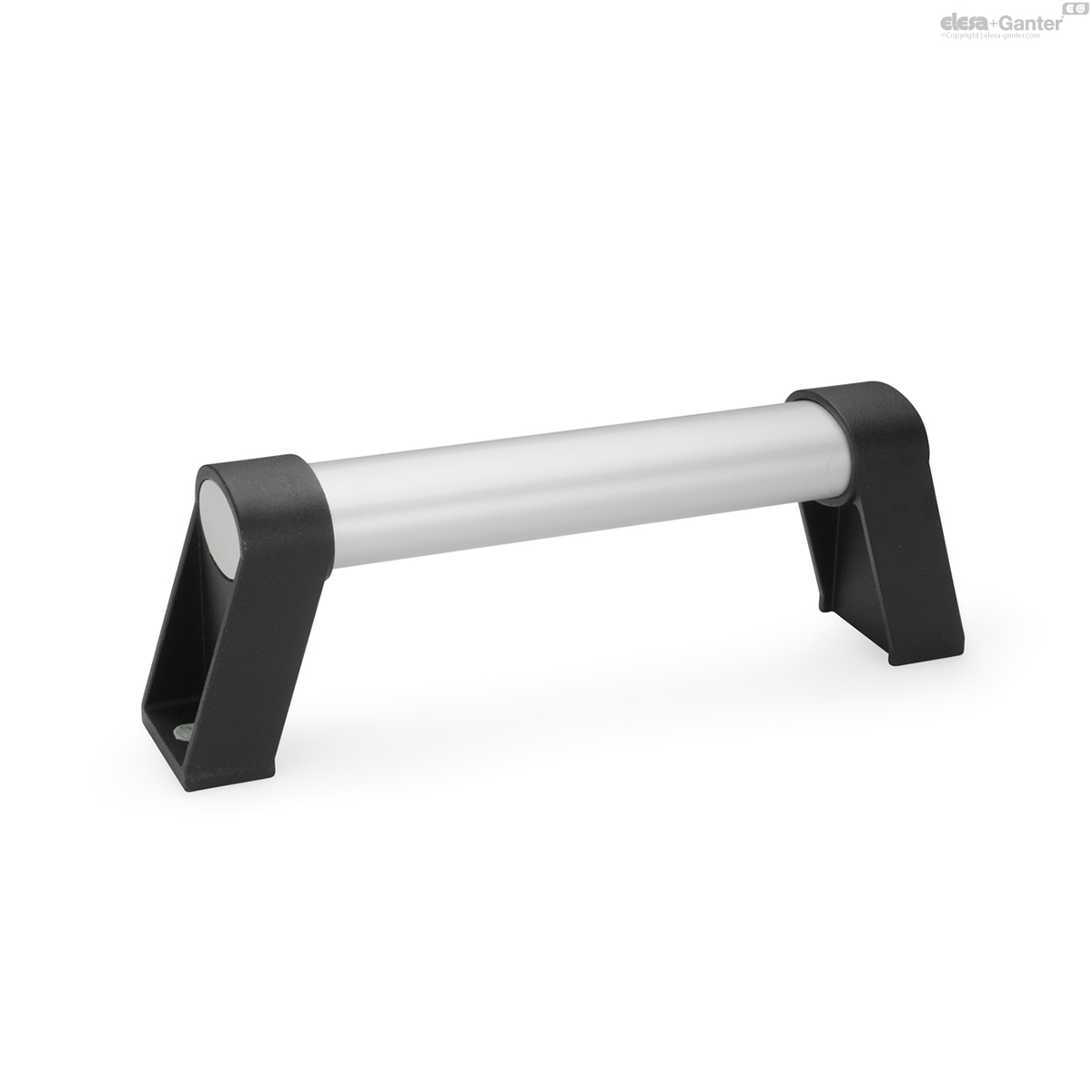

Anodized, natural color EL

Handle legs black

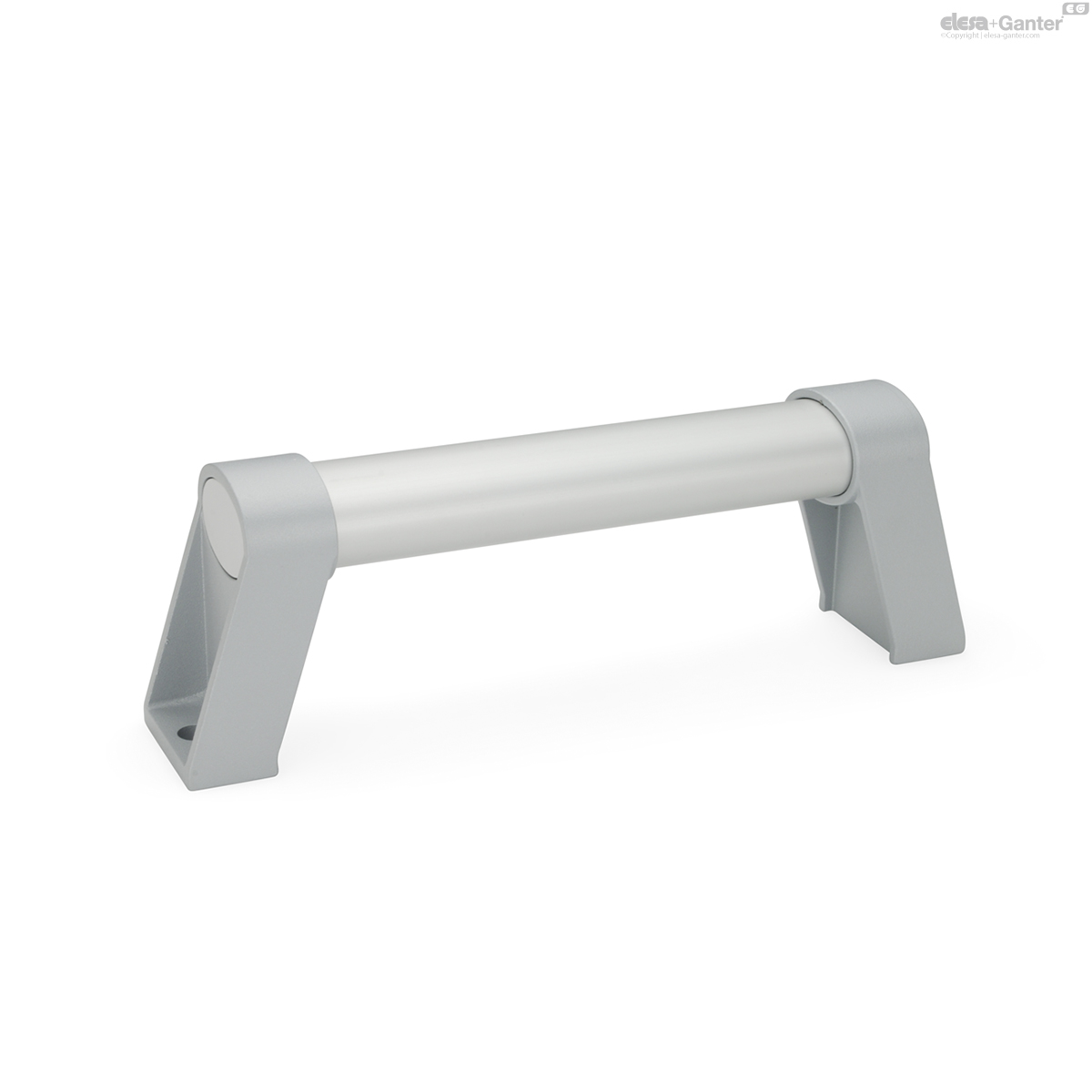

Anodized, natural color ES

Handle legs silver

Handle legs

Zinc die casting

Powder coated, textured finish

Black, RAL 9005 for SW / EL

Silver, RAL 9006 for ES

Cover

Plastic, light gray

Information

Oval tubular handles GN 334.1 are highly stable.

The handle tube can be mounted without any further machining, allowing special lengths to be realised easily.

Technical information

Load Rating Information

GN 334.1

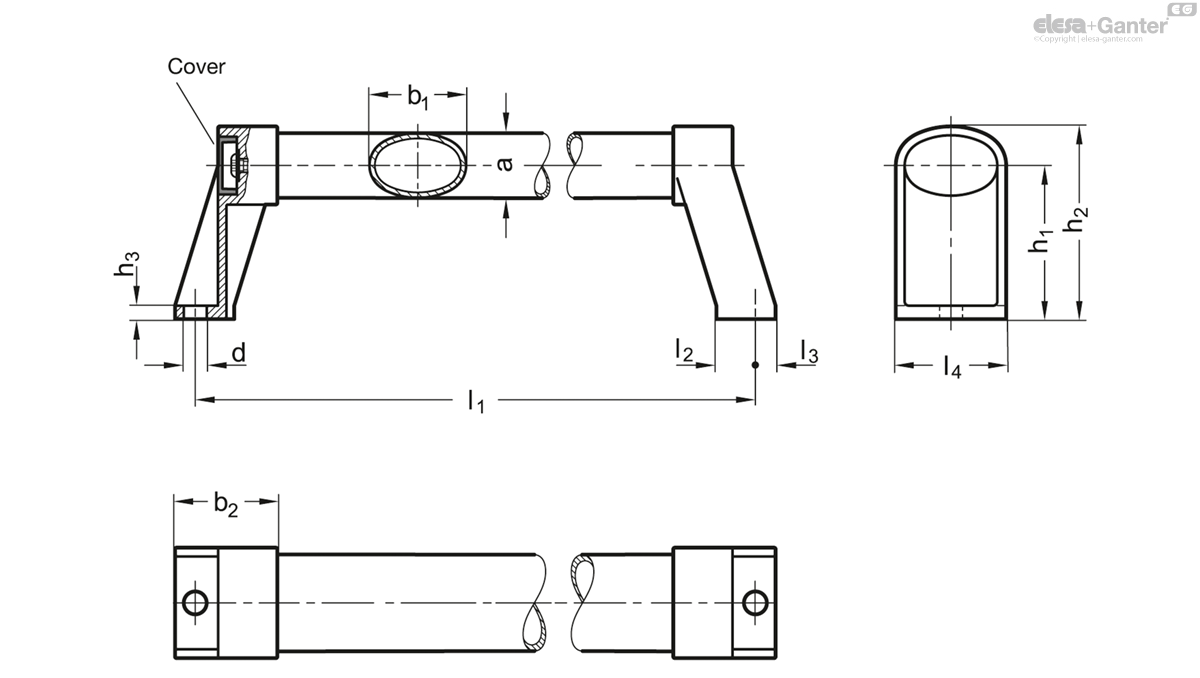

	Color	b₁	l₁ ±0.5	a	b₂	d	h₁	h₂	h₃	l₂	l₃	l₄
Code														Actions
GN 334.1-36-200-EL	EL - Anodized, natural color	36	200	24	38	8.5	57	72	5	14.5	7.5	41	440
GN 334.1-36-200-ES	ES - Anodized, natural color	36	200	24	38	8.5	57	72	5	14.5	7.5	41	440
GN 334.1-36-200-SW	SW - RAL 9005	36	200	24	38	8.5	57	72	5	14.5	7.5	41	440
GN 334.1-36-250-EL	EL - Anodized, natural color	36	250	24	38	8.5	57	72	5	14.5	7.5	41	460
GN 334.1-36-250-ES	ES - Anodized, natural color	36	250	24	38	8.5	57	72	5	14.5	7.5	41	460
GN 334.1-36-250-SW	SW - RAL 9005	36	250	24	38	8.5	57	72	5	14.5	7.5	41	460
GN 334.1-36-300-EL	EL - Anodized, natural color	36	300	24	38	8.5	57	72	5	14.5	7.5	41	522
GN 334.1-36-300-ES	ES - Anodized, natural color	36	300	24	38	8.5	57	72	5	14.5	7.5	41	522
GN 334.1-36-300-SW	SW - RAL 9005	36	300	24	38	8.5	57	72	5	14.5	7.5	41	522
GN 334.1-36-350-EL	EL - Anodized, natural color	36	350	24	38	8.5	57	72	5	14.5	7.5	41	600
GN 334.1-36-350-ES	ES - Anodized, natural color	36	350	24	38	8.5	57	72	5	14.5	7.5	41	600
GN 334.1-36-350-SW	SW - RAL 9005	36	350	24	38	8.5	57	72	5	14.5	7.5	41	600
GN 334.1-36-400-EL	EL - Anodized, natural color	36	400	24	38	8.5	57	72	5	14.5	7.5	41	620
GN 334.1-36-400-ES	ES - Anodized, natural color	36	400	24	38	8.5	57	72	5	14.5	7.5	41	620
GN 334.1-36-400-SW	SW - RAL 9005	36	400	24	38	8.5	57	72	5	14.5	7.5	41	620
GN 334.1-36-500-EL	EL - Anodized, natural color	36	500	24	38	8.5	57	72	5	14.5	7.5	41	700
GN 334.1-36-500-ES	ES - Anodized, natural color	36	500	24	38	8.5	57	72	5	14.5	7.5	41	700
GN 334.1-36-500-SW	SW - RAL 9005	36	500	24	38	8.5	57	72	5	14.5	7.5	41	700
GN 334.1-36-600-EL	EL - Anodized, natural color	36	600	24	38	8.5	57	72	5	14.5	7.5	41	780
GN 334.1-36-600-ES	ES - Anodized, natural color	36	600	24	38	8.5	57	72	5	14.5	7.5	41	780
GN 334.1-36-600-SW	SW - RAL 9005	36	600	24	38	8.5	57	72	5	14.5	7.5	41	780
GN 334.1-36-800-EL	EL - Anodized, natural color	36	800	24	38	8.5	57	72	5	14.5	7.5	41	960
GN 334.1-36-800-ES	ES - Anodized, natural color	36	800	24	38	8.5	57	72	5	14.5	7.5	41	960
GN 334.1-36-800-SW	SW - RAL 9005	36	800	24	38	8.5	57	72	5	14.5	7.5	41	960
