GN 333.9
Handle Legs
Zinc Die Casting, for Tubular Handles Ø 28, Straight
Description
Specification
Type
- Type A: Mounting from the back (threaded blind bore)
Handle leg
Zinc die casting
Powder coated

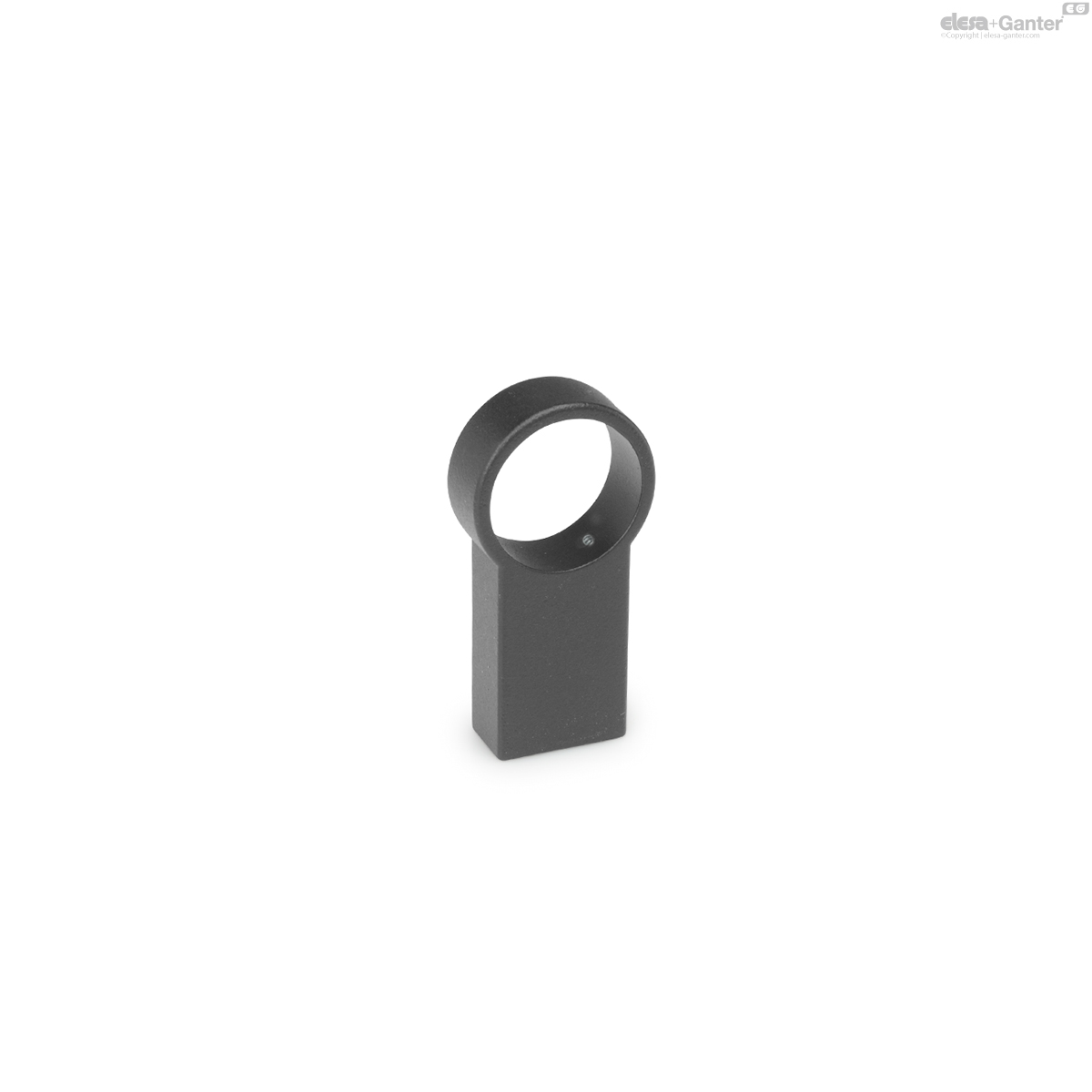

- Black, RAL 9005, textured finish SW

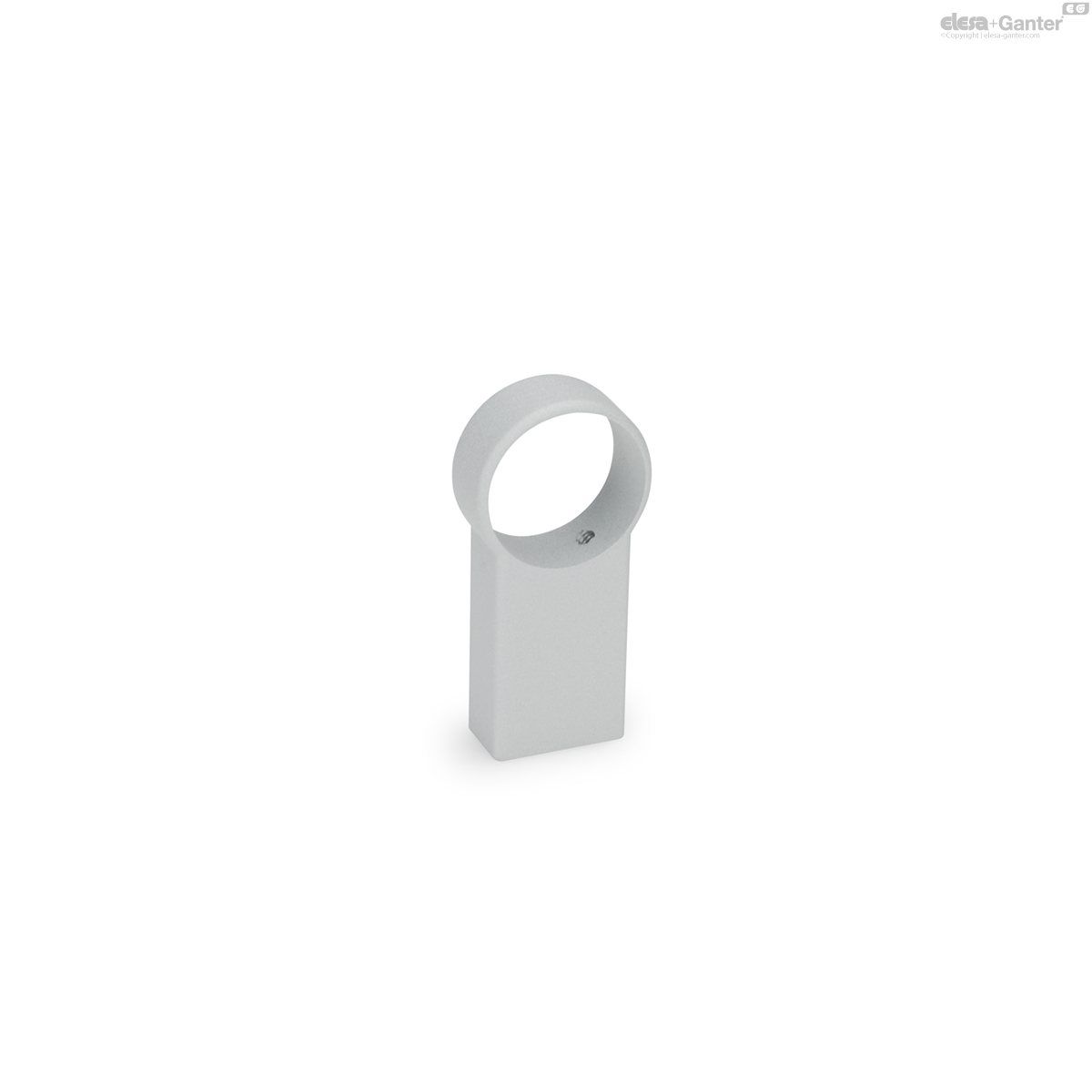

- Silver, RAL 9006, textured finish SR
Grub screw with plastic pivot
GN 913.3Â -M4-6-KU
Steel, blackened
Information
Handle legs GN 333.9 can be used for longer tubes or higher loads of tubular handles.
They can be used for tube Ø 28 of the tubular handles GN 333, GN 333.1, GN 333.2and GN 333.3.
GN 333.9

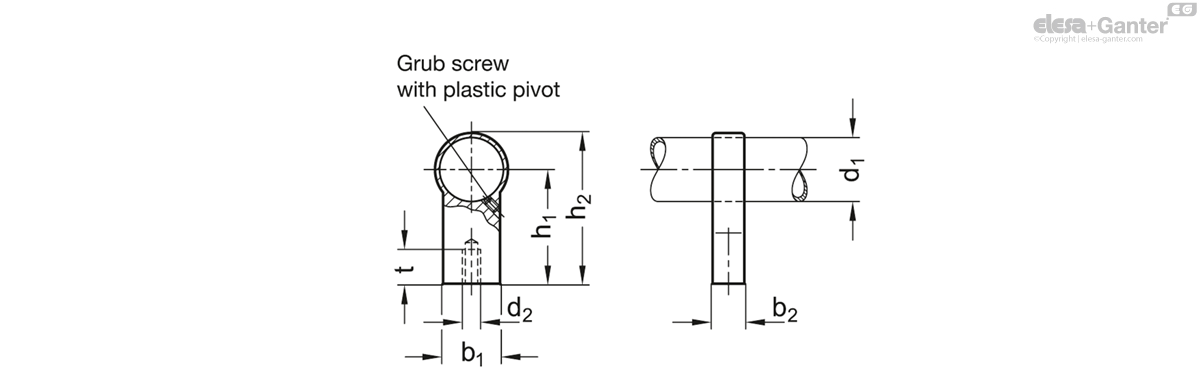

| Color |  |
d1 | d2 | b1 | b2 | h1 | h2 | t min. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 333.9-28-A-SR | SR - RAL 9006 | 88 | 28 | M 8 | 25 | 14 | 50 | 66 | 15 |
|
| GN 333.9-28-A-SW | SW - RAL 9005 | 88 | 28 | M 8 | 25 | 14 | 50 | 66 | 15 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
