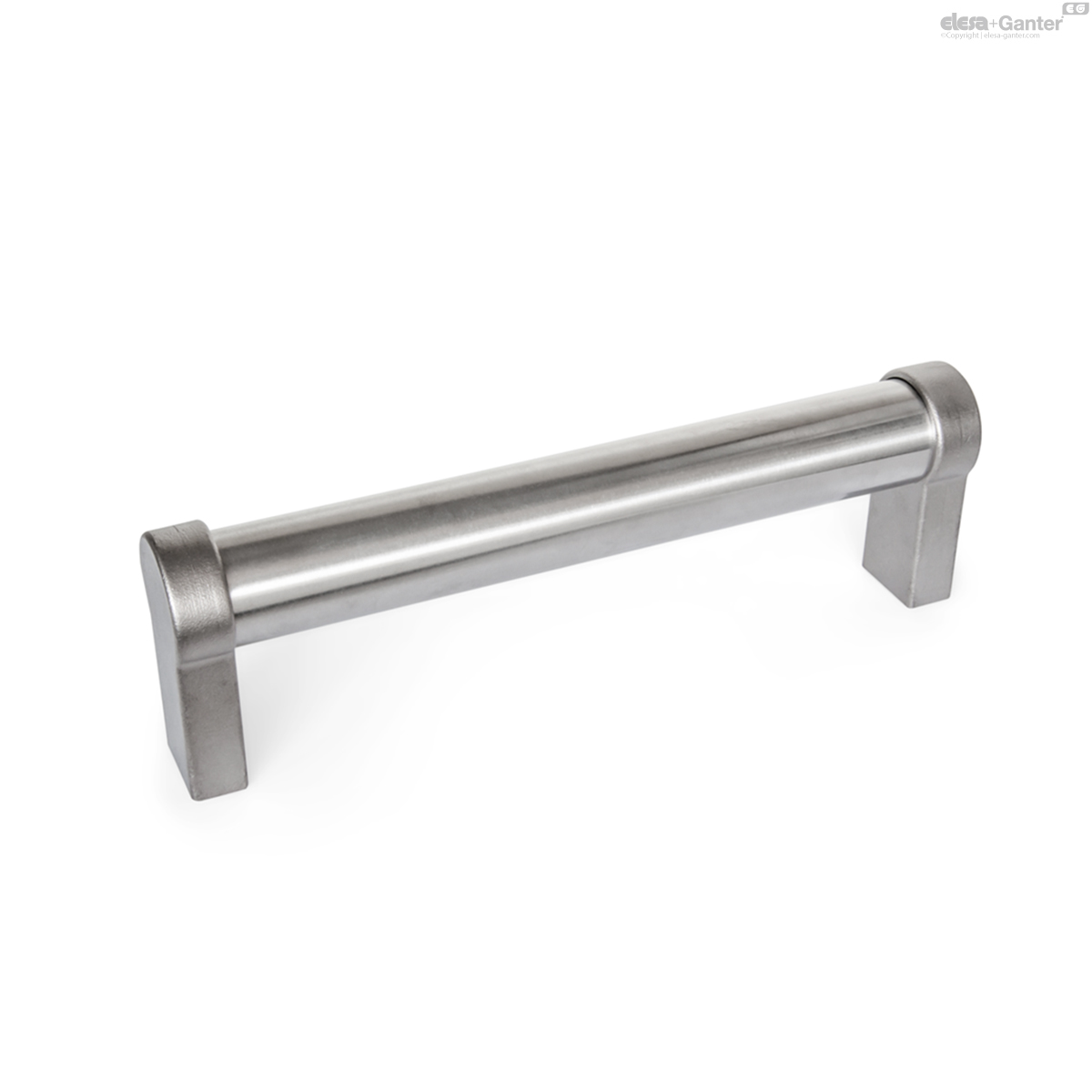

GN 333.7
Tubular Handles
Stainless Steel
Description
Specification
Handle tube
Stainless steel AISI 304, wall thickness 2 mm
Ground, matte shiny finish
Handle legs
Stainless steel precision casting AISI CF-8
Matte shot-blasted
Information
With the tubular handles GN 333.7, the handle legs and the handle tube are pressed together.
Technical information
- Load Rating InformationÂ
- Stainless Steel CharacteristicsÂ
GN 333.7

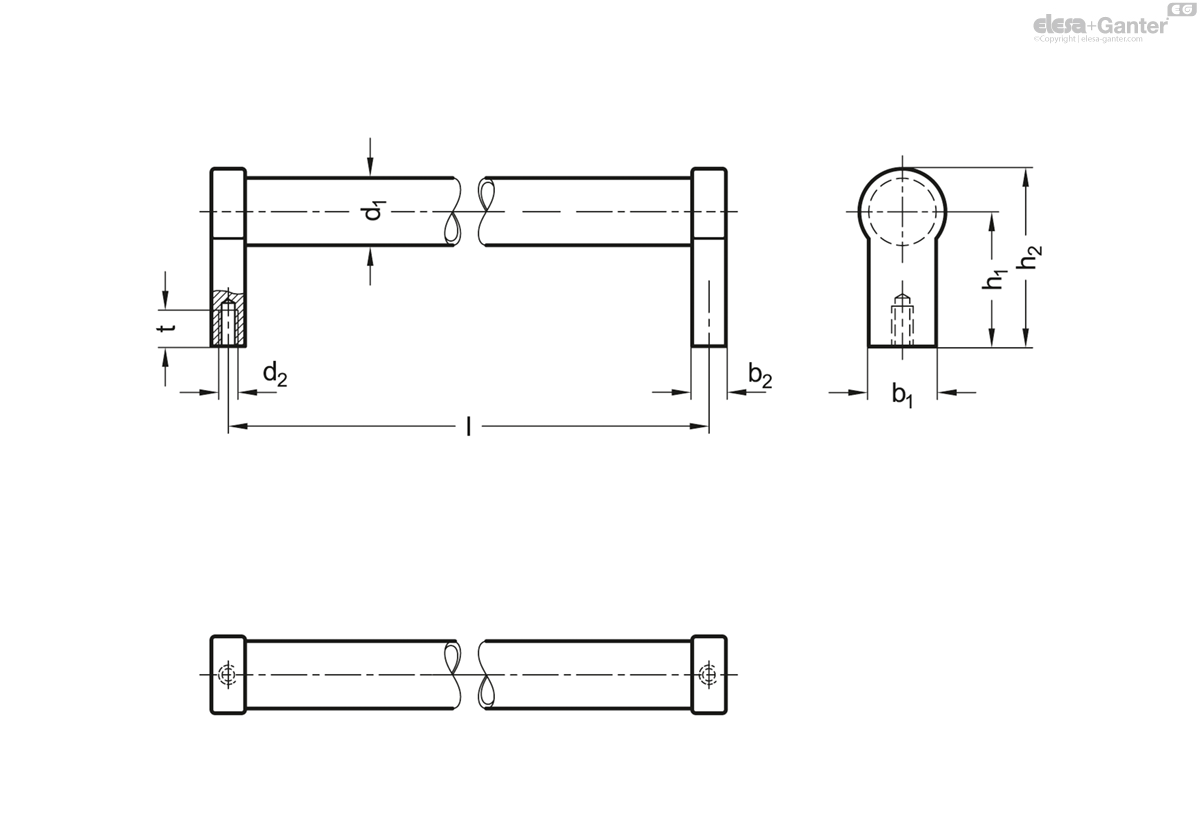

| d1 | l | b1 | b2 | d2 | h1 | h2 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 333.7-28-200 | 28 | 200 | 25 | 14 | M 8 | 50 | 66 | 15 | 514 |
|
| GN 333.7-28-250 | 28 | 250 | 25 | 14 | M 8 | 50 | 66 | 15 | 560 |
|
| GN 333.7-28-300 | 28 | 300 | 25 | 14 | M 8 | 50 | 66 | 15 | 626 |
|
| GN 333.7-28-400 | 28 | 400 | 25 | 14 | M 8 | 50 | 66 | 15 | 766 |
|
| GN 333.7-28-500 | 28 | 500 | 25 | 14 | M 8 | 50 | 66 | 15 | 881 |
|
| GN 333.7-28-600 | 28 | 600 | 25 | 14 | M 8 | 50 | 66 | 15 | 990 |
|
