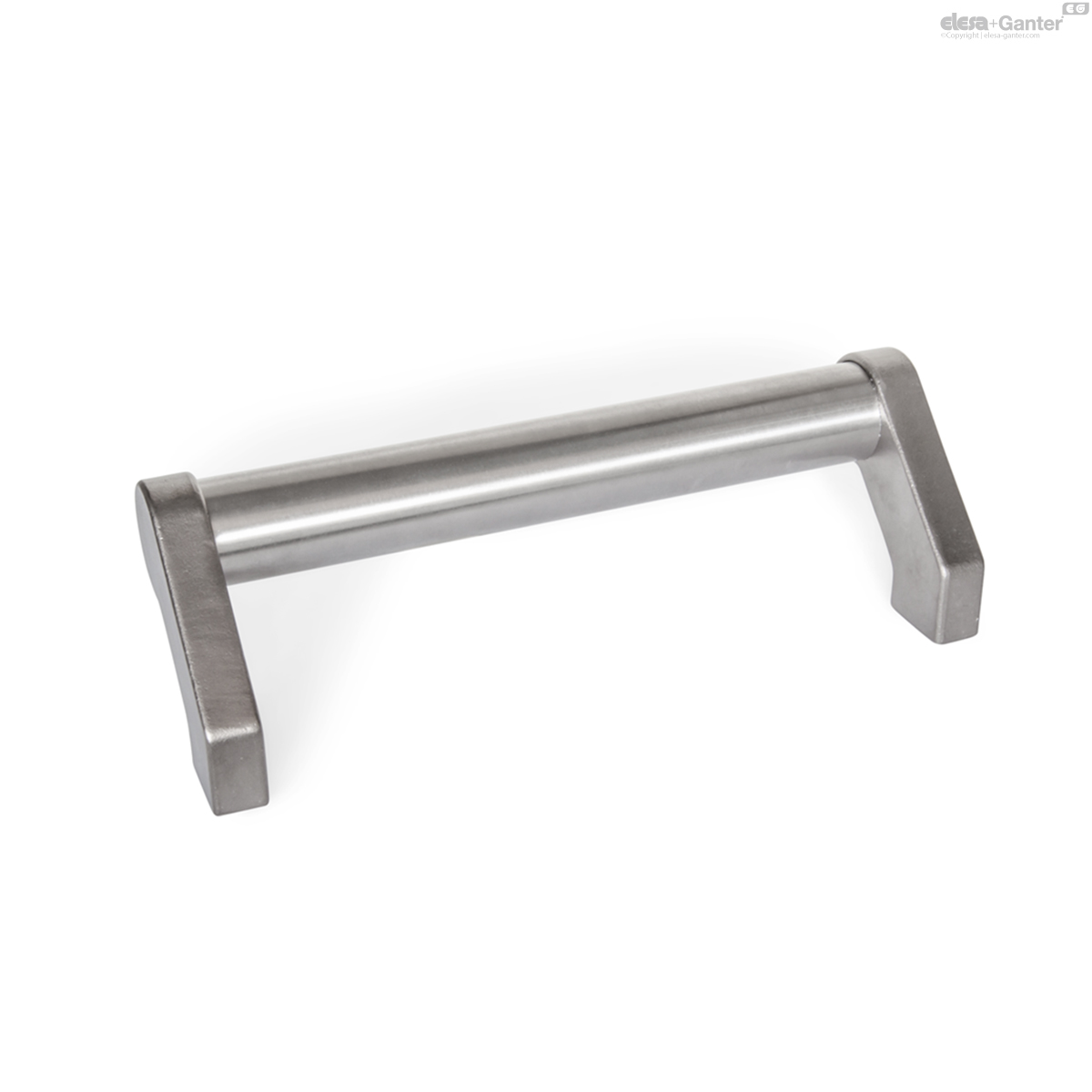

GN 333.6

Tubular Handles

Stainless Steel

Enquire Now

Description

Specification

Stainless steel AISI 304, wall thickness 2 mm

Ground, matte shiny finish

Stainless steel precision casting AISI CF-8

Matte shot-blasted

Information

With the tubular handles GN 333.6, the handle legs and the handle tube are pressed together.

A typical application for tubular handles is on double-winged doors for machines or devices.

Technical information

	d₁	Length l	b₁	b₂	b₃	b₄	d₂	h₁	h₂	t min.
Code												Actions
GN 333.6-28-200	28	200	25	14	50	66	M 8	50	66	15	605
GN 333.6-28-250	28	250	25	14	50	66	M 8	50	66	15	670
GN 333.6-28-300	28	300	25	14	50	66	M 8	50	66	15	730
GN 333.6-28-400	28	400	25	14	50	66	M 8	50	66	15	845
GN 333.6-28-500	28	500	25	14	50	66	M 8	50	66	15	980
GN 333.6-28-600	28	600	25	14	50	66	M 8	50	66	15	1060
